Input Range VAC:600 to 1000 Volts AC

HP:100 Horsepower

Amps:85 Amps

Max. Frequency:1500 Hertz

Braking Type:Flux Injection; Dynamic Braking Transistor Optional (Internal)

Operator Controls:sold separately, see accessories

Mounting:Panel

Dimension (H x W x D):30.5 in x 10.0 in x 11.0 in

Net Weight:250 lb

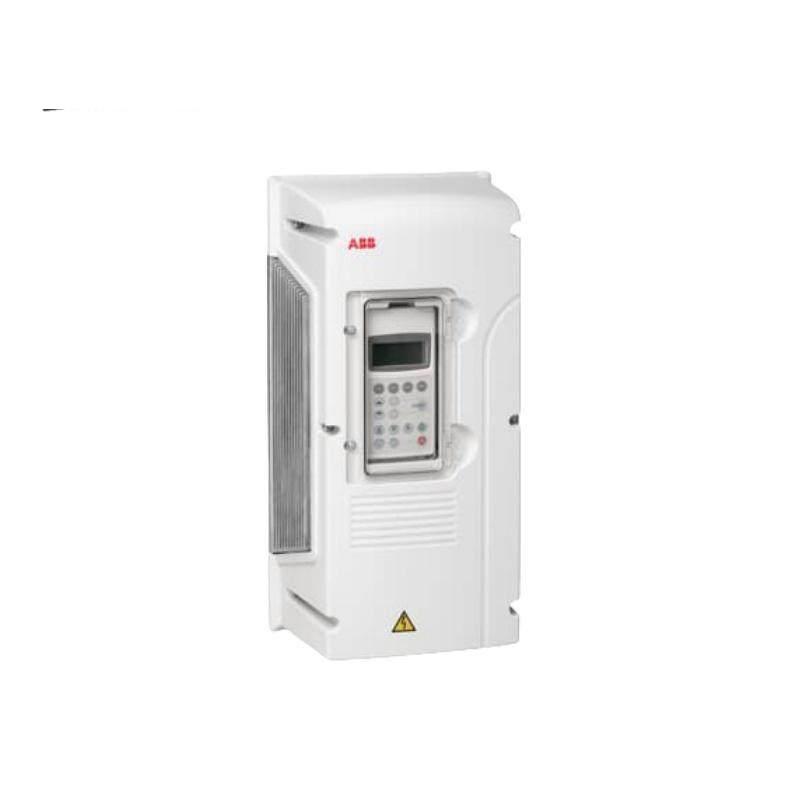

    The ABB ACS800 Series 1-Phase 70HP AC Drive Module is engineered for durability and reliability in demanding industrial environments. This module boasts an advanced control algorithm that ensures smooth and precise speed adjustments across a wide range of operating conditions.

    Featuring a modular design, the ACS800 allows for easy integration into existing systems without compromising on performance. Its robust construction withstands harsh environments, making it suitable for applications in manufacturing, processing, and automation sectors.

    Equipped with fan cooling and soft PWM technology, this drive module optimizes efficiency and reduces maintenance requirements. It communicates seamlessly via Modbus RTU, facilitating easy setup and remote monitoring.

    The ACS800 is designed for ease of use, offering simple commissioning procedures and intuitive interface for operator controls. Its compact size and panel mounting option make installation straightforward, saving valuable space on the factory floor.

    With a power rating of 70 HP, this module is capable of handling a wide array of industrial loads, from heavy machinery to complex process control systems. Its versatility makes it a preferred choice for enhancing operational efficiency and reducing energy consumption.
