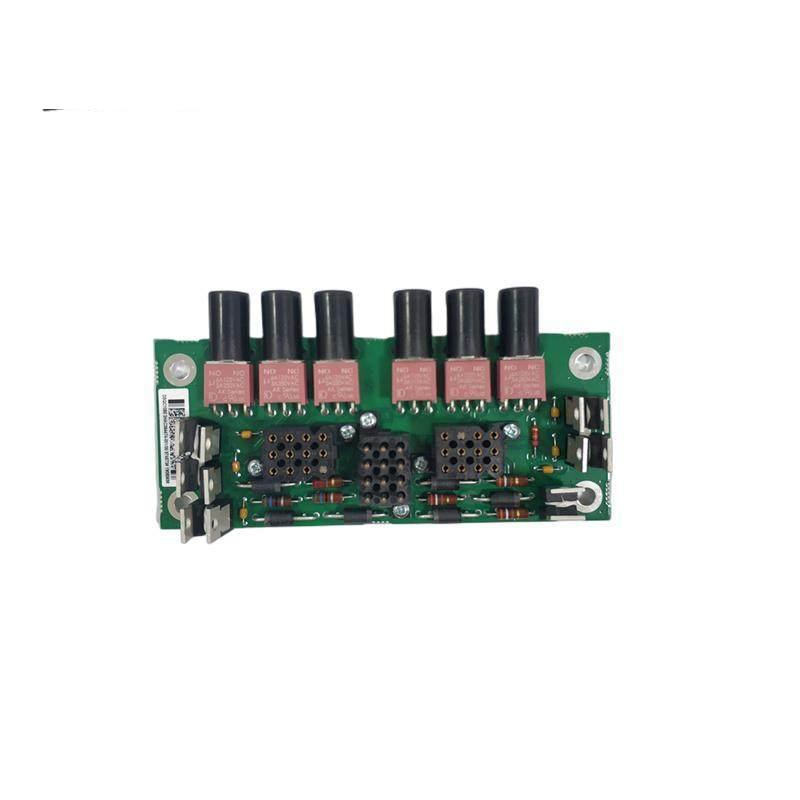

Manufacturer:ABB

Model:DSQC1050

Part Number:3HAC064474-001

Type:Brake Relay Board

Connector Type:3H Series

Rated Voltage:24V DC

Relay Rating:5A/24V DC

Number of Relays:4

Operating Temperature Range:-25°C to +60°C

Storage Temperature Range:-40°C to +85°C

Mounting Type:Panel Mount

Dimensions (WxHxD):55mm x 55mm x 30mm

Weight:0.12kg

Communication Interface:RS232/RS485

Programming Language:LC/FB/LD/SFC/SCL

Compliance:CE, UL

    Engineered for durability and reliability, the ABB DSQC1050 3HAC064474-001 Brake Relay Board integrates seamlessly into complex automation systems, ensuring smooth operation and minimizing downtime.

    With its compact design and robust 4-channel relay system, this board provides precise control over braking processes in various industrial machinery, enhancing operational efficiency and safety.

    Featuring an advanced communication interface compatible with ABB’s programmable logic controllers, the DSQC1050 facilitates seamless data exchange and control, allowing for easy customization to meet specific application needs.

    Designed to withstand harsh industrial environments, the DSQC1050 operates within a wide temperature range, ensuring reliable performance from freezing to hot conditions.

    Comprehensive compliance with international safety standards ensures that the ABB DSQC1050 meets stringent requirements for electrical safety and compatibility, making it a trusted choice for manufacturers worldwide.
