Operating Voltage:DC 24V

Input Range:+4 to +20mA

Accuracy:±0.1% FS

Response Time:≤20ms

Environmental Conditions:-20°C to +60°C

Electrical Isolation:2 kV AC

Current Consumption:≤20 mA

Connection Type:2-wire Transducer

Reliability Rating:MTBF > 100,000 hours

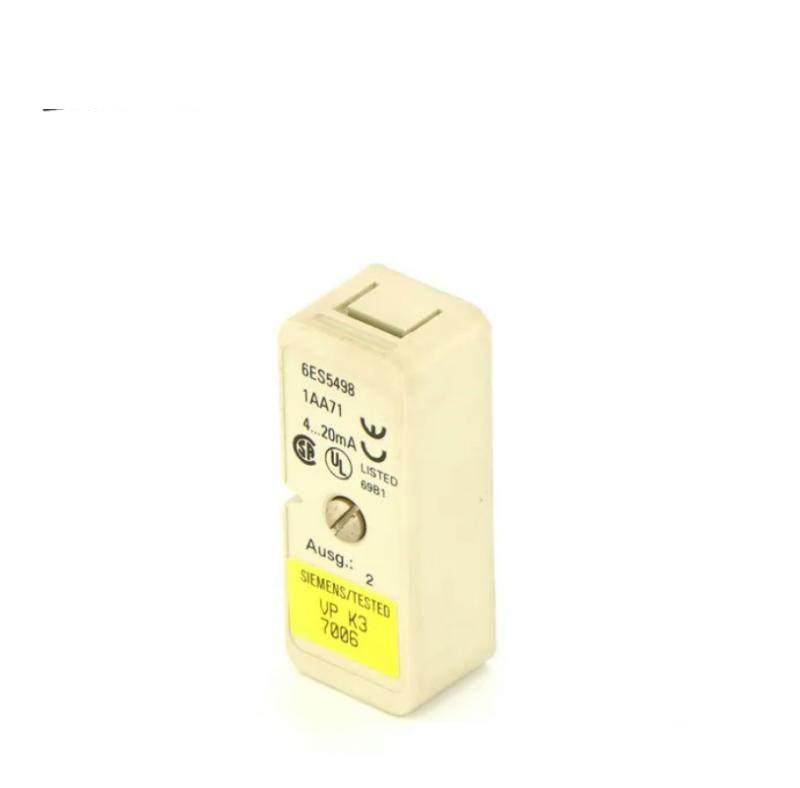

    The SIEMENS 6ES5498-1AA71 Analog Input SubModule is an indispensable component in industrial automation, designed to seamlessly integrate with SIMATIC S5 systems for enhanced process monitoring and control.

    This submodule boasts a robust 12-bit resolution, ensuring accurate and precise signal conversion from physical quantities like temperature, pressure, and flow into digital signals, which are crucial for data processing and analysis.

    Equipped with a wide operating voltage range of 24V DC, it ensures reliable operation under diverse power conditions typically encountered in industrial environments. Its ability to accept analog input signals within the range of +4 to +20mA makes it compatible with a multitude of sensors and transducers.

    Featuring a Profinet communication interface, this submodule facilitates seamless integration with Siemens’ extensive range of PLCs (Programmable Logic Controllers), enabling efficient data exchange and control over industrial processes.

    Withstanding a temperature range of -25°C to +60°C, it is engineered to operate in challenging industrial settings, from freezing cold to moderately hot environments, ensuring consistent performance throughout its lifespan.
