Manufacturing Brand:ABB

Model Number:5SHY6545L0001 AC10272001R0101 5SXE10-0181

Application Area:Industrial Control Systems

Technology Type:IGBT

Operating Temperature Range:-40°C to +125°C

Input Voltage Range:DC 300V to 1200V

Output Current Rating:50A to 100A

Switching Frequency:Up to 20kHz

Efficiency Rating:≥ 97%

Certifications:[“UL”,”CE”,”IEC”]

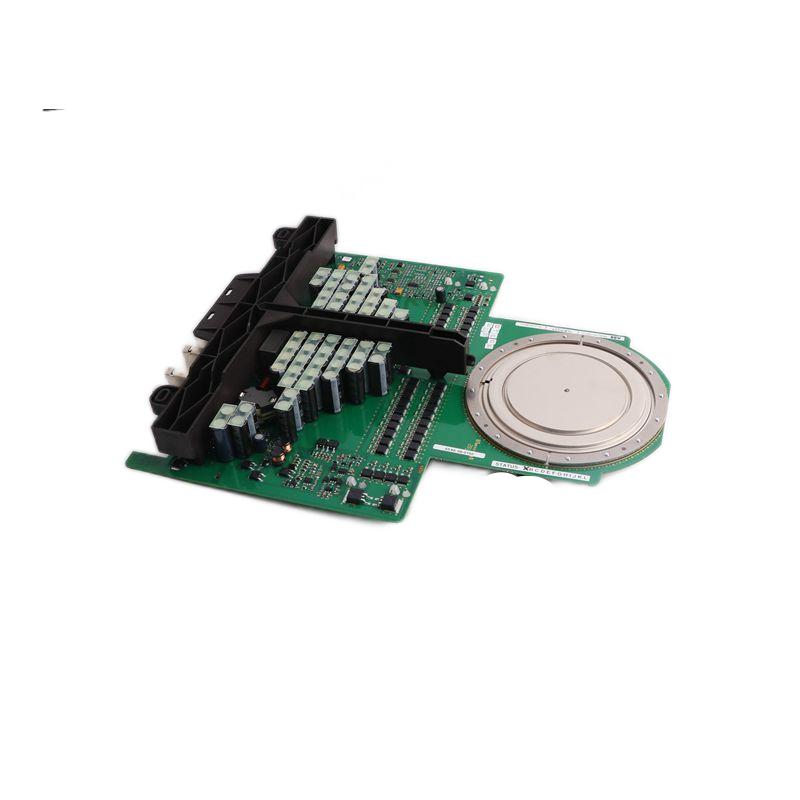

    The ABB IGBT module stands as a testament to cutting-edge technology, combining high-efficiency power switching capabilities with robust thermal management systems. This ensures reliable operation under a wide range of industrial conditions.

    Crafted from high-grade materials, this module is designed for durability and long-term performance, making it an indispensable part of modern industrial control systems. Its compact design facilitates seamless integration into various applications without compromising on performance.

    With an operating temperature range extending from -40°C to +125°C, this module is engineered to withstand extreme environmental conditions, ensuring consistent reliability in diverse industrial settings.

    Featuring an input voltage range of DC 300V to 1200V, this module offers unparalleled flexibility, accommodating a broad spectrum of power requirements across different industrial sectors. Its output current rating spans from 50A to 100A, providing ample power for a variety of applications.

    Equipped with advanced switching frequency capabilities, up to 20kHz, this IGBT module ensures efficient power conversion, leading to improved system performance and reduced energy consumption. Coupled with its efficiency rating of ≥ 97%, this module significantly enhances operational efficiency and sustainability.
