Operating Voltage:380 to 480 VAC

Input Phase:3

Output Power:1 HP

Current Draw:2.4 Amps

Max. Frequency:500 Hz

Braking Type:DC Injection

Dynamic Braking Transistor:Included

Mounting:Panel

Dimensions:12.01 in x 7.68 in x 11.06 in

Net Weight:16 lb

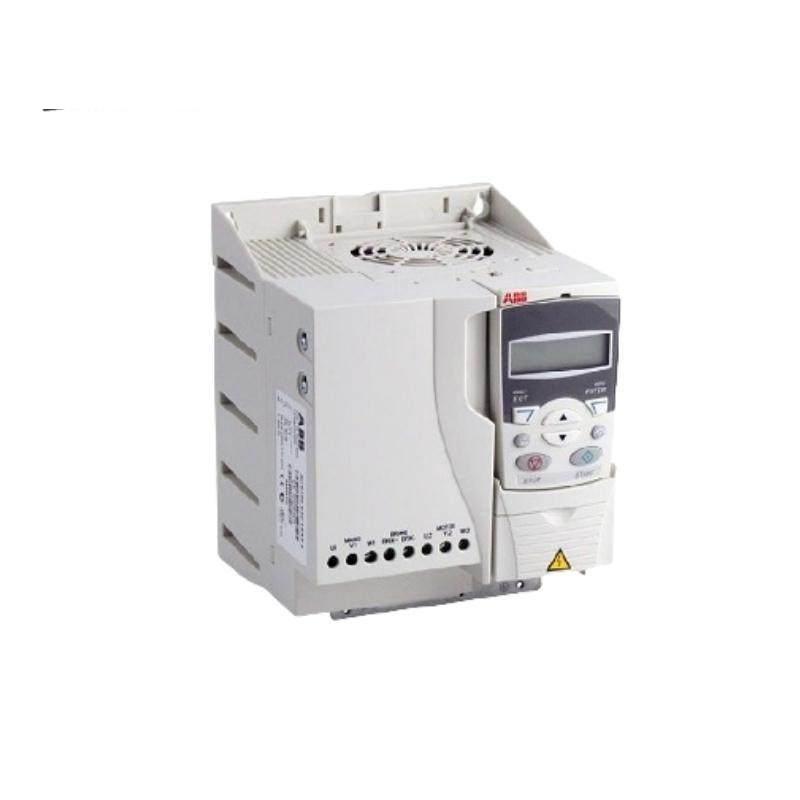

    The ABB ACS350-03E-02A4-4 is engineered for exceptional performance in demanding industrial environments. Its compact design ensures easy integration into existing systems, while its robust construction withstands harsh conditions.

    With its advanced sensorless vector control capability, this drive delivers precise speed control for induction and permanent magnet motors, making it suitable for applications requiring high accuracy and efficiency.

    Safety is paramount with the inclusion of the safe torque off function (SIL3), ensuring reliable operation even in critical situations. This feature, combined with the built-in braking chopper, enhances system stability and safety.

    The ABB ACS350-03E-02A4-4 comes equipped with application macros and panel assistants, streamlining the commissioning process and reducing setup time. This makes it ideal for quick installation in new or retrofit projects.

    Built-in protection against environmental factors, such as dust and water, makes this drive suitable for use in outdoor and industrial settings. The coated boards further extend its durability and reliability under challenging conditions.
