Operating Voltage:24V DC

Output Current Range:0mA to 20mA

Signal Type:4-20mA, 0-20mA, 0-10V, 1-5V

Load Resistance:Max. 600Ω

Communication Interface:RS-485

Power Consumption:Less than 50mW

Environmental Conditions:-25°C to +70°C, IP20

Mounting Style:Panel-Mount

Dimensions:66mm x 102mm x 95mm

Weight:Approx. 0.25kg

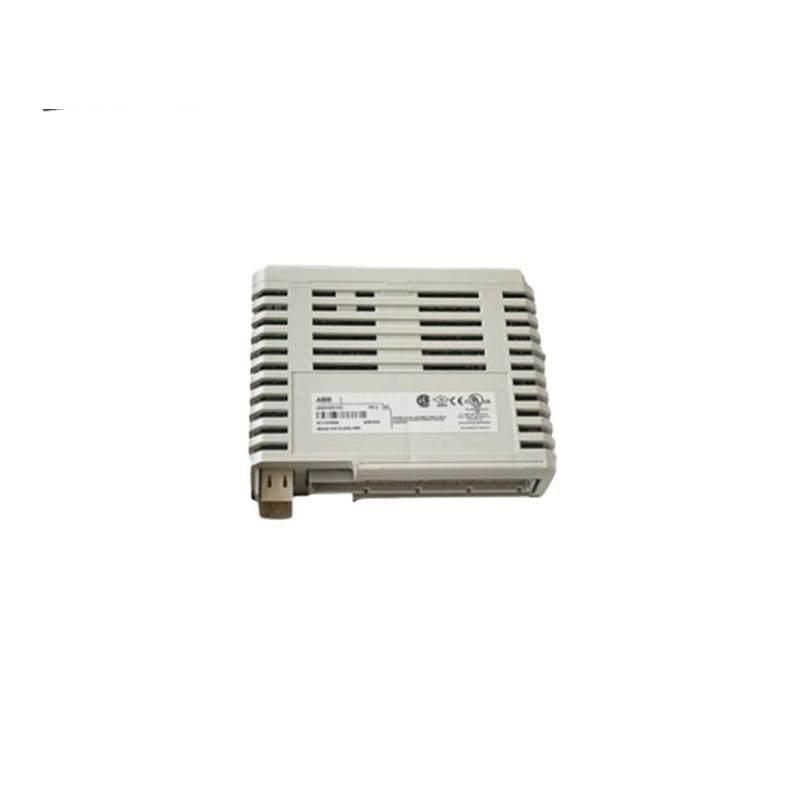

    The ABB DDl01 P3711-4-0369626 Analog Output Module is designed to provide seamless integration into complex industrial automation systems. Its robust construction and high accuracy make it an ideal choice for applications requiring precise control signals.

    Equipped with a wide operating voltage range of 12-24V DC, this module ensures compatibility across various power sources commonly found in industrial environments. Its 0-20mA current range offers flexibility in signal strength adjustments.

    Featuring a 14-bit output resolution, the module delivers exceptional precision, critical for applications demanding high accuracy in signal representation. The module’s temperature tolerance spans from -25°C to +60°C, ensuring reliability in diverse environmental conditions.

    The RS-485 Modbus-RTU communication interface facilitates easy data exchange with other components in the automation system, enhancing overall efficiency and connectivity. With a maximum power consumption of 1W, the module operates efficiently without overloading the system.

    Designed with a terminal block connection type, the ABB DDl01 P3711-4-0369626 is straightforward to install and maintain, minimizing downtime and simplifying system integration. Its compact size of 16mm x 55mm x 50mm and lightweight design (50g) contribute to its portability and ease of use.
