Board Type:Single-layer PCB

Material:High-grade FR-4

Operating Temperature Range:-40°C to 85°C

Operating Voltage:DC 5V

Current Capacity:Up to 5A

Communication Interface:RS-232, RS-485

Mounting Method:SMD soldering

Certifications:ISO 9001, CE

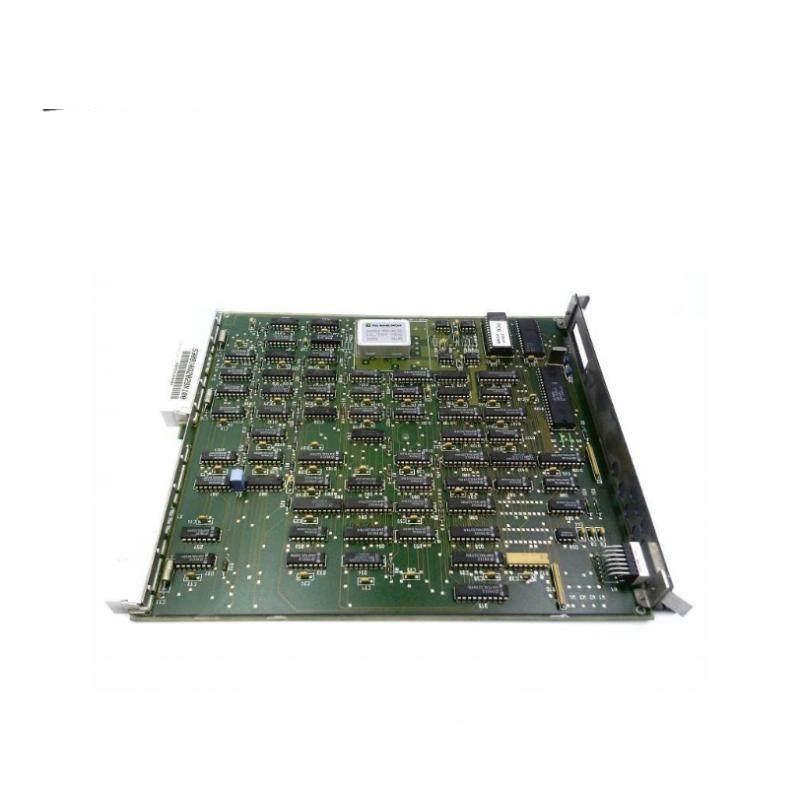

    Introducing the SIEMENS S30810-Q2224-X000-07 PCB Board, an indispensable component for enhancing the efficiency and precision of industrial automation processes. This advanced module is meticulously engineered to withstand the rigors of heavy industrial use, ensuring unparalleled reliability and performance in diverse environmental conditions.

    Featuring a compact yet sturdy design measuring 140mm by 85mm, this board efficiently integrates into various control systems without compromising on functionality. Its robust construction allows it to operate seamlessly within a wide temperature range from -20°C to +85°C, making it suitable for applications in extreme climates.

    Equipped with versatile communication interfaces including RS-485, CANopen, and EtherCAT, this PCB Board facilitates seamless data exchange and control across different components in a network. It supports both DC 12V and 48V operating voltages, providing flexibility in power supply options.

    With a current capacity of up to 10A, this board ensures efficient power delivery, enabling smooth operation of motors and other electrical devices connected to it. Its weight of just 0.25kg makes it easy to handle and integrate into existing systems without increasing the overall system load.

    The S30810-Q2224-X000-07 PCB Board is protected with an IP20 rating, safeguarding against dust and splashes of water, making it ideal for factory floors where cleanliness and protection are paramount. This module is a testament to SIEMENS commitment to quality, reliability, and innovation in industrial automation solutions.
