Model Type:Pulse Counting & Timing Module

ABB Type Designation:NPCT-01C

Input Voltage Range:24 V DC

Number of Channels:2

Output Type:Relay Outputs

Timing Accuracy:+/- 0.1% of setting + 1ms

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions (W x H x D):41 x 264 x 94 mm

Weight:1 kg

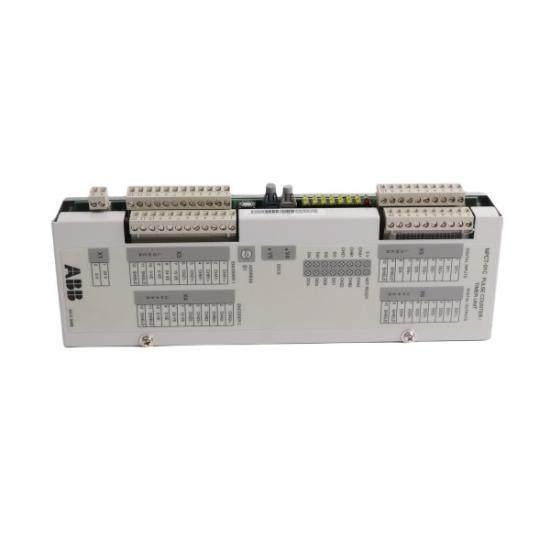

    The ABB NPCT-01C Pulse Counting & Timing Module is engineered for seamless integration into complex industrial automation systems, providing accurate and reliable pulse counting and timing solutions. It is ideal for applications requiring precise measurement of events, such as cycle times, frequency counts, or signal processing.

    With its robust design and wide input voltage range, this module ensures reliability in a variety of industrial environments. The two-channel setup allows for versatile use, accommodating different counting and timing needs within a single system.

    Featuring relay outputs for direct control of actuators or alarms, the NPCT-01C offers a simple yet effective way to manage process control signals. Its timing accuracy, within +/- 0.1% of the setting plus 1ms, ensures that critical operations are executed with precision, enhancing overall system performance.

    Operable across a broad temperature range from -20°C to +70°C, this module is suitable for deployment in harsh industrial conditions without compromising functionality. Its compact size (41 x 264 x 94 mm) and manageable weight (1 kg) facilitate easy installation and space-saving design in modern factories.

    Designed with durability and efficiency in mind, the ABB NPCT-01C Pulse Counting & Timing Module is an indispensable component for any industrial automation project, offering peace of mind through its proven reliability and advanced features.
