Number of Input Channels:4

Input Range:+/- 20mA, 0(4)…20mA, +/-10V, 0(1)…5V, differential

Voltage Supply:24VDC

Power Dissipation:3.5W

Rated Insulation Voltage:50V

Resolution:14-bit

Material:High-grade aluminum alloy

Operating Temperature:-20°C to +60°C

Dimensions:102mm x 19mm x 45mm

Weight:0.3kg

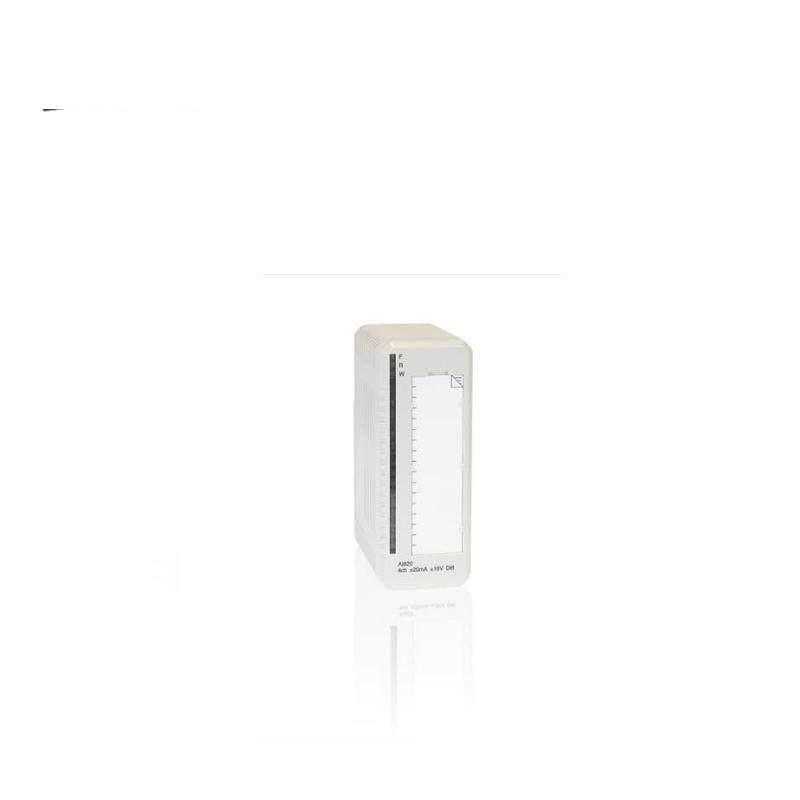

    The ABB AI820 3BSE008544R1 module stands out with its robust design and superior performance, providing precise and reliable data acquisition capabilities. Its compatibility with ABB PLC systems ensures seamless operation within complex industrial control setups.

    Equipped with high-quality materials, this module is engineered to withstand harsh environmental conditions, ensuring longevity and maintenance-free operation. It supports a wide range of applications, from temperature monitoring to process control in various industries.

    Each channel offers an impressive 14-bit resolution, ensuring high accuracy and minimizing measurement errors. This feature is critical for applications requiring precision and consistency, making it an indispensable component in modern industrial automation.

    The ABB AI820 3BSE008544R1 is designed with user-friendliness in mind, boasting an intuitive interface that simplifies setup and configuration processes. It also comes with a comprehensive set of technical documentation, aiding users in maximizing its capabilities and efficiency.

    In terms of isolation, the module provides a rated insulation voltage of 50V, safeguarding against electrical interference and ensuring safety in high-voltage applications. This robust isolation feature further enhances its reliability in diverse industrial settings.
