Backplane Input Quantity:6

Board Description:Digital Signal Processor Control Board

Board Use Mode:Controller for Motor and Bridge Regulation

Functional Acronym/Abbreviation:DSPX

I/O Connector Quantity:3; P6, P1, and P5

LEDs:2, Status and Fault

Onboard Firmware:Application Code, Boot Loader, and Configuration Parameters

Part-Specific Manual:GEI-100267B

Serial Interfaces:Asynchronous TTLs and Five Mb/s ISBus

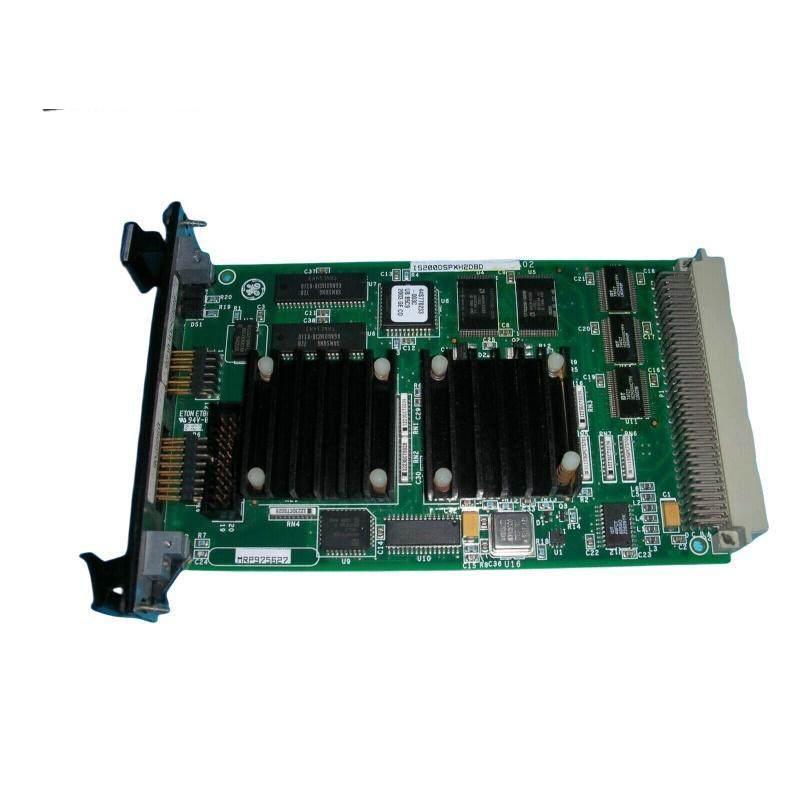

    The GE IS200DSPXH2DBD is a critical component in the advanced Mark VI turbine control systems, engineered to enhance operational efficiency and reliability.

    Featuring an extensive array of inputs and outputs (I/O), this board supports complex control algorithms, ensuring precise motor and bridge regulation.

    Equipped with onboard firmware, the DSPX control board includes application code, boot loader, and configuration parameters tailored for seamless integration and customization.

    The inclusion of two LEDs provides real-time status and fault indications, facilitating quick troubleshooting and maintenance.

    Supporting asynchronous TTLs and a high-speed ISBus interface, the IS200DSPXH2DBD ensures reliable data transfer and system communication, essential for the smooth operation of industrial turbine systems.
