Module Type:Dual HiPak IGBT

Model Number:5SND0800M170100

Power Rating:800A @ 1700V

Cooling Method:Thermal Conduction Cooling

Insulation Class:Class F

Operating Temperature Range:-40°C to +125°C

Input Interface:Opto-isolated digital signals

Control Signals:PWM frequency up to 20 kHz

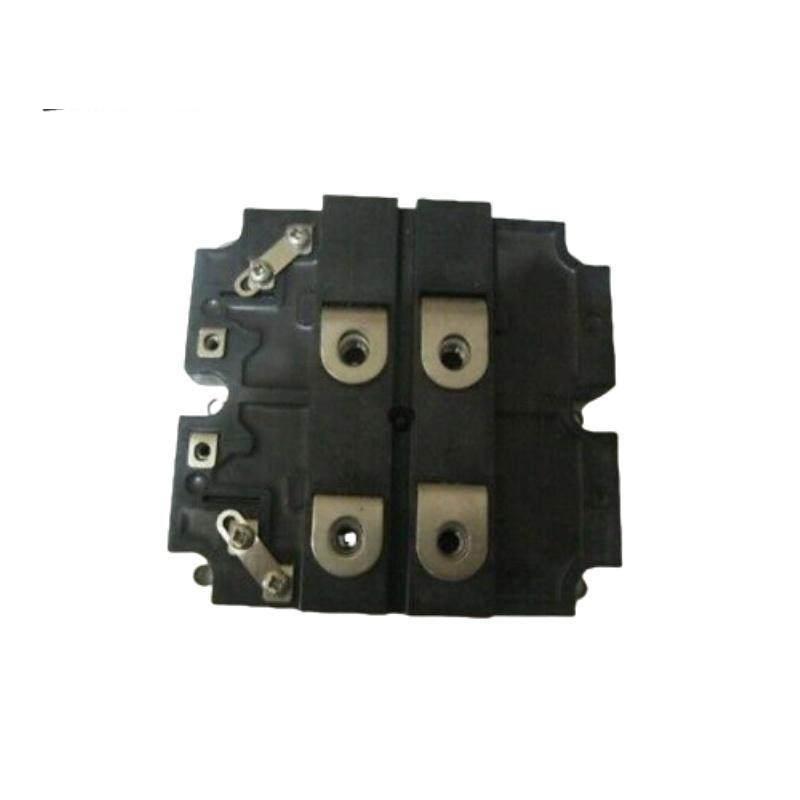

    The ABB 5SND0800M170100 Dual HiPak IGBT Module is engineered to deliver unparalleled performance in industrial automation environments. With its robust design and high-power capabilities, this module ensures seamless integration into complex systems, enhancing operational efficiency and reducing maintenance requirements.

    Featuring advanced cooling technology, this module maintains optimal performance even under extreme conditions, ensuring reliable operation throughout its lifecycle. The modular design facilitates easy installation and maintenance, allowing for quick replacement without disrupting ongoing operations.

    Designed for compatibility with a wide range of control systems, the module supports standard digital control signals, enabling seamless communication with existing automation infrastructure. This compatibility ensures a smooth transition and minimizes the need for extensive system modifications.

    Built to withstand harsh industrial environments, the ABB 5SND0800M170100 Dual HiPak IGBT Module is constructed from high-quality materials, offering exceptional durability and longevity. Its ability to operate within a broad temperature range (-40°C to +125°C) makes it suitable for deployment in various geographical locations and industrial sectors.

    To further enhance user experience, the module includes comprehensive documentation and technical support, ensuring that users can easily troubleshoot issues and optimize performance. This commitment to customer service and support underscores ABB’s dedication to providing comprehensive solutions that meet the evolving needs of modern industrial operations.
