Operating Frequency Range:Up to 400 Hz

Motor Control Protocol:Supports EtherCAT, CANopen

Power Rating:Up to 400 kW

Ambient Temperature Range:-25°C to +60°C

Cooling Method:Air Cooled

Input Voltage Range:380 V to 480 V AC

Output Current:Continuous up to 250 A

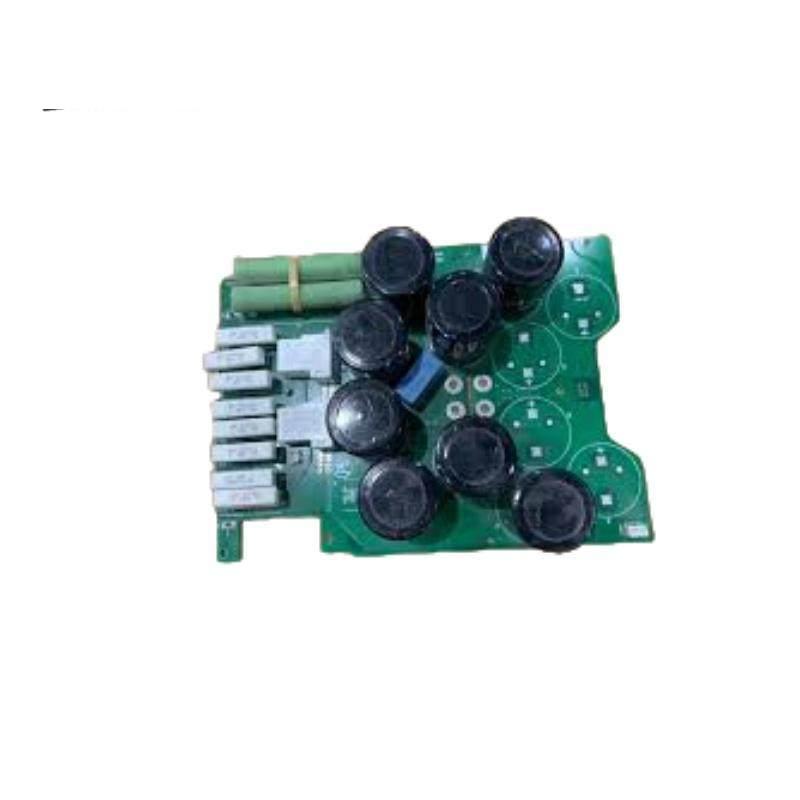

    The ABB JCAP-D1 Inverter Driver Board is engineered to enhance system performance and reliability, offering precise control over electric motors in demanding industrial environments.

    Featuring an advanced microcontroller, this board ensures high-speed processing and accurate control signals, optimizing energy consumption and reducing operational costs.

    Equipped with a robust RS-485 Modbus communication interface, the JCAP-D1 seamlessly integrates with various control systems, facilitating easy setup and operation.

    With a power handling capacity up to 100kW, it caters to a wide range of industrial applications, from small machinery to large-scale production lines, ensuring flexibility and scalability.

    Designed for extreme temperatures, the JCAP-D1 operates reliably across a broad temperature range, making it suitable for harsh industrial settings. Its compact size and lightweight design enable efficient installation and maintenance.

    In addition to its technical prowess, the JCAP-D1 Inverter Driver Board is backed by ABB’s comprehensive support services, ensuring users receive unparalleled assistance throughout the product lifecycle.
