Rated Voltage:+5V, +/-15V

Board Compatibility:DS3800 series

Housing Material:Metal

Input Power:AC input compatible

Operating Temperature Range:-20°C to +50°C

Dimensions (WxDxH):200mm x 60mm x 40mm

Weight:Approx. 1kg

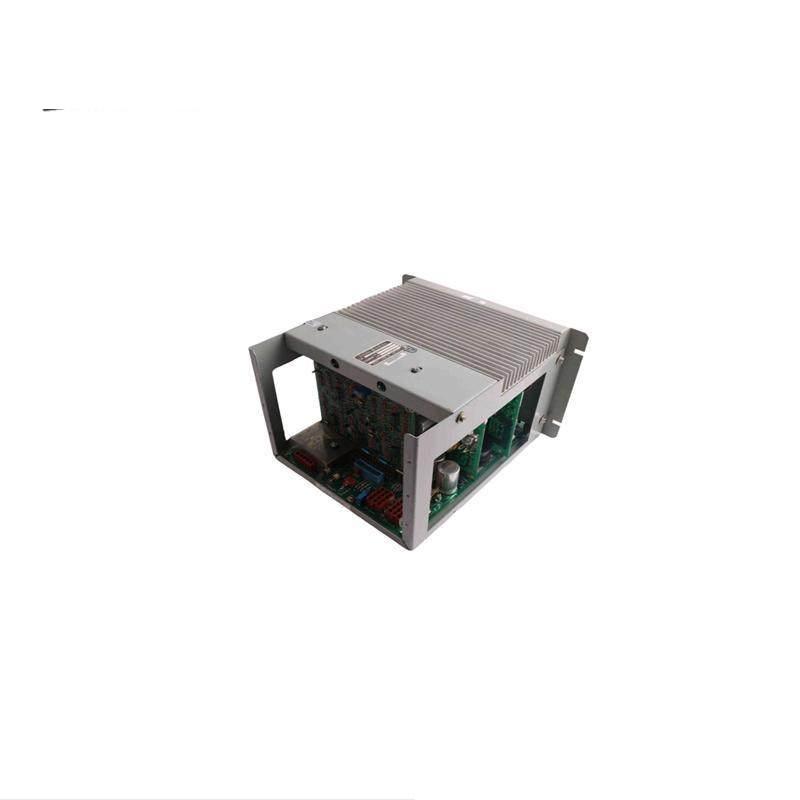

    The DS3820PSCB1 is specifically designed to provide a stable +5V, +/-15V power supply for critical turbine control systems within GE’s renowned Mark IV series. This modular component seamlessly integrates multiple DS3800 PCBs into a compact, robust metal housing, ensuring high reliability and durability under demanding industrial conditions.

    Featuring an efficient cooling system, the DS3820PSCB1 ensures optimal performance across a wide range of operating temperatures, making it suitable for applications in extreme environments. Its compact design allows for easy integration into existing turbine control systems without compromising on functionality.

    Key to its advanced capabilities is the inclusion of sophisticated control functions, which enable automatic temperature control, control sequencing, and shutdown procedures. These features contribute to improved safety and operational efficiency, minimizing downtime and enhancing overall system reliability.

    Crafted with precision, the DS3820PSCB1 is equipped with a multiport terminal block and various terminal blocks for flexible connection options. Its top panel is adorned with essential connectors, including a 4-pin female jack and a fuse, ensuring straightforward installation and maintenance.

    Manufactured with the highest quality materials, the DS3820PSCB1 withstands the rigors of industrial use, offering a long service life and reduced maintenance requirements. For users seeking a comprehensive solution to enhance their turbine control systems, this power supply module is an indispensable choice.
