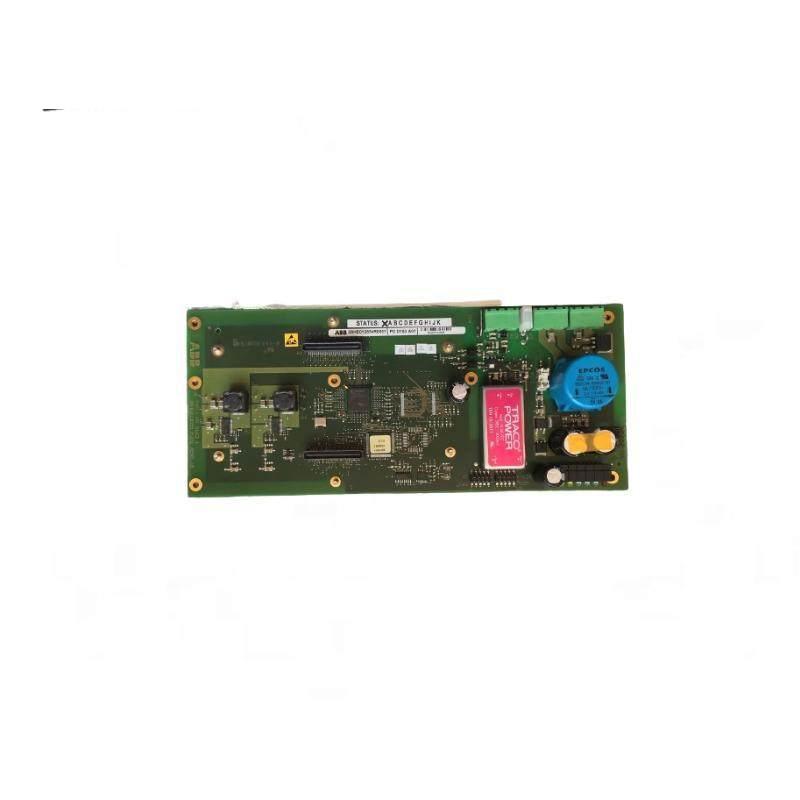

Model Number:3BHE013854R0001

Brand:ABB

Series:PDD163A01

Type:High Voltage Inverter Board

Operating Voltage Range:Up to 1000V DC

Maximum Output Power:Up to 1000kW

Frequency Range:0.1Hz to 400Hz

Insulation Class:F

Protection Class:IP20

Input Type:Three-Phase AC

Output Type:DC

Cooling Method:Air Cooling

Dimensions (mm):300 x 300 x 100

Weight (kg):25

Mounting:Panel-Mounted

Environmental Conditions:Temperature: -20°C to +60°C, Humidity: 0% to 95% non-condensing

    The ABB 3BHE013854R0001 PDD163A01 High-Voltage Inverter Board boasts a robust design that withstands harsh industrial environments, ensuring long-term durability and minimal maintenance requirements.

    Engineered with state-of-the-art semiconductor technology, this inverter board delivers exceptional performance, enabling seamless integration into complex power management systems.

    Featuring an advanced control algorithm, it optimizes energy consumption, reducing operational costs and enhancing system efficiency.

    With its high insulation class and wide temperature range, the inverter board ensures reliable operation under various environmental conditions, from extreme cold to hot climates.

    The PDD163A01 model supports a broad spectrum of current ratings, making it suitable for a wide range of industrial applications, including heavy machinery, renewable energy systems, and electric drives.

    Our team provides comprehensive technical support and personalized solutions to ensure the inverter board meets your specific project requirements.
