Operating Voltage:Up to 400V

Frequency Response:Up to 50kHz

Current Rating:Max 10A

Transformer Type:Pulse Transformer

Insulation Class:Class H

Connection Type:Standard DIN Rail Mount

Dimensions:160mm x 100mm x 35mm

Weight:0.2kg

Environment Compatibility:IP20, suitable for indoor use

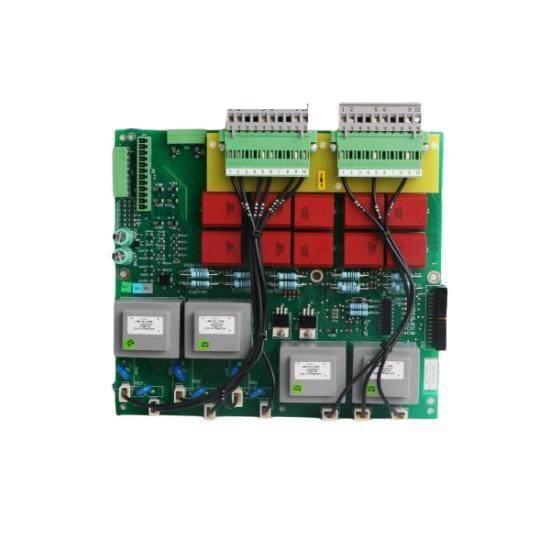

    The ABB DATX100 3ASC25H208 Pulse Transformer Board is engineered to deliver exceptional performance in demanding industrial environments. With its high-resolution pulse output, this board ensures accurate synchronization in various applications, from machinery control to complex process automation.

    Featuring 8 channels, it offers flexibility in configuring multiple devices or systems, making it ideal for a wide range of applications requiring precise timing and control. The board is designed with robust circuitry and materials that withstand harsh conditions, ensuring long-lasting reliability and reduced maintenance needs.

    Ease of installation and operation are further enhanced by its screw terminal connections, which provide secure and straightforward wiring without the need for specialized tools. Additionally, the RS-485 Modbus RTU communication protocol allows seamless integration with existing systems, simplifying the setup and management of automation networks.

    Incorporating the latest technology in pulse transformer design, the ABB DATX100 3ASC25H208 ensures minimal power consumption and low electromagnetic interference, contributing to energy efficiency and improved system performance. It is a trusted choice for engineers and technicians seeking to optimize their automation solutions with precision and reliability.

    Backed by ABB’s commitment to quality and customer support, the DATX100 3ASC25H208 Pulse Transformer Board comes with comprehensive documentation, technical support, and a warranty period, ensuring a smooth and successful integration into your industrial projects.
