Model Number:239-RTD AN

Insulation Voltage:300 V

Fuse Rating:5 x 20 mm, 250 V, 2.5 A

Overload Curves Trip Time Accuracy:± 1% of Displayed Value

Pickup:% Full Load

Phase Current:Flexible

RFI Test:50 MHz/15 W

Transmitter Short Circuit and Ground Trip:S/C Trip Lvl 1 to 11 x CT PRI/OFF

Storage Temperature Range:-40 to 158°F

Unbalance Delay:0-60 s

Ventilation Requirements:None, according to the 239 Motor Protection Relay Manual

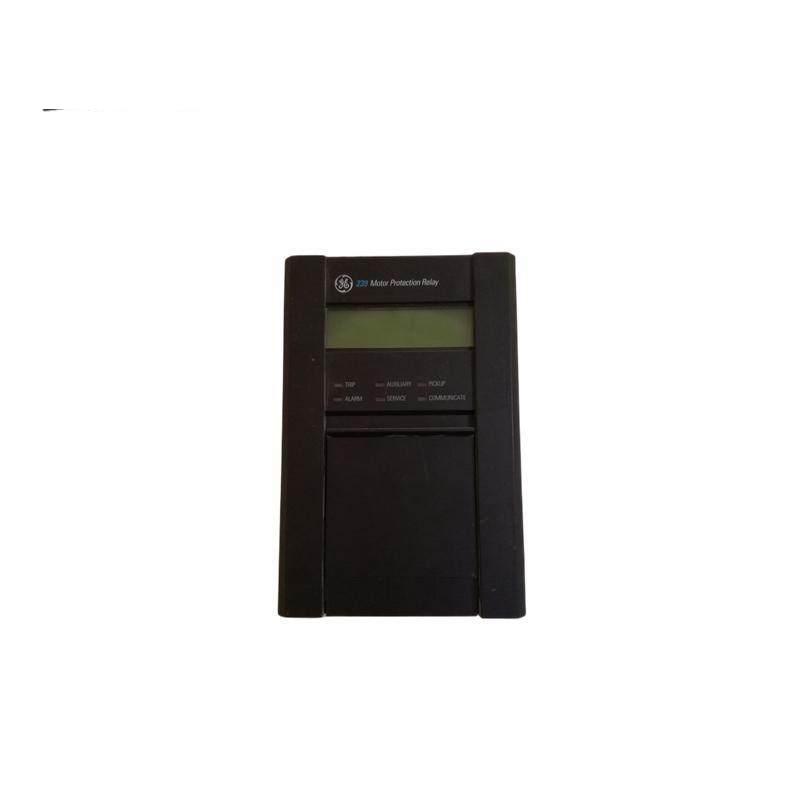

    The GE 239-RTD-AN Motor Protection Relay is meticulously engineered to provide unparalleled protection against overloads, breaker failures, ground faults, and locked rotors, ensuring operational safety and efficiency.

    With its advanced thermal capacity and customizable overload curves, the relay adapts seamlessly to various industrial applications, offering precise control and response to varying conditions.

    Featuring a clear front-facing LCD display, the unit provides real-time status updates, temperature readings, current measurements, and additional data crucial for maintenance and operational oversight.

    This compact relay is designed to fit most starters, minimizing space requirements and enhancing installation flexibility without compromising on robust performance.

    The inclusion of a harsh environmental coating (H order code) ensures durability in challenging conditions, making it a reliable choice for outdoor or high-risk industrial environments.

    Equipped with 239PC Windows software, the relay supports comprehensive diagnostics and configuration, enabling users to monitor and manage the system effectively, contributing to overall operational reliability.
