Weight:4.8kg

Voltage Input:Flexible, adaptable to a wide range

Burden less than:0.025 VA at 120 V

Source VT:2 to 600 kV / 60 to 120 V

Logic Inputs:16

Manufacturer:General Electric

Fuse Current Rating:3.15 A

Display:Enhanced LCD

Dimensions:9”H, 7 ⅛”D, 7”W

Control Power Range:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz

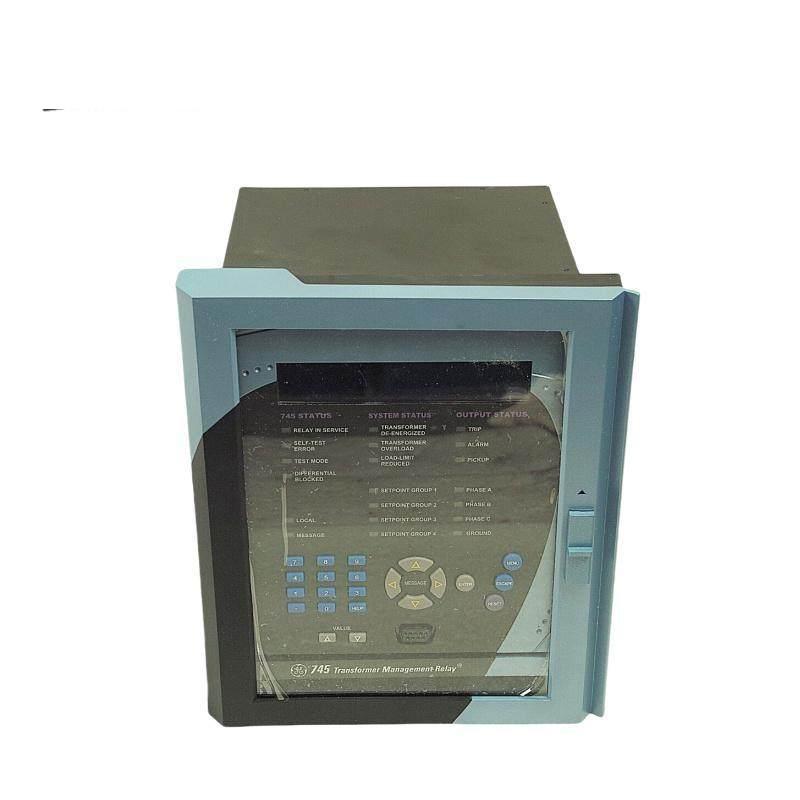

    The GE SR745 CASE 745-W2-P5-G5-HI-T is engineered to enhance system longevity and reliability through advanced monitoring and protection mechanisms. Its enhanced LCD display provides clear, intuitive status information, aiding technicians in quick decision-making.

    With its high-resolution display and expanded keypad, this relay simplifies the process of setting parameters and monitoring data, ensuring operators can efficiently manage transformer operations without delays.

    Featuring robust protection features, including dynamic CT ratio mismatch correction and overexcitation protection, this relay safeguards against potential failures, reducing downtime and maintenance costs.

    Designed for easy integration into existing systems, the GE SR745 CASE 745-W2-P5-G5-HI-T is compatible with a wide range of industrial settings, offering a versatile solution for transformer management.

    Built with user-friendliness in mind, this relay comes equipped with LEDs on its front panel for real-time status alerts and error notifications, allowing for proactive system maintenance and minimizing operational disruptions.
