Model Number:DS3800HXPD1C1E

Type:Microprocessor Expander Board

Manufacturer:General Electric (GE)

Category:GE Boards & Turbine Control / Mark IV DS3800

Dimensions:170mm x 120mm

Material:High-grade FR4 epoxy resin

Operating Temperature Range:-20°C to +70°C

Power Consumption:10W

Connector Type:Standard 9-pin D-sub

LED Count:Over 35 LEDs for system status indication

Switch Presence:1 small manual switch

Mounting:Twelve screw mount holes

Compatibility:Compatible with female harness connections

Certifications:UL, CE, FCC

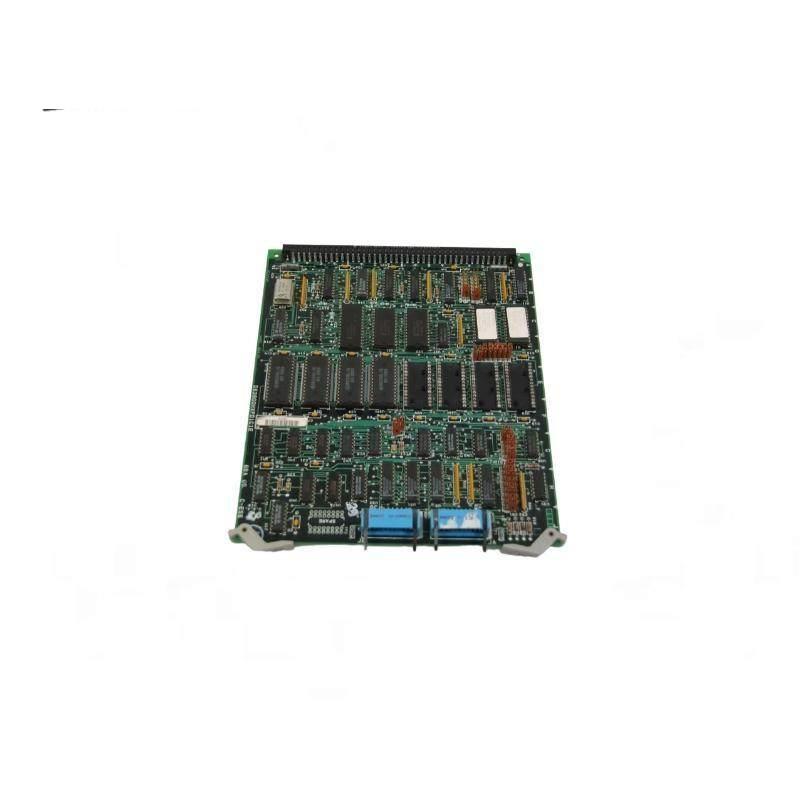

    The GE DS3800HXPD1C1E is a state-of-the-art Microprocessor Expander Board, specifically designed to enhance the performance of industrial control systems.

    Equipped with a robust FR4 epoxy resin construction, this board is engineered to withstand extreme environmental conditions, ensuring reliability and longevity in demanding applications.

    With over 35 red LEDs strategically placed across its surface, the DS3800HXPD1C1E provides clear visual feedback on system status, allowing for immediate identification of operational issues.

    The presence of a single small manual switch offers users fine-grained control over the board’s functions, enabling customization to meet specific process requirements.

    Featuring twelve screw mount points, the DS3800HXPD1C1E ensures secure installation, even in high-vibration environments. Its compatibility with female harness connections simplifies wiring and setup.

    Backed by General Electric’s commitment to excellence, this board comes with comprehensive technical support, including access to data-sheets, manuals, and expert guidance from their knowledgeable team.
