Product Type:Bus Repeater

ABB Type Designation:DSBC172

Model ID:57310001-KD

Weight:0.4 kg

Bus Configuration:Master

Dimensions (WxHxD):178 x 104 x 90 mm

Operating Temperature Range:-25°C to +60°C

Input Voltage:DC 24V

Output Current:Max 250 mA

Communication Protocol:ControlNet, DeviceNet, EtherCAT

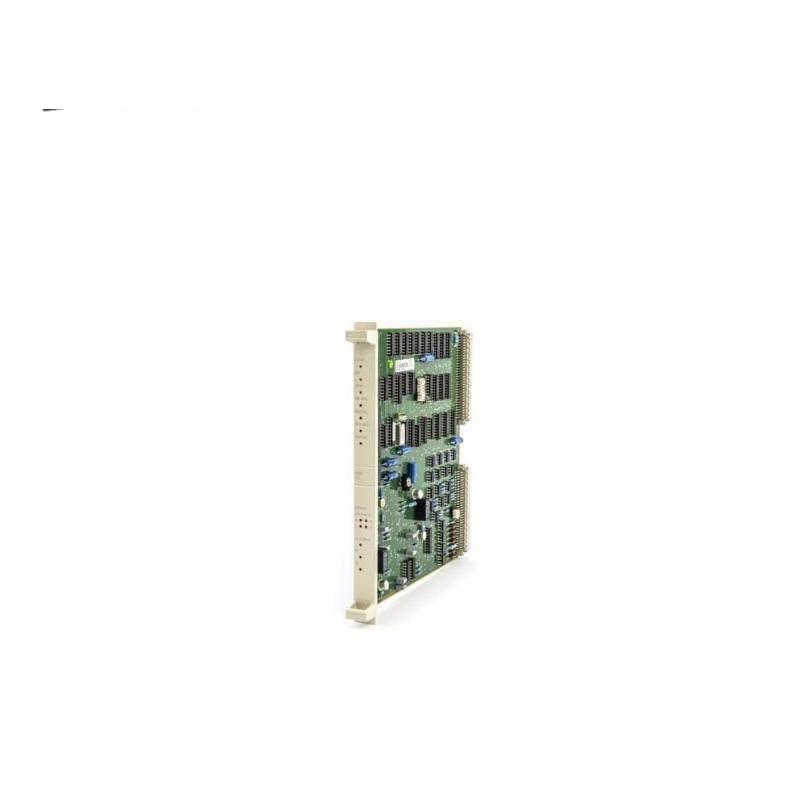

    The ABB DSBC172 Bus Supervision Board is designed to enhance system reliability and performance in industrial automation applications. Its robust design allows it to withstand harsh environmental conditions, ensuring continuous operation even under extreme temperatures.

    Equipped with advanced diagnostics and monitoring capabilities, this board provides real-time status updates on bus connections, enabling proactive maintenance and minimizing downtime. Its compatibility with multiple communication protocols ensures seamless integration with various industrial networks.

    With a compact size and lightweight construction, the DSBC172 is easily integrated into existing systems without compromising on functionality. Its high-speed data processing capacity supports efficient communication between different components within the network, improving overall system responsiveness.

    The inclusion of 4 input and 4 output channels makes it versatile for a wide range of applications, supporting various control functions such as process monitoring, data acquisition, and actuator control. This flexibility enhances its utility across diverse industries including manufacturing, automotive, and energy sectors.

    Ensuring compliance with international safety standards, the ABB DSBC172 Bus Supervision Board is certified by CE, UL, and FCC, providing peace of mind for users in terms of reliability and safety. It is an essential upgrade or replacement option for businesses seeking to optimize their industrial control systems.
