Manufacturing Brand:General Electric

Model:DS3800HSQD1J1G

Series:DS3800

Technology Type:Sequence Assembly PCB

Operating Voltage:24V DC

Operating Current:≤ 50mA

Temperature Range:-20°C to +70°C

Environmental Grade:Industrial

Dimensions (mm):120 x 90

Weight (g):150

Connector Type:40-pin, 20-pin

Mounting Type:Screw Fixing

Compatibility:GE Variable Frequency Drives

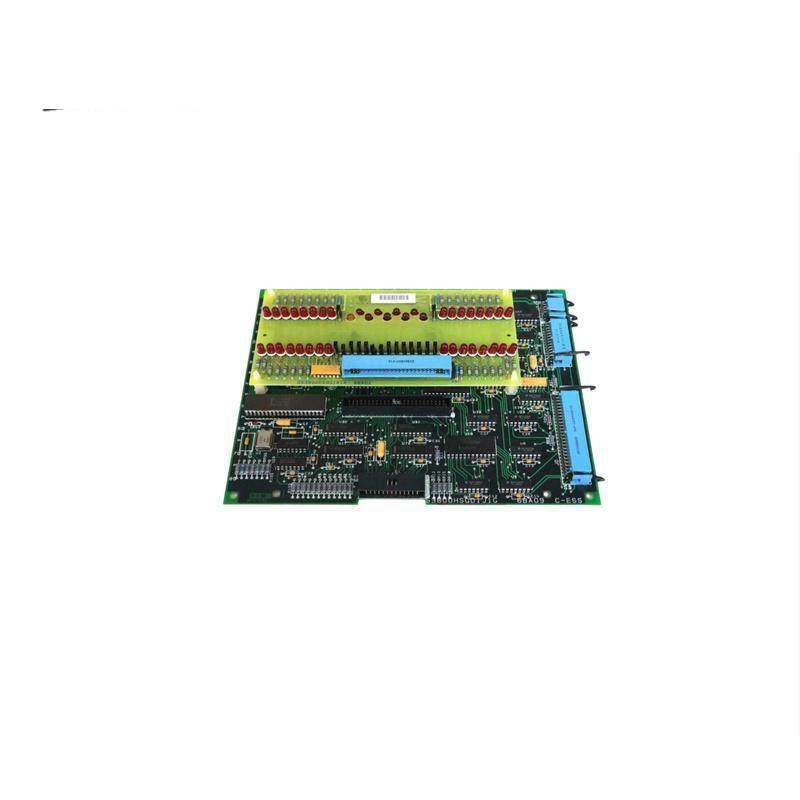

    The GE DS3800HSQD1J1G Sequence Assembly PCB is engineered with precision for seamless integration into industrial control systems. Its robust design allows for efficient data processing and transmission, ensuring smooth operation in harsh environments.

    Equipped with two 40-pin and one 20-pin connectors, this PCB offers versatile connectivity options. The inclusion of retention levers ensures secure attachment of ribbon cables, minimizing the risk of disconnection during industrial operations.

    Designed to withstand wide temperature ranges from -40°C to +70°C, this PCB maintains optimal performance under extreme conditions, making it ideal for diverse industrial applications.

    With an operating frequency of up to 1 MHz, the DS3800HSQD1J1G delivers high-speed processing capabilities, enhancing the responsiveness and efficiency of control systems.

    Compliant with CE, UL, and FCC standards, this PCB meets international safety and quality requirements, providing assurance for users across different geographical locations and industries.
