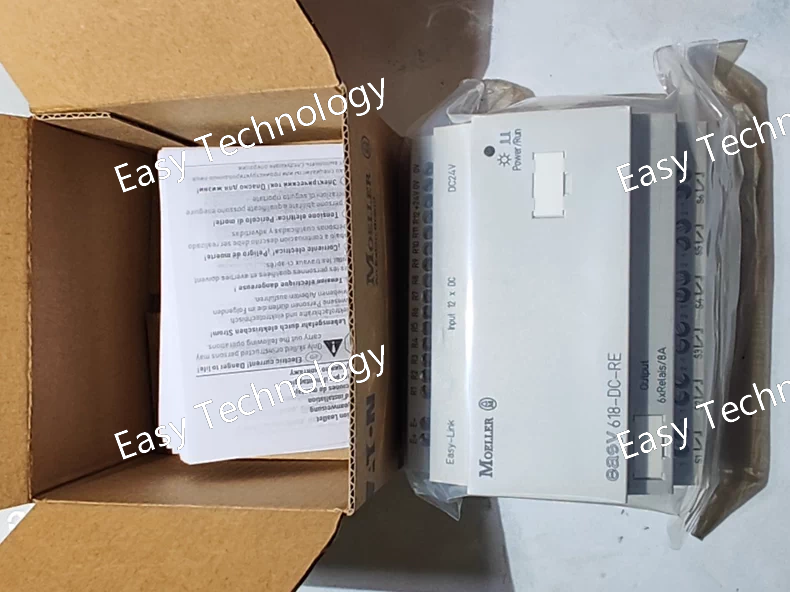

Technical Parameters Power Supply Voltage: 24 V DC Digital Inputs: 12 inputs at 24 V DC Relay Outputs: 6 relay outputs Relay Output Rating: 8 A thermal per relay Rated Operational Voltage (Relay Contacts): Up to 250 V AC Heat Dissipation: Approximately 4 W Protection & Isolation Short-Circuit Protection: Requires external protection (e.g., B16 circuit breaker or 8 A slow-blow fuse) Isolation: Safe isolation between input circuits and relay contacts, compliant with industrial standards Wiring & Connections Wiring Capacity: Solid wire: 0.2–4.0 mm² (AWG 22–12) Flexible wire: 0.2–2.5 mm² Connection Method: Screw terminals Communication: easyLINK expansion interface Mechanical Specifications Mounting Type: 35 mm DIN rail Dimensions: Width: approx. 3.5 in Height: approx. 3 in Depth: approx. 4.5 in Weight: approx. 0.39 kg (0.86 lb) Environmental Specifications Operating Temperature: –25 °C to +55 °C Standards & Certifications: CE, UL, CSA, EN industrial control standards

Technical Parameters Parameter Specification Brand Eaton Product Model NZMN3-A450 Standard IEC 60947-2 Type Miniature Circuit Breaker (MCB) Number of Poles 3 Poles (3P) Rated Current (Iₙ) 50 A Tripping Characteristic / Curve Type C (Instantaneous trip: 5 to 10 x Iₙ) Rated Operational Voltage (Uₑ) 400 V AC, 50/60 Hz Rated Insulation Voltage (Uᵢ) 500 V AC Rated Impulse Withstand Voltage (Uᵢₘₚ) 6 kV Breaking Capacity (I꜀ᵤ) 10 kA (at 400V AC) Electrical Durability 10,000 cycles Mechanical Durability 20,000 cycles Terminal Capacity - Top & Bottom Terminals Solid: 50 mm² Stranded: 35 mm² Fine-stranded: 25 mm² Terminal Torque 3.0 N·m (Maximum) Mounting 35 mm DIN Rail (EN 60715) Degree of Protection IP20 (when installed in an enclosure) Ambient Temperature -25 °C to +60 °C (for reference, per standard) Approvals / Certifications CE, CCC, IEC 60947-2

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Model NZMN3-A500 Standard IEC 60947-2 Type Miniature Circuit Breaker (MCB) Number of Poles 3 Poles (3P) Rated Current (Iₙ) 50 A Tripping Characteristic / Curve Type C (Instantaneous trip: 5 to 10 x Iₙ) Rated Operational Voltage (Uₑ) 400 V AC, 50/60 Hz Rated Insulation Voltage (Uᵢ) 500 V AC Rated Impulse Withstand Voltage (Uᵢₘₚ) 6 kV Breaking Capacity (I꜀ᵤ) 10 kA (at 400V AC) Electrical Endurance 10,000 cycles Mechanical Endurance 20,000 cycles Terminal Capacity - Top & Bottom Terminals Solid: 50 mm² Stranded: 35 mm² Fine-stranded: 25 mm² Terminal Torque 3.0 N·m (Maximum) Mounting 35 mm DIN Rail (EN 60715) Degree of Protection IP20 (when installed in an enclosure) Ambient Temperature -25 °C to +60 °C (for reference) Approvals / Certifications CE, CCC, IEC 60947-2

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Model NZMN3-A630 Standard IEC 60947-2 Type Miniature Circuit Breaker (MCB) Number of Poles 3 Poles (3P) Rated Current (Iₙ) 63 A Tripping Characteristic / Curve Type C (Instantaneous trip: 5 to 10 x Iₙ) Rated Operational Voltage (Uₑ) 400 V AC, 50/60 Hz Rated Insulation Voltage (Uᵢ) 500 V AC Rated Impulse Withstand Voltage (Uᵢₘₚ) 6 kV Breaking Capacity (I꜀ᵤ) 10 kA (at 400V AC) Electrical Endurance 10,000 cycles Mechanical Endurance 20,000 cycles Terminal Capacity Solid: 50 mm² Stranded: 35 mm² Fine-stranded: 25 mm² Terminal Torque 3.0 N·m (Maximum) Mounting 35 mm DIN Rail (EN 60715) Degree of Protection IP20 (when installed in an enclosure) Ambient Temperature -25 °C to +60 °C (for reference) Approvals / Certifications CE, CCC, IEC 60947-2

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Model DE1-124D3FN-N20N Product Type PLC Expansion I/O Module Compatible Series Eaton DE1 Series PLCs Number of Digital Inputs 16 Number of Digital Outputs 4 (Solid-state, DC) I/O Type Sinking/Sourcing (selectable per channel) Rated Supply Voltage 24 V DC (for inputs and outputs) Input Current Typically 3-5 mA per point (at 24V DC) Output Current 0.5 A per point (with a total module limit) Isolation Optical isolation between field side and logic side Connection Type Removable screw terminal block Status Indicators LED indicators for each input and output channel, and a module power/status LED Mounting 35 mm DIN Rail (EN 60715) Approvals / Certifications CE, cULus, RoHS

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Line DF1 (DuraDrive F1) Product Model DF1-34060NB-C20CX1 Product Type AC Variable Frequency Drive (VFD) Rated Output Power 1.1 kW Horsepower (HP) 1.5 HP Output Current 3.0 A Input Voltage 3-Phase, 380 - 480 V AC (±10%) Input Frequency 50/60 Hz (±5%) Output Voltage 0 - Input Voltage Output Frequency 0 - 599 Hz Key Feature Integrated DC Choke (as indicated by "C" in model suffix) Control Method Sensorless Vector Control, V/F Control Enclosure Rating IP20 / NEMA Type 1 (Open Type) Keypad Removable with potentiometer Communication Protocols Modbus RTU (RS-485) standard Mounting Panel Mount Approvals / Certifications CE, cULus, RoHS

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Line DF1 (DuraDrive F1) Product Model DF1-34150NN-C20CX1 Product Type AC Variable Frequency Drive (VFD) Rated Output Power 4.0 kW Horsepower (HP) 5 HP Output Current 7.5 A Input Voltage 3-Phase, 380 - 480 V AC (±10%) Input Frequency 50/60 Hz (±5%) Output Voltage 0 - Input Voltage Output Frequency 0 - 599 Hz Key Feature Integrated DC Choke Control Methods Sensorless Vector Control, V/F Control Enclosure Rating IP20 / NEMA Type 1 (Open Type) Keypad Removable with potentiometer Communication Protocols Modbus RTU (RS-485) Mounting Panel Mount Approvals / Certifications CE, cULus, RoHS

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Line DF1 (DuraDrive F1) Product Model DF1-34110NN-C20CX1 Product Type AC Variable Frequency Drive (VFD) Rated Output Power 1.5 kW Horsepower (HP) 2 HP Output Current 3.7 A Input Voltage 3-Phase, 380 - 480 V AC (±10%) Input Frequency 50/60 Hz (±5%) Output Voltage 0 - Input Voltage Output Frequency 0 - 599 Hz Key Feature Integrated DC Choke Control Methods Sensorless Vector Control, V/F Control Enclosure Rating IP20 / NEMA Type 1 (Open Type) Keypad Removable with potentiometer Communication Protocols Modbus RTU (RS-485) Mounting Panel Mount Approvals / Certifications CE, cULus, RoHS

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Line DF1 (DuraDrive F1) Product Model DF1-34090NN-C20CX1 Product Type AC Variable Frequency Drive (VFD) Rated Output Power 1.1 kW Horsepower (HP) 1.5 HP Output Current 2.8 A Input Voltage 3-Phase, 380 - 480 V AC (±10%) Input Frequency 50/60 Hz (±5%) Output Voltage 0 - Input Voltage Output Frequency 0 - 599 Hz Key Feature Integrated DC Choke Control Methods Sensorless Vector Control, V/F Control Enclosure Rating IP20 / NEMA Type 1 (Open Type) Keypad Removable with potentiometer Communication Protocols Modbus RTU (RS-485) Mounting Panel Mount Approvals / Certifications CE, cULus, RoHS

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Line DF1 (DuraDrive F1) Product Model DF1-34075NN-C20CX1 Product Type AC Variable Frequency Drive (VFD) Rated Output Power 0.75 kW Horsepower (HP) 1 HP Output Current 2.1 A Input Voltage 3-Phase, 380 - 480 V AC (±10%) Input Frequency 50/60 Hz (±5%) Output Voltage 0 - Input Voltage Output Frequency 0 - 599 Hz Key Feature Integrated DC Choke Control Methods Sensorless Vector Control, V/F Control Enclosure Rating IP20 / NEMA Type 1 (Open Type) Keypad Removable with potentiometer Communication Protocols Modbus RTU (RS-485) Mounting Panel Mount Approvals / Certifications CE, cULus, RoHS

Technical Parameters Category Specification Product Series DuraDrive F1 Rated Power 0.55 kW (0.75 HP) Output Current 1.8 A Input Voltage 3-phase 380-480 V AC ±10% Input Frequency 50/60 Hz ±5% Output Frequency 0-599 Hz Control Methods V/F control, Sensorless vector control DC Choke Integrated Communication Modbus RTU (RS-485) Enclosure Rating IP20 Keypad Removable with potentiometer Mounting DIN rail mount

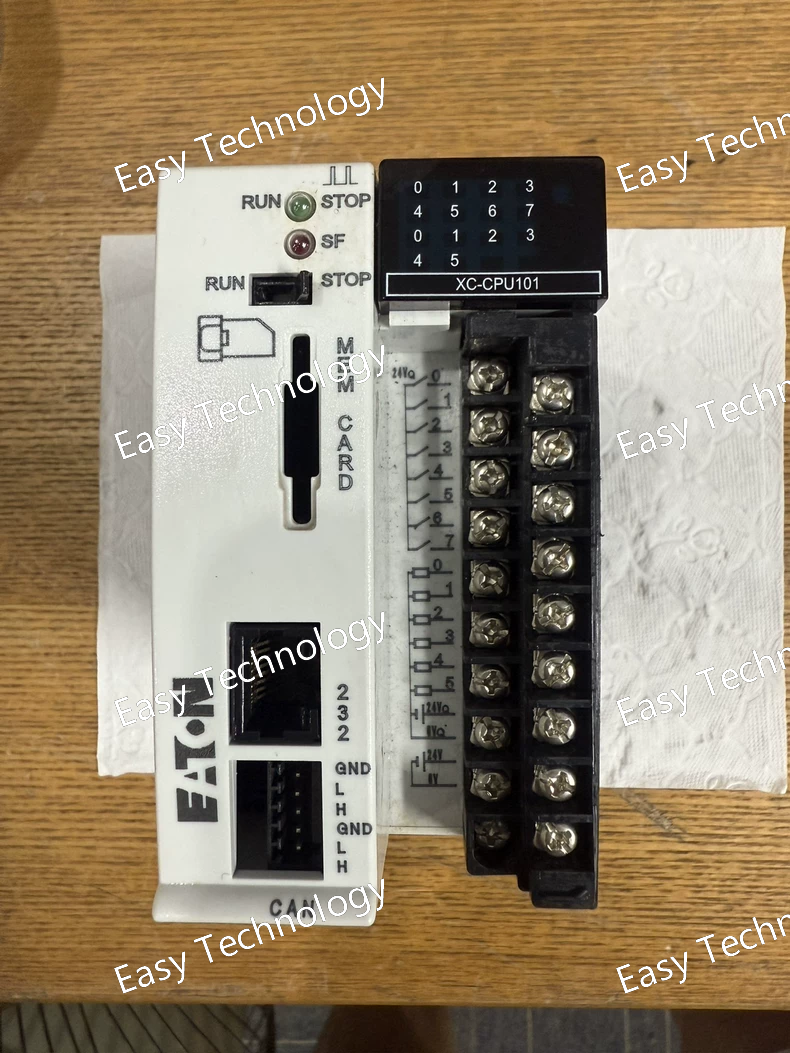

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Series XC Series Programmable Controllers Product Model XC-CPU101-C256K Product Type PLC Central Processing Unit (CPU) Program Memory 256 KB Data Memory Integrated (typically a portion of the 256 KB is allocated) Integrated Communication Ports • 1 x Ethernet (XC-BUS) • 1 x RS-232 (for programming or other devices) • 1 x RS-485 (for Modbus master/slave, etc.) Integrated Real-Time Clock (RTC) Yes I/O Expansion Capability Yes, via XC series extension modules on the right side Max. Number of Connected I/O Modules Up to 8 (including special function modules) Programming Software Eaton XSoft-CODESYS (based on CODESYS V3) Programming Languages Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL), Sequential Function Chart (SFC) Supported Communication Protocols Modbus TCP (via Ethernet), Modbus RTU (via RS-232/485), XC-BUS (for I/O expansion) Power Supply 24 V DC (via the base unit or a separate power supply module) Approvals / Certifications CE, cULus, RoHS
