Technical Parameters Parameter Specification Product Series Eaton MFD Product Type Miniature Circuit Breaker (MCB) Number of Poles Single Pole (1P) Rated Current (In) 80 A Rated Voltage (Ue) 230/400 V AC Tripping Characteristic Type B (Instantaneous trip: 3 to 5 x In) Breaking Capacity (Icn) 10 kA (10,000 A) at 400V AC (Please verify specific catalog, as it may be 6kA or 10kA depending on the market) Standards Compliance IEC/EN 60898-1, IEC/EN 60947-2 Electrical Life ≥ 10,000 cycles Mechanical Life ≥ 20,000 cycles Terminal Connection Suitable for copper and aluminum cables (torque specifications to be checked in manual) Mounting DIN Rail Mounting (EN 60715) Width (Modular Size) 17.5 mm (1 module)

Technical Parameters Category Specification Product Model EASY821-DC-TC Product Line EASY800 Device Type Programmable Logic Relay (PLR) / Smart Relay Supply Voltage 24 V DC (Range: 19.2 - 28.8 V DC) Power Consumption Typically 12 W (including loads) Core Processor 8-bit microcontroller User Program Memory 1,000 function blocks (non-volatile) Data Memory 128 flags (non-volatile) Real-Time Clock (RTC) Integrated (buffered for approx. 80 hours at 25°C) Digital Inputs 8 x Digital Inputs • 24 V DC (sinking/sourcing) • 2 inputs are multi-functional and can be used as analog inputs (0-10 V) or high-speed counters (5 kHz) Digital Outputs 6 x Relay Outputs • Switching Capacity: 250 V AC / 30 V DC Max. • 8 A (at 250 V AC Resistive) • 5 A (at 250 V AC Inductive, cos φ=0.4) Analog Inputs 2 x Analog Inputs (shared with 2 multi-functional digital inputs) • Voltage Range: 0 - 10 V DC • Resolution: 8 bit High-Speed Counters 2 x High-Speed Counters (shared with 2 multi-functional digital inputs) • Frequency: up to 5 kHz Display & Operation Integrated Text Display (TC) • 2-line, 16-character backlit LCD • 4 navigation keys for programming and operation Programming Interface Integrated EASY-PC interface (via RJ12 connector) Communication • EASY-LINK: For networking up to 12 EASY800 devices (via RJ12) • PC Connection: For programming with EASY-SOFT software Programming Software Eaton EASY-SOFT (Version 6 or higher recommended) Protection Rating Front panel: IP65 (when mounted) Housing: IP20 Mounting DIN rail mounting (35 mm) Ambient Temperature -25 °C to +55 °C (Operation) -40 °C to +70 °C (Storage) Dimensions (H x W x D) Approx. 126 x 90 x 64 mm

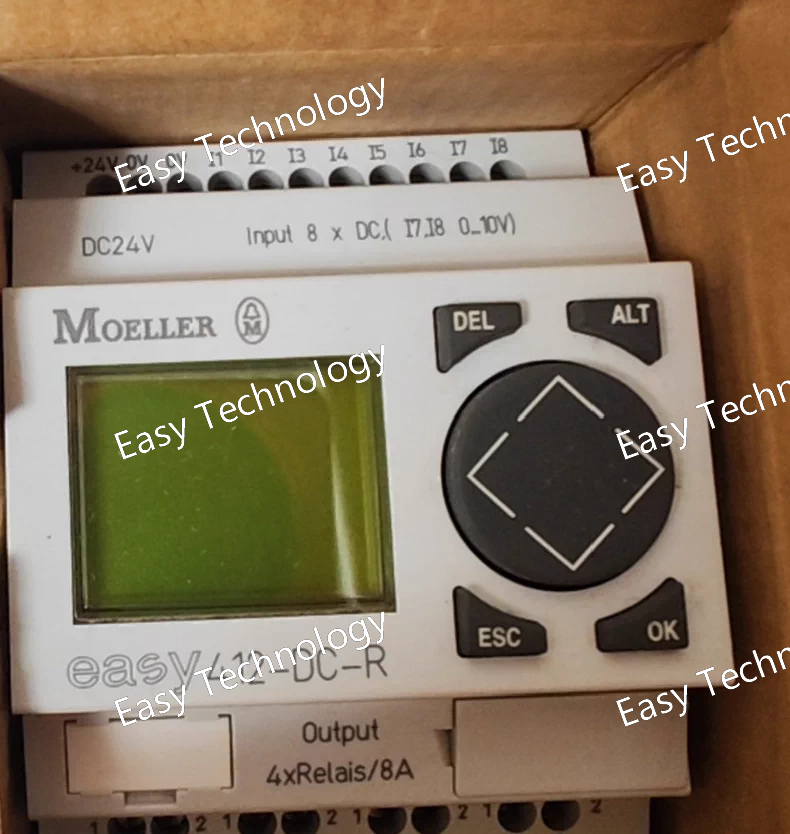

Technical Parameters Parameter Category Specification Product Model EASY412-DC-R Product Line EASY400 Device Type Programmable Logic Relay (PLR) / Smart Relay Supply Voltage 24 V DC Power Consumption Typically 8 W (including loads) Core Processor 8-bit microcontroller User Program Memory 500 function blocks (non-volatile) Data Memory 64 flags (non-volatile) Real-Time Clock (RTC) Not available on this model Digital Inputs 6 x Digital Inputs • 24 V DC (sinking/sourcing) Digital Outputs 4 x Relay Outputs • Switching Capacity: 250 V AC / 30 V DC Max. • 8 A (at 250 V AC Resistive) • 5 A (at 250 V AC Inductive, cos φ=0.4) • Note: The total current for all outputs combined must not exceed 16 A. Analog Inputs Not available on this model. High-Speed Counters Not available on this model. Display & Operation No built-in display. Status indicated by LEDs. Programming and monitoring require a PC. Programming Interface Integrated EASY-PC interface (via RJ12 connector) Communication • EASY-LINK: For networking up to 12 EASY400/600/800 devices (via RJ12 connectors) • PC Connection: For programming with EASY-SOFT software Programming Software Eaton EASY-SOFT (Version 6 or higher recommended) Protection Rating Front panel: IP65 (when mounted) Housing: IP20 Mounting DIN rail mounting (35 mm) Ambient Temperature -25 °C to +55 °C (Operation) -40 °C to +70 °C (Storage) Dimensions (H x W x D) Approx. 90 x 71.5 x 64 mm

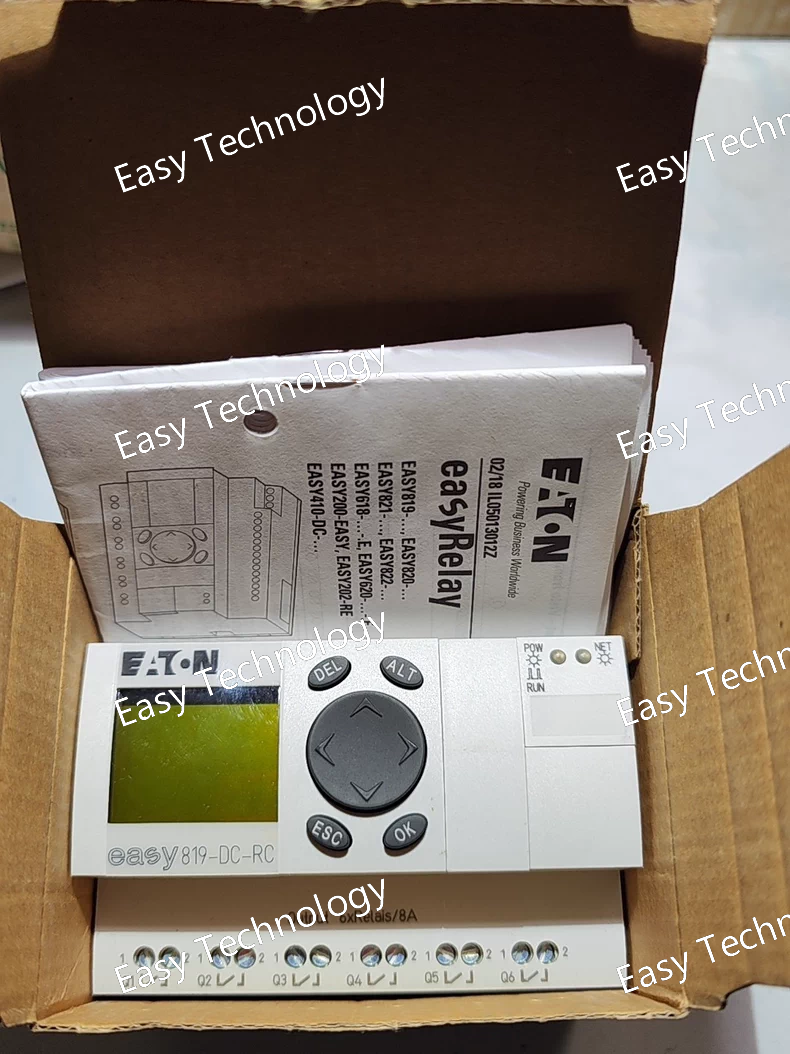

Technical Parameters Parameter Category Specification Product Model EASY819-DC-RC Product Line EASY800 Device Type Programmable Logic Relay (PLR) / Smart Relay Supply Voltage 24 V DC (19.2 - 28.8 V DC) Power Consumption Typically 15 W (including loads) Core Processor 32-bit microcontroller User Program Memory 2,000 function blocks (non-volatile) Data Memory 512 flags (non-volatile) Real-Time Clock (RTC) Integrated (buffered for approx. 80 hours at 25°C) Digital Inputs 8 x Digital Inputs • 24 V DC (sinking/sourcing) • 4 of them can be used as analog inputs (0-10 V, 0/4-20 mA) or high-speed counters (5 kHz) Digital Outputs 6 x Relay Outputs • Switching Capacity: 250 V AC / 30 V DC Max. • 8 A (at 250 V AC Resistive) • 5 A (at 250 V AC Inductive, cos φ=0.4) Analog Inputs 4 x Analog Inputs (shared with 4 digital inputs) • Configurable: 0 - 10 V, 0/4 - 20 mA • Resolution: 10 bit High-Speed Counters 4 x High-Speed Counters (shared with 4 digital inputs) • Frequency: up to 5 kHz Display & Operation Integrated Color Graphic Display (RC) • High-resolution TFT color screen • 8 function keys with customizable labels Programming Interface Integrated EASY-PC interface (via RJ12 connector) & USB port Communication • EASY-LINK: For networking up to 12 EASY800 devices • Ethernet (optional module): For integration into plant networks and remote access. • PC Connection: Via USB or RJ12. Programming Software Eaton EASY-SOFT (Version 7 or higher recommended for full color display support) Protection Rating Front panel: IP65 (when mounted) Housing: IP20 Mounting DIN rail mounting (35 mm) Ambient Temperature -25 °C to +55 °C (Operation) -40 °C to +70 °C (Storage) Dimensions (H x W x D) Approx. 126 x 90 x 64 mm

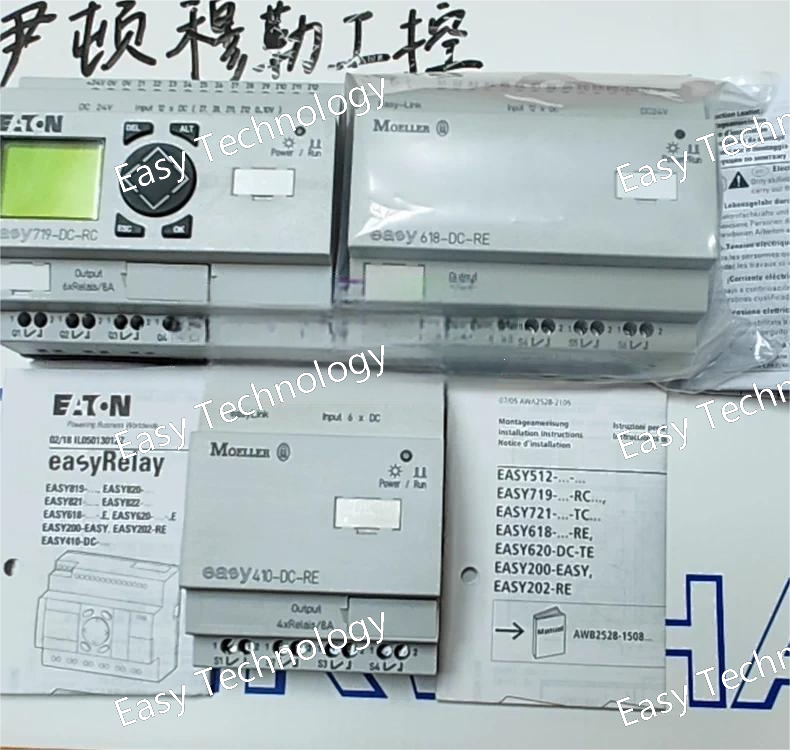

Technical Parameters Parameter Category Specification Product Model EASY410-DC-RE Product Line EASY400 Device Type Programmable Logic Relay (PLR) / Smart Relay Supply Voltage 24 V DC Power Consumption Typically 6 W (including loads) Core Processor 8-bit microcontroller User Program Memory 500 function blocks (non-volatile) Data Memory 64 flags (non-volatile) Real-Time Clock (RTC) Not available Digital Inputs 4 x Digital Inputs • 24 V DC (sinking/sourcing) Digital Outputs 2 x Relay Outputs • Switching Capacity: 250 V AC / 30 V DC Max. • 8 A (at 250 V AC Resistive) • 5 A (at 250 V AC Inductive, cos φ=0.4) Analog Inputs Not available High-Speed Counters Not available Display & Operation No built-in display. Status is indicated by LEDs only. Programming Interface Integrated EASY-PC interface (via RJ12 connector) Communication • EASY-LINK: For networking up to 12 EASY400/600/800 devices (via RJ12 connectors). • PC Connection: For programming with EASY-SOFT software. Programming Software Eaton EASY-SOFT (Version 6 or higher recommended) Protection Rating Front panel: IP65 (when mounted) Housing: IP20 Mounting DIN rail mounting (35 mm) Ambient Temperature -25 °C to +55 °C (Operation) -40 °C to +70 °C (Storage) Dimensions (H x W x D) Approx. 90 x 71.5 x 64 mm

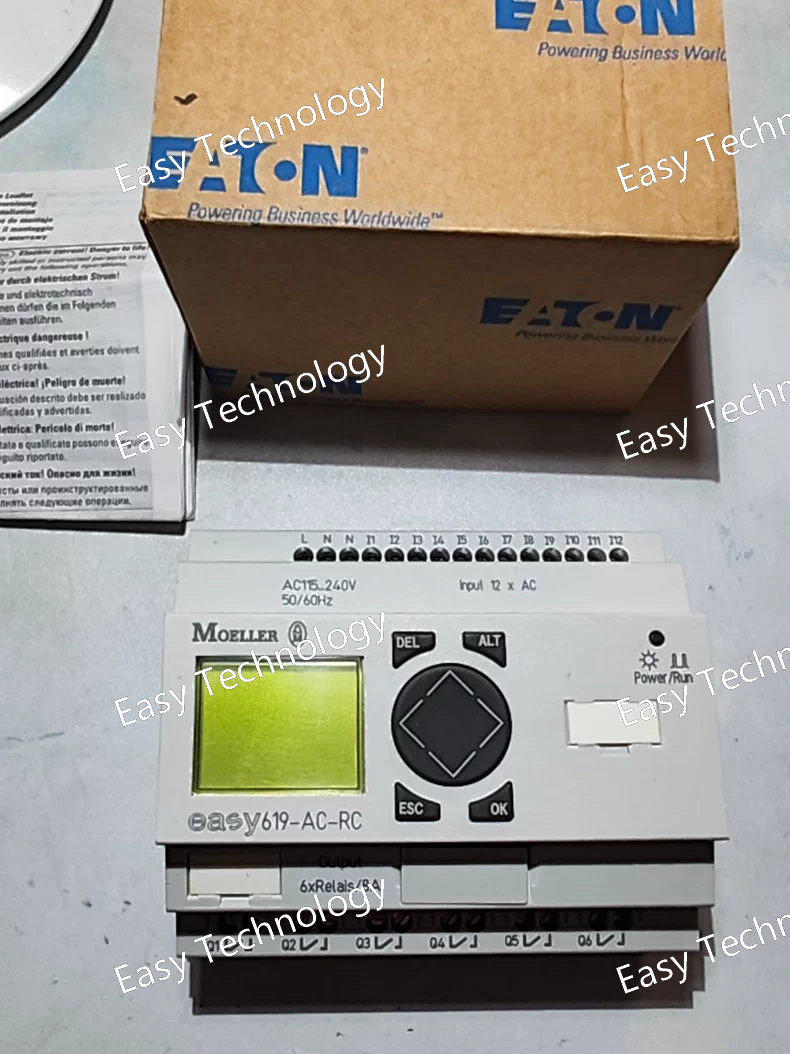

Technical Parameters Parameter Category Specification Product Model EASY619-AC-RC Product Line EASY600 Device Type Programmable Logic Relay (PLR) / Smart Relay Supply Voltage 100-240 V AC (85-264 V AC, 50/60 Hz) Power Consumption Typically 12 W (including loads) Core Processor 32-bit microcontroller User Program Memory 1,000 function blocks (non-volatile) Data Memory 256 flags (non-volatile) Real-Time Clock (RTC) Integrated Digital Inputs 8 x Digital Inputs • 24 V DC (sinking/sourcing) • 2 of them can be used as analog inputs (0-10 V) or high-speed counters (5 kHz) Digital Outputs 6 x Relay Outputs • Switching Capacity: 250 V AC / 30 V DC Max. • 8 A (at 250 V AC Resistive) • 5 A (at 250 V AC Inductive, cos φ=0.4) Analog Inputs 2 x Analog Inputs (shared with 2 digital inputs) • 0 - 10 V DC • Resolution: 10 bit High-Speed Counters 2 x High-Speed Counters (shared with 2 digital inputs) • Frequency: up to 5 kHz Display & Operation Integrated Color Graphic Display (RC) • TFT color screen • 8 function keys with customizable labels Programming Interface Integrated EASY-PC interface (via RJ12 connector) Communication • EASY-LINK: For networking up to 12 EASY400/600/800 devices (via RJ12 connectors). • PC Connection: For programming with EASY-SOFT software. Programming Software Eaton EASY-SOFT (Version 6 or higher recommended) Protection Rating Front panel: IP65 (when mounted) Housing: IP20 Mounting DIN rail mounting (35 mm) Ambient Temperature -25 °C to +55 °C (Operation) -40 °C to +70 °C (Storage) Dimensions (H x W x D) Approx. 126 x 90 x 64 mm

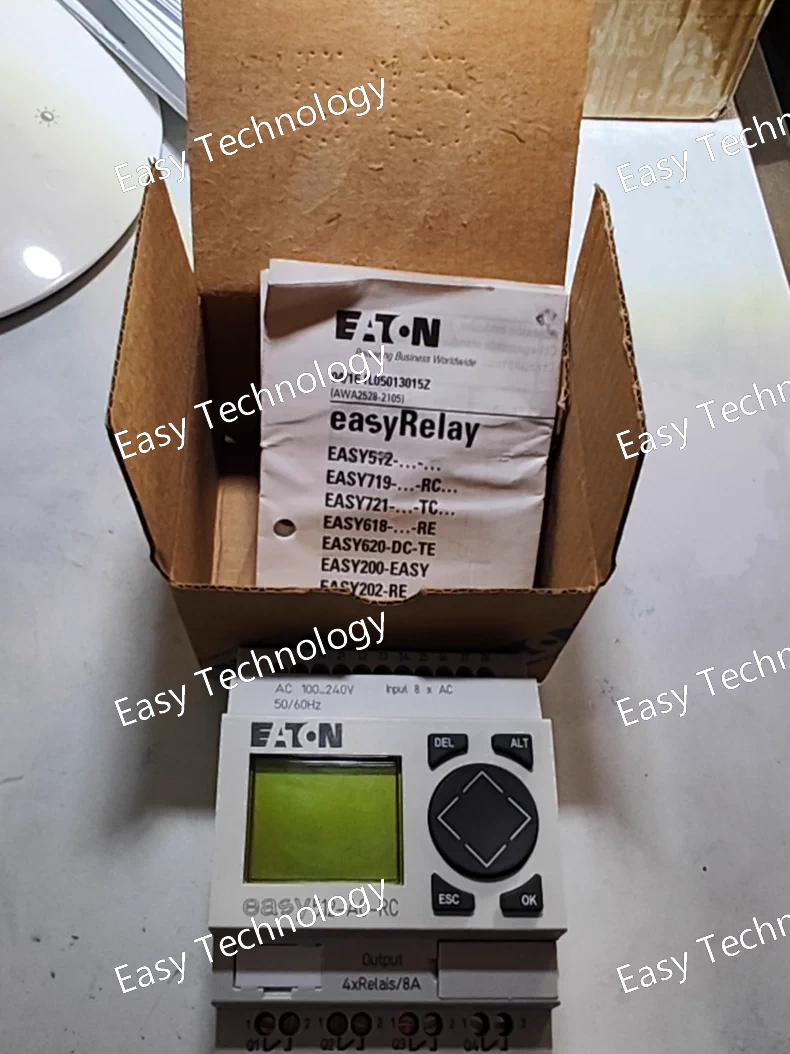

Technical Parameters Parameter Category Specification Product Model EASY512-AC-RC Product Line EASY500 Device Type Programmable Logic Relay (PLR) / Smart Relay Supply Voltage 100-240 V AC (85-264 V AC, 50/60 Hz) Power Consumption Typically 10 W (including loads) Core Processor 8-bit microcontroller User Program Memory 500 function blocks (non-volatile) Data Memory 64 flags (non-volatile) Real-Time Clock (RTC) Not available on this model Digital Inputs 6 x Digital Inputs • 24 V DC (sinking/sourcing) Digital Outputs 4 x Relay Outputs • Switching Capacity: 250 V AC / 30 V DC Max. • 8 A (at 250 V AC Resistive) • 5 A (at 250 V AC Inductive, cos φ=0.4) Analog Inputs Not available on this model. High-Speed Counters Not available on this model. Display & Operation Integrated Color Display (RC) • Basic color screen for text and status indication. • Navigation keys for operation. Programming Interface Integrated EASY-PC interface (via RJ12 connector) Communication • EASY-LINK: For networking up to 12 EASY400/500/600/800 devices (via RJ12 connectors). • PC Connection: For programming with EASY-SOFT software. Programming Software Eaton EASY-SOFT (Version 6 or higher recommended) Protection Rating Front panel: IP65 (when mounted) Housing: IP20 Mounting DIN rail mounting (35 mm) Ambient Temperature -25 °C to +55 °C (Operation) -40 °C to +70 °C (Storage) Dimensions (H x W x D) Approx. 90 x 71.5 x 64 mm

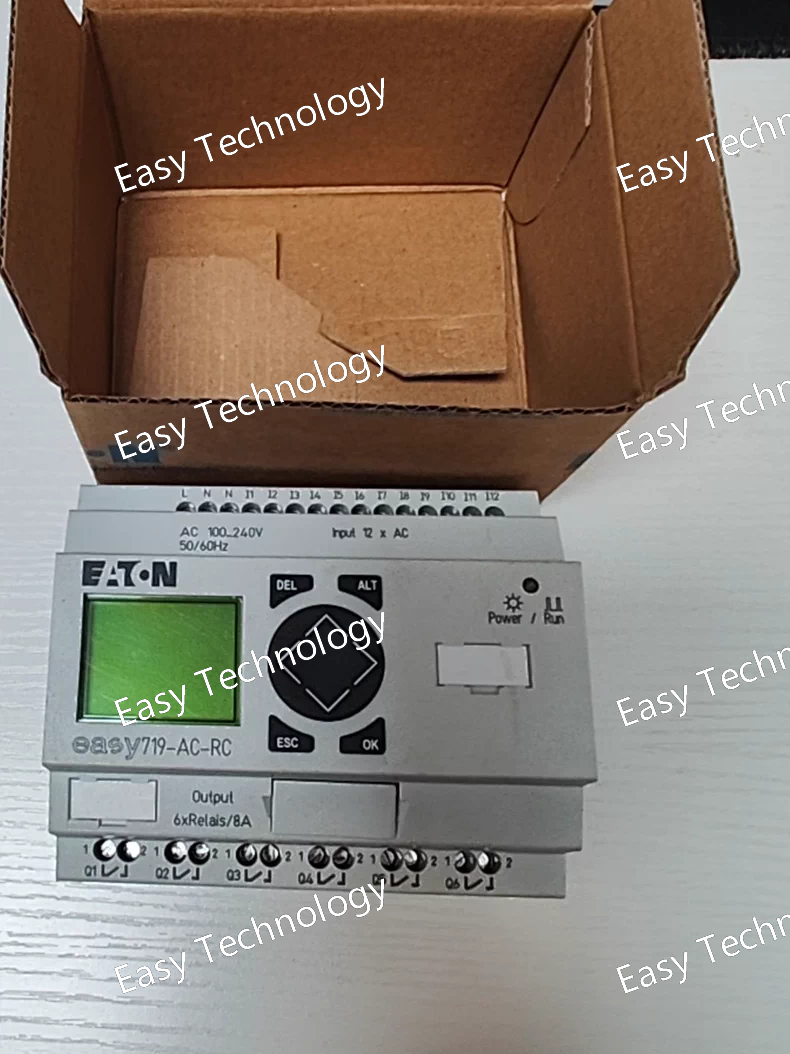

Technical Parameters Parameter Category Specification Product Model EASY719-AC-RC Product Line EASY700 Device Type Programmable Logic Relay (PLR) / Smart Relay Supply Voltage 100-240 V AC (85-264 V AC, 50/60 Hz) Power Consumption Typically 15 W (including loads) Core Processor 32-bit microcontroller User Program Memory 2,000 function blocks (non-volatile) Data Memory 512 flags (non-volatile) Real-Time Clock (RTC) Integrated (buffered) Digital Inputs 12 x Digital Inputs • 24 V DC (sinking/sourcing) • 4 of them can be used as analog inputs (0-10 V, 0/4-20 mA) or high-speed counters (5 kHz) Digital Outputs 8 x Relay Outputs • Switching Capacity: 250 V AC / 30 V DC Max. • 8 A (at 250 V AC Resistive) • 5 A (at 250 V AC Inductive, cos φ=0.4) Analog Inputs 4 x Analog Inputs (shared with 4 digital inputs) • Configurable: 0 - 10 V, 0/4 - 20 mA • Resolution: 10 bit High-Speed Counters 4 x High-Speed Counters (shared with 4 digital inputs) • Frequency: up to 5 kHz Display & Operation Integrated Color Graphic Display (RC) • High-resolution TFT color screen • 8 function keys with customizable labels Programming Interface Integrated EASY-PC interface (via RJ12 connector) & USB port Communication • EASY-LINK: For networking up to 12 EASY devices. • Ethernet (optional module): For integration into plant networks and remote access. • PC Connection: Via USB or RJ12. Programming Software Eaton EASY-SOFT (Version 7 or higher recommended for full functionality) Protection Rating Front panel: IP65 (when mounted) Housing: IP20 Mounting DIN rail mounting (35 mm) Ambient Temperature -25 °C to +55 °C (Operation) -40 °C to +70 °C (Storage) Dimensions (H x W x D) Approx. 126 x 90 x 64 mm

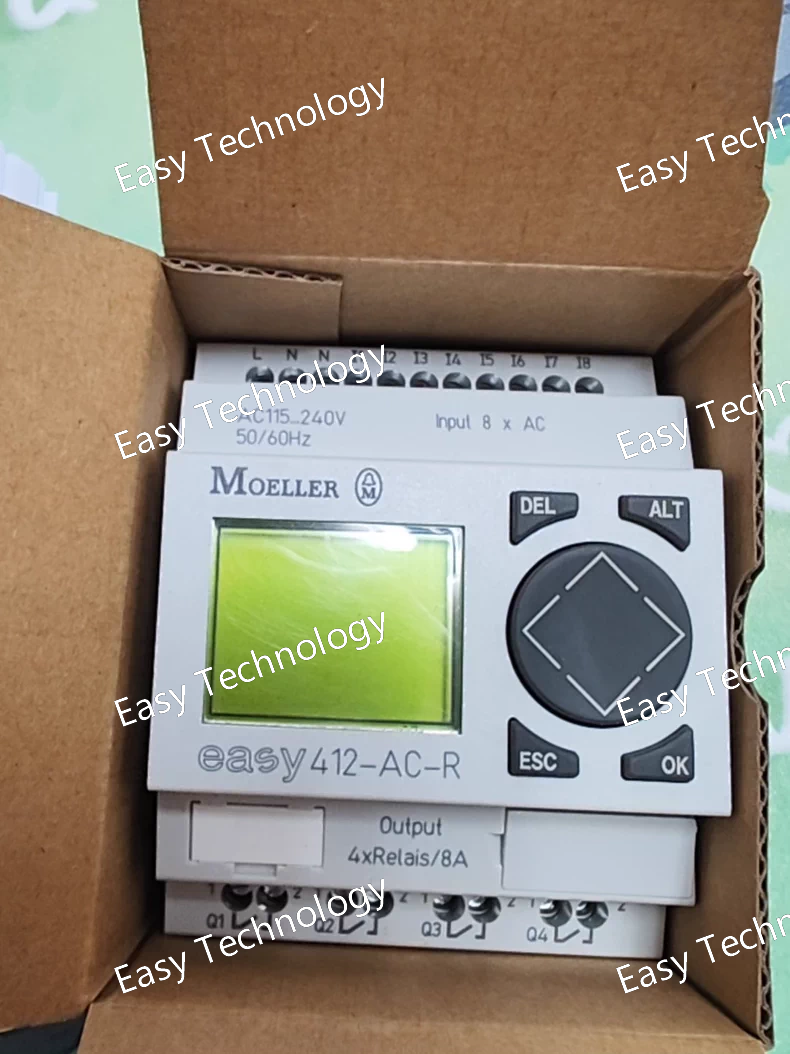

Technical Parameters Parameter Category Specification Product Model EASY412-AC-R Product Line EASY400 Device Type Programmable Logic Relay (PLR) / Smart Relay Supply Voltage 100-240 V AC (85-264 V AC, 50/60 Hz) Power Consumption Typically 8 W (including loads) Core Processor 8-bit microcontroller User Program Memory 500 function blocks (non-volatile) Data Memory 64 flags (non-volatile) Real-Time Clock (RTC) Not available on this model Digital Inputs 6 x Digital Inputs • 24 V DC (sinking/sourcing) Digital Outputs 4 x Relay Outputs • Switching Capacity: 250 V AC / 30 V DC Max. • 8 A (at 250 V AC Resistive) • 5 A (at 250 V AC Inductive, cos φ=0.4) • Note: The total current for all outputs combined must not exceed 16 A. Analog Inputs Not available on this model. High-Speed Counters Not available on this model. Display & Operation No built-in display. Status indicated by LEDs. Programming and monitoring require a PC. Programming Interface Integrated EASY-PC interface (via RJ12 connector) Communication • EASY-LINK: For networking up to 12 EASY400/600/800 devices (via RJ12 connectors) • PC Connection: For programming with EASY-SOFT software Programming Software Eaton EASY-SOFT (Version 6 or higher recommended) Protection Rating Front panel: IP65 (when mounted) Housing: IP20 Mounting DIN rail mounting (35 mm) Ambient Temperature -25 °C to +55 °C (Operation) -40 °C to +70 °C (Storage) Dimensions (H x W x D) Approx. 90 x 71.5 x 64 mm

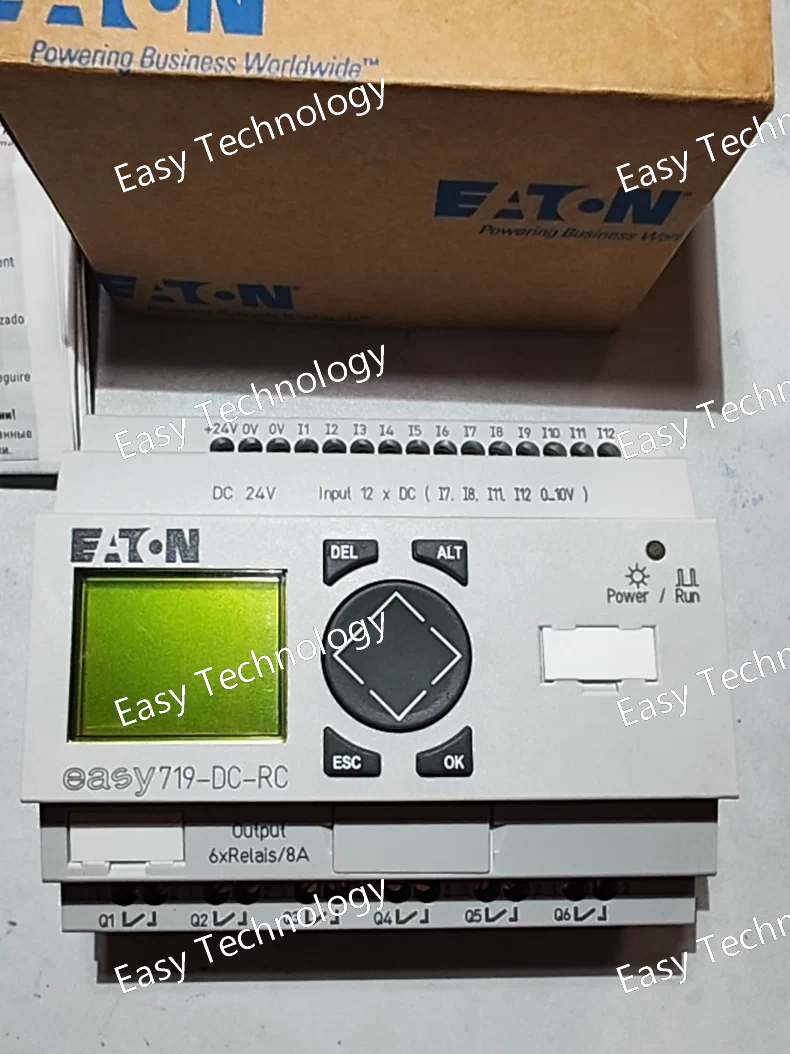

Technical Parameters Parameter Category Specification Product Model EASY719-DC-RC Product Line EASY700 Device Type Programmable Logic Relay (PLR) / Smart Relay Supply Voltage 24 V DC (19.2 - 28.8 V DC) Power Consumption Typically 15 W (including loads) Core Processor 32-bit microcontroller User Program Memory 2,000 function blocks (non-volatile) Data Memory 512 flags (non-volatile) Real-Time Clock (RTC) Integrated (buffered) Digital Inputs 12 x Digital Inputs • 24 V DC (sinking/sourcing) • 4 of them can be used as analog inputs (0-10 V, 0/4-20 mA) or high-speed counters (5 kHz) Digital Outputs 8 x Relay Outputs • Switching Capacity: 250 V AC / 30 V DC Max. • 8 A (at 250 V AC Resistive) • 5 A (at 250 V AC Inductive, cos φ=0.4) Analog Inputs 4 x Analog Inputs (shared with 4 digital inputs) • Configurable: 0 - 10 V, 0/4 - 20 mA • Resolution: 10 bit High-Speed Counters 4 x High-Speed Counters (shared with 4 digital inputs) • Frequency: up to 5 kHz Display & Operation Integrated Color Graphic Display (RC) • High-resolution TFT color screen • 8 function keys with customizable labels Programming Interface Integrated EASY-PC interface (via RJ12 connector) & USB port Communication • EASY-LINK: For networking up to 12 EASY devices. • Ethernet (optional module): For integration into plant networks and remote access. • PC Connection: Via USB or RJ12. Programming Software Eaton EASY-SOFT (Version 7 or higher recommended for full functionality) Protection Rating Front panel: IP65 (when mounted) Housing: IP20 Mounting DIN rail mounting (35 mm) Ambient Temperature -25 °C to +55 °C (Operation) -40 °C to +70 °C (Storage) Dimensions (H x W x D) Approx. 126 x 90 x 64 mm

Technical Parameters Parameter Category Specification Product Model EASY-USB-CAB Product Name USB Programming Cable Cable Function Programming, Online Monitoring, and Communication Compatible Devices All Eaton EASY series PLRs (EASY400, EASY500, EASY600, EASY700, EASY800) PC Connection USB Type-A connector EASY Controller Connection 6-pin RJ12 modular connector Cable Length Approximately 2.5 meters Integrated Electronics Yes (contains a USB to serial converter) Supported Operating Systems Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11 (Requires driver installation, usually provided with EASY-SOFT software) Primary Use • Downloading programs to the EASY controller • Uploading programs from the EASY controller • Online debugging and monitoring • Configuring EASY-LINK networks via software LED Indicator Typically includes a status LED to indicate communication activity.

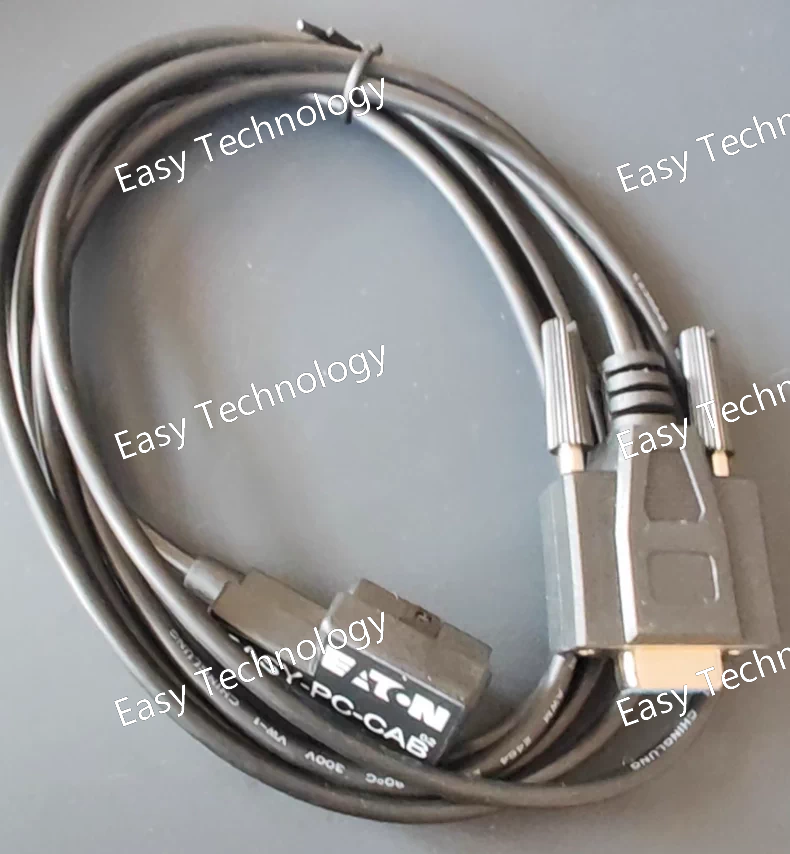

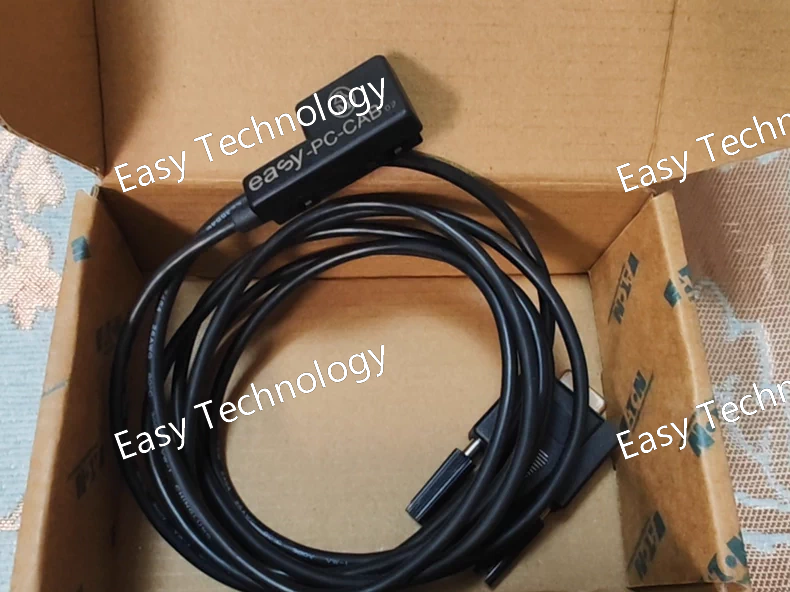

Technical ParametersProduct Name: PC Programming Cable for easy500/700 Catalog Number: EASY-PC-CAB Interface Type: RS-232 (PC to controller) Compatible Devices: Eaton easy500 series / easy700 series Function: Programming, monitoring, and configuration Length: Approx. 7 in (≈178 mm) Width: Approx. 5.5 in (≈140 mm) Height: Approx. 1 in (≈25 mm) Weight: Approx. 0.2 lb (≈0.09 kg) Warranty: 1 year Certifications: UL / cUL
