B&R

The B&R 4PPC70.101G-23W is a high-performance industrial panel PC designed to meet the demanding requirements of automation, control, and data visualization in industrial environments. It combines advanced computing power with a rugged design and a touchscreen interface, ensuring reliable operation in harsh conditions.

276

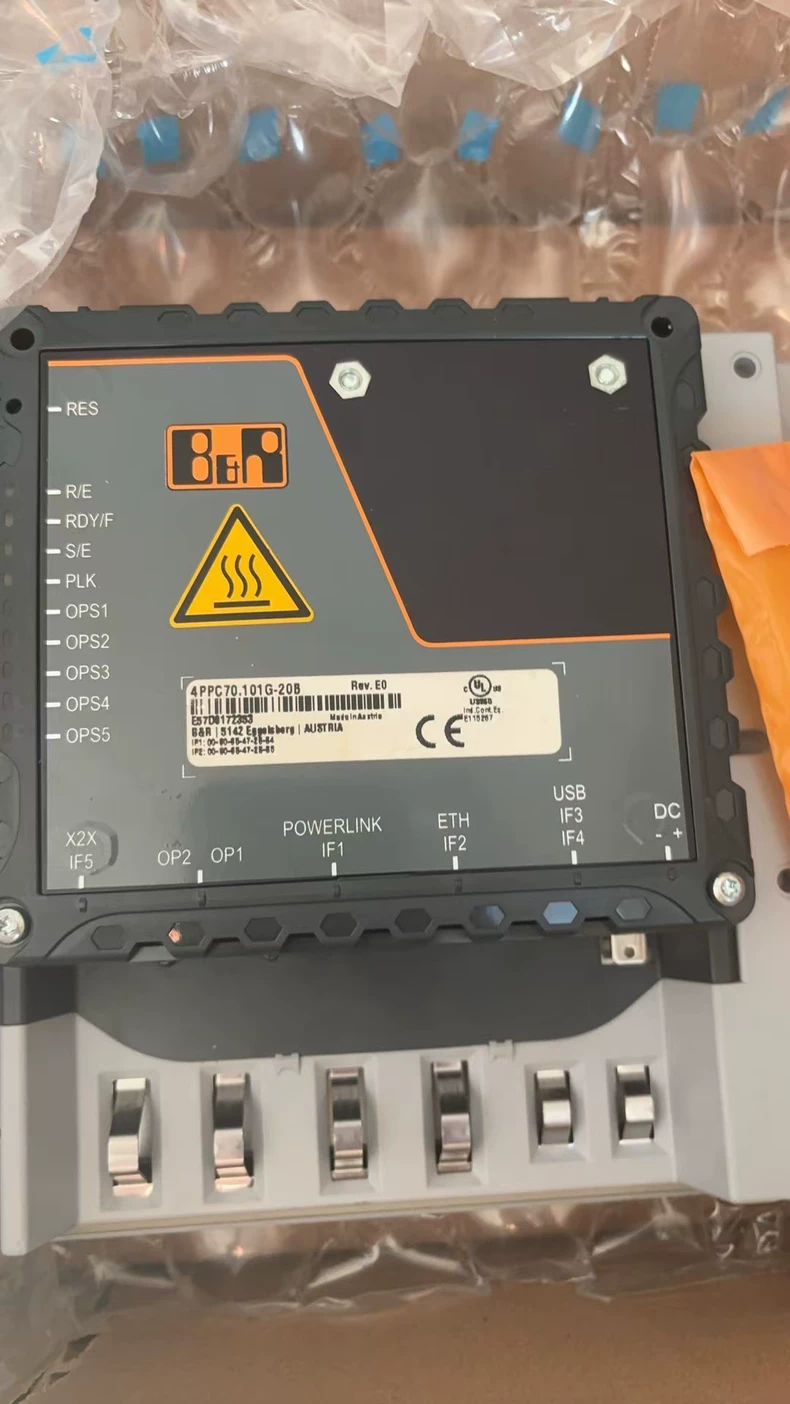

B&R

The B&R 4PPC70.101G-20B is a powerful and durable industrial panel PC designed for integration in demanding automation environments. It provides an intuitive interface, high processing performance, and rugged construction, making it ideal for control, monitoring, and data acquisition tasks in industries like manufacturing, machine control, and process automation.

320

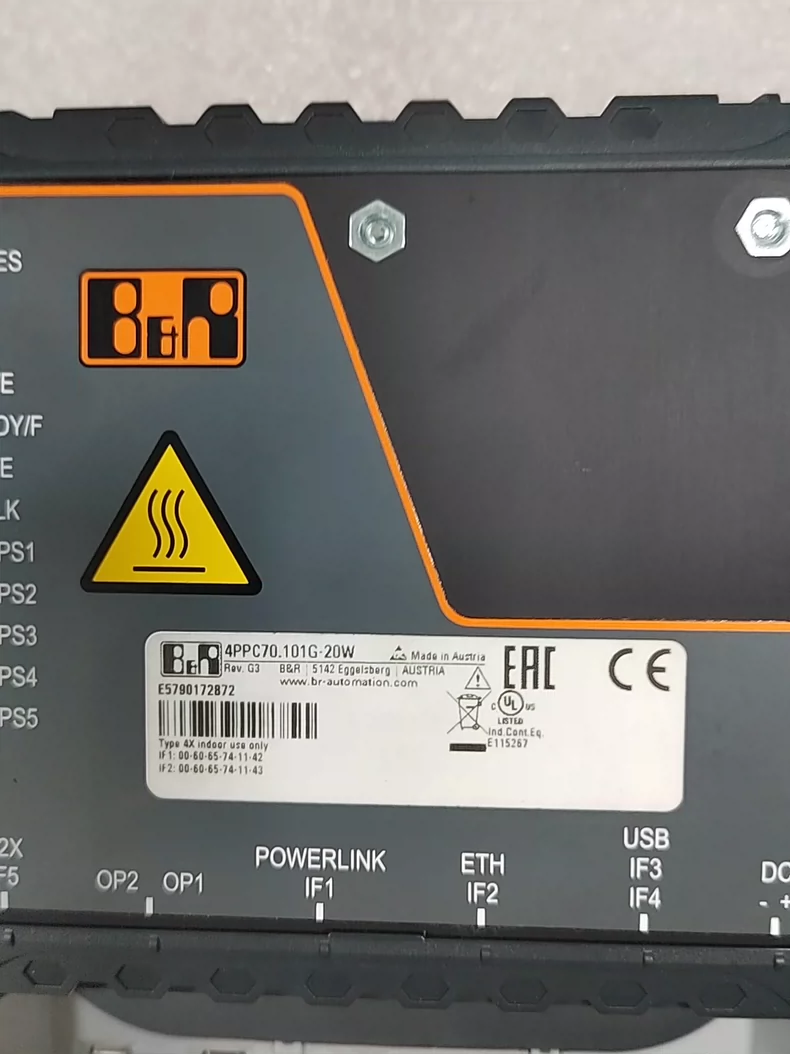

B&R

The B&R 4PPC70.101G-20W is a robust, industrial-grade panel PC designed for high-performance applications in demanding environments. This unit combines a sleek, intuitive interface with powerful computing capabilities to handle complex automation tasks.

612

B&R

This is a panel PC from B&R, specifically designed for use in industrial environments. It offers powerful performance, a rugged design, and flexible connectivity options.

81

B&R

The B&R X20CP1382 is a compact, high-performance central processing unit (CPU) module designed for use in B&R’s X20 automation system. It is optimized for controlling and monitoring a wide range of industrial processes.

884

B&R

The B&R X20IF10G3-1 is an input module used in automation systems. It is designed to interface with digital inputs, making it suitable for various industrial control and monitoring applications.

946

B&R

Material number: X20BB52 Description: Base for all X20 Compact-S controllers RS232 connection The bus module is the base for all X20 Compact-S controllers. The left and right end cover plates are included in delivery.

959

B&R

Material number: X20DC4395 Description: 24 VDC encoder inputs SSI, ABR, AB or event counters for inputs Pulse width modulation for outputs 24 VDC and GND for encoder supply This module is a multifunctional counter module. It can be connected to two SSI encoders, two ABR encoders, four AB encoders or eight event counters. Four outputs are available for pulse width modulation. The functions can also be mixed.

359

B&R

Material number: X20IF1061-1 Description: PROFIBUS DP V1 master The interface module is equipped with a PROFIBUS DP V1 interface. This allows third-party components to be integrated in the B&R system and makes it possible to quickly and easily transfer data in both directions. The interface module can be operated in the X20 controllers or in the expandable X20BC1083 POWERLINK bus controller.

272

B&R

Material number: X20AT2222 Description: 2 inputs for resistance temperature measurement For PT100 and PT1000 Configurable sensor type per channel Direct resistance measurement Configurable 2- or 3- wire connections per module Configurable filter time The module is equipped with 2 inputs for PT100/PT1000 resistance temperature measurement. This module is designed for X20 6-pin terminal blocks. If needed (e.g. for logistical reasons), the 12-pin terminal block can also be used.

718

B&R

Material number: X20AI8221 Description: 8 analog inputs ±10 V 13-bit digital converter resolution The module is equipped with 8 inputs with 13-bit (including sign) digital converter resolution. It can be used to capture voltage signals in the range from ±10 V.

993

B&R

X20CP1586 Description: Intel Atom 1.6 GHz processor with an additional I/O processor Onboard Ethernet, POWERLINK with poll response chaining and USB 1 slot for modular interface expansion CompactFlash as removable application memory 512 MB DDR2 SDRAM Fanless The X20CP1586 is a powerful controller for the X20 system. This controller is especially useful for applications that require short cycle times, have to process very large amounts of data or carry out floating point operations. It is clocked at 1.6 GHz and equipped with 512 MB DDR2 SDRAM. USB, Ethernet, POWERLINK and removable CompactFlash are all included as standard features. The standard Ethernet interface is capable of handling communication in the gigabit range. For even more real-time network performance, the onboard POWERLINK interface supports poll response chaining mode (PRC). The controller is equipped with one slot available for X20 communication modules. Various bus and network systems can easily be integrated into the X20 system through the use of communication modules.

577
