ABB

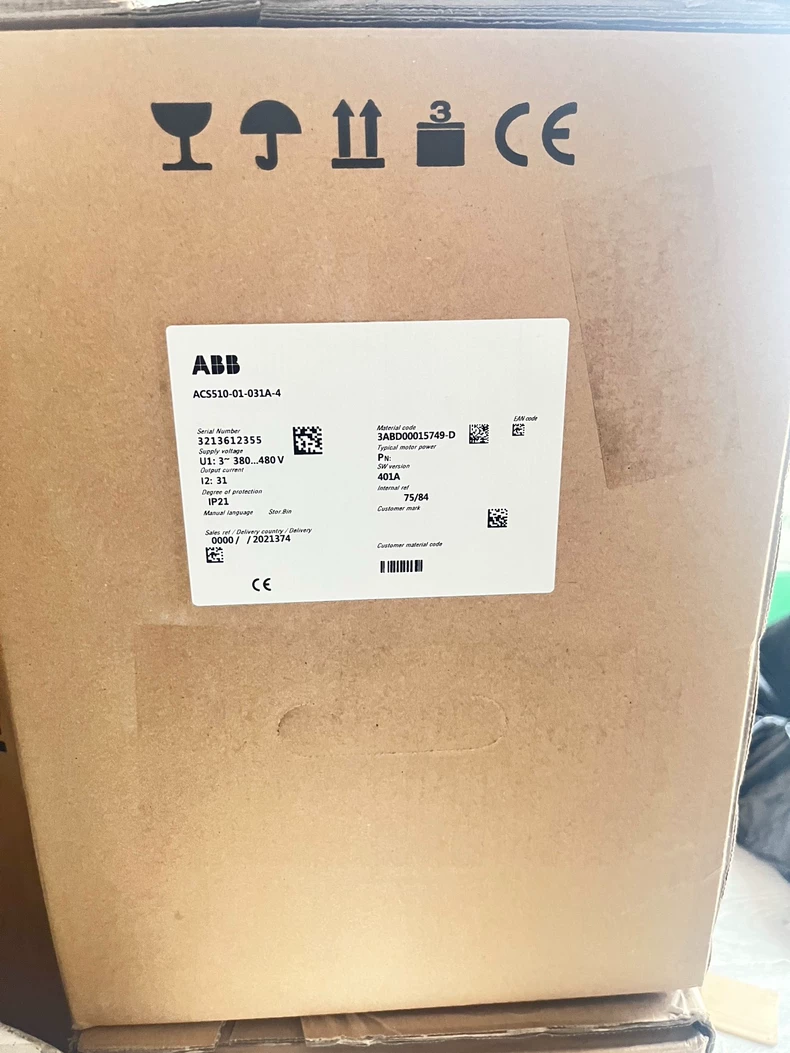

Key Specifications Model: ACS510-01-031A-4 Rated Power: 15kW (20HP) Output Current: 31A Input Voltage: 3-phase 380-480V AC ±10% Frequency Range: 50/60Hz ±5% Output Frequency: 0-500Hz Control Methods: Scalar (V/f) control Sensorless vector control Overload Capacity: 150% for 60 seconds Efficiency: >97% Protection Class: IP21 (standard) 3. Key Features Energy Optimization: Automatic Energy Optimizer (AEO) Sleep mode function Adaptive control algorithms Motor Protection: Motor thermal protection Short circuit protection Ground fault monitoring Overvoltage/undervoltage protection Control Functions: Built-in PID controller Flying start capability Torque boost (0-30%) DC braking 4. Communication Interfaces Standard RS485 port Modbus RTU protocol Optional fieldbus adapters: PROFIBUS DP DeviceNet CANopen 5. Physical Characteristics Dimensions: 198 × 195 × 190 mm (W×H×D) Weight: 3.5kg Cooling: Forced air cooling Ambient Temperature: -15°C to +50°C Humidity: <95% non-condensing Mounting: DIN rail or panel mount

360

ABB

Key Specifications Model Number: ACS550-01-031A-4 Rated Power: 15kW (20HP) Output Current: 31A Input Voltage: 3-phase 380-480V AC (±10%) Frequency Range: 50/60Hz ±5% Output Frequency: 0-500Hz Control Methods: Scalar (V/f) control Sensorless Vector Control (SVC) Overload Capacity: 150% for 60 seconds Efficiency: >97.5% Protection Class: IP21 (standard) 3. Advanced Features Motor Control: Automatic Motor Adaptation (AMA) Flying Start function Torque Boost (0-30%) DC braking Built-in PID controller Energy Saving: ABB Energy Optimizer Sleep Mode function Adaptive programming Protection Features: Motor thermal protection (PTC input) Short circuit protection Ground fault protection Over/under voltage protection Safe Torque Off (STO) option 4. Communication & Connectivity Standard RS485 interface Modbus RTU protocol Optional fieldbus adapters: PROFIBUS DP DeviceNet CANopen Ethernet/IP 5. Physical Characteristics Dimensions: 198 × 195 × 190 mm (W×H×D) Weight: 3.5kg Cooling Method: Forced air cooling Ambient Temperature: -15°C to +50°C Relative Humidity: <95% non-condensing Installation: DIN rail or panel mounting

991

ABB

.Key Specifications Model Designation: ACS800-01-0135-3+P901 Rated Power: 75kW (100HP) Output Current: 135A Input Voltage: 3-phase 380-500V AC (-15%/+10%) Frequency Range: 48-63Hz Output Frequency: 0-300Hz (standard) Overload Capacity: 1.5× rated current for 60 seconds 3. Technical Features Advanced Control: Direct Torque Control (DTC) technology 0.1Hz speed control accuracy without encoder 200% starting torque at 0rpm Built-in PID controller System Integration: Standard P901 control panel with: Multilingual LCD display Quick start-up macros Copy function for parameter transfer Multiple fieldbus options (PROFIBUS, Modbus, DeviceNet, etc.) Protection & Safety: Short circuit protection (I²t) Motor thermal protection Ground fault protection Safe torque-off (STO) functionality 4. Physical Characteristics Module Dimensions: 350 × 800 × 350mm (W×H×D) Weight: Approximately 65kg Cooling Method: Forced air cooling Enclosure Rating: IP21 (standard) Ambient Temperature: -15°C to +40°C (with derating above +40°C)

528

ABB

Key Specifications System Configuration: Multi-drive cabinet solution Input Voltage: 480V AC 3-phase (±10%) Input Current: 770A Power Range: Typically 400-600HP (exact rating depends on configuration) Frequency Range: 48-63Hz input / 0-300Hz output Control Technology: Direct Torque Control (DTC) Efficiency: >98% at full load 3. Technical Features Advanced Motor Control: ABB's proprietary Direct Torque Control technology ±0.1% speed accuracy without encoder 200% starting torque capability Built-in motor thermal protection System Architecture: Common DC bus configuration Includes line-side converter unit Intelligent cooling system Pre-configured power cabinet Protection & Safety: Short-circuit protection Ground fault monitoring Overvoltage/undervoltage protection Safe torque-off functionality (STO) 4. Physical Characteristics Cabinet Dimensions: Customizable (typically 2000+ mm height) Weight: Approximately 800-1200kg (depending on configuration) Cooling Method: Forced air or liquid cooling options Enclosure Rating: Typically IP21 or IP42 (custom options available) Ambient Temperature: 0°C to +40°C (with derating above +40°C) 5. Control & Communication Standard control panel included Multiple fieldbus options: PROFIBUS DP Modbus RTU/TCP DeviceNet Ethernet/IP PC interface for configuration and monitoring

220

ABB

Main Drive Unit: ACS800-104-0400-7 (400A capacity) Control Options: +C123: Extended encoder module +C124: Fieldbus adapter (PROFIBUS DP) +C126: I/O extension module Protection Options: +E205: Advanced EMI filter +E213: Duplex communication module Monitoring Option: +V991: Condition monitoring module 2. Core Specifications Model Designation: ACS800-104-0400-7 Rated Current: 400A Power Range: 250-315kW (335-420HP) @ 400V Input Voltage: 3-phase 380-500V AC (-15%/+10%) Control Technology: Direct Torque Control (DTC) Overload Capacity: 1.5× rated current for 60 sec 3. Option Package Details +C123: Extended Encoder Module Supports absolute/inc. encoders 17-bit resolution Sin/Cos 1Vpp interface +C124: PROFIBUS DP Adapter DP-V1 protocol support 12Mbps communication speed Profile 3.0 compliant +C126: I/O Extension Module 4 analog inputs (0-10V/4-20mA) 4 relay outputs 8 digital inputs/4 digital outputs +E205: Advanced EMI Filter Meets EN 61800-3 C2/C3 Reduces RFI emissions by 20dB Integrated choke design +E213: Duplex Communication Redundant communication paths Dual-port Ethernet support <1ms switchover time +V991: Condition Monitoring Vibration monitoring Temperature tracking Predictive maintenance alerts 4. Performance Features Motor Control: ±0.1% speed accuracy (with encoder) 200% starting torque Adaptive motor tuning System Integration: Dual-channel safety (STO, SS1) Web server interface Energy consumption monitoring 5. Physical Specifications Cabinet Dimensions: 800×2000×600mm (W×H×D) Weight: ~450kg (complete system) Cooling: Forced air (IP21) or liquid cooling options Ambient Temp: 0°C to +40°C (with derating)

69

ABB

Key Parameters Core Drive Power: 440kW (590HP) Input: 3-phase 525-690V AC (±10%) Output: 530A Control: DTC (Direct Torque Control) Overload: 110% continuous Modules E205 I/O Extension +4AI (2x 0-10V, 2x 4-20mA) +4DI, +2RO Q950 Liquid Cooling Cooling capacity: 440kW Flow rate: 35L/min V991 Backup Module Stores 10 parameter sets <5min drive replacement Performance Speed accuracy: ±0.1% Torque accuracy: ±1% Switching freq.: 1-4kHz Physical Drive Dimensions: 900×2200×600mm Cooling Unit: 600×900×400mm Total Weight: 680kg IP Rating: IP00 (cabinet-mounted) Certifications CE, UL, cUL SIL3/PL e

309

ABB

Key Specifications Parameter Value Power Rating 160 kW (215 HP) Input Voltage 3-phase 380-500V AC (±10%) Output Current 300 A Overload 110% continuous Control Method DTC (Direct Torque Control) Cooling Method Liquid (Q950 unit) System Components ACS800-104-0175-5 Drive DTC technology (±0.1% speed accuracy) Built-in EMC filter IP00 enclosure (cabinet-mounted) Q950 Cooling Unit Cooling capacity: 160kW Flow rate: 25L/min Integrated temperature control Technical Highlights ✔ Precision Control Torque accuracy: ±1% Automatic motor adaptation Flying start function ✔ Thermal Management Maintains optimal operating temperature Reduced audible noise (<65dB) 50°C ambient capability ✔ Connectivity RS485 (Modbus RTU) standard Optional fieldbus adapters Physical Specs Drive Dimensions: 482×800×350mm Cooling Unit Dimensions: 600×900×400mm Total Weight: 210kg Certifications CE UL cULus IEC 61800-3

106

ABB

Key Parameters Core Drive Power: 440kW (590HP) Input: 3-phase 525-690V AC (±10%) Output: 530A Control: DTC (Direct Torque Control) Overload: 110% continuous Modules E205 I/O Extension +4 analog inputs (2x 0-10V, 2x 4-20mA) +4 digital inputs +2 relay outputs V991 Backup Module Stores 10 parameter sets Enables <5min drive replacement Performance Speed accuracy: ±0.1% Torque accuracy: ±1% Switching freq.: 1-4kHz Physical Dimensions: 900×2200×600mm (W×H×D) Weight: 380kg Cooling: Liquid (10L/min flow required) IP Rating: IP21 Certifications CE, UL, cUL SIL3/PL e

970

ABB

Key Parameters Core Drive Power: 580kW (777HP) Input: 3-phase 525-690V AC (±10%) Output: 700A Control: DTC (Direct Torque Control) Overload: 110% continuous Modules E205 I/O Extension +4 analog inputs (2x 0-10V, 2x 4-20mA) +4 digital inputs +2 relay outputs V991 Backup Module Stores 10 parameter sets Enables <5min drive replacement Performance Speed accuracy: ±0.1% Torque accuracy: ±1% Switching freq.: 1-4kHz Physical Dimensions: 900×2200×600mm (W×H×D) Weight: 420kg Cooling: Liquid (12L/min flow required) IP Rating: IP21 Certifications CE, UL, cUL SIL3/PL e

353

ABB

Key Parameters Core Drive Power: 400kW (536HP) Input: 3-phase 525-690V AC (±10%) Output: 480A Control: DTC (Direct Torque Control) Overload: 110% continuous Modules E205 I/O Extension +4 analog inputs (2x 0-10V, 2x 4-20mA) +4 digital inputs +2 relay outputs V991 Backup Module Stores 10 parameter sets Fast drive replacement Performance Speed accuracy: ±0.1% Torque accuracy: ±1% Switching freq.: 1-4kHz Physical Dimensions: 900×2200×600mm (W×H×D) Weight: 350kg Cooling: Liquid IP Rating: IP21 Certifications CE, UL, cUL SIL3/PL e

871

ABB

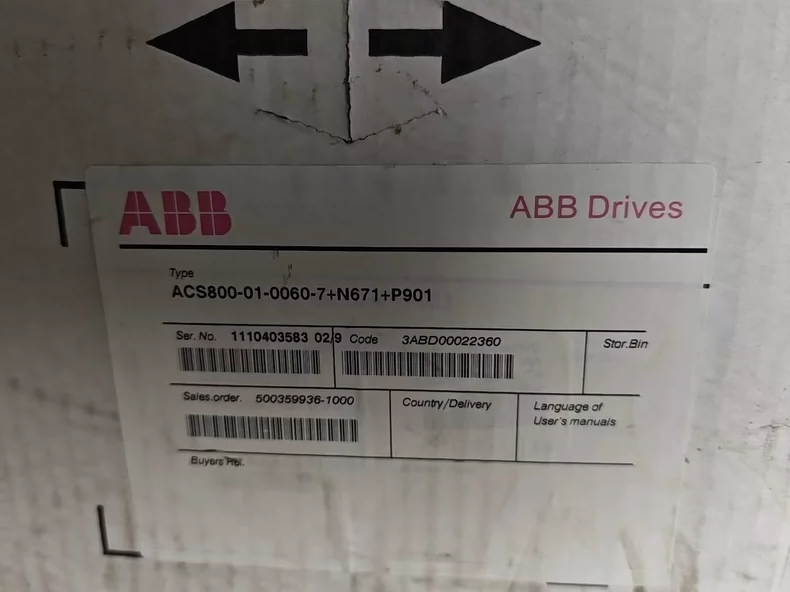

Key Parameters Core Drive Power: 45kW (60HP) Input: 3-phase 525-690V AC (±10%) Output: 60A Control: DTC (Direct Torque Control) Overload: 150% for 60s Modules N671 Encoder Interface Supports incremental encoders Resolution: Up to 4096 ppr Protocols: RS422/TTL P901 Brake Chopper Braking power: 45kW cont. Peak: 67.5kW (60s) Requires external resistor Performance Speed accuracy: ±0.01% (with encoder) Torque accuracy: ±1% Switching freq.: 1-12kHz Physical Dimensions: 482×800×350mm (H×W×D) Weight: 45kg Cooling: Forced air IP Rating: IP21 Certifications CE, UL, cUL SIL3/PL e

166

ABB

Key Parameters Core Specifications Power: 18.5kW (25HP) Input: 3-phase 380-480V AC (±10%) Output Current: 38A Control: DTC (Direct Torque Control) Overload: 150% for 60s Brake System (P901) Continuous Braking: 18.5kW Peak Braking (60s): 27.75kW External resistor required Performance Speed accuracy: ±0.1% Torque accuracy: ±1% Switching frequency: 1-12kHz adjustable Physical Dimensions: 245×482×227mm (W×H×D) Weight: 14kg Cooling: Forced air Enclosure: IP21 Certifications CE, UL, cUL SIL3/PL e compliant

863
