Parameter Specification Product Series Eaton Wiring Devices / Commercial Grade Model Number Y22-10T Description 20A Quiet Toggle Switch, Single-Pole Color Ivory (Light Brown) Actuation Type Toggle Lever Control Type Single-Pole (SP) Rated Voltage 120V AC / 277V AC Rated Current 20 Amps Rated Load General Use: 20A Resistive Motor Load (HP): 2 HP at 120V/240V; 3 HP at 277V Wiring Single-Pole. Side-wiring only (no back-wire). Terminals Two side screw terminals. Requires looping wire on screws. Mounting Standard wall box Faceplate Sold separately; requires a standard single-gang wall plate. Material Thermoplastic Body and Toggle Certifications UL Listed (US) and CSA Certified (Canada) Special Features Quiet Switch: Mechanism designed for quieter operation. Commercial Grade: Built for higher durability and longer life than residential-grade switches. Typical Use Controlling lighting fixtures, outlets (if switched), and ventilation fans from one location.

Parameter Specification Product Series Aspire™ / Home Model Number Y22-RLTR-RT/K10/F/LED-R Description Rotary Dimmer with Locator LED and Push Switch Color Red Control Type Single-Location Dimming Actuation Rotary Knob with Push-On/Push-Off Function Locator LED Yes, Red Rated Voltage 220 ~ 240 VAC, 50/60 Hz Rated Load LED/CFL: 10W - 150W* Incandescent/Halogen: 60W - 600W Mains Voltage Halogen: 60W - 500W *Minimum load for stable LED dimming is 10W. Dimming Technology Leading-Edge / TRIAC Dimming Dimming Range 100% to <10% (Wide range, dependent on load compatibility) Wiring Single-Pole Terminals Screw Terminals Mounting Standard wall box Faceplate Sold separately; requires a standard single-gang wall plate. Material Thermoplastic (Body), Knob Certifications CE, CCC, or other region-specific certifications for 220V markets. Key Features F (Favorites Setting): Set a preset light level by pulling and turning the knob. The switch turns on to this level. K10: Minimum load for LEDs (10W). RT: Red color.

Parameter Specification Product Series Aspire™ / Home Model Number Y22-RLTR-GN/K10/F/LED-G Description Rotary Dimmer with Locator LED and Push Switch Color Green Control Type Single-Location Dimming Actuation Rotary Knob with Push-On/Push-Off Function Locator LED Yes, Green Rated Voltage 220 ~ 240 VAC, 50/60 Hz Rated Load LED/CFL: 10W - 150W* Incandescent/Halogen: 60W - 600W Mains Voltage Halogen: 60W - 500W *Minimum load for stable LED dimming is 10W. Dimming Technology Leading-Edge / TRIAC Dimming Dimming Range 100% to <10% (Wide range, dependent on load compatibility) Wiring Single-Pole Terminals Screw Terminals Mounting Standard wall box Faceplate Sold separately; requires a standard single-gang wall plate. Material Thermoplastic (Body), Knob Certifications CE, CCC, or other region-specific certifications for 220V markets. Key Features F (Favorites Setting): Allows you to set a preset light level by pulling and turning the knob. The switch will always turn on to this preset level. K10: Minimum load specification for LEDs (10W). GN: Green color

Parameter Specification Product Series Aspire™ / Home Model Number Y22-RLTR-WS/K10/F/LED-W Description Rotary Dimmer with Locator LED and Push Switch Color White Control Type Single-Location Dimming Actuation Rotary Knob with Push-On/Push-Off Function Locator LED Yes, White Rated Voltage 220 ~ 240 VAC, 50/60 Hz Rated Load LED/CFL: 10W - 150W* Incandescent/Halogen: 60W - 600W Mains Voltage Halogen: 60W - 500W *Minimum load for stable LED dimming is 10W. Dimming Technology Leading-Edge / TRIAC Dimming Dimming Range 100% to <10% (Wide range, dependent on load compatibility) Wiring Single-Pole Terminals Screw Terminals Mounting Standard wall box Faceplate Sold separately; requires a standard single-gang wall plate. Material Thermoplastic (Body), Knob Certifications CE, CCC, or other region-specific certifications for 220V markets. Key Features F (Favorites Setting): Allows you to set a preset light level by pulling and turning the knob. The switch will always turn on to this preset level. K10: Minimum load specification for LEDs (10W). WS: White color.

Parameter Specification Product Series Aspire™ Model Number Y22-LCLED6-W Description Single-Pole, LED Illuminated Decorator Switch Color White Actuation Type Touch Sensitive / Electronic Rocker Control Type Single Location (1 switch controls 1 light) LED Indicator Yes, Blue/White Glow LED Function Configurable as Locator Light (ON in darkness) or Pilot Light (ON when load is OFF) Rated Voltage 120 VAC, 60 Hz Rated Load Incandescent / Halogen: 600W max. LED / CFL: 150W max. Wiring Single-Pole (Requires Neutral Wire) Terminals Quickwire push-in & side screw terminals Mounting Standard wall box Faceplate Sold separately; requires a standard single-gang wall plate. Material Thermoplastic Certifications UL Listed (or cUL) Compatibility Compatible with most LED, CFL, incandescent, and halogen bulbs. Note: For some low-wattage LEDs, a minor glow when off might occur.

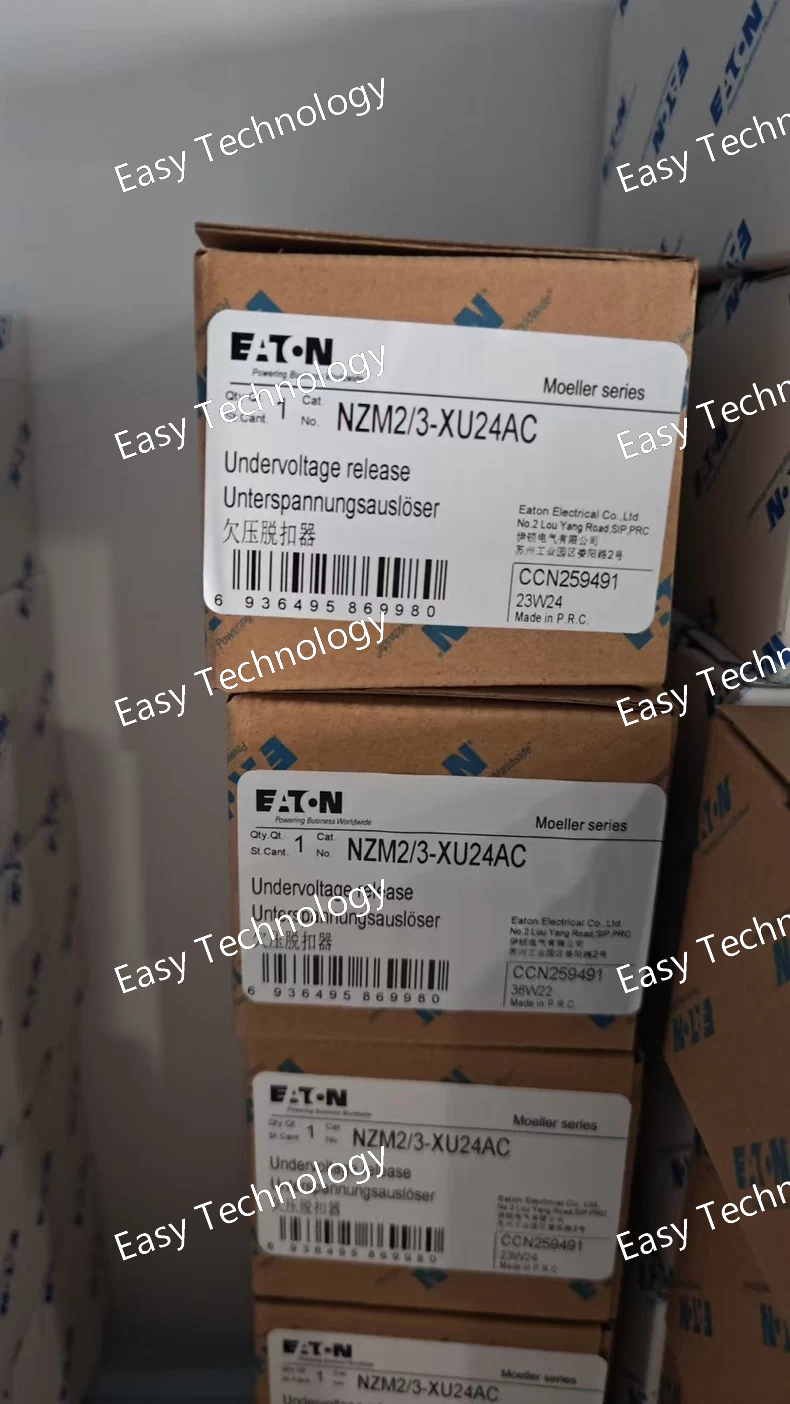

Technical Data Parameter Specification Product Type Undervoltage Release (UVR) - Accessory Compatible Series NZM2 and NZM3 Molded Case Circuit Breakers Rated Control Supply Voltage (Us) 24 V AC Tripping Delay Typically 1 - 3 seconds (to avoid nuisance tripping on brief voltage dips). Function Automatically trips the breaker when voltage drops below the threshold. Prevents the breaker from being closed if the control voltage is absent or too low. Duty Cycle Continuous (Can be powered continuously unlike a shunt release). Mounting Factory-installed or field-mounted on the side of compatible NZM2/NZM3 breakers. Connection Screw terminals for control wiring. Standards IEC 60947-1, IEC 60947-2

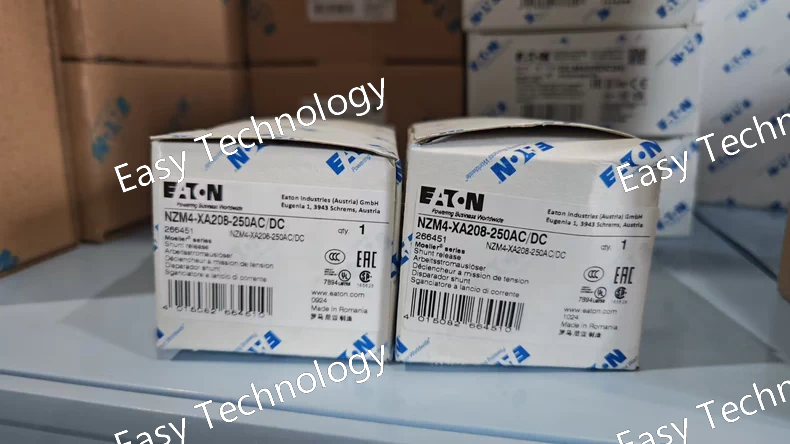

Technical Data Parameter Specification Product Type Shunt Release (MX - Opening Coil) Compatible Series NZM4 Molded Case Circuit Breakers Rated Control Supply Voltage (Us) 208 - 250 V AC/DC Power Consumption Approx. 150 VA / 100 W (at 230V AC/DC) Typical value, confirm with datasheet Function Electrically trips the circuit breaker when the control voltage is applied. Duty Cycle Intermittent (Short-time). The coil must not be continuously energized. Mounting Factory-installed or field-mounted on compatible NZM4 breakers. Connection Screw terminals for control wiring. Standards IEC 60947-1, IEC 60947-2

Technical Data Parameter Specification Product Type Auxiliary Contact Block (Accessory) Compatible Series NZM2 Molded Case Circuit Breakers Contact Configuration 2 NO (Two Normally Open contacts) Rated Operational Voltage (Ue) Up to 415 V AC / 125 V DC Rated Thermal Current (Ith) 10 A Utilization Category AC-15: Control of AC electromagnetic loads (e.g., contactor coils). DC-13: Control of DC electromagnetic loads. Mechanical Life Aligns with the breaker's mechanical life (typically 10,000+ operations) Electrical Life > 100,000 operations (at rated load) Connection Screw clamp terminals Mounting Snap-on mounting to the side of the NZM2 breaker.

Technical Data Parameter Specification Product Type Fixed Mounting Kit / Base Frame Compatible Series NZM4 Molded Case Circuit Breakers Compatible Breaker Frame Size 800 A (AF - Ampere Frame) Mounting Style Fixed Mounting Function Provides a secure mechanical mounting and electrical connection point for a fixed-mounted NZM4-VE800 circuit breaker. Connection Designed for busbar or cable connection to the breaker's terminals. Material Typically constructed from robust, insulated material.

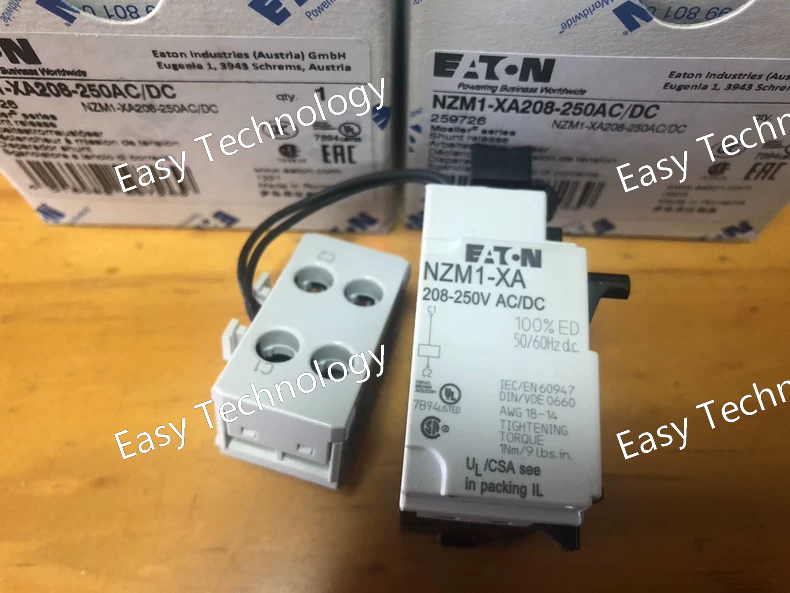

Technical Data Parameter Specification Product Type Shunt Release (MX - Opening Coil) Compatible Series NZM1 Molded Case Circuit Breakers Rated Control Supply Voltage (Us) 208 - 250 V AC/DC Power Consumption Approx. 70 VA / 45 W (at 230V AC/DC) Typical value, confirm with datasheet Function Electrically trips the circuit breaker when the control voltage is applied. Duty Cycle Intermittent (Short-time). The coil must not be continuously energized. Mounting Factory-installed or field-mounted on the side of compatible NZM1 breakers. Connection Screw terminals for control wiring. Standards IEC 60947-1, IEC 60947-2

Technical Data Parameter Specification Product Series DILM (Line Contactors) Product Type AC Power Contactor Rated Operational Current (Ie) 250 A at AC-1, 400V Rated Operational Voltage (Ue) Up to 690 V AC Control Coil Voltage 220-240 V AC, 50/60 Hz Power Consumption Approx. 110 VA (Pick-up) / 18 VA (Holding) Typical values, confirm with datasheet Poles 4 Poles (3 main poles + 1 S-pole) Auxiliary Contacts Integrated: 2 NO + 2 NC (as specified by /22) Rated Power 132 kW (175 HP) at 400V, AC-3 duty (for 3-pole motor switching) Utilization Category AC-1: Non-inductive or slightly inductive loads. AC-3: Squirrel-cage motors: Starting, switching off during running. Electrical Life > 1.0 million operations (AC-3) Mechanical Life > 10 million operations Terminal Connection Screw clamp Mounting Fixed Mounting (typically via base plate) Standards IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14

Technical Data Parameter Specification Product Series DILM (Line Contactors) Product Type Reversing Contactor (Two interlocked contactors) Rated Operational Power 11 kW (15 HP) at 400V, AC-3 duty Rated Operational Current (Ie) 25 A at AC-3, 400V Rated Operational Voltage (Ue) Up to 690 V AC Control Coil Voltage 24 V DC Power Consumption Approx. 8 W (Holding) Typical value, confirm with datasheet Main Poles 2 x 3 Poles (Normally Open) Auxiliary Contacts Integrated interlocking contacts (typically 1 NO + 1 NC per side) for the control circuit. Interlocking Electrical and mechanical interlocking to prevent simultaneous closure of both contactors. Utilization Category AC-3: For squirrel-cage motors: Starting, switching off during running. Electrical Life > 1.5 million operations (AC-3) Mechanical Life > 10 million operations Mounting DIN Rail (35 mm) Standards IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14
