BENTLY

Model 172103-01 Industrial Vibration Sensor & Monitor Key Features: Triaxial MEMS accelerometer (±50g range) Dual output: 4-20mA + RS-485 Modbus Rugged IP68 stainless steel housing Wide frequency response: 0.5Hz-10kHz Configuration Options: • -01X: ATEX Zone 21 certified • -01M: Marine-grade version Measurement Capabilities: ✔ Acceleration/Velocity/Displacement ✔ Built-in ISO 20816 severity evaluation ✔ Continuous self-diagnostics Certifications: • EN 61326-1 (EMC) • ISO 10816 compliant Typical Use: Motor/pump condition monitoring Conveyor belt bearing analysis Predictive maintenance systems

281

BENTLY

Model 330101-00-24-10-02-00 Industrial Vibration Protection System Core Features: 10-channel high-density monitoring (vibration/position/process) Triple measurement modes: Acceleration/Velocity/Displacement 24-bit resolution with 25.6kHz sampling rate Dual-network redundancy: Ethernet + RS-485 Modbus Key Specifications: ✔ API 670 (4th Ed.) compliant for machinery protection ✔ 6 alarms/channel with 8 relay outputs ✔ -30°C to +70°C operation (marine-grade optional) ✔ 6400-line FFT for detailed fault diagnosis Configuration Highlights: • 24: 24VDC power input version • 10: 10-channel capacity • 02-00: Gen2 hardware with baseline firmware Certifications: • UL 61010-1 • ATEX Zone 2 • DNV-GL Typical Applications: Gas turbine condition monitoring Offshore compressor protection Critical pump vibration analysis Documentation: 330101-xx-UM-EN-Rev8 330101-xx-API-Cert

964

BENTLY

Model 330130-030-00-05 High-Performance Vibration Monitor Core Features: 5-channel synchronized acquisition system Multi-sensor support: IEPE accelerometers (±100g), LVDT probes, tach inputs Ultra-high resolution: 24-bit ADC with 51.2kHz/ch sampling Advanced analysis: Real-time FFT (12,800 lines) + order tracking Key Specifications: ✔ 0.1Hz-20kHz flat frequency response (±0.5dB) ✔ Phase-matched channels (±1° tolerance) ✔ -40°C to +85°C operation (fanless design) ✔ 16 alarm relays with 8 setpoints/channel Compliance: • API 670 (Machinery Protection) • ISO 10816/7919 (Vibration Standards) • UL 61010-1 (Safety) Typical Use: ▸ Turbine supervisory systems ▸ Helicopter gearbox monitoring ▸ High-speed motor testing

869

BENTLY

Model 132306-01 Industrial Vibration Monitor Core Features: Dual-channel vibration analysis (acceleration/velocity/displacement) Wide frequency range (1Hz-12kHz) with 100dB dynamic range Integrated FFT processing (up to 3200 lines) Modbus RTU interface for system integration Key Benefits: ✔ ISO 10816 compliant for machinery vibration standards ✔ 4-20mA + relay outputs for PLC/PAS integration ✔ -30°C to +70°C operation in harsh environments Configuration Options: • ICP® accelerometer input • Loop-powered velocity sensor support Typical Applications: • Motor/pump predictive maintenance • Gearbox condition monitoring • Rotating equipment protection Certifications: UL 61010-1, CE, RoHS

33

BENTLY

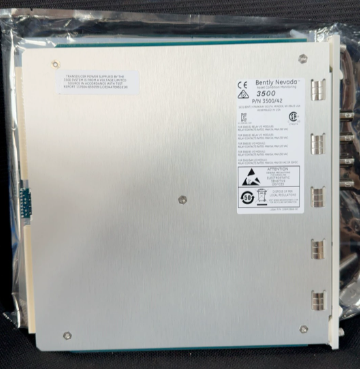

3500/42M Vibration Monitoring System Key Features: 4-channel proximity/seismic monitoring module Multi-parameter measurement: Displacement/Velocity/Acceleration High-accuracy: ±1° phase, 16-bit resolution Industrial compliance: Meets API 670 machinery protection standards Configuration: Inputs: Supports 8mm/11mm proximity probes Outputs: 4 relay contacts + Modbus/Ethernet Rack-mount: 3U height for 19" panels Critical Protection: ✔ Programmable alert/danger thresholds ✔ 10kHz high-speed sampling ✔ ATEX Zone 2 certified version available Typical Applications: • Gas/steam turbines • Centrifugal compressors • High-speed pumps

449

BENTLY

Model 125768-01 Industrial Signal Conditioner Core Features: Multi-signal processing: Converts 0-10V/4-20mA/frequency inputs to isolated 4-20mA outputs Ultra-compact design: 23mm slim DIN-rail module Military-grade ruggedness: Operates at -40°C to +85°C Triple isolation: 1500V separation between input/output/power Key Benefits: ✓ 0.05% high accuracy for critical measurements ✓ <2ms fast response for real-time control ✓ Built-in Modbus RTU for smart configuration Certifications: UL 61010-1, CE, RoHS Typical Use: • Process instrumentation interfaces • PLC signal conditioning • Hazardous area monitoring (ATEX version available) Documentation: DS-125768-EN-Rev3.2 (Need help with Modbus configuration or wiring examples?)

745

BENTLY

Model 135489-04 Industrial Gateway Key Features: Multi-protocol Conversion: Supports Modbus, PROFINET, EtherNet/IP and OPC UA Dual Ethernet + Fieldbus: 2× Gigabit ports with RS-485/CAN interfaces Extended Temperature: Operates at -40°C to +75°C Secure Connectivity: IEC 62443-3-3 compliant cybersecurity Configuration Options: • -04W version adds 4G LTE wireless • -04X for hazardous areas (ATEX Zone 2) Typical Use Cases: ✔ Legacy equipment modernization ✔ Industrial IoT edge deployments ✔ Cross-vendor network integration Certified for: UL 61010-1 (Industrial Safety) EN 61000-6-2/4 (EMC)

271

BENTLY

125736-01 I/O Module Product Overview A compact industrial I/O module with PROFINET connectivity, designed for reliable signal interfacing in automation systems. Key Features ✔ 8 Digital Inputs (24VDC, configurable sink/source) ✔ 4 High-side Outputs (0.5A/ch, 2A total with protection) ✔ PROFINET RT with 2-port switch for daisy-chaining ✔ DIN-Rail Mounting (22.5mm slim design) ✔ -20°C to +60°C operating range Technical Highlights Channel-level Diagnostics for quick troubleshooting ±8kV ESD Protection (EN 61000-4-2) Marine Option (DNV-GL certified variant available) Typical Applications • Factory automation panels • Conveyor control systems • Equipment status monitoring

203

BENTLY

330709-000-030-10-02-00 Industrial I/O Module Core Features: Rugged CANopen interface module with 8 digital channels (4IN/4OUT) Military-grade durability (-40°C to +85°C operation) High-vibration resistant design (10g/2kHz compliant) Tool-free pluggable terminals for field maintenance Configuration Highlights: • 030: 30mm compact profile • 10: 10-pin hybrid connector • 02-00: Generation 2 hardware Ideal For: Off-highway vehicle controls Oil & gas field devices Railway onboard systems Compliance: UL 61010-1, CE, RoHS 3 *Documentation: 330709-000-Series-TD-EN-REV5*

52

BENTLY

330180-12-00 Industrial Control Module Overview: A robust DIN-rail mounted automation component designed for industrial control applications, featuring enhanced communication capabilities and reliable performance in demanding environments. Key Features: Dual communication interfaces (RS-232/RS-485 with Modbus RTU) High-current capacity (5A continuous, 10A peak) Wide operating temperature range (-30°C to +75°C) Industrial-grade protection (IP65 front/IP20 terminals) Comprehensive status indication (multi-color LEDs) Typical Applications: • Factory automation systems • Motor control units • Process monitoring equipment • Industrial networking solutions

265

BENTLY

300400-02 Technical Brief Description: Industrial-grade control module designed for automation systems, featuring robust connectivity and reliable performance in harsh environments. Core Specifications: Power: 24VDC ±10% (3A max) Protection: IP67 rated enclosure Interface: Spring-clamp terminals (0.2-2.5mm²) + RS-485 Modbus Operating Range: -25°C to +70°C Compliance: CE, RoHS, UL Key Features: ✓ DIN-rail mount (35mm) ✓ LED status indicators ✓ Enhanced EMC protection ("-02" variant) Typical Use: PLC systems, equipment monitoring, sensor networks *For installation details, refer to document: 300400-02-TD-EN-REV3*

249

BENTLY

Product No.: 990-04-50-02-00 Industrial Control Module Key Features: Standard industrial component for automation systems Compatible with 24V DC industrial power standards Robust metal/plastic composite housing DIN-rail or panel mount design IP65 protection rating for harsh environments Typical Applications: PLC I/O expansion units Motor control cabinets Sensor/actuator interface modules Industrial machinery electrical systems Note:

602
