Parameter Specification Manufacturer / Series Eaton, NZM Series Model Number NZMN3-ME350 Product Type Molded Case Circuit Breaker (MCCB) with Electronic Trip Unit Pole Configuration 3-Pole Rated Current (In) 350 A (The rated current is set via the trip unit) Trip Unit Type Electronic ("M" - Modular) Rated Operational Voltage (Ue) 400/415V AC Rated Insulation Voltage (Ui) 690V AC Adjustable Protections L (Long-Time), S (Short-Time), I (Instantaneous) Breaking Capacity (Icu) Very High (e.g., 70kA, 100kA, or 150kA at 400V AC). Must be verified from the datasheet. Current Limiting Class Class 3 (Very high current-limiting capability, as per IEC 60947-2) Power Supply Self-powered from the current path (No external AUX power required for basic trip function) Mounting Fixed Mounting Standards Compliance IEC 60947-2 Communication Capability Optional communication modules (e.g., for Modbus, Profibus) can typically be added.

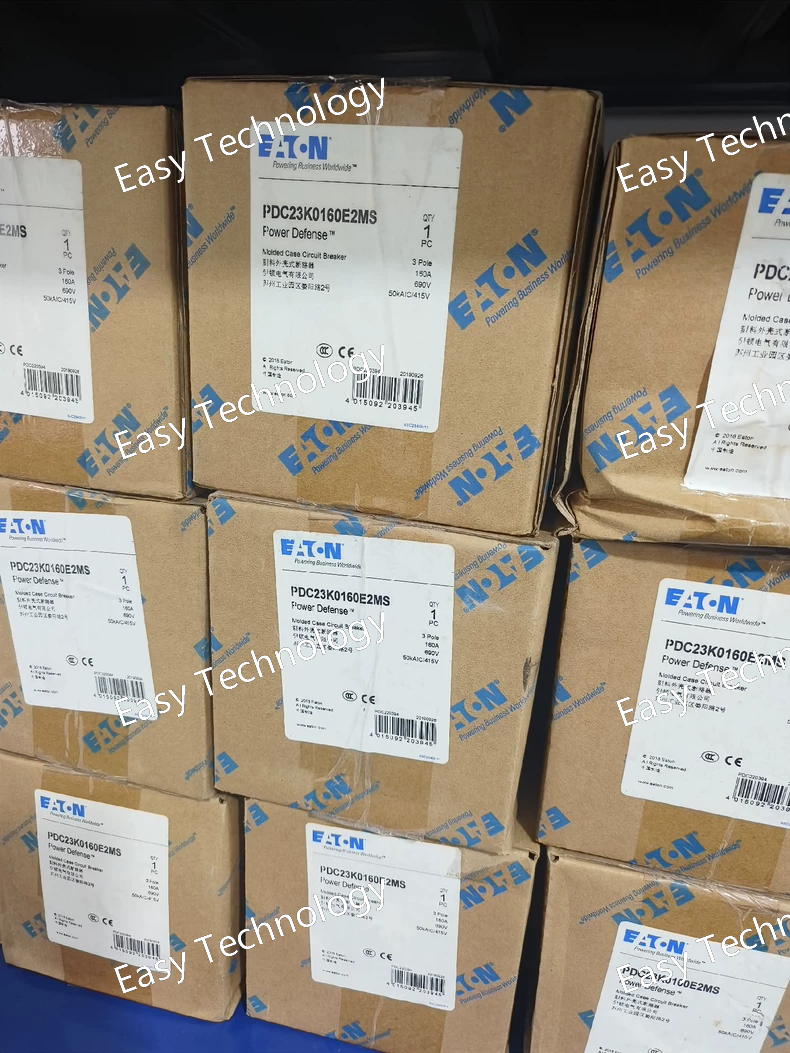

Parameter Specification Manufacturer / Series Eaton, PDC Series (Combination Motor Controller) Model Number PDC23K0160E2MS Product Type Combination Motor Controller (Soft Starter + Protector) Rated Current 160 Amps Motor Power Rating Approximately 75 HP / 55 kW (at 460V AC) - Exact HP depends on voltage; verify from datasheet. Voltage Rating Typically 200-575V AC, 3-Phase, 50/60 Hz Short-Circuit Withstand High, typically 65 kA or 100 kA (Must verify from datasheet) Control Method Digital, microprocessor-based solid-state soft starting Key Features • Integrated Molded Case Switch (Disconnect) • Solid-State Soft Start/Stop • Advanced Motor Protection (Overload, Phase Loss, etc.) • Diagnostic Capabilities Communication Integrated communication capabilities (e.g., DeviceNet, Modbus) are typically standard. Mounting Fixed Mounting Standards Compliance UL 508, IEC 60947-4-2, CSA C22.2

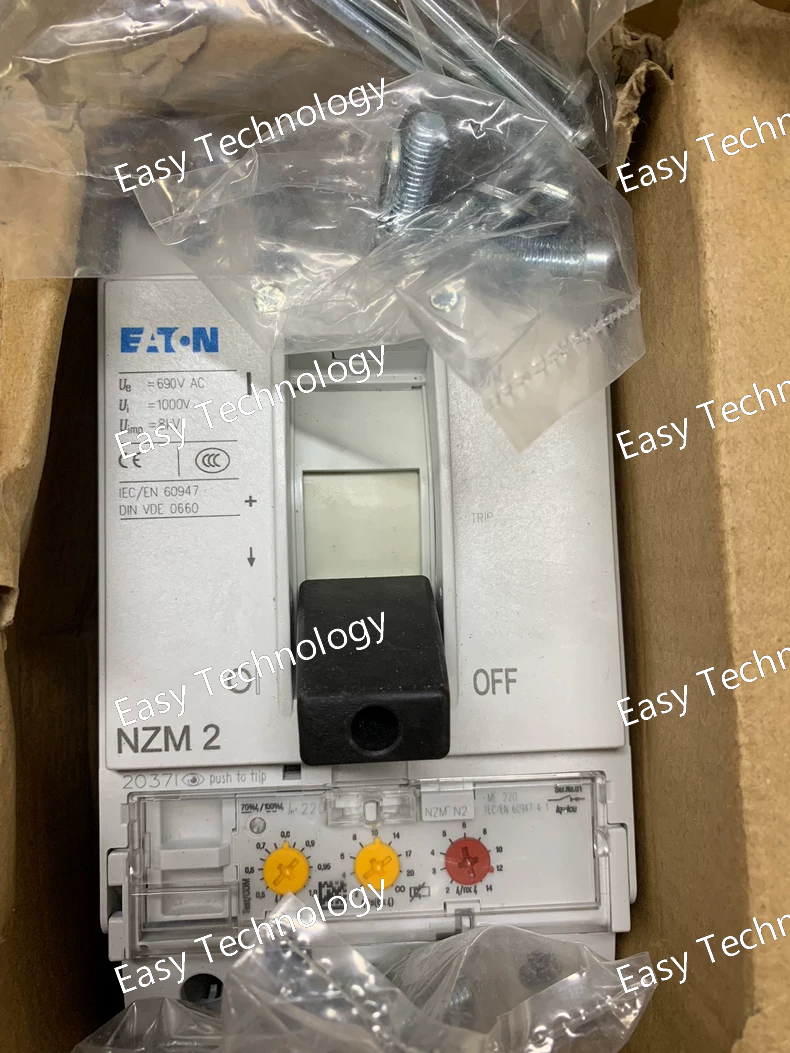

Parameter Specification Manufacturer / Series Eaton, NZM Series Model Number NZMN2-ME220 Product Type Molded Case Circuit Breaker (MCCB) with Electronic Trip Unit Pole Configuration 2-Pole Rated Current (In) 220 A (The rated current is set via the trip unit) Trip Unit Type Electronic ("M" - Modular) Rated Operational Voltage (Ue) 400/415V AC Rated Insulation Voltage (Ui) 690V AC Adjustable Protections L (Long-Time), S (Short-Time), I (Instantaneous) Breaking Capacity (Icu) Very High (e.g., 70kA, 100kA, or 150kA at 400V AC). Must be verified from the datasheet. Current Limiting Class Class 3 (Very high current-limiting capability, as per IEC 60947-2) Power Supply Self-powered from the current path (No external AUX power required for basic trip function) Mounting Fixed Mounting Standards Compliance IEC 60947-2 Communication Capability Optional communication modules (e.g., for Modbus, Profibus) can typically be added.

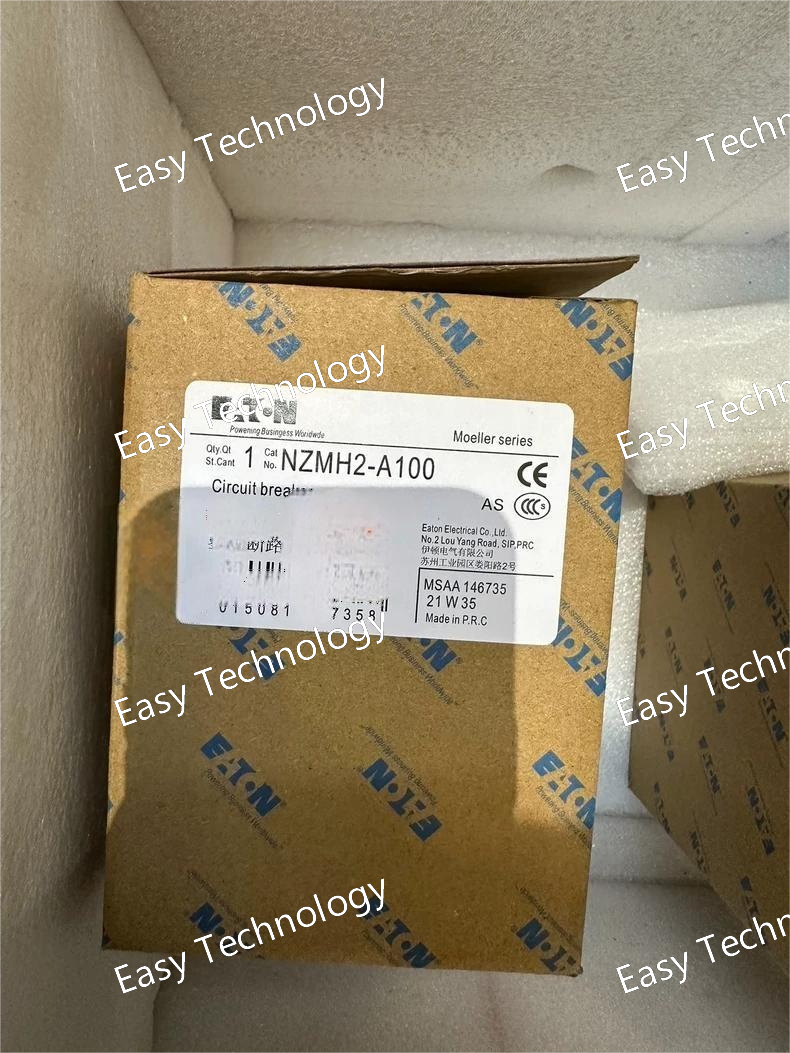

Parameter Specification Manufacturer / Series Eaton, NZM Series Model Number NZMH2-A100 Product Type Miniature Circuit Breaker (MCB) Pole Configuration 2-Pole Rated Current (In) 100 A Trip Curve Characteristic H Characteristic (8-12 x In) Rated Operational Voltage (Ue) 230/400V AC Rated Insulation Voltage (Ui) 500V AC Rated Frequency 50/60 Hz Breaking Capacity (Icu) 10 kA at 230/400V AC (IEC 60898) / 25 kA at 400V AC (IEC 60947-2) * Standards Compliance IEC 60898-1, IEC 60947-2 Mounting Fixed Mounting (on DIN Rail TH35-7.5) Electrical Life 6,000 cycles Mechanical Life 20,000 cycles Ambient Temperature -25°C to +70°C (Derating above 40°C) Torque Specification Typically 2.0 - 2.5 N·m

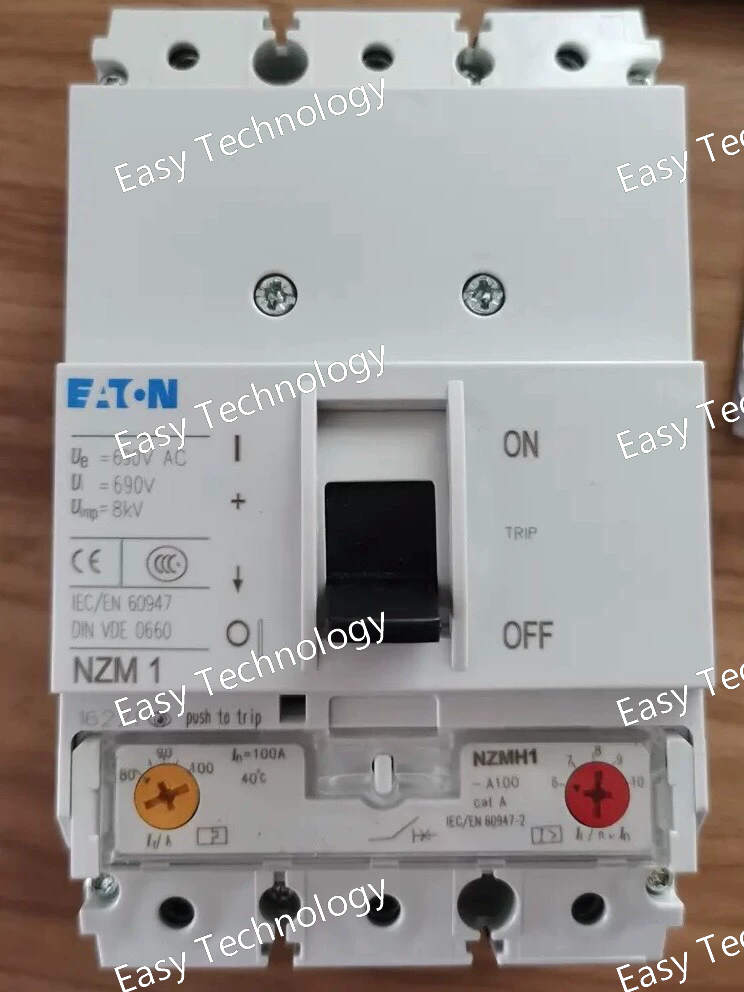

Parameter Specification Manufacturer / Series Eaton, NZM Series Model Number NZMH1-A100-AS Product Type Miniature Circuit Breaker (MCB) Pole Configuration 1-Pole Rated Current (In) 100 A Trip Curve Characteristic H Characteristic (High Inrush) Rated Operational Voltage (Ue) 230/400V AC Rated Insulation Voltage (Ui) 500V AC Rated Frequency 50/60 Hz Breaking Capacity (Icu) 10 kA at 230/400V AC (IEC 60898) / 25 kA at 400V AC (IEC 60947-2) * Standards Compliance IEC 60898-1, IEC 60947-2 Mounting Fixed Mounting (on DIN Rail TH35-7.5) Electrical Life 6,000 cycles Mechanical Life 20,000 cycles Ambient Temperature -25°C to +70°C (Derating above 40°C) Torque Specification Typically 2.0 - 2.5 N·m

Parameter Specification / Decoding Manufacturer / Series Eaton, E2J Series Model Number E2JM3250F Product Type Multi-Function Timer Relay Mounting Style Panel-Mount (for DIN Rail) Supply Voltage Wide Range (e.g., 24-240V AC/DC) - Must verify from datasheet Time Range Up to 50 Seconds (selectable via dial) - Must verify from datasheet Timing Functions Multiple (e.g., On-Delay, Off-Delay, Interval, Flash) - Specific function defined by "F" Output Contacts DPDT (2 Form C) - Electromechanical Relay Contact Rating Typically 5A-10A at 250V AC - Must verify from datasheet Setting Method Analog Rotary Dial (Potentiometer) Indicator Power-On and Output-ON LEDs Standards CE, cULus (UL 508)

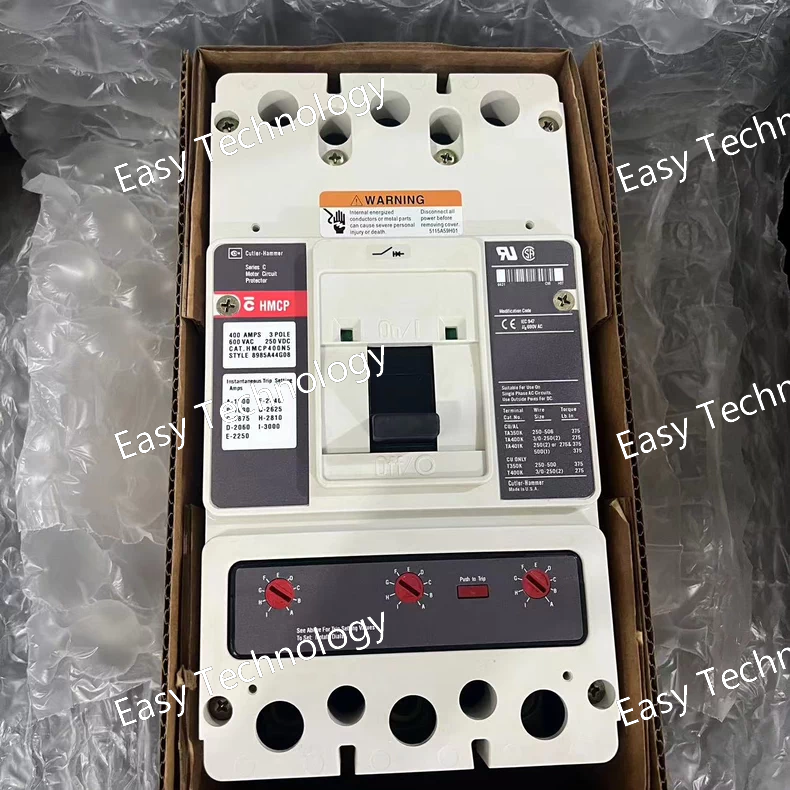

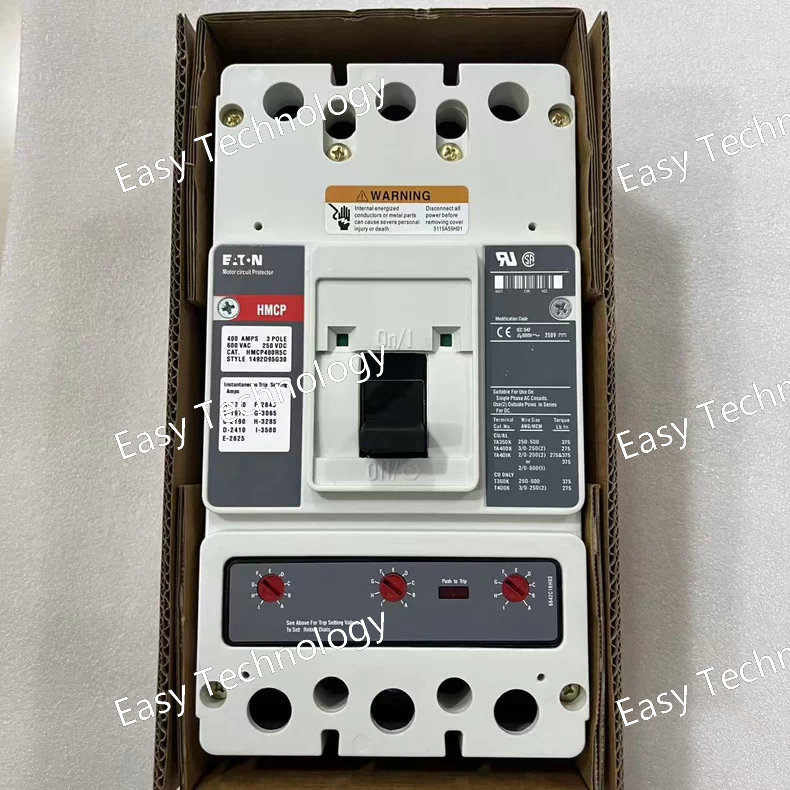

Parameter Specification Manufacturer / Series Eaton, HMC Series Model Number HMCP400X5 Product Type Molded Case Circuit Breaker - Motor Circuit Protector (MCP) Pole Configuration 3-Pole (Standard for three-phase motor protection) Frame Size 400A Frame Rated Current 400 Amps (Frame Rating) Voltage Rating 600V AC Interrupting Rating 100 kA at 480V AC (Typical for this series - verify from datasheet) Trip Unit Type Instantaneous Magnetic Trip Only (MCP function) Trip Setting Factory-adjusted magnetic trip setting - "X5" defines the specific setting range Mounting Bolt-On (Lug Connection) Standards Compliance UL 489, CSA C22.2, IEC 60947-2

Parameter Specification Manufacturer / Series Eaton, HMC Series Model Number HMCP250W5C Product Type Molded Case Circuit Breaker - Motor Circuit Protector (MCP) Pole Configuration 3-Pole (Standard for motor protection) Frame Size 250A Frame Rated Current 250 Amps (Frame Rating) Voltage Rating 600V AC Interrupting Rating High, typically 65 kA or 100 kA at 480V AC (Must verify from datasheet) Trip Unit Type Instantaneous Magnetic Trip Only (MCP function) Trip Setting Factory-adjusted, typically adjustable over a range (e.g., 5x to 13x of the MCP setting) - "W5C" defines this specific setting. Mounting Bolt-On (Lug Connection) Standards Compliance UL 489, CSA C22.2

Parameter Specification Manufacturer / Series Eaton, HMC Series Model Number HMCP250G5C Product Type Molded Case Circuit Breaker - Motor Circuit Protector (MCP) Pole Configuration 3-Pole (Standard for motor protection) Frame Size 250A Frame Rated Current 250 Amps (Frame Rating) Voltage Rating 600V AC Interrupting Rating High, typically 65 kA or 100 kA at 480V AC (Must verify from datasheet) Trip Unit Type Instantaneous Magnetic Trip Only (MCP function) Trip Setting Factory-adjusted, typically adjustable over a range (e.g., 5x to 13x of the MCP setting) - "G5C" defines this specific setting. Mounting Bolt-On (Lug Connection) Standards Compliance UL 489, CSA C22.2

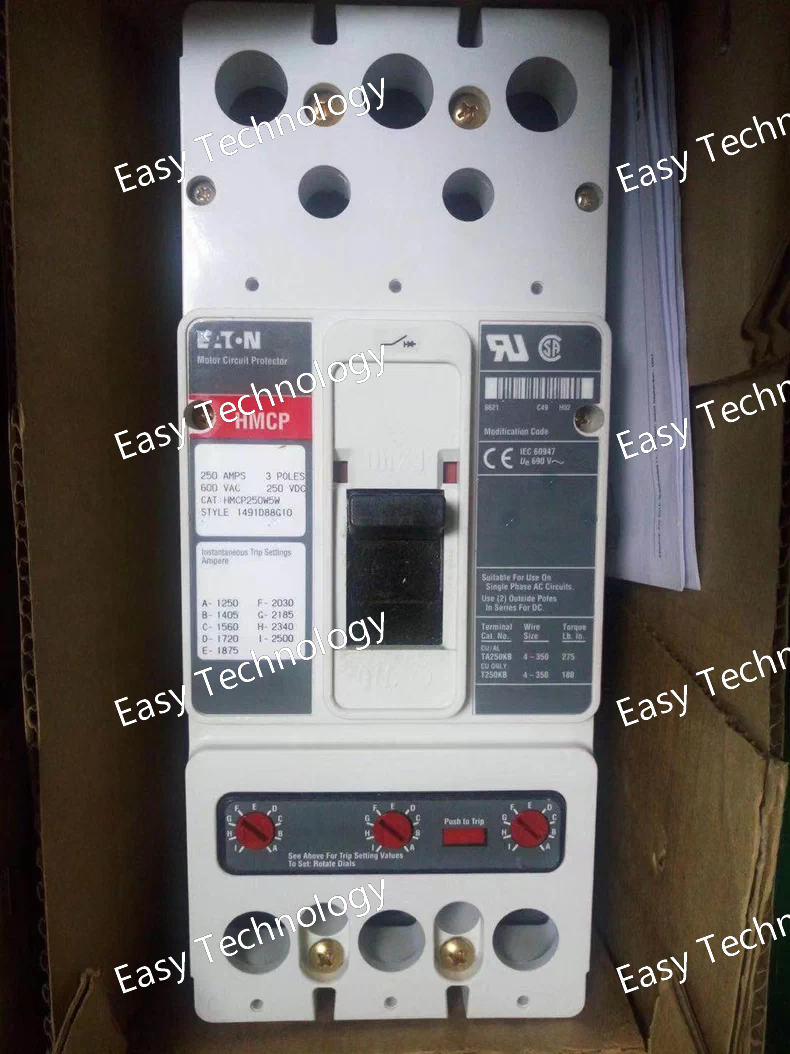

Parameter Specification Manufacturer / Series Eaton, HMC Series Model Number HMCP250W5W Product Type Molded Case Circuit Breaker - Motor Circuit Protector (MCP) Pole Configuration 3-Pole (Standard for motor protection) Frame Size 250A Frame Rated Current 250 Amps (Frame Rating) Voltage Rating 600V AC Interrupting Rating High, typically 65 kA or 100 kA at 480V AC (Must verify from datasheet) Trip Unit Type Instantaneous Magnetic Trip Only (MCP function) Trip Setting Factory-adjusted, typically adjustable over a range (e.g., 5x to 13x of the MCP setting) - "W5W" defines this specific setting. Mounting Bolt-On (Lug Connection) Standards Compliance UL 489, CSA C22.2

Parameter Specification Manufacturer / Series Eaton (Often part of the Moeller or IZM brand in some markets) Model Number LZMC2 160A (Full catalog number may include suffixes) Product Type Thermal Overload Relay Pole Configuration 2-Pole Rated Operational Current (Ith) 160 A Setting Current Range Adjustable, typically 100 - 160 A (The exact range must be verified from the datasheet) Trip Class Class 10 (Standard for general purpose motors) Ambient Compensation Yes (Standard feature) Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 Mounting Snap-on attachment to a compatible contactor (e.g., Eaton DIL series) Auxiliary Contacts Typically 1 NO (Normally Open) + 1 NC (Normally Closed) Reset Mode Manual reset (Automatic reset may be available as an option) Ambient Temperature -25°C to +60°C (with compensation)

Parameter Specification Manufacturer / Series Eaton, NZM Series Model Number NZMH1-A80 Product Type Miniature Circuit Breaker (MCB) Pole Configuration 1-Pole Rated Current (In) 80 A Trip Curve Characteristic H Characteristic (High Inrush) Rated Operational Voltage (Ue) 230/400V AC Rated Insulation Voltage (Ui) 500V AC Rated Frequency 50/60 Hz Breaking Capacity (Icu) 10 kA at 230/400V AC (IEC 60898) / 25 kA at 400V AC (IEC 60947-2) * Standards Compliance IEC 60898-1, IEC 60947-2 Mounting Fixed Mounting (on DIN Rail TH35-7.5) Electrical Life 6,000 cycles Mechanical Life 20,000 cycles Ambient Temperature -25°C to +70°C (Derating above 40°C) Torque Specification Typically 2.0 - 2.5 N·m
