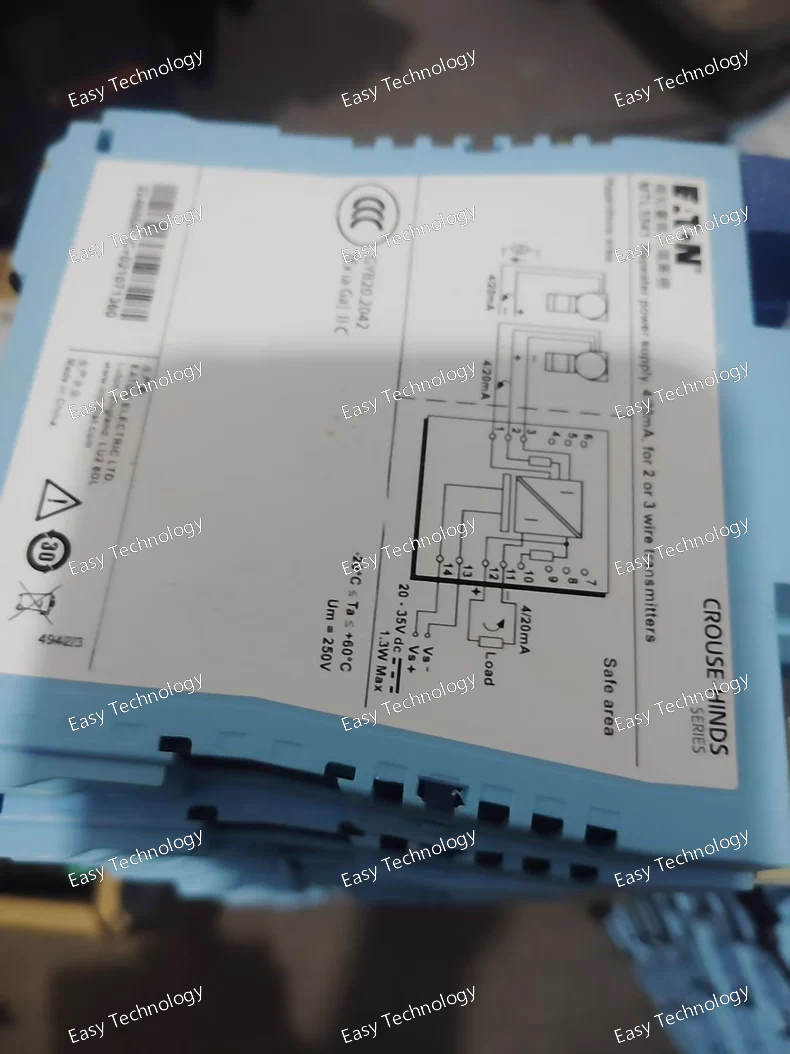

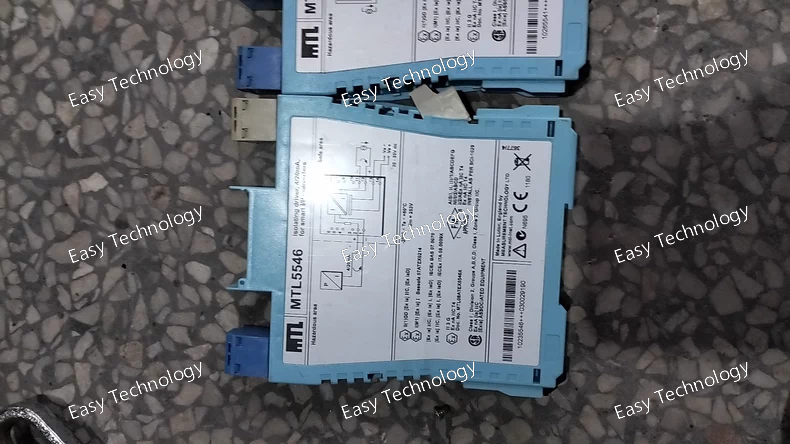

Parameter Specification Product Model MTL5546 Product Line Eaton MTL5500+ Series Function Single-channel 2-wire transmitter isolator & power supply Input Signal 4-20 mA from hazardous-area transmitters Output Signal Isolated 4-20 mA Power Supply 20-30 V DC Isolation Galvanic isolation (input/output/power, typically 1.5 kV AC) Intrinsic Safety (IS) Certification ATEX, IECEx, FM, CSA Line Fault Detection Open/short circuit detection Accuracy ±0.1% of span Mounting DIN-rail (35 mm) Operating Temperature -20°C to +60°C

Parameter Specification Product Model EMPDT1H1C2 Product Line Eaton EMP Series Timer Relays Supply Voltage 24–240 V AC/DC (wide range) Timing Range 0.1 sec – 100 hours (adjustable) Output Contacts 1 CO (Changeover) Contact Rating 8 A at 250 V AC Accuracy ±0.5% of set time + 10 ms Display Digital LCD with status LEDs Mounting DIN-rail (35 mm) Operating Temperature -20°C to +55°C Protection Rating IP50 (front panel) Standards Compliance UL 508, IEC 61812-1

Parameter Specification Product Model 9122-IS Product Line Eaton Pressure Transmitters Measurement Type Gauge, absolute, or sealed gauge pressure Pressure Range Selectable (e.g., 0–100 bar) Output Signal 4–20 mA (2-wire) Intrinsic Safety (IS) Certification ATEX, IECEx (Entity Parameters: e.g., Vmax = 30 V, Imax = 100 mA) Accuracy ±0.25% of span (typical) Process Connection 1/2" NPT or G1/2 Electrical Connection 1/2" NPT conduit Housing Material 316 stainless steel Operating Temperature -40°C to +85°C (environment) Protection Rating IP67

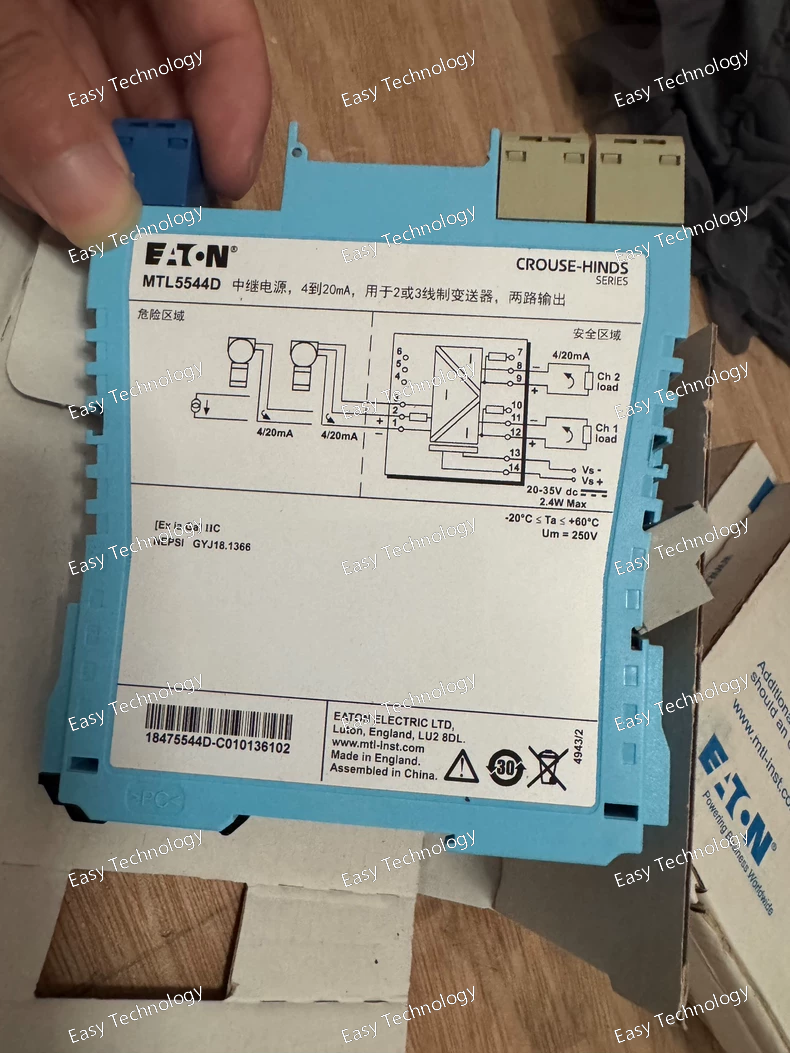

Parameter Specification Product Model MTL5544D Product Line Eaton MTL5500+ Series Function Single-channel 2-wire transmitter isolator with dual outputs/diagnostics Input Signal 4-20 mA from hazardous-area transmitters Output Signal Dual isolated 4-20 mA (or configurable outputs) Power Supply 20-30 V DC Isolation Galvanic isolation (input/output/power, typically 1.5 kV AC) Intrinsic Safety (IS) Certification ATEX, IECEx, FM, CSA Line Fault Detection Open/short circuit detection with detailed diagnostics Accuracy ±0.1% of span Mounting DIN-rail (35 mm) Operating Temperature -20°C to +60°C

Parameter Specification Product Model NZM1-XIPK Product Line Eaton NZM MCCB Series Rated Operational Current Up to 63 A (frame-dependent) Rated Voltage 690 V AC Number of Poles 3 Poles Trip Unit Type Thermal-magnetic with motor protection features Breaking Capacity ~25 kA (at 415 V AC, specific value depends on variant) Auxiliary Contacts 1 NO + 1 NC (typical for -XIPK variant) Shunt Trip Included (for remote tripping) Mounting Fixed or plug-in Standards Compliance IEC 60947-2, UL 489

Parameter Specification Product Model MTL5541 Product Line Eaton MTL5500+ Series Function Single-channel 2-wire transmitter isolator & power supply Input Signal 4-20 mA from hazardous-area transmitters Output Signal Isolated 4-20 mA Power Supply 20-30 V DC Isolation Galvanic isolation (input/output/power, typically 1.5 kV AC) Intrinsic Safety (IS) Certification ATEX, IECEx, FM, CSA Line Fault Detection Open/short circuit detection Accuracy ±0.1% of span Mounting DIN-rail (35 mm) Operating Temperature -20°C to +60°C

Parameter Specification Product Series AE Series Limit Switch Actuator Type Rotating lever arm (code: 80) Contact Configuration 1 NO + 1 NC (code: 5,0) Rated Operational Current 10 A at 600 V AC Electrical Life >1 million operations (at rated load) Mechanical Life >10 million operations Enclosure Rating NEMA 4, 4X, 13; IP67 Housing Material Zinc die cast Terminal Type Screw terminals Operating Temperature -20°C to 120°C Standards Compliance UL, cULus, CE

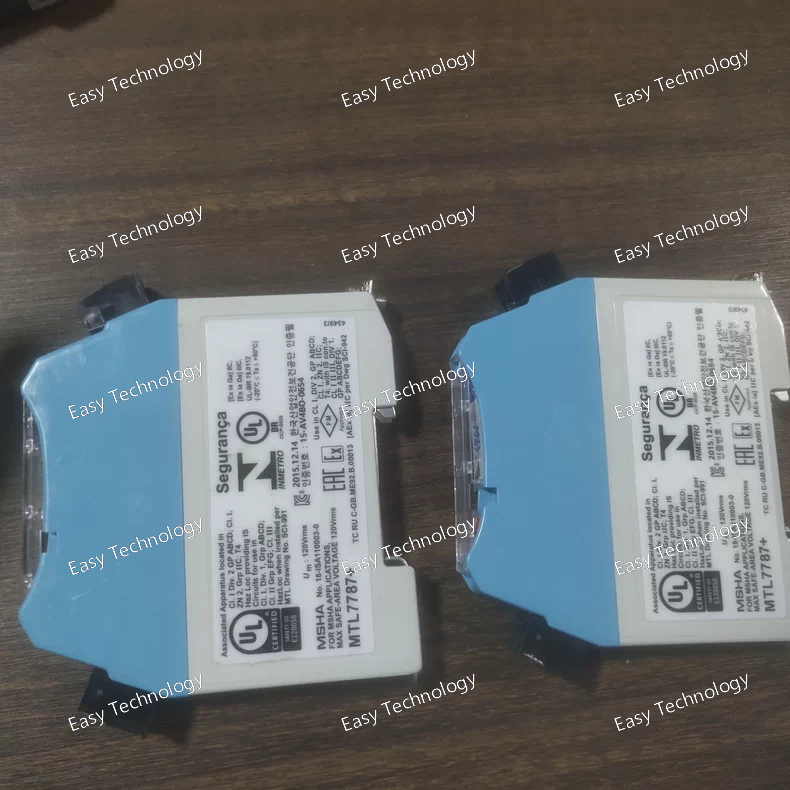

Parameter Specification Product Model MTL7787+ Product Line Eaton MTL Signal Conditioners & Isolators Function Dual-channel 2-wire transmitter isolator & power supply Input Signal 4-20 mA from hazardous-area transmitters Output Signal Isolated 4-20 mA (dual channels) Power Supply 20-30 V DC (typical) Isolation Galvanic isolation (input/output/power) Intrinsic Safety (IS) Certification ATEX, IECEx, FM, CSA (entity parameters required for design) Line Fault Detection Open/short circuit detection Accuracy ±0.1% of span (typical) Mounting DIN-rail (35 mm) Operating Temperature -20°C to +60°C

Parameter Specification Product Model CMS1-7-R Product Line Eaton CMS Rotary Isolator Switches Rated Operational Current 32 A (at 400 V AC) Rated Insulation Voltage 690 V AC Number of Poles 1 Pole (1P) Contact Configuration 1 NO (Normally Open) or 1 NC (Normally Closed) Mechanical Life > 10,000 cycles Protection Rating IP65 (dust-tight and water-resistant) Mounting Panel-mounted with front seal Operating Temperature -25°C to +55°C Standards Compliance IEC 60947-3, UL 508

Parameter Specification Product Model 4998758 Product Line Eaton Freedom NXG Accessories Compatibility Freedom NXG Circuit Breakers Contents Fixed and moving contacts, springs, hardware Application Maintenance and repair of circuit breaker contacts Standards Compliance UL, IEC, ANSI (matches breaker standards)

Parameter Specification Product Model F101-PS Product Line Eaton F-Series Safety System Input Voltage 24 V DC (rated) Input Voltage Range 20–30 V DC Rated Power Output ≤50 W (system-dependent) Efficiency >90% (typical) Protection Features Reverse polarity, overload, short-circuit Status Indication LED indicators (power, fault) Mounting DIN rail (35 mm) Operating Temperature –25°C to +55°C Safety Standards IEC 61508, ISO 13849 (as part of safety system)

Parameter Specification Product Model INTERGY R648 Product Line Eaton INTERGY Series UPS Topology Double-conversion online (VFI) Rated Power Capacity 6 kVA / 4.8 kW (at 230 V AC) Input Voltage Range 160–276 V AC (auto-sensing) Input Frequency Range 50/60 Hz (auto-sensing) Output Voltage 230 V AC (±1% steady state) Output Frequency 50/60 Hz (±0.5% in battery mode) Battery Runtime Configurable (typical 5–30 minutes with external battery modules) Efficiency >95% at full load Communication Interfaces Ethernet, RS-232, USB, dry contacts Form Factor 2U rack-mountable Operating Temperature 0–40°C Standards Compliance IEC 62040-3, CE, UL, RoHS
