Parameter Specification Product Model MTL4531 Product Line Eaton MTL4500+ Series Signal Conditioners Function Single-channel signal isolator & conditioner Input Signal 4-20 mA Output Signal Isolated 4-20 mA Power Supply 20-30 V DC Isolation Galvanic isolation (input/output/power, typically 1.5 kV AC) Accuracy ±0.1% of span Line Fault Detection Configurable for open/short circuit indication Mounting DIN-rail (35 mm) Operating Temperature -20°C to +60°C Compliance & Certifications CE, ATEX, IECEx (for industrial environments)

Parameter Specification Product Model E57LAL12T110E M12NPN Product Line Eaton E57 Series Proximity Sensors Housing Diameter 12 mm Sensing Distance 1.1 mm (nominal) Detection Object Ferrous metals (e.g., steel) Output Type NPN (sinking), NO Supply Voltage 10–30 V DC Current Rating ≤200 mA Switching Frequency 1 kHz (typical) Connection M12 4-pin connector Protection Rating IP67 Housing Material Nickel-plated brass Operating Temperature -25°C to 70°C

Parameter Specification Product Model FWP-400C Product Line Eaton FWP Series Molded Case Circuit Breakers Rated Current 400 A Number of Poles 3 Poles Rated Voltage 600 V AC (50/60 Hz) Breaking Capacity 25 kA (at 480 V AC, per UL 489) Trip Unit Thermal-magnetic Mounting Fixed (panelboard installation) Operating Temperature -25°C to 70°C Standards Compliance UL 489, IEC 60947-2

Parameter Specification Product Model T0-2-1/I1/SVB-SW Product Line Eaton T0 Series Contactors Rated Operational Current ~25 A (at AC-3, 400 V) Rated Operational Voltage 690 V AC Number of Main Poles 2 Poles Coil Voltage 400-415 V AC, 50/60 Hz Auxiliary Contacts 1 NO Mounting Style Base mounting with screw terminals (SVB) Electrical Life >1 million operations (at rated load) Mechanical Life >10 million operations Standards Compliance IEC 60947-4-1, UL 508

Parameter Specification Product Model MTL4541B Product Line Eaton MTL4500+ Series Signal Conditioners Function Single-channel signal isolator & conditioner Input Signal 4-20 mA Output Signal Isolated 4-20 mA Power Supply 20-30 V DC Isolation Galvanic isolation (input/output/power, typically 1.5 kV AC) Accuracy ±0.1% of span Line Fault Detection Configurable for open/short circuit indication Mounting DIN-rail (35 mm) Operating Temperature -20°C to +60°C Compliance & Certifications CE, ATEX, IECEx (for industrial environments)

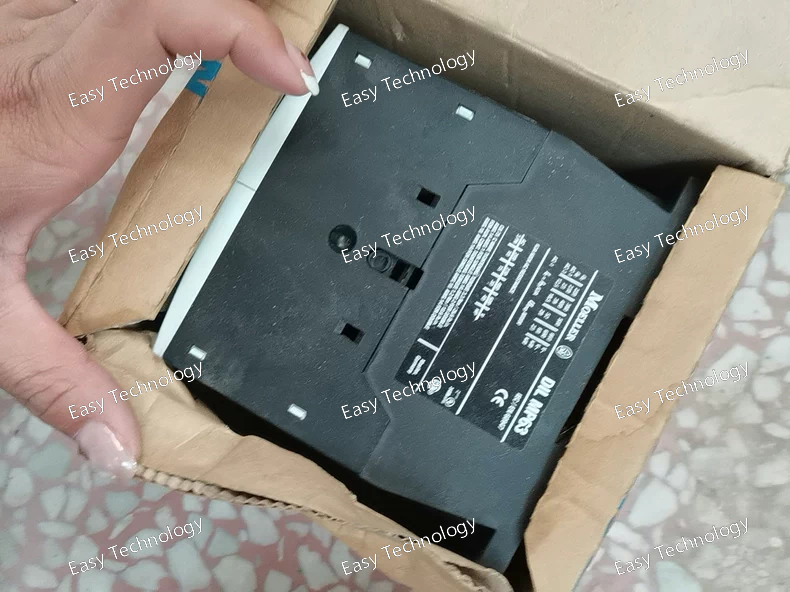

Parameter Specification Product Model DILMP63 Product Line Eaton DILM Series Contactors Rated Operational Current 63 A (at AC-3, 400 V) Rated Operational Voltage 690 V AC Number of Poles 3 Poles Coil Voltage Multiple options (e.g., 24 V DC, 230 V AC) Auxiliary Contacts Configurable (e.g., 1 NO + 1 NC) Electrical Life >1 million cycles (at rated load) Mechanical Life >10 million cycles Mounting DIN-rail or screw mounting Protection Rating IP20 (terminal cover optional for higher protection) Standards Compliance IEC 60947-4-1, UL 508

Parameter Specification Product Model SL-L-G Product Line Eaton SL Series Signal Towers Lens Color Green Voltage Options 24 V DC, 120 V AC, 230 V AC (depends on lamp/LED module) Lens Material Polycarbonate (impact-resistant) Mounting Stackable modular design (integrates with SL base unit) Protection Rating IP65 (dust-tight and water-resistant) Housing Material Thermoplastic (e.g., PC/ABS) Operating Temperature -25°C to 55°C Compatibility Compatible with SL series base units and accessories

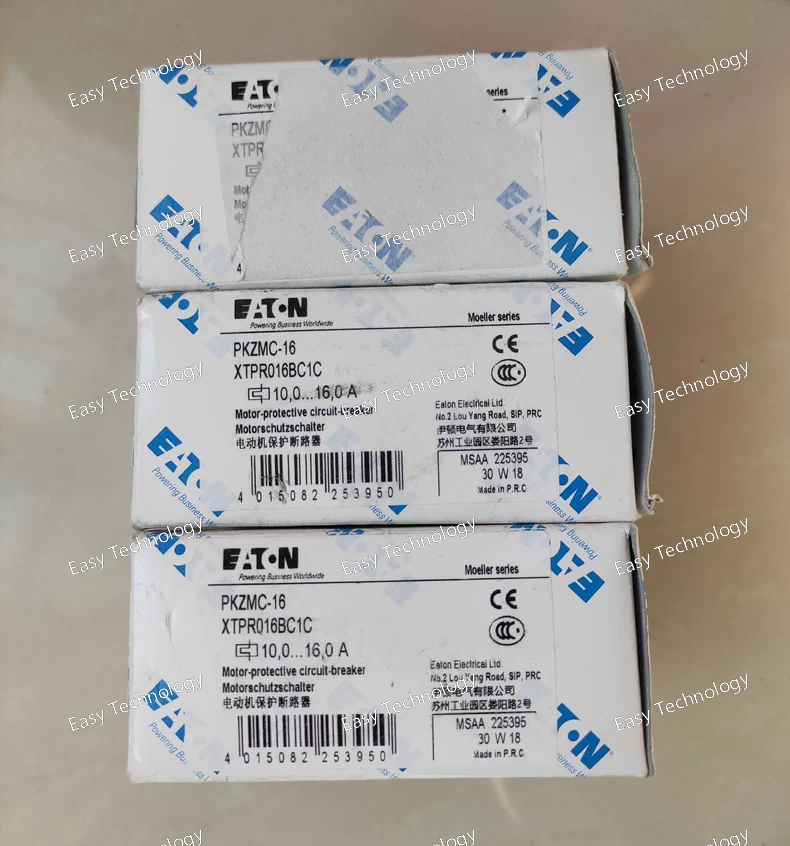

Parameter Specification Product Model PKZMC-16 XTPR016BC1C Product Line Eaton PKZ Series Motor Protection Circuit Breakers Rated Current 16 A Rated Operational Voltage 690 V AC Number of Poles 3 Poles Trip Unit Type Thermal-magnetic (motor protection characteristics) Breaking Capacity 100 kA (at 400 V AC, IEC 60947-2) Overload Protection Adjustable (via trip unit setting) Short-Circuit Protection Magnetic instant trip Mounting DIN-rail (35 mm) Standards Compliance IEC 60947-2, UL 508, CSA

Parameter Specification Product Model 15100AQD07 Product Series Eaton Heavy-Duty Limit Switch Actuator Type Rotating Lever Arm (inferred from QD07) Contact Configuration 1 NO (Normally Open) (inferred from QD07) Rated Operational Current 10 A at 600 V AC Electrical Life >1 million operations (at rated load) Mechanical Life >10 million operations Enclosure Rating NEMA 4, 4X, 6P, 13; IP67 Housing Material Zinc die cast Terminal Type Screw terminals Operating Temperature -20°C to 120°C Standards Compliance UL, cULus, CE

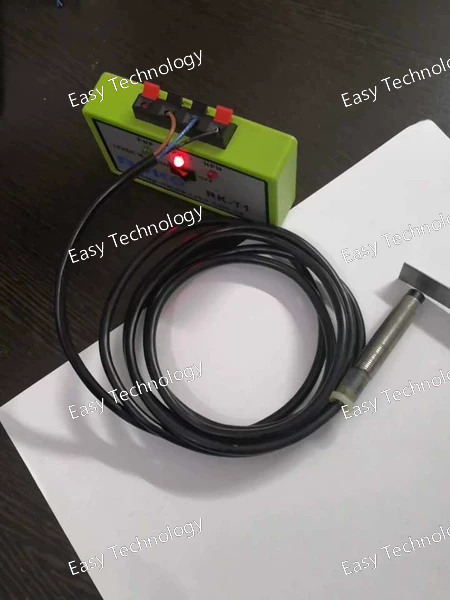

Parameter Specification Product Model LS-02-ZB Product Type Inductive Proximity Sensor Sensing Distance 2 mm (nominal) Detection Object Ferrous metals (e.g., steel) Output Type DC 3-wire (typically PNP or NPN) Supply Voltage 10–30 V DC Current Rating ≤200 mA Switching Frequency 500 Hz Housing Material Nickel-plated brass Connection Type Pre-wired cable (2 m standard) Protection Rating IP67 Operating Temperature -25°C to 70°C

Parameter Specification Product Model PKM0-10 Product Line Eaton PKM0 Series UPS Topology Online double-conversion (VFI) Rated Power Capacity 10 kVA / 9 kW (at 230 V AC) Input Voltage Range 160–276 V AC (auto-sensing) Input Frequency Range 50/60 Hz (auto-sensing) Output Voltage 230 V AC (±1% steady state) Output Frequency 50/60 Hz (±0.5% in battery mode) Battery Runtime Configurable (typical 5–30 minutes with external battery packs) Efficiency >94% at full load Communication Interfaces Ethernet, RS-232, USB, dry contacts Form Factor Tower or rack-mountable (2U with kit) Operating Temperature 0–40°C Standards Compliance IEC 62040-3, CE, UL, RoHS

Parameter Specification Product Model M22-I2 Product Line Eaton M22 Series Product Type Indicator Light (Visual Signaling) Lens Color Red (inferred from I2) Mounting Hole Diameter 22 mm Voltage Options e.g., 24 V DC, 120 V AC (requires separate lamp holder/LED module) Protection Rating IP67 (dust-tight and waterproof) Lens Material Polycarbonate (typical) Housing Material Thermoplastic (e.g., PA66) Terminal Type Screw terminals or spring-cage Operating Temperature -25°C to +55°C
