Technical Parameters Category Specification Model A22-RLT-WS Product Type Illuminated Pushbutton (Maintained/Latching Action) Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Button Type Rectangular, Maintained (Latching) Button Color White (Actuator) Lens Color Red (Illumination) Illumination Incandescent Bulb Contact Block Not Included. A separate contact block (e.g., A22-C series) must be purchased. Voltage for Lamp Depends on the specific bulb installed (e.g., 6V, 24V, 48V, 110V, 220V). Must be specified separately.

Technical Parameters Category Specification Model A22-QDDL-32/32 Product Type Illuminated 2-Position Selector Switch Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Switch Positions 2 Lens Color (Position 1 & 2) Green / Green Illumination Incandescent Bulbs (one for each position) Contact Block Not Included. One or more separate contact blocks (e.g., A22-C series) must be purchased and stacked to provide the required switching logic. Voltage for Lamps Depends on the specific bulbs installed (e.g., 24V, 110V, 220V). Must be specified separately for each lamp.

Technical Parameters Category Specification Model A22-RLT-GN Product Type Illuminated Pushbutton (Maintained/Latching Action) Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Button Type Rectangular, Maintained (Latching) Button Color Green (Actuator) Lens Color Red (Illumination) Illumination Incandescent Bulb Contact Block Not Included. A separate contact block (e.g., A22-C series) must be purchased. Voltage for Lamp Depends on the specific bulb installed (e.g., 6V, 24V, 48V, 110V, 220V). Must be specified separately.

Technical Parameters Category Specification Model A22-LED-W Product Type LED Pilot Light / Indicator Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Function Indicator Only (Non-Operated) Lens Color White Illumination Technology Light Emitting Diode (LED) Supply Voltage A wide range of DC or AC voltages depending on the specific internal resistor installed (e.g., 12V DC, 24V DC, 110V AC, 230V AC). This is a critical ordering parameter. Connection Not Included. A separate holder/terminal base (e.g., A22-T) must be purchased.

Technical Parameters Category Specification Model M22-DL-B Product Type 2-Wire AC Inductive Proximity Sensor Housing Thread M22 x 1 Sensing Distance 5 mm (Nominal) Output Type 2-wire AC Supply Voltage 20-253V AC, 50/60 Hz Rated Current Typically 5-200 mA (depending on model) Leakage Current Typically < 1.8 mA Connection Type Fixed Cable Housing Material Nickel-Plated Brass Target Material Ferrous Metals (e.g., Steel) IP Rating IP67 (Dust-tight and protected against temporary immersion)

Technical Parameters Category Specification Model A22-QDDL-11/10 Product Type Illuminated 2-Position Selector Switch Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Switch Positions 2 Lens Color (Position 1 / Position 2) Red / Green Illumination Incandescent Bulbs (one for each position) Contact Block Not Included. One or more separate contact blocks (e.g., A22-C series) must be purchased and stacked to provide the required switching logic. Voltage for Lamps Depends on the specific bulbs installed (e.g., 24V, 110V, 220V). Must be specified separately for each lamp.

Technical Parameters Category Specification Model A22-RWK1V Product Type Illuminated Pushbutton (Maintained/Latching Action) Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Button Type Rectangular, Maintained (Latching) Button Color White (Actuator) Lens Color Green (Illumination) Illumination Incandescent Bulb Contact Block Not Included. This is only the operator (button and lamp assembly). A separate contact block (e.g., A22-C series) must be purchased. Voltage for Lamp Depends on the specific bulb installed (e.g., 6V, 24V, 48V, 110V, 220V). Must be specified separately.

Technical Parameters Category Specification Model A22-IGE1M Product Type Illuminated Pushbutton (Momentary Action) Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Button Type Round, Momentary Button Color Yellow (Actuator) Lens Color Green (Illumination) Illumination Incandescent Bulb Contact Block Not Included. This is only the operator (button and lamp assembly). A separate contact block (e.g., A22-C) must be purchased. Voltage for Lamp Depends on the specific bulb installed (e.g., 6V, 12V, 24V, 48V, 110V, 220V). Must be specified separately.

Technical Parameters Category Specification Model A22-RPV Product Type Illuminated Pushbutton (Maintained/Latching Action) Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Button Type Rectangular, Maintained (Latching) Lens Color Green Illumination Incandescent Bulb Contact Block Not Included. This is only the operator (button and lamp assembly). A separate contact block (e.g., A22-C series) must be purchased. Voltage for Lamp Depends on the specific bulb installed (e.g., 6V, 24V, 48V, 110V, 220V). Must be specified separately.

Technical Parameters Category Specification Model A22-I1M Product Type Illuminated Pushbutton (Momentary Action) Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Button Type Round, Momentary Lens Color Red Illumination Incandescent Bulb Contact Block Not Included. This is only the operator (button and lamp assembly). A separate contact block (e.g., A22-C) must be purchased. Voltage for Lamp Depends on the specific bulb installed (e.g., 6V, 12V, 24V, 48V, 100V, 110V, 120V, 200V, 220V, 240V). Must be specified separately.

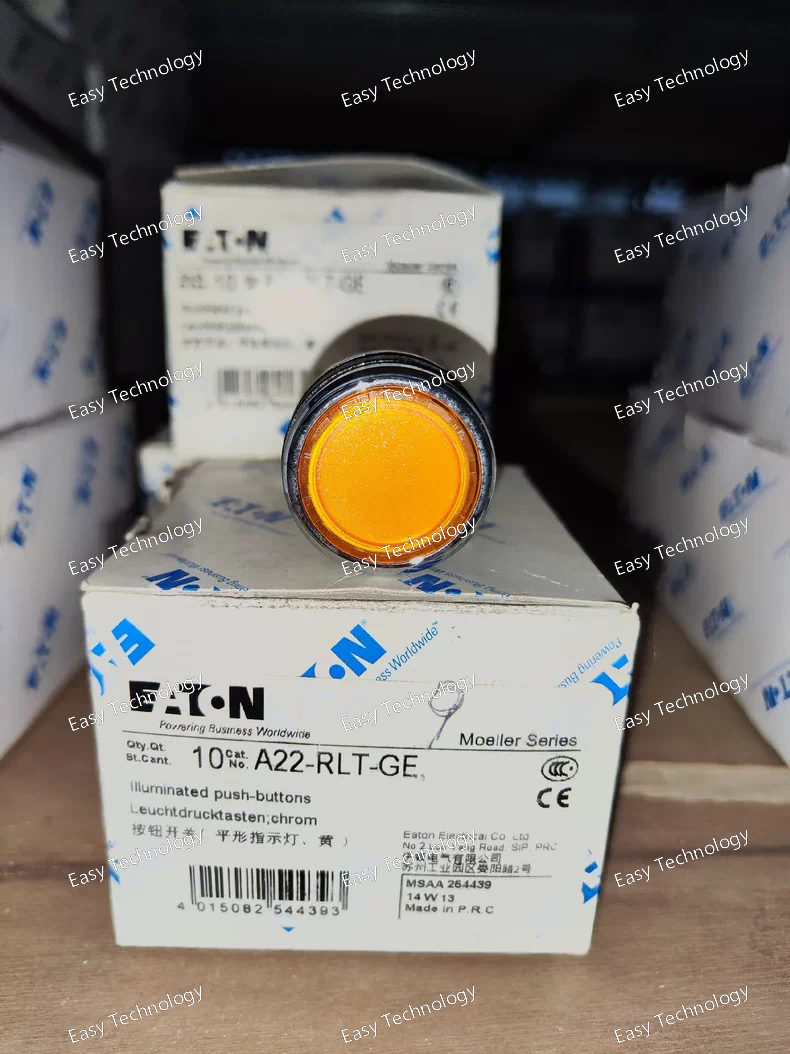

Technical Parameters Category Specification Model A22-RLT-GE Product Type Illuminated Pushbutton (Maintained/Latching Action) Series A22 Mounting Hole 22 mm Front Bezel Oil-tight, Dust-tight (IP65 rated) Button Type Rectangular, Maintained (Latching) Button Color Yellow (Actuator) Lens Color Red (Illumination) Illumination Incandescent Bulb Contact Block Not Included. A separate contact block (e.g., A22-C series) must be purchased. Voltage for Lamp Depends on the specific bulb installed (e.g., 6V, 24V, 48V, 110V, 220V). Must be specified separately.

Parameter Specification Product Model A22-I3M Product Line Eaton A22 Series Product Type Indicator Light Lens Color Green Illumination Type Incandescent or LED (module dependent) Rated Voltage e.g., 24 V DC, 120 V AC (depends on lamp/LED module) Power Consumption 1.2–2 W (typical for LED) Mounting Hole Diameter 22.5 mm Protection Rating IP65 (front panel) Lens Material Polycarbonate Housing Material Thermoplastic (e.g., PA66) Terminal Type Screw terminals Operating Temperature -25°C to 55°C
