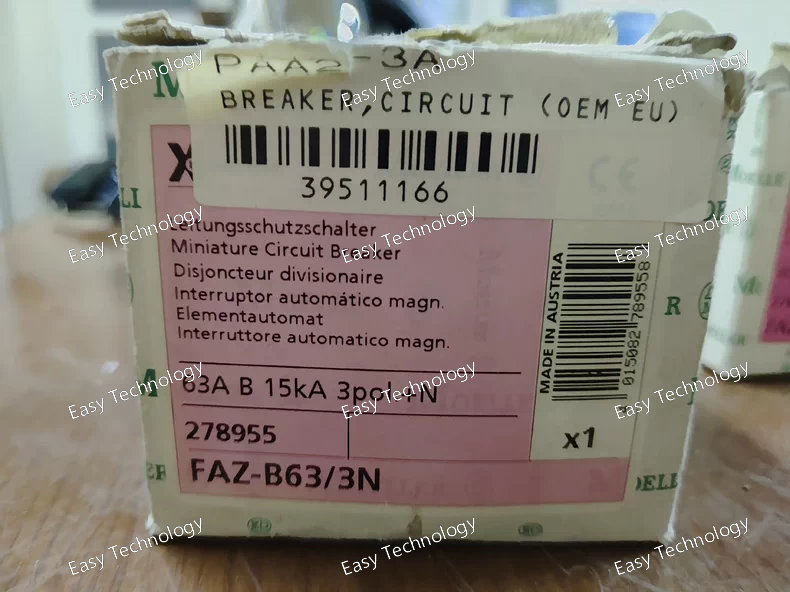

Parameter Specification Product Model FAZ-B63/3N Product Line Eaton FAZ B-Series (Miniature Circuit Breaker) Number of Poles 3 Poles + Neutral (3P+N) Rated Current (In) 63 A Tripping Characteristic B-Curve (Instantaneous tripping between 3 to 5 times rated current). Suitable for resistive and low inductive loads. Rated Operational Voltage (Ue) 230/400 V AC Rated Insulation Voltage (Ui) 500 V AC Rated Impulse Withstanding Voltage (Uimp) 4 kV Rated Breaking Capacity (Icn) Typically 10 kA at 230/400V AC according to IEC 60898-1. (Please confirm with local catalog as higher capacity versions may exist). Standards IEC/EN 60898-1, IEC/EN 60947-2 Terminal Connection Suitable for cables up to 35 mm² (copper). Mounting Standard DIN Rail (35 mm) mounting. Mechanical Life Typically > 20,000 cycles Electrical Life Typically > 10,000 cycles Torque Screw Typically 3.0 N·m

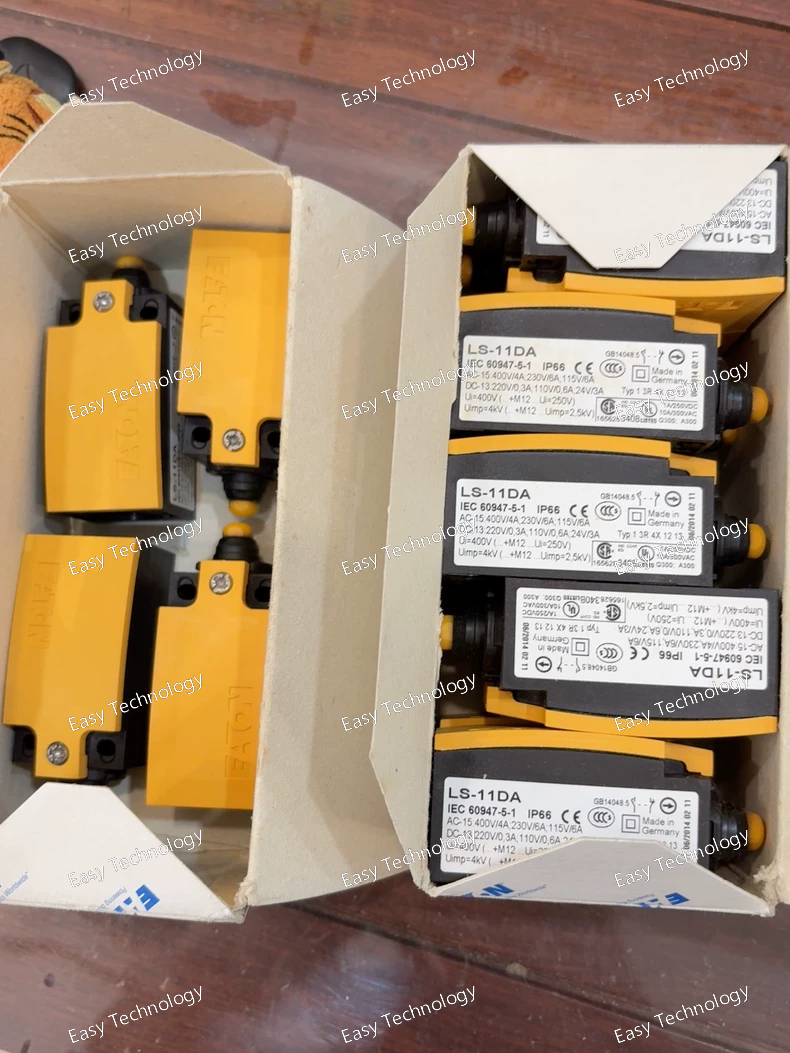

Parameter Specification Product Model LS-11DA Product Type Heavy-Duty Limit Switch Contact Arrangement 1 NO (Normally Open) + 1 NC (Normally Closed) - Single Circuit, Double Break Contact Operation Maintained Contact Switch Mechanism Slow Action (Snap-Action) Rated Operational Current Typically 10 A @ 600 V AC / 0.5 A @ 600 V DC (Specific values depend on thermal and inductive load) Electrical Life Typically 1 to 2 million operations (at rated load) Mechanical Life Typically 10 million operations Enclosure Rating NEMA 4, 4X, 6P, 13; IP67 (Dust-tight and protected against immersion) Housing Material Typically Zinc Die Cast Operating Head Various actuator types available (e.g., roller lever, plunger) - the "DA" suffix may specify a particular type. Terminal Type Screw terminals Conduit Opening Standard ½" NPT Temperature Range Typically -20°C to +120°C (-4°F to +248°F) Standards Compliance UL Listed, cULus Listed, CE

Parameter Specification Product Model BLR-CX06R Sensor Type Inductive Proximity Sensor Body Shape Rectangular Detection Type Shielded (Embeddable) Output Type DC 3-wire Output Configuration NPN Normally Open (NO) Supply Voltage 10 to 30 V DC Rated Sensing Distance 2 mm (±10%) Setpoint 0 to 1.62 mm Hysteresis ≤ 10% of rated sensing distance Standard Target Fe 12x12x1 mm (Mild Steel) Response Frequency 500 Hz Protection Circuit Reverse Polarity Protection, Short-circuit protection, Overcurrent protection Protection Rating IP67 Housing Material Nickel-plated brass Connection Type Pre-wired cable (2m standard length is common, but please verify) Operating Temperature -25 to 70°C Compliance CE

Parameter Specification Product Model MTL-779+ Product Line Eaton MTL Signal Conditioners & Isolators Function 2-Wire Transmitter Isolator & Power Supply Input Signal Accepts and powers a 2-wire, 4-20 mA transmitter from a hazardous area. Output Signal 4-20 mA DC (Isolated) Input/Output Isolation Galvanic Isolation between input, output, and power supply. Power Supply Typically 20-30 V DC (for standard models) Intrinsic Safety (IS) Approval Yes. Certified for use in Hazardous Areas (e.g., ATEX, IECEx). Entity Parameters (Example values, MUST be verified for design): - Vmax (Ui): e.g., 28 V - Imax (Ii): e.g., 93 mA - Pi: e.g., 0.65 W - Ci: e.g., 0 μF - Li: e.g., 0 mH Non-Incendive (NI) Approval Yes (for applicable standards like FM/CSA). Line Fault Detection Yes, can detect open and short circuits in the field wiring. Accuracy Typically better than ±0.1% of span. Mounting DIN-Rail Mount (Standard 35 mm) Operating Temperature -20°C to +60°C Compliance & Certifications ATEX, IECEx, FM, CSA, NEPSI, etc. (Specific certifications depend on the product suffix).

Parameter Specification Product Model EMR6-I15-A -1 Product Line Eaton EMR6 Electronic Overload Relay Rated Operational Voltage (Ue) Up to 690 V AC Motor Full-Load Current Range Depends on the installed Heater Element / Rating Plug. The I15 frame covers a specific range (e.g., 0.15 A to 25 A). The exact value is set by a removable rating plug. Tripping Class Selectable (e.g., Class 5, 10, 15, 20, 30) Protection Functions <ul><li>Phase Loss / Unbalance</li><li>Overload</li><li>Locked Rotor / Stall</li><li>Jam / High Current</li><li>Ground Fault (Earth Fault)</li></ul> Auxiliary Contacts Typically includes at least one 95-96 (NC) fault contact and one 97-98 (NO) alarm contact. Reset Mode Manual Reset (inferred from "-1" suffix), with options for automatic reset. Mounting Designed to be mounted directly onto a corresponding Eaton contactor (e.g., DIL series) without tools. Ambient Temperature -25°C to +60°C Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14

Parameter Specification / Inference Product Model T5-4-I5682/I5/SVB Product Line Eaton T5 Power Contactor Rated Operational Current (Ie) ~ 32 A at AC-3, 400V Rated Operational Voltage (Ue) Up to 690 V AC Number of Main Poles 4 Coil Voltage 24 V DC Auxiliary Contacts 1 NO (Normally Open) + 1 NC (Normally Closed) Mounting Style Base Mounting with Screw Terminals (SVB) Terminal Type Screw Clamp Electrical Life > 1 million operations (at rated load) Mechanical Life > 10 million operations Standards Compliance IEC 60947-4-1, UL 508

Parameter Specification Product Model PFS3322 Product Line Eaton Bussmann PFS (High Performance Class Fuse) Fuse Type Current-Limiting Ampere Rating 200 A Voltage Rating AC 600 V AC Voltage Rating DC Typically 300 V DC (Please verify for specific DC applications) Interrupting Rating 200,000 A RMS (200 kA) at 600V AC Standards & Approvals UL Listed (Class J), CSA Certified Time-Current Characteristic Fast-Acting Label Color Black (Standard for this amperage in PFS series) Terminal Type Knife Blade (Standard for Class J fuses) Dimensions (Body) Standard Class J dimensions.

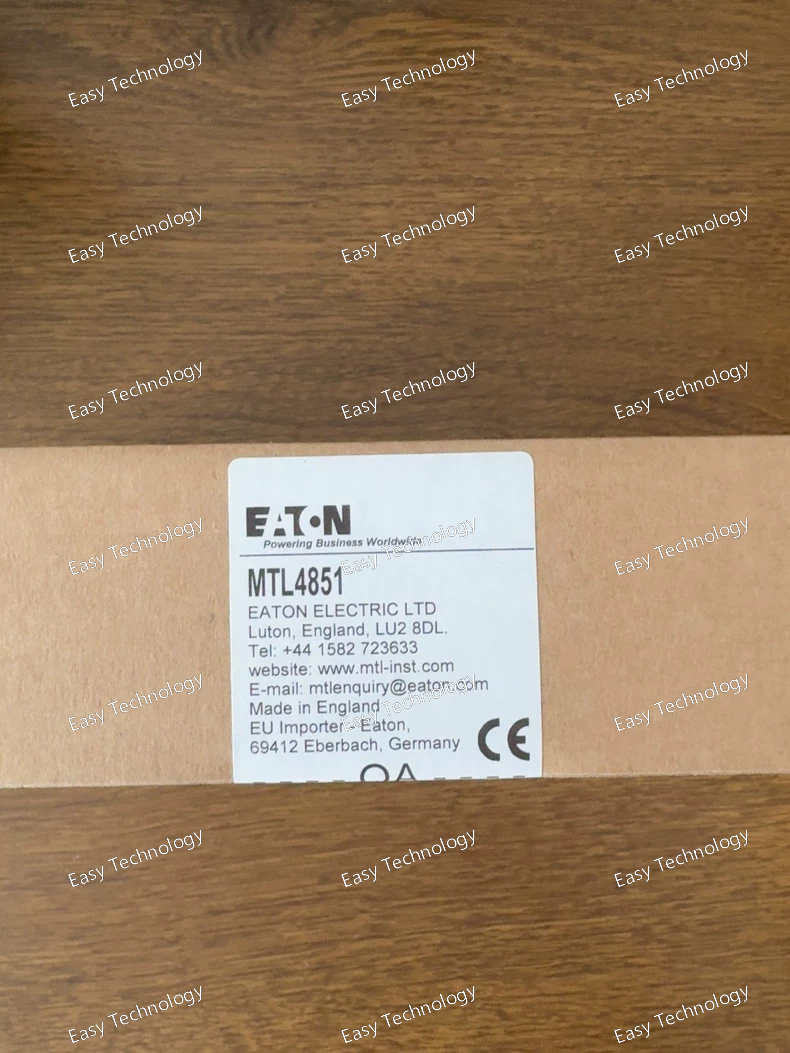

Parameter Specification Product Model MTL4851 Product Line Eaton MTL Signal Conditioners & Isolators Function 1-channel Signal Isolator Input Signal 4-20 mA (Sourced from a 2-wire or 3-wire transmitter) Output Signal 4-20 mA (Isolated) Power Supply Typically 20-30 V DC Input/Output/Power Isolation Galvanic Isolation (Typically 1.5 kV AC or higher) Accuracy Typically better than ±0.1% of span Load Capacity Typically up to 850 Ω (at 20 mA) Ambient Temperature Range -20°C to +60°C Mounting DIN-Rail Mount (Standard 35 mm) Field-side Intrinsic Safety Can be used in Intrinsic Safety (IS) loops when installed with an approved associated apparatus (safety barrier/isolator) on its input. Approvals ATEX, IECEx, FM, CSA (for general purpose and IS applications)

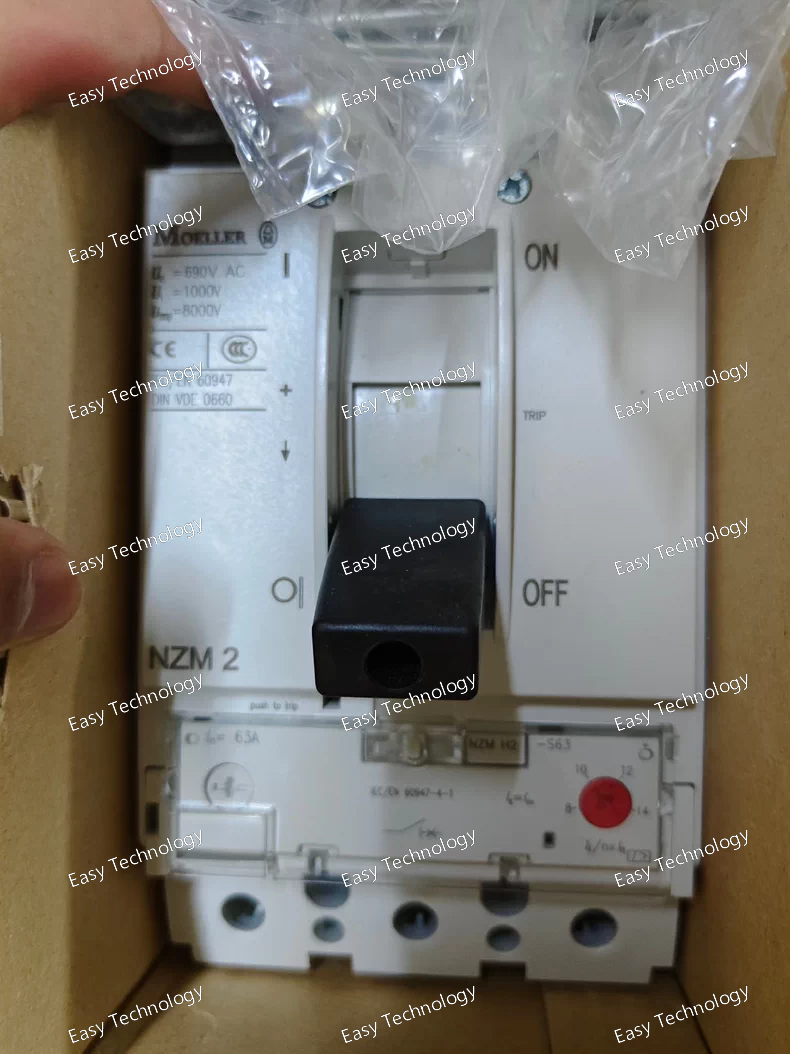

Parameter Specification Product Model NZMH2-S63 Product Line Eaton NZM MCCB (NZMH2 series) Poles 2-Poles (Inferred from "H2", where "2" typically means 2 poles) Rated Current (In) 63 A (Fixed) Rated Operational Voltage (Ue) 400/415 V AC Rated Insulation Voltage (Ui) 690 V AC Rated Ultimate Breaking Capacity (Icu) Standard Capacity (e.g., 25 kA @ 415V AC) 必须根据官方数据表确认 Trip Unit Type Thermal-Magnetic (Non-adjustable) Tripping Characteristic According to IEC 60947-2 (e.g., Curve B or similar for MCCBs) Mounting Fixed Mounting Terminal Connection Suitable for copper or aluminum cables (specific sizes to be verified) Standards Compliance IEC/EN 60947-2 Electrical Life Typically several thousand cycles at rated current

Parameter Specification Product Model EACRO420SC Product Line Eaton EASY AC Soft Starter Rated Motor Power 20 HP (15 kW) @ 480V AC Rated Current 42 A (This is inferred from the model number "420", where 42 is the amperage) Supply Voltage 200-480 V AC, 50/60 Hz Control Method Voltage ramp control with built-in EnergySaver function (improves efficiency at partial load) Key Features <ul><li>Built-in Bypass Contactor: Reduces heat and energy consumption after start-up.</li><li>Adjustable Start Voltage / Torque</li><li>Adjustable Ramp Time</li><li>Adjustable Stopping Mode (Coast, Soft stop)</li><li>Integrated Overload Protection</li></ul> Protection Functions <ul><li>Overload</li><li>Phase Loss / Imbalance</li><li>Overcurrent</li><li>Heatsink Overtemperature</li></ul> Control Connections Screw terminals for Start/Stop control and status relays. Mounting DIN Rail Mount (Standard 35 mm) Standards Compliance UL Listed, cULus, CE Marked

Parameter Specification / Inference Product Model 13104RQD007 Product Line Cutler-Hammer by Eaton Product Type Push Button Operator Operator Color Green Operator Shape Rectangular Mounting Style Quick-Disconnect (QD) - Front mounting Contact Block Compatibility Designed to mate with standard Eaton/Cutler-Hammer contact blocks (e.g., 1NO, 1NC, 1NO/1NC). Note: Contacts are sold separately. Lens Legend Typically unmarked or with a standard "I" (for On). Custom legends may be available. Enclosure Rating NEMA 4X, 13; IP65 (Oil-tight, Dust-tight, Water-resistant) Material Thermoset plastic or similar durable material. Panel Cutout Designed for a specific rectangular cutout. Standards Compliance UL Listed, cULus, CE

Parameter Specification / Inference Product Model EEA-PAM-533-A-33 Product Type Pre-assembled Power Analysis & Monitoring Module Rated Voltage Likely 208/240 V AC (inferred from "-33" suffix, common in 3-phase Wye/Delta configurations) Input Current Dependent on the integrated Current Transformers (CTs). The "533" may specify the CT ratio (e.g., for a 500:5 A or similar CT). Monitored Parameters <ul><li>Voltage (Line-to-Line, Line-to-Neutral)</li><li>Current</li><li>Power (kW, kVA, kVAR)</li><li>Energy (kWh)</li><li>Frequency</li><li>Power Factor</li></ul> Communication Interface Likely RS-485 with a standard protocol like Modbus RTU. Alarm Outputs Typically includes dry contact relays for alarms (e.g., over-voltage, under-voltage, over-current). Mounting Designed for internal mounting within a specific Eaton enclosure or chassis. Compliance UL, CE, and other regional standards applicable to the host equipment.
