Technical Parameters Parameter Value Notes Nominal Size 8 Rated Flow 40 L/min 10.6 US gpm @ 70 bar ΔP Maximum Operating Pressure 315 bar 4,570 psi Supply Pressure 210 bar maximum 3,045 psi Control Signal ±10 mA or ±10 V DC Proportional input Hysteresis < 1.5% Linearity < 3% Frequency Response > 80 Hz (±45° phase lag) At 50% rated stroke Null Leakage < 1.5 L/min At rated pressure

Technical Parameters Parameter Value Notes Maximum Operating Pressure 350 bar 5,075 psi Rated Flow Capacity 19 L/min 5 US gpm Port Size NG06 CETOP 03 standard Spool Configuration 2-position, 4-way Solenoid Type Wet pin DC Continuous duty Manual Override Standard For emergency operation Mounting ISO 4401 Standard interface Fluid Compatibility Mineral-based hydraulic oil Typical Applications Industrial machinery Hydraulic power units Mobile equipment Press systems Machine tools

Technical Parameters Parameter Value Notes Maximum Operating Pressure 350 bar 5,075 psi Rated Flow Capacity 19 L/min 5 US gpm Port Size NG06 CETOP 03 standard Spool Configuration 3-position, 4-way Critical center Solenoid Type Wet pin DC Continuous duty Voltage 24V DC Code 60 Power Consumption 26W At 20°C (68°F) Protection Rating IP65 Solenoid standard

Technical Parameters Parameter Value Notes Nominal Size 16 Standard interface dimension Maximum Flow Rate 40 L/min 10.6 US gpm (typical) Minimum Controlled Flow 2 L/min 0.5 US gpm (typical) Maximum Operating Pressure 315 bar 4,570 psi Control Signal 0-10V DC or 4-20mA Proportional analog input Hysteresis < 3% Typical value Linearity < 5% Typical value Response Time < 50 ms To 90% of commanded value Operating Temperature -20°C to +70°C -4°F to +158°F

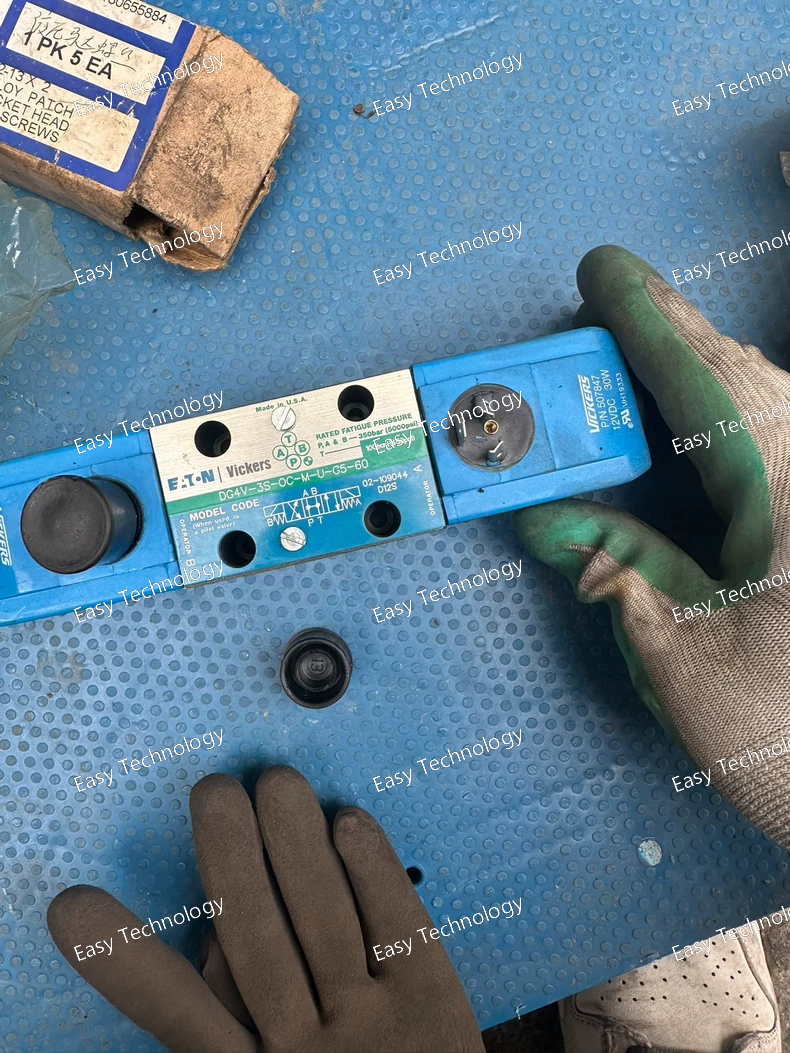

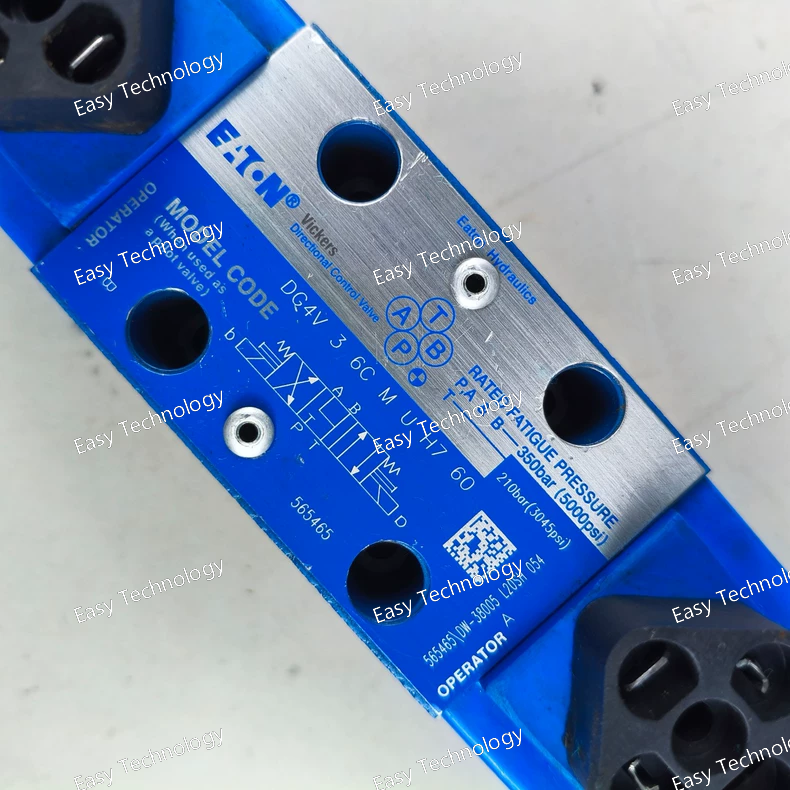

Technical Parameters Code Segment Description Specification DG4V Valve Series 4-Way Directional Valve 3 Size NG03 (CETOP 3) Interface 6C Spool Type Normally Closed Configuration M Solenoid Type Wet Pin DC Solenoid (NA Standard) U Electrical Connection Single Metric Connector H7 Seal Material Nitrile (Buna-N) Rubber 60 Voltage Code 24V DC Technical Parameters Parameter Value Condition/Note Maximum Operating Pressure 350 bar 5,075 psi Rated Flow Capacity 20 L/min 5.3 US gpm Port Size NG03 CETOP 3 Standard Voltage 24V DC Code 60 Protection Rating IP65 Solenoid Standard Spool Configuration Normally Closed All Ports Blocked in Neutral Return Type Spring Automatic Center Return Fluid Compatibility Mineral-based Hydraulic Oil - Operating Viscosity 10-100 cSt Optimal Range

Technical Parameters Parameter Value / Description Notes Nominal Size 16 --- Maximum Operating Pressure (P, A, B ports) 350 bar (5,075 psi) --- Maximum Operating Pressure (T port) 210 bar (3,045 psi) --- Maximum System Flow Up to 120 L/min (32 US gpm) per inlet section Dependent on pump and system design Recommended Maximum Flow per Section 60 - 80 L/min (16 - 21 US gpm) For optimal performance Control Signal Proportional, typically 24V DC PWM Requires a compatible electronic controller Solenoid Resistance ~ 5 - 20 Ohms (varies with model and coil) Check specific datasheet Pressure Compensation Optional (Standard or Load-Independent) A key feature for consistent speed under varying loads Hysteresis < 3% Indicates high repeatability and control accuracy Internal Pilot Supply Standard (from inlet module) --- External Pilot Supply Optional For special operating conditions Port Size Typically SAE 12 (3/4") for work ports May vary

Technical Parameters Parameter Value Notes Nominal Size 16 Standard interface dimension Rated Flow 16 L/min 4.2 US gpm standard rating Maximum Operating Pressure 350 bar 5,075 psi (P, A, B ports) Case Drain Pressure 25 bar max 360 psi maximum Control Voltage 24V DC Proportional PWM signal Spool Configuration 3-position, 4-way Spring-centered to neutral Control Type Electrical proportional Infinite spool positioning Neutral Position Typically float or closed center Depends on A-spool configuration Port Size SAE 12 (3/4") Standard work port connections Functional Characteristics Proportional Control: Provides smooth, infinite positioning between fully closed and fully open Flow rate proportional to input current signal Neutral Position: Spring-centered return to neutral Configurations available: float, closed center, or motor spool Pressure Compensation: Maintains consistent flow regardless of load pressure changes Requires pressure-compensated inlet section Typical Applications Mobile construction equipment Agricultural machinery Material handling systems Aerial work platforms Industrial hydraulic power units

Technical Parameters Parameter Value Conditions / Notes Nominal Size 16 Rated Flow 6 L/min (1.6 US gpm) Standard rated flow under normal conditions Max Operating Pressure 350 bar (5,075 psi) At P, A, B ports Max Case Pressure 25 bar (360 psi) Maximum allowable case drain pressure Control Signal 24V DC PWM Proportional input signal Spool Type B-spool Specific directional and metering function Spool Positioning Proportional Infinite positioning between min and max Return Type Spring-centered Automatically returns to neutral when de-energized Electrical Connector ISO 4400 Standard industrial connector Seal Material Nitrile (standard) Compatible with mineral-based hydraulic oils Functional Description Proportional Control: Allows smooth and precise adjustment of flow and direction by varying the input current to the solenoid. Spring-Centered Neutral: Automatically returns the spool to the neutral position when the solenoid is de-energized. Modular Design: Can be stacked with other EPV sections to create a compact multi-function valve bank. B-Spool Function: Provides specific metering characteristics in A and B ports for controlled actuator movement. Typical Applications Mobile hydraulic systems (construction and agricultural machinery) Industrial hydraulic power units Material handling equipment Factory automation systems

Technical Parameters Parameter Value / Description Notes Thread Size / Cavity C10-12 This is the standardized cavity code per CETOP RP 121 H or ISO 7789. It defines the thread and installation dimensions. Nominal Size 12 Maximum Operating Pressure 350 bar (5,075 psi) Cracking Pressure (Free Flow) Typically < 0.4 bar (6 psi) Very low pressure drop in the free-flow direction. Pilot Ratio ~ 3:1 to 4:1 (e.g., 3.5:1) A common ratio, meaning the pilot pressure required to open the valve against the load pressure is roughly Load Pressure / Pilot Ratio. This is a key specification to verify. Maximum Flow Approx. 75 - 100 L/min (20 - 26 US gpm) Dependent on permissible pressure drop. Seal Material Typically Nitrile (Buna-N) Standard for petroleum-based hydraulic fluids.

Technical Parameters Parameter Value Condition/Note Maximum Operating Pressure 315 bar 4,570 psi Rated Flow Capacity 19 L/min 5 US gpm Port Size NG06 CETOP 03 standard Voltage 24V DC Code 60 Power Consumption 26 W At 20°C (68°F) Protection Rating IP65 Solenoid standard Spool Configuration Normally Closed All ports blocked in neutral Return Type Spring Automatic return Fluid Compatibility Mineral-based Hydraulic Oil - Operating Viscosity 10-100 mm²/s Optimal range

Technical Parameters Parameter Specification Rated Current 82A Rated Voltage 480V AC Number of Poles 3-phase Enclosure Rating IP65 (standard) Connection Type Lug connectors Operating Temperature -25°C to +70°C Mounting Panel mount Standards Compliance IEC/EN 60947-3 Functional Features Main Circuit Breaker Protection Branch Circuit Distribution Overcurrent Protection Short-Circuit Protection Visual Status Indicators Typical Applications Industrial control panels Power distribution cabinets Machine tool power systems Commercial electrical installations

Technical Parameters Parameter Specification Rated Current 102A Rated Voltage 600V AC Number of Poles 3-phase + neutral Wire Range 8 AWG - 250 kcmil Enclosure Rating IP20 (standard) Connection Type Pressure plate connectors Operating Temperature -40°C to +110°C Mounting DIN rail mount (35mm) Material Thermoplastic housing, tin-plated copper conductors Standards Compliance UL 1059, IEC 60947-1 Functional Features Multi-circuit power distribution Transparent cover for visual inspection Pressure plate connections for secure wiring Snap-on DIN rail mounting Integrated test points Color-coded phases Typical Applications Industrial control panels Motor control centers Power distribution cabinets Electrical switchgear Commercial power systems
