Parameters Parameter Category Specification Product Type Variable Frequency Drive (VFD) / AC Drive Brand / Series Eaton DG1 Series Model Code DG17S4-018N50 Rated Output Power 18.5 kW (25 HP) Rated Output Current 38 A (at 400V) - Consult datasheet for full range Input Voltage 3-phase, 380 - 480 V AC, 50/60 Hz Output Voltage 0 to Input Voltage, 3-phase Frame Size 7S4 Control Method Sensorless Vector Control & V/Hz Control Key Features Built-in PID controller, PLC functionality, multiple digital & analog I/O, DC bus choke, keypad with display. Protection Features Overcurrent, Overvoltage, Undervoltage, Motor Overload, Short Circuit, Ground Fault, Heatsink Overtemperature. Communication Protocols Modbus RTU, BACnet MS/TP (on board). Optional cards for DeviceNet, PROFIBUS, EtherNet/IP. Typical Applications Pumps, Fans, Compressors, Conveyors, Mixers.

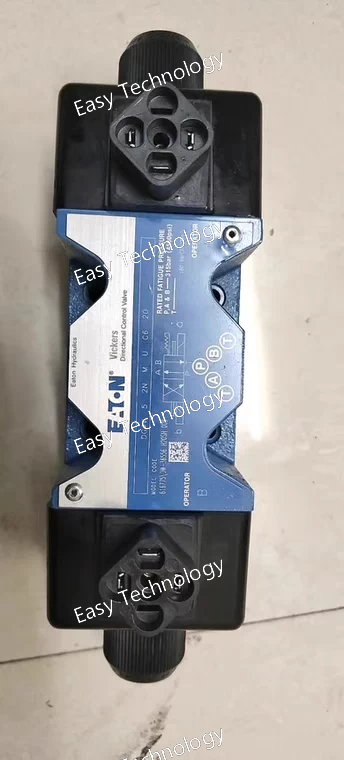

Key Parameters Product Type: Solenoid-Operated Directional Control Valve Brand: Eaton Series: DG4V Function: 4-way, 3-position Nominal Flow: 5 GPM (19 L/min) Maximum Operating Pressure: Typically 350 bar (5000 psi) Center Position Type: Closed Center (All ports blocked) Solenoid Type: Wet-armature, DC Coil Voltage: 12 V DC (as per C6 code) Port Size: Typically SAE 06 (Based on 5 GPM rating) Mounting: ISO 4401-03 (CETOP 3) standard interface Seal Material: Standard Nitrile (Buna-N). Option code may specify others like Viton.

Key Parameters Product Type: Sectional Control Valve Stack (One Section) Brand: Eaton Valve Series: KHDG5V5 Spool Configuration: 3-position, Float Center Power Beyond: Yes (standard with this spool type) Nominal Flow Rate: 80 L/min Maximum Operating Pressure: Typically up to 350 bar (varies by model and seals) Work Port Relief Valve: Included, fixed setting (e.g., ~210 bar) Actuation: Single Solenoid, Electrical Coil Voltage: 120V AC, 50/60 Hz System Type: Open Center

Key Parameters Product Type: Miniature Circuit Breaker (MCB) Brand: Eaton Series: NV Series Number of Poles: 1 Rated Current (In): 10 A Rated Breaking Capacity (Icn): 10 kA Tripping Characteristic: Type K (suitable for motor and transformer circuits) Standard: Complies with IEC/EN 60898-1

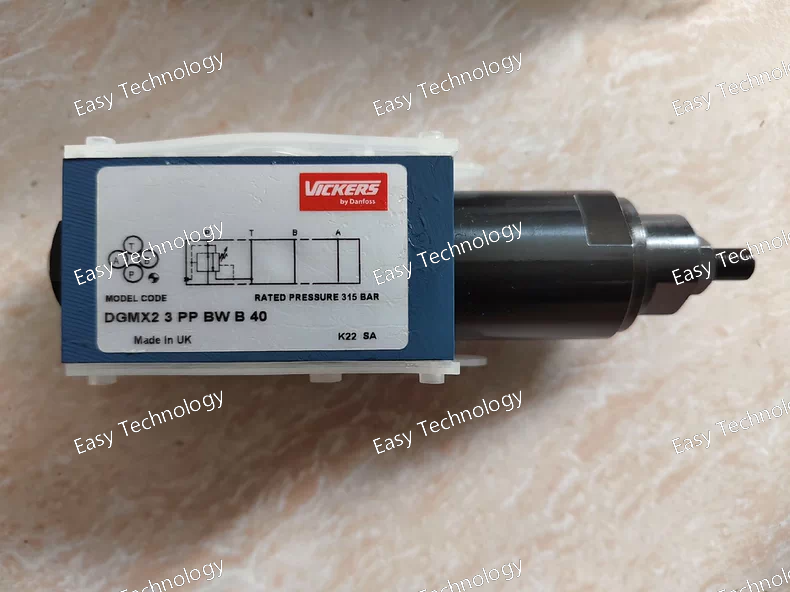

Key Parameters Parameter Specification / Description Valve Type Proportional pressure-compensated flow control cartridge valve Series / Size DGMX2‑3 (NG6 / CETOP 3 / ISO 4401-03 interface) Function Regulates flow proportionally based on electrical input; maintains stable flow under varying load pressure Maximum Flow 40 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Pilot Pressure Requirement 20–30 bar typical (for spool operation) Electrical Control Signal 0–10 V DC or 4–20 mA (depending on coil/driver) Spool Type PP (pressure-compensated proportional) Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Recommended Filtration 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Screw-in cartridge, manifold / subplate mount Electrical Connector Typically 7-pin connector (variant dependent)

Key Parameters Parameter Specification / Description Module Type Electronic proportional amplifier module Series EEA-PAM Function Converts control signal (voltage/current) into proportional output current to drive solenoid valves Control Signal 0–10 V DC or 4–20 mA (depending on variant) Output Current Up to rated current for solenoid valve (e.g., 0–2 A typical) Voltage Supply 24 V DC standard Response Time Fast response for precise flow/pressure control Temperature Range –20 °C to +70 °C Protection Typically includes overcurrent and short-circuit protection Mounting Panel or DIN rail mount (variant dependent) Environmental Designed for industrial/military-grade vibration and temperature conditions

Key Parameters Parameter Specification / Description Valve Type Screw-in hydraulic check valve Series / Size CT‑06 (NG6 / CETOP 3 interface) Function Allows flow in one direction, blocks flow in reverse Maximum Flow 50 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Crack / Opening Pressure ~2–3 bar typical Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Recommended Filtration 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Screw-in cartridge for manifold or subplate installation Housing / Cavity NG6 / CETOP 3 standard

Key Parameters Parameter Specification / Description Valve Type 2-way, 2-position directional control valve Series CG2V Function Controls hydraulic flow direction; normally closed in de-energized state Maximum Flow Rate 10 L/min (approx.) Maximum Operating Pressure 210 bar (≈ 3000 psi) Actuation Type Solenoid or manual lever (variant dependent) Coil Voltage 12/24 V DC or 110/220 V AC (variant dependent) Seal Material Buna-N (standard) Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Cleanliness Recommended 18/16/13 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Subplate / manifold mount Port Size 1/4" (NG1 / CETOP 1 interface)

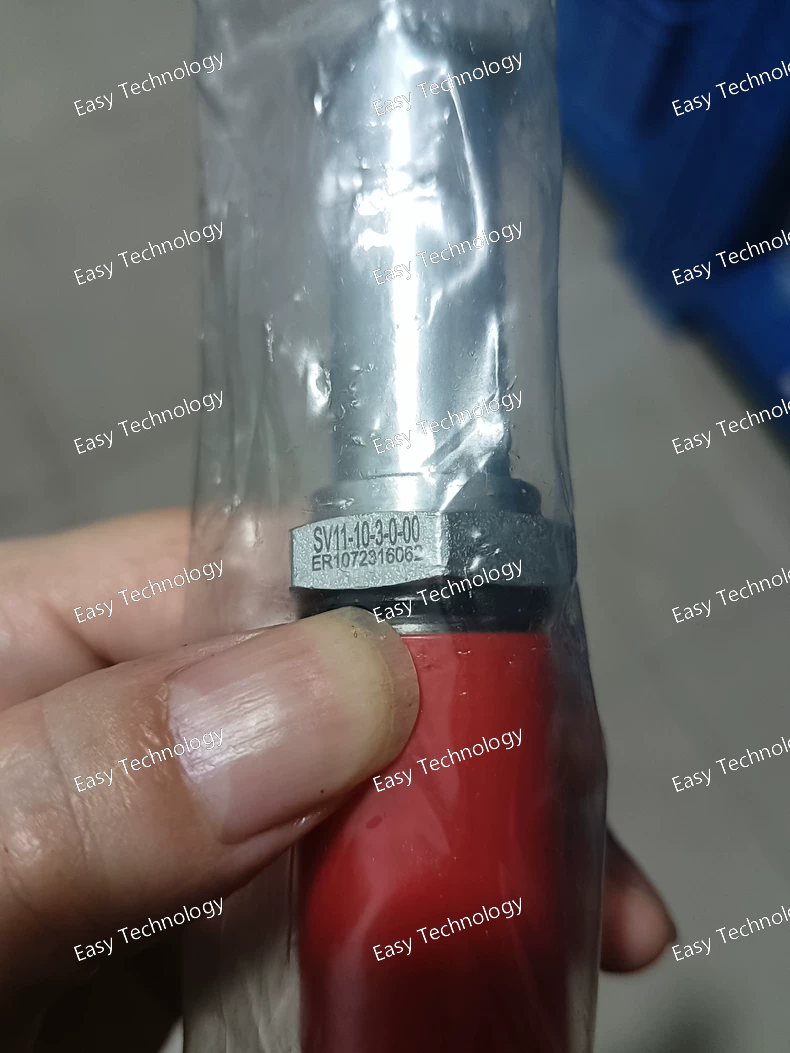

Key Parameters Parameter Specification / Description Valve Type 3-position, 4-way directional control valve Series SV11 Function Controls hydraulic flow direction to actuators; center position normally closed Maximum Flow Rate 100 L/min (approx.) Maximum Operating Pressure 250 bar (≈ 3600 psi) Actuation Type Solenoid-operated Coil Voltage 12/24 V DC or 110/220 V AC (variant dependent) Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Cleanliness Recommended 18/16/13 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Subplate / manifold mount Port Size NG10 / CETOP 5 interface

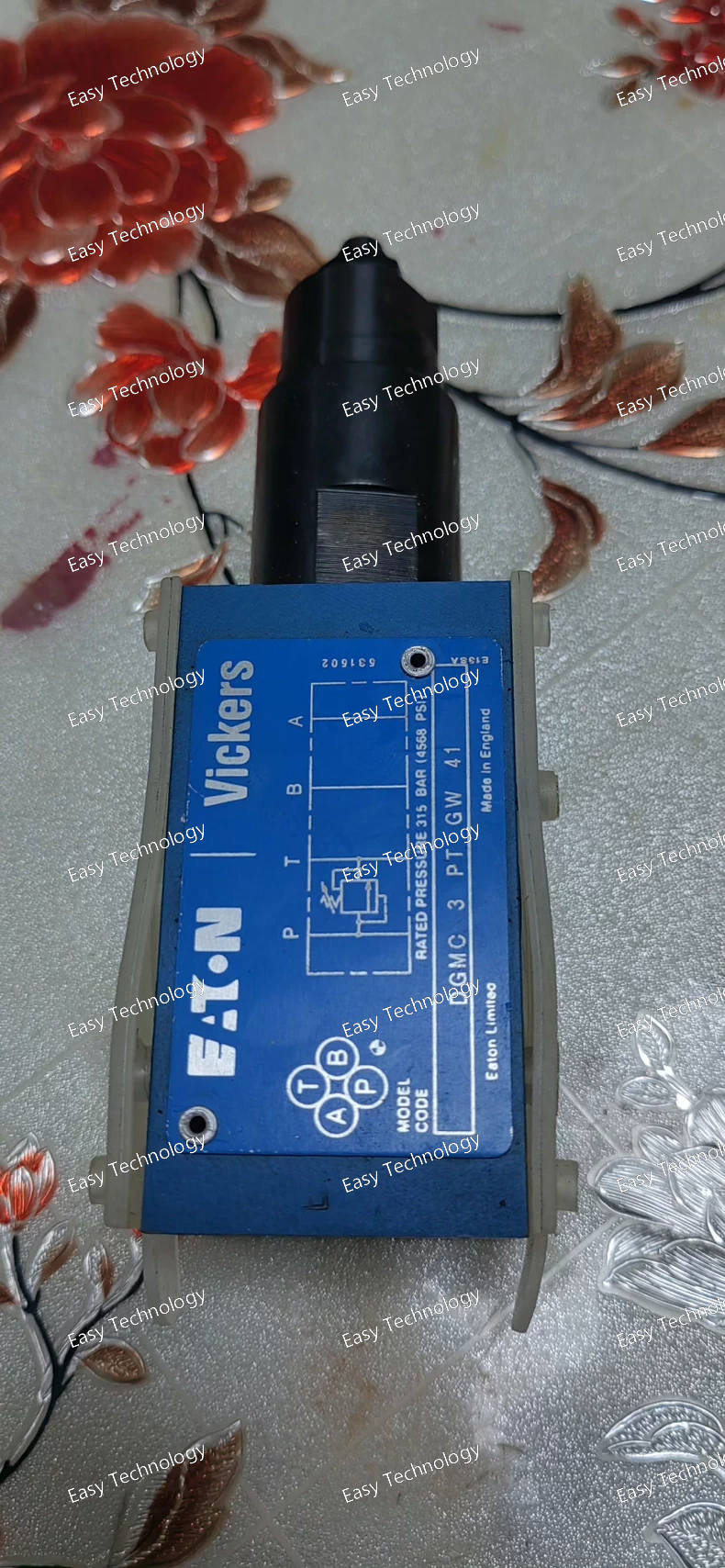

Key Parameters Parameter Specification / Description Valve Type Proportional pressure-compensated flow control cartridge valve Series / Size DGMC3 (NG6 / CETOP 3 / ISO 4401-03 interface) Function Regulates flow proportionally based on electrical input; maintains stable flow under varying load pressure Maximum Flow 40 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Pilot Pressure Requirement 20–30 bar typical (for spool operation) Electrical Control Signal 0–10 V DC or 4–20 mA (depending on coil/driver) Spool Type PTG (proportional) Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Recommended Filtration 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Screw-in cartridge, manifold / subplate mount Electrical Connector Typically 7-pin connector (variant dependent)

Key Parameters Parameter Specification / Description Valve Type Proportional pressure-compensated flow control cartridge valve Series / Size DGMC2‑3 (NG6 / CETOP 3 / ISO 4401-03 interface) Function Controls flow proportionally based on electrical input; maintains stable flow under varying load pressure Maximum Flow 40 L/min (approx.) Maximum Operating Pressure 350 bar (≈ 5000 psi) Pilot Pressure Requirement 20–30 bar typical (for spool operation) Electrical Control Signal 0–10 V DC or 4–20 mA (depending on coil/driver) Spool Type AT / BT (proportional pilot-operated) Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Recommended Filtration 17/15/12 µm or better Operating Temperature –20 °C to +70 °C Mounting Type Screw-in cartridge, manifold / subplate mount Electrical Connector Typically 7-pin connector (variant dependent)

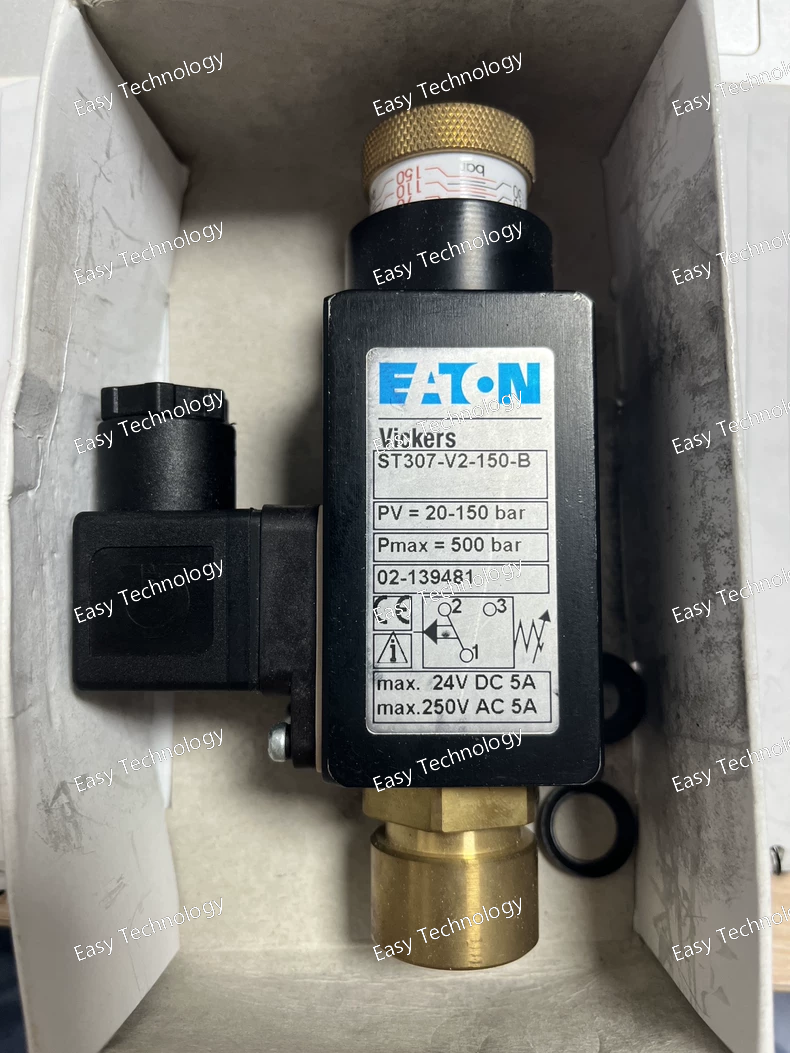

Key Parameters Parameter Specification / Description Valve Type Pilot-operated pressure relief valve Series / Size ST307‑V2 Function Limits system pressure by opening when preset pressure is exceeded Maximum Pressure 150 bar (≈ 2175 psi) Flow Capacity Up to rated flow (depends on system configuration, approx. 50–100 L/min typical) Adjustment Adjustable spring for setting desired relief pressure Seal Material Buna-N standard; Viton optional Fluid Compatibility Mineral-based hydraulic oils, anti-wear oils Fluid Viscosity Range 10–800 cSt Operating Temperature –20 °C to +80 °C Mounting Type Subplate / manifold mount Port Size NG10 / CETOP 5 (or as per installation requirements)
