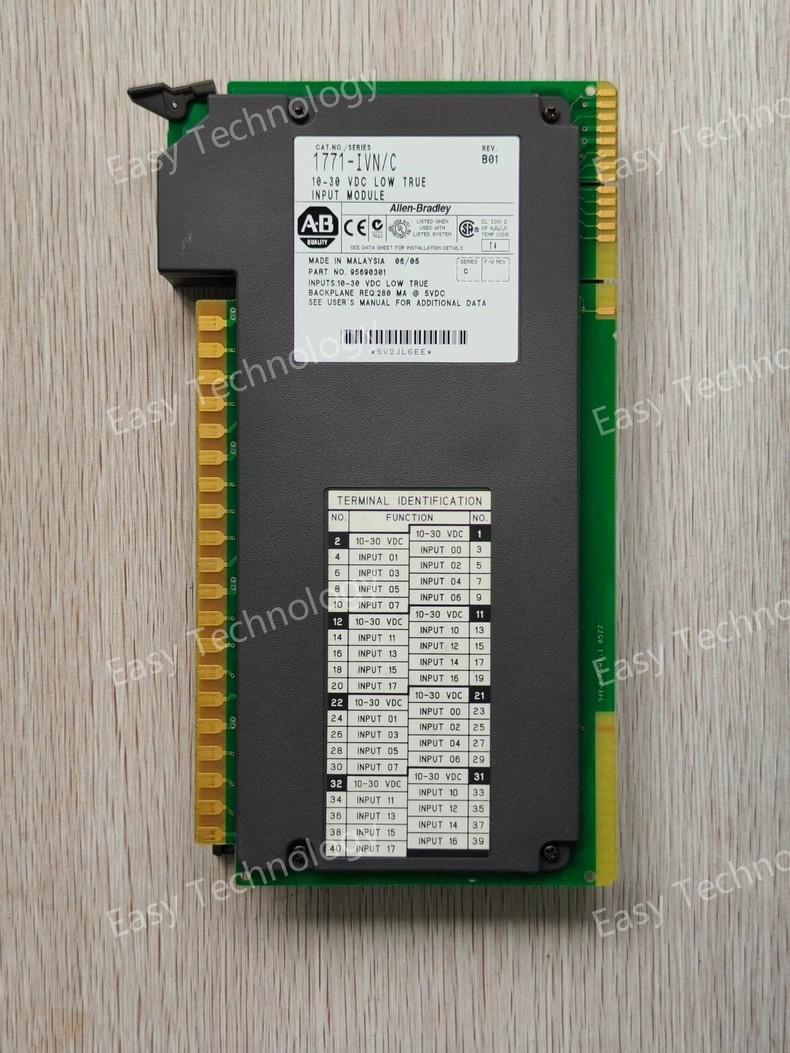

The Allen - Bradley 1771 - IVN/C is a 32 - point digital DC input module.

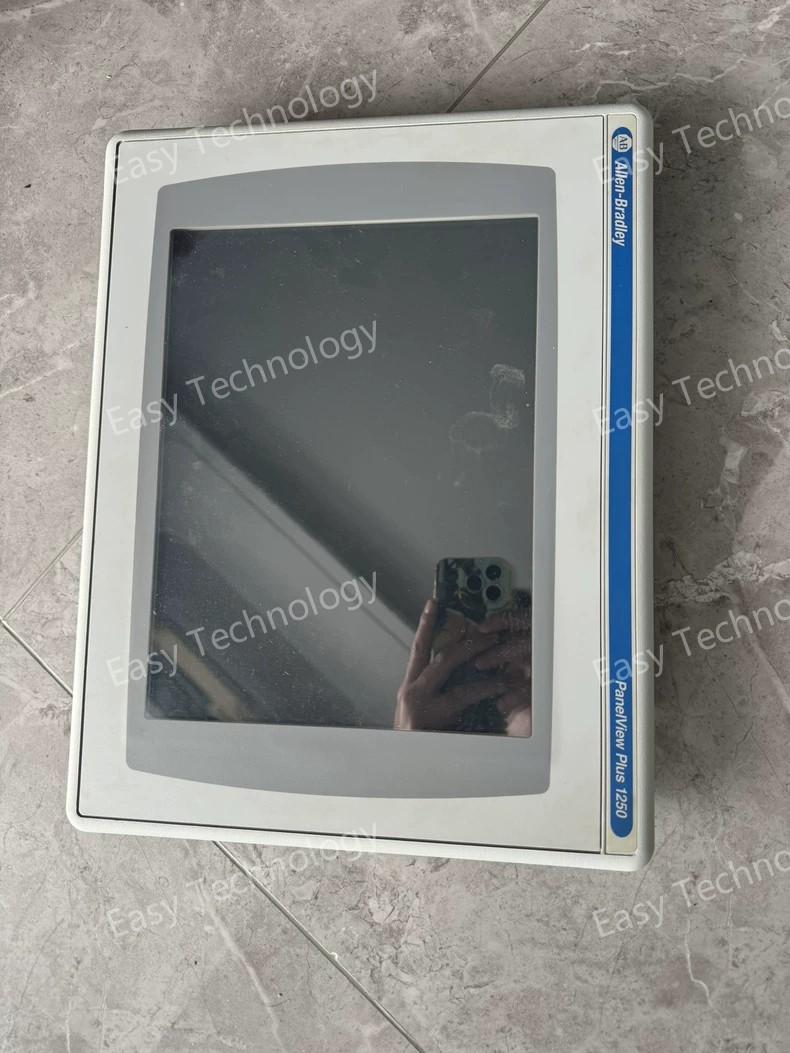

The Allen - Bradley 2711P - RDT12C is a 12.1 - inch display module of the PanelView Plus series.

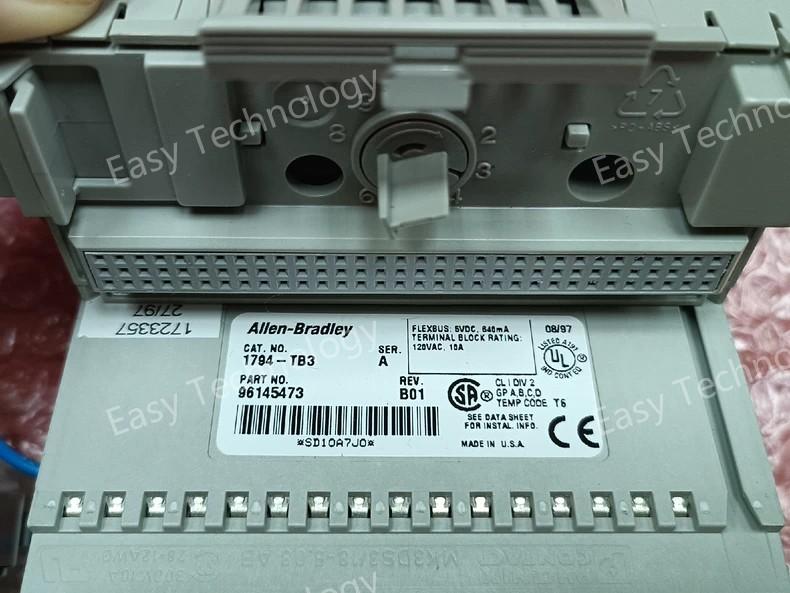

Allen - Bradley 1794 - TB3 is a Flex I/O terminal base unit

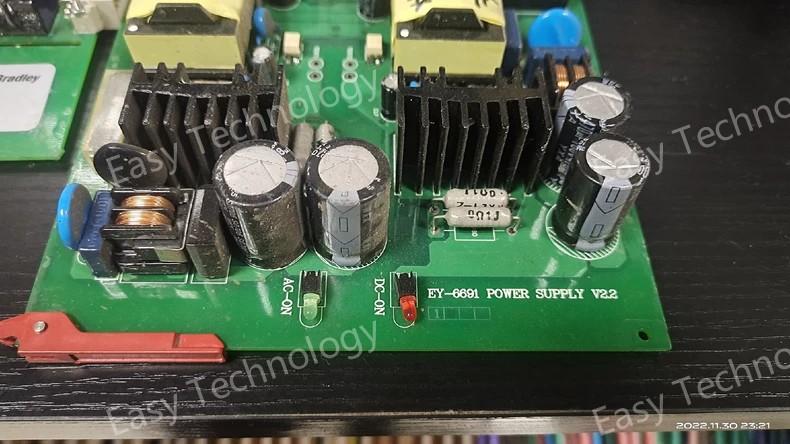

Allen - Bradley EY - 6691 is an axial position monitor

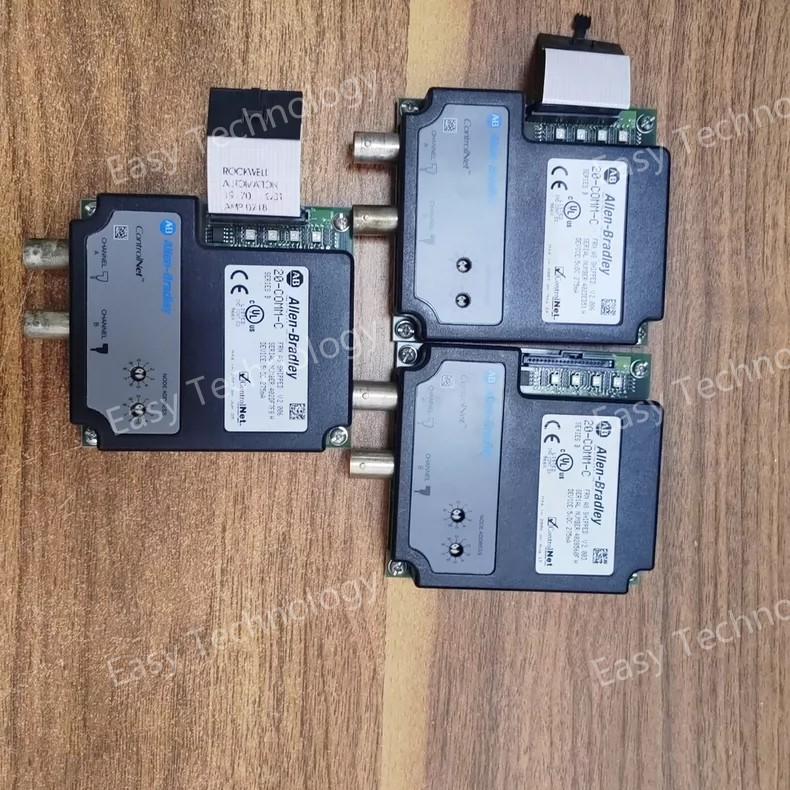

Allen - Bradley 20 - COMM - C is a ControlNet communication adapter

Allen - Bradley 1794 - OF4I is a Flex I/O isolated analog output module

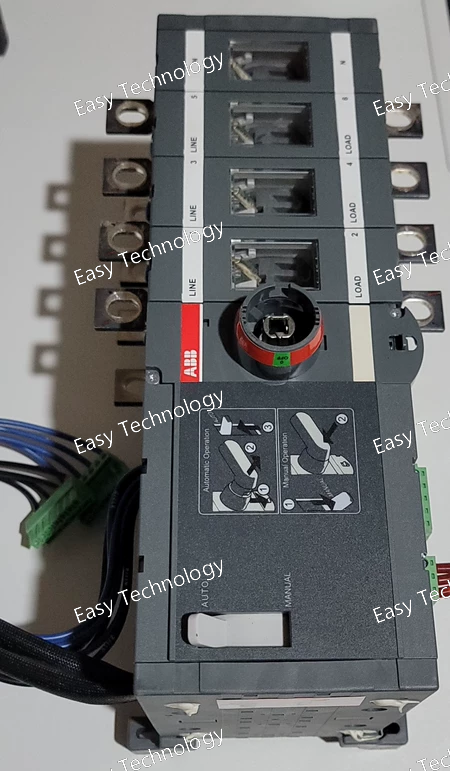

Technical Parameters Parameter Specification Product Type Motorized Change‑Over Switch (Transfer Switch) Model OTM63F4CM230V Poles 4 Poles Rated Operational Current 63 A (AC‑21A, AC‑22A) Rated Operational Current (AC‑23A) 63 A @ 380‑415 V; lower values at higher voltages Rated Operational Voltage Up to 690 V AC Insulation Voltage (Ui) 800 V Impulse Withstand Voltage (Uimp) 8 kV Short‑Time Withstand Current (1 s) 2.5 kA Motor Operate Voltage 110 – 240 V AC/DC (typically 230 V) Power Loss ~2.8 W Thermal Current (Ith) 63 A Rated Operational Power (AC‑23A) Up to ~30‑37 kW depending on voltage Weight Approx. 1.86 kg Manual Operation Included handle for manual switching Accessories (Included) Handle, bolts/nuts/washers for terminals, male connectors for control circuits

Technical Parameters Specification Detail Product Name ABB OMD300E480C‑A1 Control Unit Manufacturer ABB Series OMD300E480C Function Automatic control unit for transfer switch applications Application Used with ABB motorized change‑over switches to form an automatic transfer switch solution Compatibility Designed for use with OTM series motorized change‑over switches (e.g., OTM40 … 2500_CM_) Include Control module, PCB connectors, mounting fasteners Length ~170 mm (control unit dimension) Mounting Door or panel mounting using provided fasteners Standards Compliance RoHS/REACH compliant (environmental directives) Typical Use Automatic source change‑over for power distribution systems

Technical Parameters Specification Value / Detail Product Type Automatic Dual‑Power Transfer Switch Model DPT63‑CB010 C63A 3P Rated Current 63 A (adjustable range typically 0.5–63 A) Number of Poles 3‑pole (3P) Rated Operational Voltage AC 220/380 V (three‑phase) Insulation Voltage (Ui) ~440 V Impulse Withstand Voltage (Uimp) ~4 kV Utilization Category AC‑31B Short‑Circuit Withstand (Icm Peak) ~9.18 kA Rated Short‑Circuit Breaking Capacity (Icn) ~6 kA Operation Modes Automatic, Manual, Manual Override Interlocks Mechanical & Electrical Safety Interlocks Standards Compliance Meets applicable automatic transfer switch standards Primary Function Automatic transfer between mains and backup source Typical Uses Industrial, commercial, and critical loads requiring continuity of power

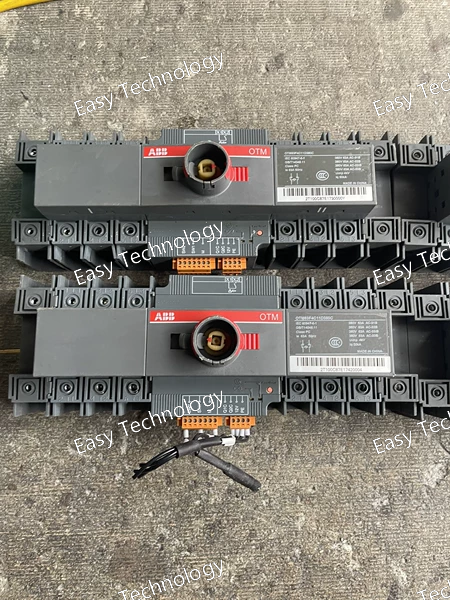

Technical Parameters Specification Detail Product Name ABB OTM63F4C10D380C Dual Power Transfer Switch Type Dual Power / Change‑Over Transfer Switch Switch Size / Rated Current 63 A Number of Poles 4‑pole (4P) Rated Operational Voltage ~380 V (nominal for three‑phase systems) Supply Type 3‑phase AC Transition Type Open transition / change‑over Application Industrial and commercial power transfer between primary and backup sources Installation Panel or enclosure mounting (typically with motor or control unit) Country of Manufacture Switzerland (typical for ABB original) Standards Designed for IEC‑compliant power switching applications

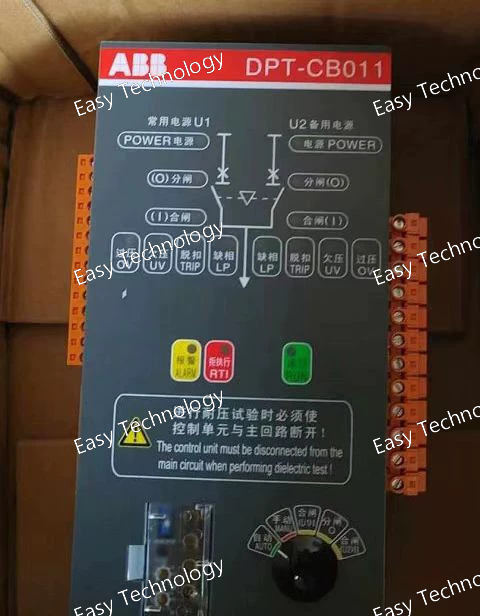

Technical Parameters Specification Typical Value / Description Product Type Dual‑Power Automatic Transfer Switch (ATS) Model Series DPT‑CB011 Control Logic Level CB011 (advanced control functions) Operation Mode Automatic change‑over with self‑transfer & self‑recovery Parameters Detected Under-voltage, over-voltage, phase missing, alarms Pole Configurations 2P, 3P, 4P variants available depending on specific version Rated Frame Current Up to 63 A (typical for smaller DPT63‑CB011 versions) Rated Breaking Capacity ~6 kA (typical for smaller models) Rated Current Range Examples include C10 … C63 (dependent on specific variant) Control Voltage ~380 V AC (depends on exact model) Applications Automatic power transfer for mains to backup generator systems Mounting Panel or enclosure mount Safety Features Mechanical interlock and electrical logic to prevent simultaneous source connection Standards Meets appropriate ATS and electrical safety standards

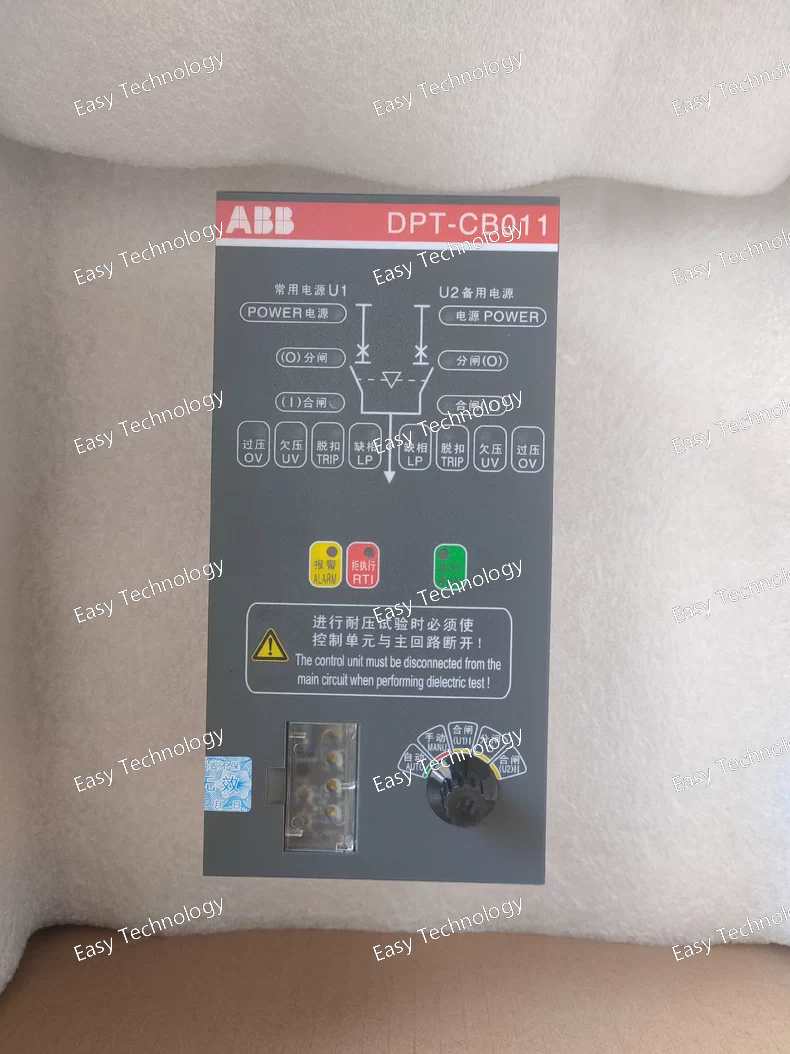

Technical Parameters Specification Typical Value / Description Product Type Dual‑Power Automatic Transfer Switch Controller Model Series DPT‑CB011 Function Automatic load transfer between two power sources Control Logic Class CB011 (advanced functions including under-/over-voltage, phase failure detection, alarms) Operation Mode Automatic change‑over and self‑recovery Rated Current Range Up to 63 A, 125 A, 160 A, 250 A depending on variant Rated Voltage Typically 220 V or 380 V AC (model dependent) Pole Configurations 2P, 3P, 4P available depending on variant Short‑Circuit / Breaking Capacity Up to ~36–50 kA (model dependent) Control Logic Functions Detect under-voltage, over-voltage, phase loss, alarms, delay timers Mounting Panel or enclosure installation Safety Features Mechanical and electrical interlock to avoid simultaneous connection of both sources Typical Uses Industrial and commercial systems requiring uninterrupted power availability
