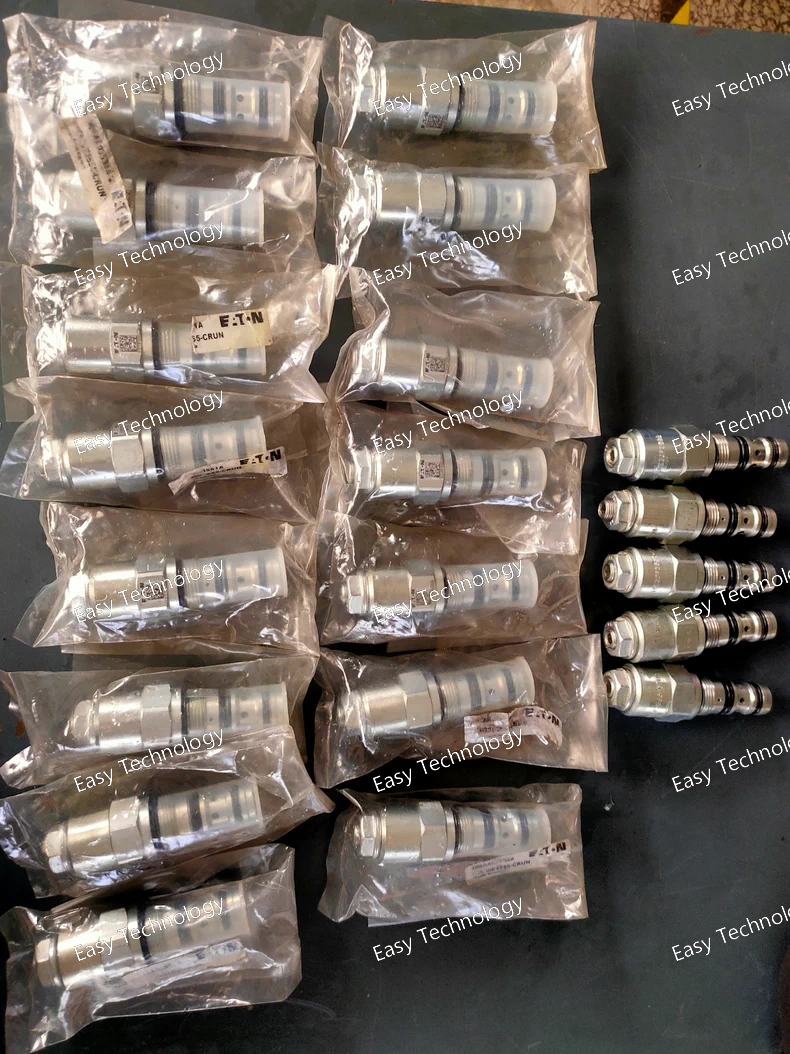

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton RV11 Cartridge Style Relief Valve Series Model Number RV11-12-S-0-15 Valve Type Direct-Acting, Adjustable Relief Valve Mounting Style Manifold Mounting (Cartridge Style) Requires a specific ISO 7368 cavity. Cavity Code ISO 7368 Form E The cavity type is typically defined by the "12" size code. Critical for installation. Adjustment Type -S-: Internal Hex Key Adjustment with Locking Set pressure is adjusted via an Allen key and can be locked. Pressure Adjustment Range -15: 15 to 250 bar (215 to 3,625 psi) The "-15" suffix defines the specific adjustment range. Maximum Flow Capacity Up to ~ 75 L/min (20 US gpm) Dependent on pressure setting and pressure drop. Pressure Override Higher than pilot-operated types Characteristic of direct-acting valves; pressure at full flow will be higher than the cracking pressure. Seal Material Nitrile (NBR) Standard. Other options like Fluorocarbon (FKM) may be available. Body Material Steel

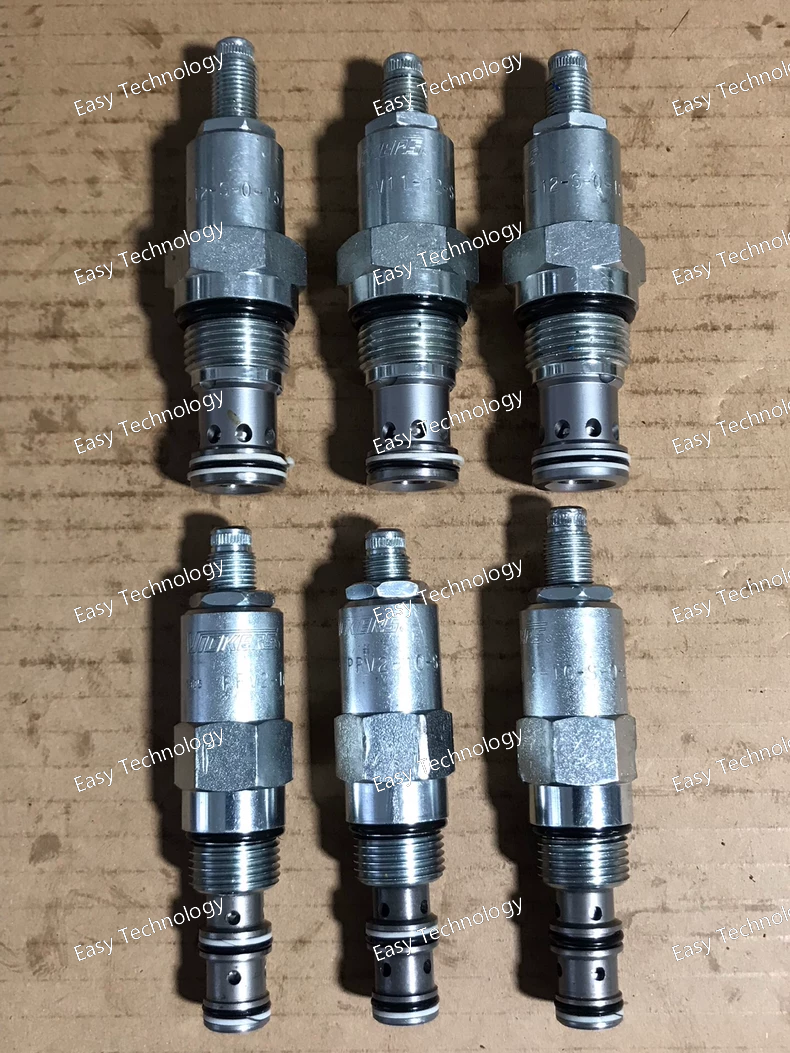

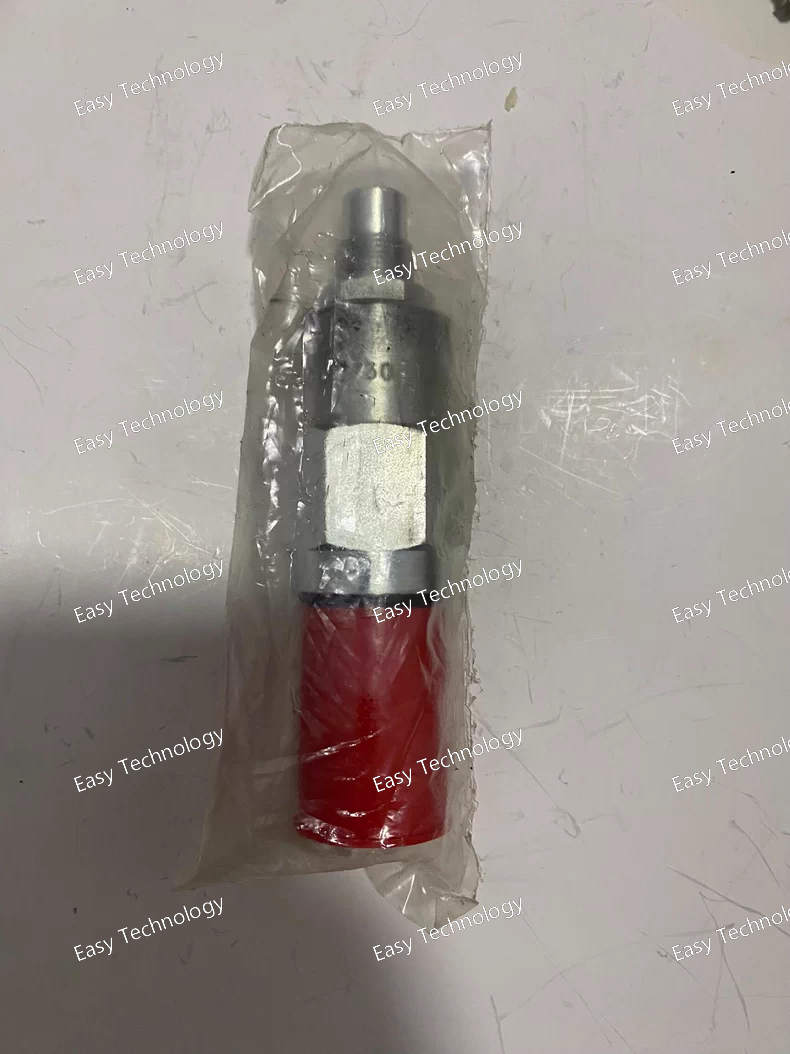

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton RV3 Cartridge Style Relief Valve Series Model Number RV3-16-S-0-35/30 Valve Type Direct-Acting, Adjustable Relief Valve Mounting Style Manifold Mounting (Cartridge Style) Requires a specific ISO 7368 cavity. Cavity Code ISO 7368 Form E The "16" size code corresponds to a specific cavity. Critical for installation. Adjustment Type -S-: Internal Hex Key Adjustment with Locking Set pressure is adjusted via an Allen key and can be locked to prevent tampering. Pressure Adjustment Range -35: 35 to 350 bar (500 to 5,000 psi) The "-35" suffix defines the primary pressure adjustment range. Variant Code /30 This typically indicates a specific sub-variant, such as a different spring rate, seal material, or a minor functional revision. Maximum Flow Capacity Up to ~ 115 L/min (30 US gpm) Dependent on pressure setting and pressure drop. Suitable for the size "16". Pressure Override Higher than pilot-operated types Characteristic of direct-acting valves. Seal Material Nitrile (NBR) Standard. The "/30" code might specify a different material. Body Material Steel

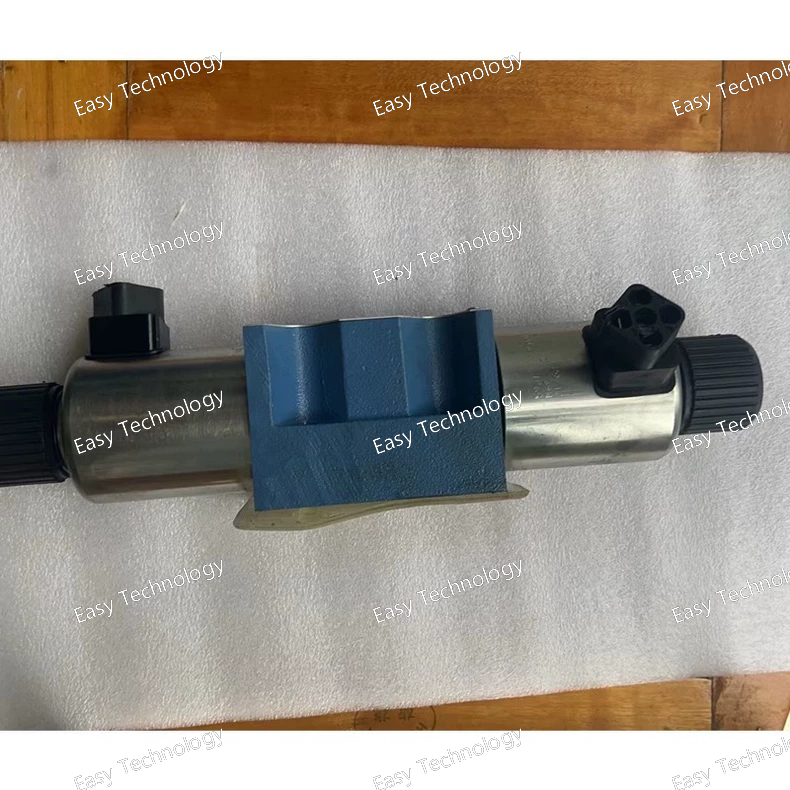

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton DG4V D05 / NG10 interface Model Number DG4V-5-2A-J-V-M-U-H6-20 Valve Type Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Porting Size D05 (NG10) ISO 4401 standard Port Thread 3/4"-16 UNF Common for D05 size Actuation Type Solenoid Operated, Spring Centered Solenoid Type Single Solenoids (2x) Wet-pin, DC versions Center Position 2A: All Ports Blocked (Closed Center) A, B, P, T all blocked. Ideal for positive load holding. Special Option -J-V-: Hardened Spool and Sleeve Provides increased resistance to wear and abrasion. Spool Type -20: Industrial Spool Standard spool with critical center tolerances. Electrical Connection -H6: DIN 43650 Form A IP65-rated connector with manual override. Voltage Options Typically 12 VDC or 24 VDC Must be specified when ordering. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 38 L/min (10 US gpm) Dependent on pressure drop. Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SUS) Fluid Type Mineral-based hydraulic oils, synthetics Compatible with standard hydraulic fluids. Temperature Range -20°C to +80°C (-4°F to +176°F) For hydraulic fluid. Seal Material Nitrile (NBR) Standard.

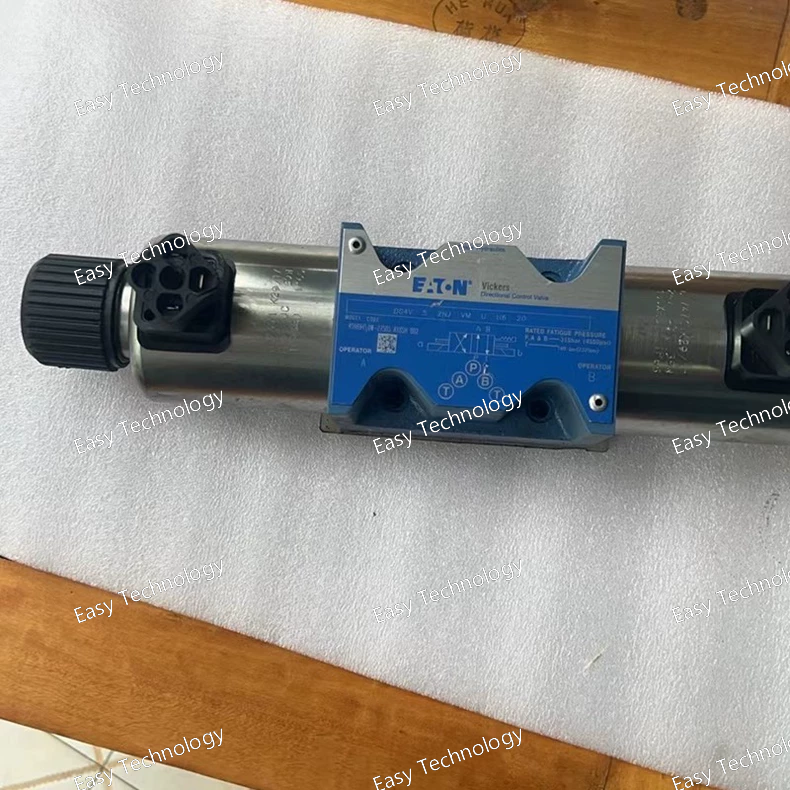

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton DG4V D05 / NG10 interface Model Number DG4V-5-2N-J-V-M-U-H6-20 Valve Type Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Porting Size D05 (NG10) ISO 4401 standard Port Thread 3/4"-16 UNF Common for D05 size Actuation Type Solenoid Operated, Spring Centered Solenoid Type Single Solenoids (2x) Wet-pin, DC versions Center Position 2N: Motor Spool (A&B Connected, P & T Blocked) A ↔ B, P blocked, T blocked. Allows motor to freewheel. Special Option -J-V-: Hardened Spool and Sleeve Provides increased resistance to wear and abrasion. Spool Type -20: Industrial Spool Standard spool with critical center tolerances. Electrical Connection -H6: DIN 43650 Form A IP65-rated connector with manual override. Voltage Options Typically 12 VDC or 24 VDC Must be specified when ordering. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 38 L/min (10 US gpm) Dependent on pressure drop. Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SUS) Fluid Type Mineral-based hydraulic oils, synthetics Compatible with standard hydraulic fluids. Temperature Range -20°C to +80°C (-4°F to +176°F) For hydraulic fluid. Seal Material Nitrile (NBR) Standard.

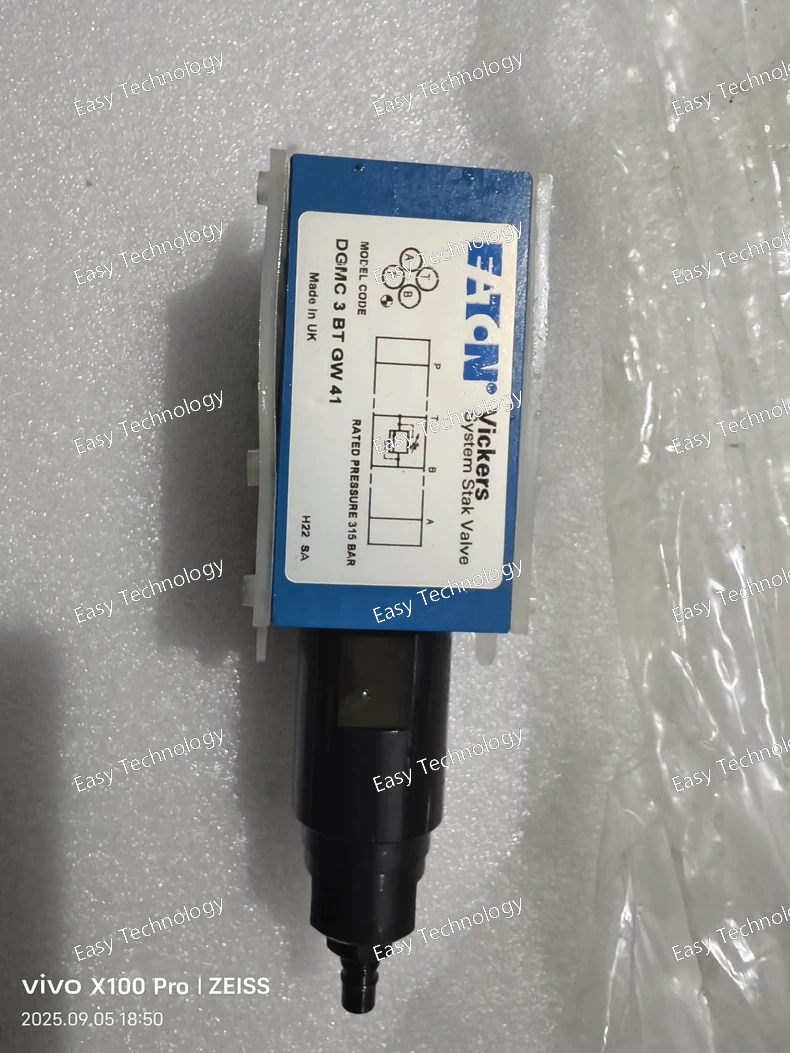

Technical Specifications Parameter Specification / Description Notes Manufacturer / Series Eaton MCM (Modular Control Manifold) Model Number DGMC-3-BT-GW-41 Product Type Integrated Hydraulic Manifold Block Port Size D03 (NG6) The "-3-" denotes the interface size, ISO 4401. Port Thread 7/16"-20 UNF Common for D03 size. Internal Cartridge Valves Cavities for CETOP-style cartridges The specific types are defined by the suffix codes. Maximum Operating Pressure 350 bar (5,000 psi) Typical for this series. Maximum Flow Rate ~ 38 L/min (10 US gpm) Dependent on internal restrictions.

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton CG5V Proportional Control Valve Series Model Number CG5V-6-FW-O-F-M-U-H5-20 Valve Type Proportional, 4-Way, 3-Position Directional Valve Porting Size Size 06 (D06) ISO 4401 standard Actuation Type Proportional Solenoid Spool Type -FW-: Flow Control Spool Designed for precise flow regulation. Compensator Type -O-F-: Pressure Compensator Maintains a constant pressure drop across the metering orifice for consistent flow. Solenoid Type -M-U-: Proportional Solenoids (2x) Wet-pin, DC versions. Electrical Connection -H5: DIN 43650 Form A IP65-rated connector. Electronics -20: Specific onboard electronics (OBC) version. Defines the signal type and control response. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate Up to ~ 60 L/min (16 US gpm) Dependent on the "FW" spool and compensator. Input Signal Typically ±9 VDC, ±10 VDC, or 0-20 mA Defined by the "-20" electronics. Hysteresis < 3% Typical for high-performance proportional valves. Linearity < 5%

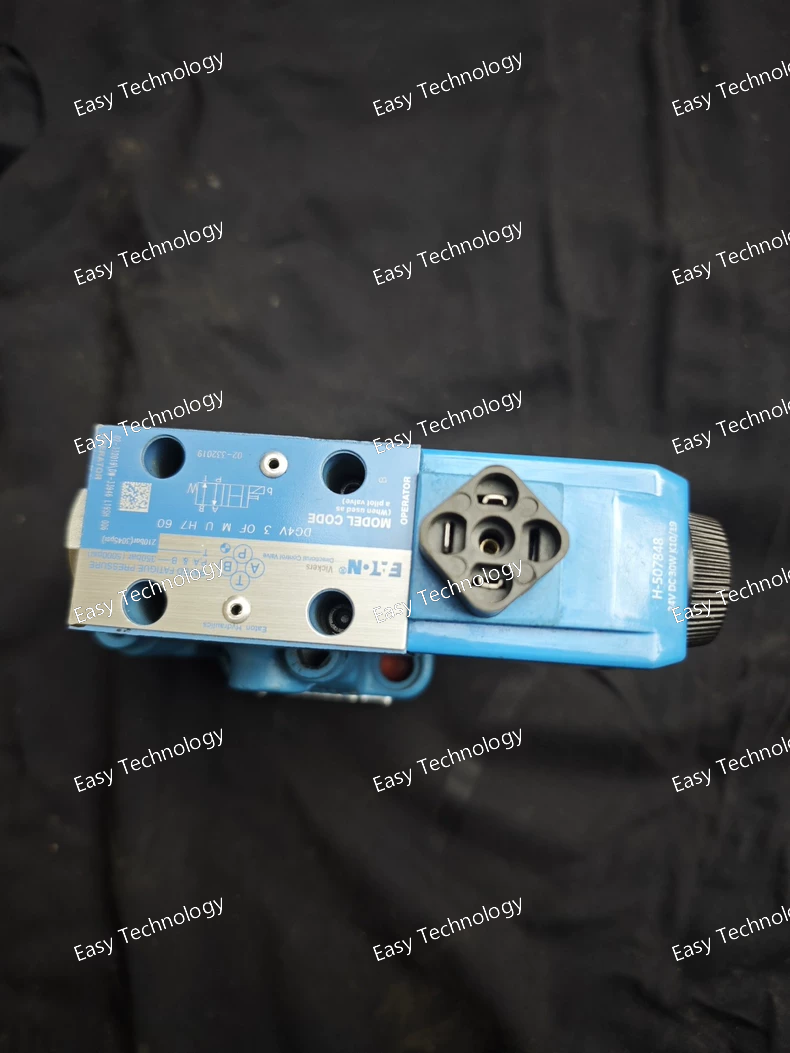

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton DG4V D03 / NG6 interface Model Number DG4V-3-33C-M-U-BX5-60 Valve Type Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Spring Offset + Solenoid Centered + Detented Porting Size D03 (NG6) ISO 4401 standard Port Thread 7/16"-20 UNF Common for D03 size Actuation Type Solenoid Operated, Spring Offset from one side, Detented from the other Complex actuation. Solenoid Type Dual Solenoids Both are single solenoids. Spool Configuration -33C-: Spring Offset, Solenoid Center, Detented Pos1 (Spring): P→B & A→T Pos2 (Solenoid A): Defined by 'C' Pos3 (Solenoid B): Detented, flow path is typically P→A & B→T Center Position (when Solenoid A is energized) C: Likely a Tandem or Float type center The "C" often indicates P is connected to T in the center position, but the exact configuration of A and B ports must be verified. Spool Type -60: Critical Center with Bypass Provides the main spool functionality with internal leakage paths to reduce shock. Electrical Connection -BX5-: Sealed, flying lead cable with a 5-pin connector This is different from the standard DIN connector, providing a direct cable connection. Voltage Typically 12 VDC Defined by the coil ordered with the -BX5- connector. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 19 L/min (5 US gpm) Dependent on pressure drop. Fluid Type Mineral-based hydraulic oils, synthetics

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton DG4V D03 / NG6 interface Model Number DG4V-3S-6C-M-U-H5-60 Valve Type Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Spring Offset + Solenoid Centered + Solenoid Assisted Porting Size D03 (NG6) ISO 4401 standard Port Thread 7/16"-20 UNF Common for D03 size Actuation Type Solenoid Operated, Spring Offset Solenoid Type Dual Solenoids Both are single solenoids. Spool Configuration -3S-6C-: Spring Offset with Solenoid Center Pos1 (Spring): P→B & A→T Pos2 (Solenoid A): Center (Float - A&T, B&T, P blocked) Pos3 (Solenoid B): P→A & B→T Center Position (when Solenoid A is energized) 6C: Float Center A → T, B → T, and P blocked. This allows the actuator to float. Spool Type -60: Critical Center with Bypass Provides the main spool functionality with internal leakage paths to reduce shock. Electrical Connection -H5: DIN 43650 Form A IP65-rated connector with manual override. Voltage Typically 12 VDC or 24 VDC Must be specified when ordering. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 19 L/min (5 US gpm) Dependent on pressure drop. Fluid Type Mineral-based hydraulic oils, synthetics Compatible with standard hydraulic fluids. Temperature Range -20°C to +80°C (-4°F to +176°F) For hydraulic fluid. Seal Material Nitrile (NBR) Standard.

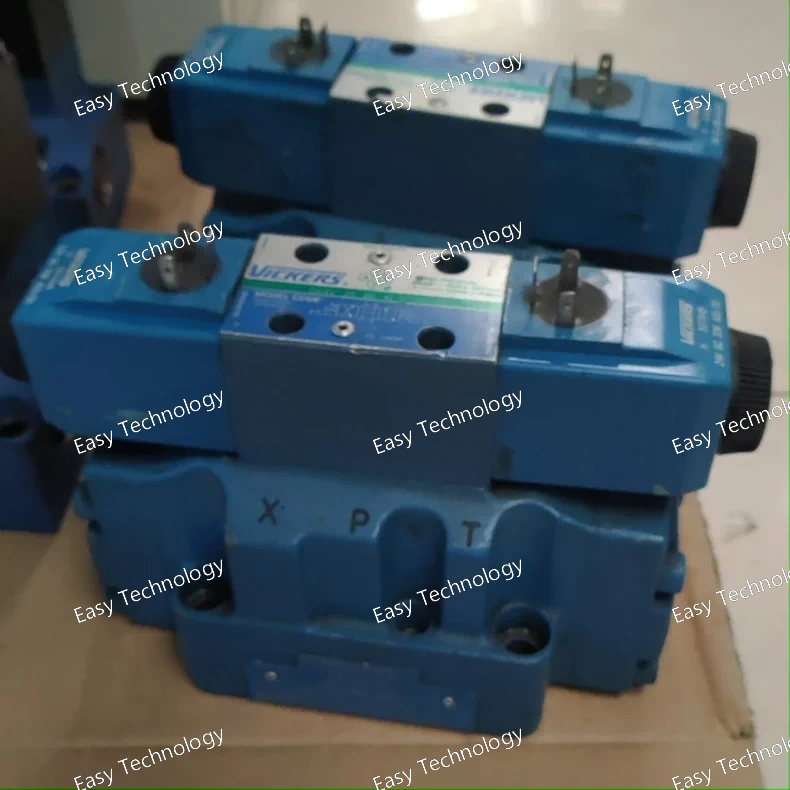

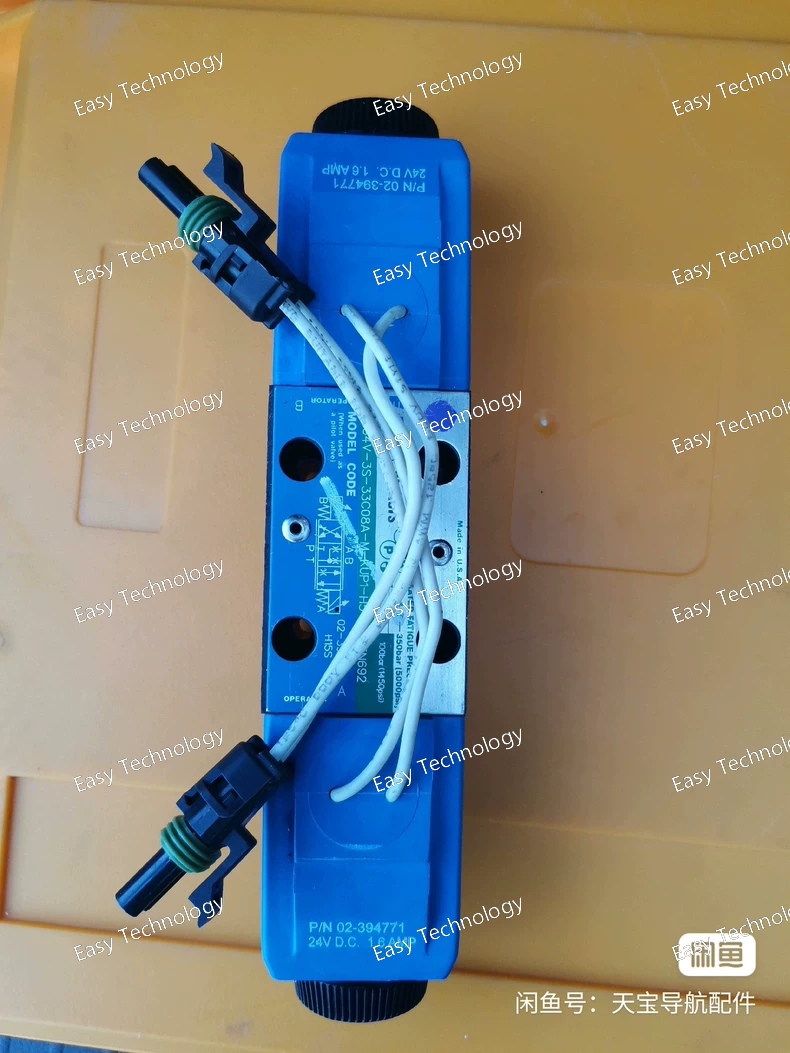

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton KDG4V Pilot-Operated Solenoid Valve Series Model Number KDG4V-3S-33C08A-M-KUPI-H5-60-EN692 Valve Type Pilot-Operated Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Spring Offset + Solenoid Center + Detented Porting Size D03 (NG6) ISO 4401 standard Actuation Type Pilot-Operated Solenoid, Spring Offset & Detented Solenoid Type -M-: Single Solenoids (for pilot stage) Pilot Supply -KUPI-: Internal Pilot Supply The valve uses system pressure from the P port to power the pilot stage. Spool Configuration -3S-33C08A-: Complex spool with spring offset, solenoid center, and detent. The "08A" often specifies a power beyond function in one position. Electrical Connection -H5: DIN 43650 Form A IP65-rated connector with manual override. Spool Type -60: Critical Center with Bypass Compliance / Standard -EN692: European standard for "Machine tools - Safety - Presses". This valve is configured for use on machinery complying with this safety directive. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 19 L/min (5 US gpm) Dependent on pressure drop. Pilot Pressure Requirement Requires sufficient system pressure to shift reliably.

Technical Specifications Parameter Specification / Description Notes Manufacturer / Series Eaton MCM (Modular Control Manifold) Model Number DGMC-2-3-AB-CW-BA-CW-41 Product Type Integrated Hydraulic Manifold Block Port Size (P, T) D02 (NG4) The "-2-" likely denotes the primary pressure and tank port size. Work Port Size (A, B) D03 (NG6) The "-3-" likely denotes the work port (A, B) size for each section. Number of Sections 2 Identical Work Sections The pattern "-AB-CW-" and "-BA-CW-" confirms two parallel sections. Internal Cartridge Valves Cavities for CETOP-style cartridges The specific types are defined by the suffix codes. Maximum Operating Pressure 350 bar (5,000 psi) Typical for this series. Maximum Flow Rate (Total) ~ 75 L/min (20 US gpm) Shared between the two sections.

Technical Specifications Parameter Specification / Description Notes Manufacturer / Division Eaton Aerospace Model Number ICE30F35S5 Product Type Brushless AC Generator (Alternator) Output Power 30 kVA (or similar, based on "30" in model number) Kilo-Volt-Ampere, the apparent power rating. Output Phase 3-Phase Standard for aircraft AC systems. Output Voltage 115/200 VAC Typical aircraft AC voltage. Output Frequency 400 Hz Standard frequency for aerospace applications. Cooling Method Air-cooled or Oil-cooled Common methods for aircraft generators. Speed Range Designed to operate at a specific constant speed (e.g., 6000 RPM, 8000 RPM) Aircraft generators run at a constant speed. Mounting Flange mount per aerospace standard Compliance Meets relevant aerospace standards (e.g., DO-160, MIL-STD)

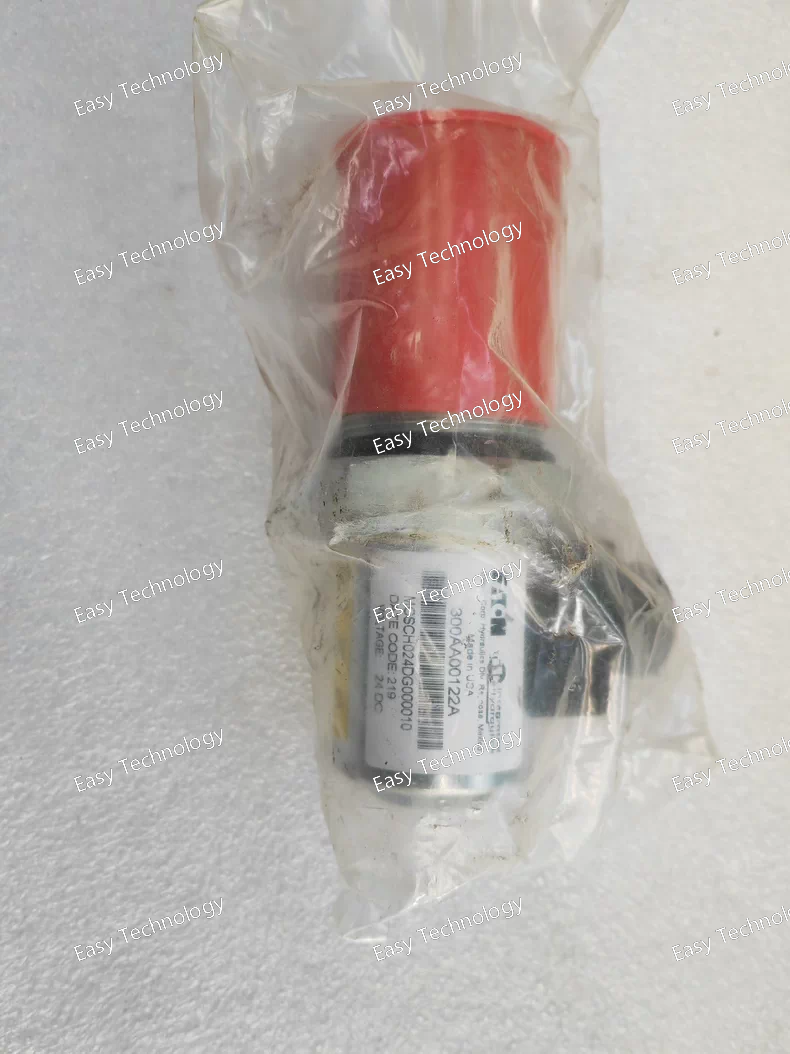

Technical Specifications Electrical Voltage: 24 V DC Power Rating: approx. 26–29 W Duty Rating: Continuous duty (operates at 85%–110% of rated voltage) Mechanical / Environmental Connector Type: DIN 43650-A (ISO 4400) Coil Housing: Glass-filled nylon Ingress Protection: IP65 (dust-tight and water-resistant) Operating Temperature: Up to 100 °C Weight: approx. 0.14–0.18 kg Hydraulic Compatibility Used with Eaton/Vickers screw-in cartridge valves (Size 10 / 12 / 16 / 20) Suitable for valves rated up to 350 bar (5075 psi) Compatible with standard hydraulic fluids (e.g., MIL-H-5606, SAE 10/20) Design / Mounting Solenoid coil only (no ports) Explosion-proof-style construction Fits standard Eaton cartridge-valve solenoid tubes
