Schenider

ATV610D37N4 Category: Variable Frequency Drive (VFD) Series: Altivar 610 (Schneider Electric) Key Specifications: • Power Rating: 37kW (50HP) • Voltage: 380-480V AC, 3-phase • Output Current: 72A • Enclosure: IP20 (N4) Main Features: • Compact design: Space-saving for cabinet integration • Motor control: Sensorless vector & V/F modes • Built-in connectivity: Modbus, BACnet MS/TP • Protection: Overload, short-circuit, overvoltage Typical Applications: • HVAC systems • Industrial fans & pumps • Material handling conveyors Standards Compliance: IEC 61800, UL 508

685

Schenider

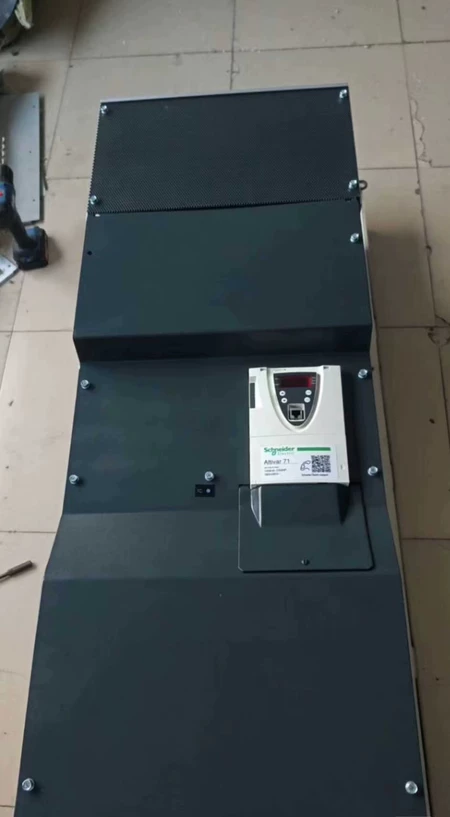

The Schneider ATV71HC31N4 is a high-performance inverter in the ATV71 series 145. It is suitable for complex high-power machinery and heavy-duty applications 14. With a rated power of 315 kW for three-phase motors, it features integrated EMC filter and advanced motor control functions 14. It can provide high dynamic performance, precise speed regulation and reliable operation in various industrial applications

697

Schenider

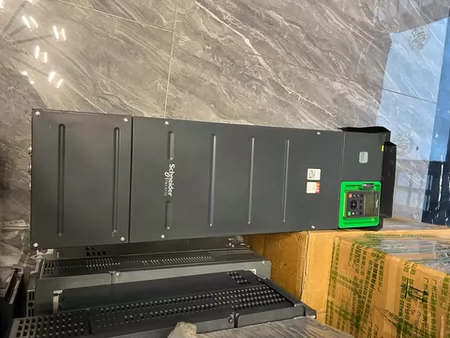

Schneider Electric ATV650C20N4F – Variable Speed Drive (VSD) A high-performance 22 kW (30 HP) drive from the Altivar Process 650 series, designed for industrial motor control.

449

Schenider

Schneider LA2DT0 Contactor Basic Specifications • Type: TeSys D series contactor • Rated Current: 32A (AC-3) • Contacts: 2NO (2 normally open) • Coil Voltage: 24V DC (standard version) • Power Consumption: ≤8W Performance • Electrical Life: 500,000 ops (AC-3) • Mechanical Life: 10 million ops • Terminals: Screw clamp

854

Schenider

ATV28HU18N4 Category: Variable Frequency Drive (VFD) Series: Altivar 28 (Schneider Electric) Key Specifications: • Power Rating: 18.5kW (25HP) • Voltage: 200-240V AC, 3-phase (HU model) • Output Current: 46A • Enclosure: IP20 (N4) Main Features: • Compact & modular: Space-saving design • Simple control: Pre-programmed macros for quick setup • Basic connectivity: Built-in Modbus RTU • Protection: Motor overload, short-circuit protection Typical Applications: • Small pumps & fans • Conveyor systems • Basic industrial automation Standards Compliance: IEC 61800, UL 508

93

Schenider

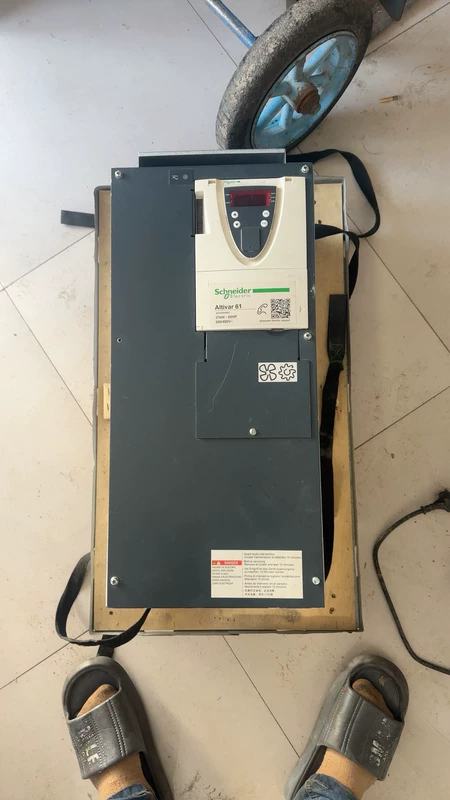

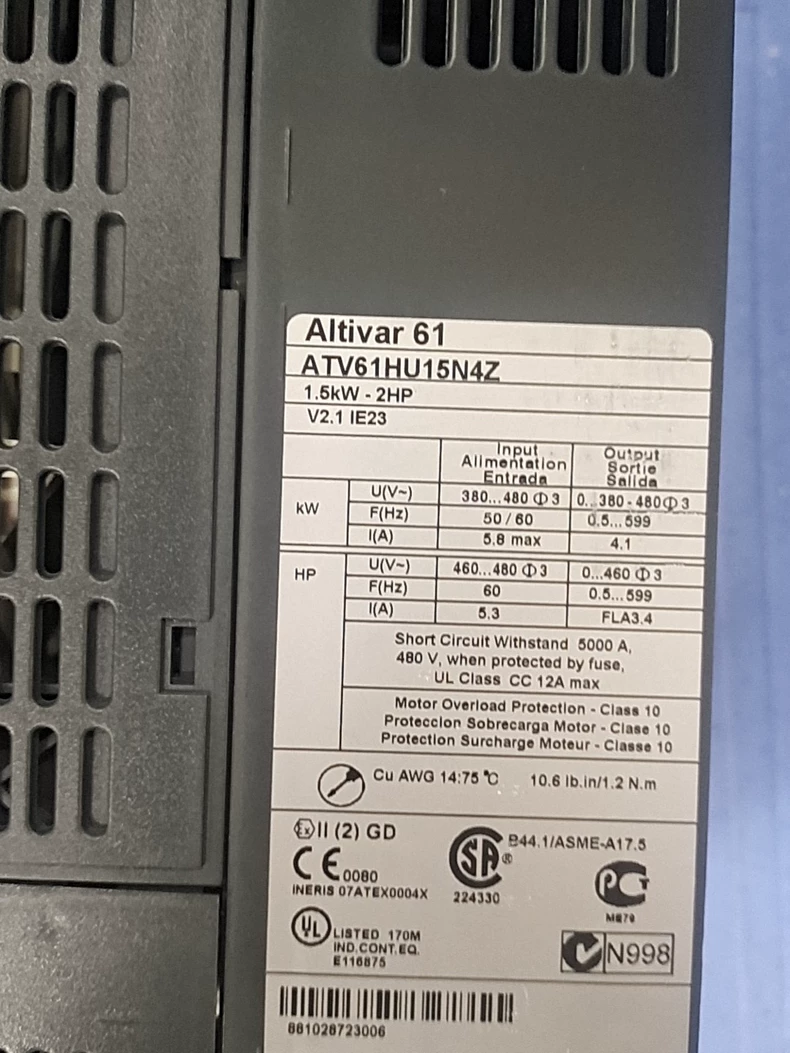

Schneider Altivar 61 Variable Frequency Drive (VFD) Series & Specifications Power Range: 0.75–630kW (1–850HP) Input Voltage: Standard Models (N4): 380–480V AC (±10%), 3-phase High Voltage (N6): 525–690V AC (±10%), 3-phase Output Frequency: 0.1–500Hz Control Modes: V/F (Volts per Hertz) Sensorless Vector Control Flux Vector Control (with optional encoder) Performance & Protection Overload Capacity: 150% for 60 seconds (standard) 200% for 3 seconds (heavy-duty models) Enclosure Rating: IP20 (standard) IP21 (HD/HU heavy-duty models) Built-in Safety: STO (Safe Torque Off) Connectivity & Communication Standard Protocols: Modbus, CANopen Optional Cards: Profibus DP, Ethernet/IP I/O Configuration: 2 Analog Inputs (0–10V/4–20mA) 4 Digital Inputs + 2 Digital Outputs 1 Relay Output

45

Schenider

ATV71EXA2C80Y-S691 Category: Explosion-Proof Variable Frequency Drive (VFD) Series: Altivar 71 (Schneider Electric) Key Specifications: • Power Rating: 80kW (110HP) • Voltage: 380-500V AC, 3-phase • Output Current: 150A • Protection: ATEX/IECEx Certified (Zone 1/21) Main Features: • Explosion-proof design: Certified for hazardous areas (gas/dust) • Robust construction: Stainless steel enclosure • Advanced control: Flux vector & PID modes • Cooling: Integrated forced ventilation Typical Applications: • Oil & gas processing • Chemical plants • Mining conveyors Standards Compliance: ATEX 2014/34/EU, IECEx, IEC 60079

972

Schenider

ATV320U15N4B Category: Variable Frequency Drive (VFD) Series: Altivar 320 (Schneider Electric) Key Specifications: • Power Rating: 1.5kW (2HP) • Voltage: 200-240V AC, 1/3-phase (U model) • Output Current: 3.6A (3-phase) / 7A (1-phase) • Enclosure: IP20 (N4) with brake control (B option) Main Features: • Compact design: Ultra-slim for space-constrained panels • Plug-and-play: Pre-configured macros for quick setup • Connectivity: Built-in Modbus RTU • Protection: Motor thermal overload, short-circuit Typical Applications: • Small conveyors • Packing machines • Basic HVAC fans Standards Compliance: IEC 61800, UL 508

630

Schenider

ATV630D75N4 Category: Variable Frequency Drive (VFD) Series: Altivar Process 630 (Schneider Electric) Key Specifications: • Power Rating: 75kW (100HP) • Voltage: 380-480V AC, 3-phase • Output Current: 142A • Enclosure: IP20 (N4) Main Features: • Process-optimized control: Pre-programmed pump/fan macros • Built-in connectivity: Ethernet, Modbus TCP, PROFIBUS • Protection: Coated PCB (optional conformal coating) • Safety: STO (Safe Torque Off) compliant Typical Applications: • Water treatment plants • HVAC systems • Industrial process control Standards Compliance: IEC 61800-3, UL 508C

309

Schenider

Schneider ATV320U75N4WS 7.5kW/75A 4DI/4DO | V/F Auto-tuning

183

Schenider

Voltage: 380V (Std) / 480V (Heavy) ±10% Power: 220kW (Std) / 160kW (Heavy) Current: 324A (Std) / 246A (Heavy) Frequency: 50-60Hz (±5%) → 0.1-500Hz out Switching: 2.5-8kHz adjustable

974

Schenider

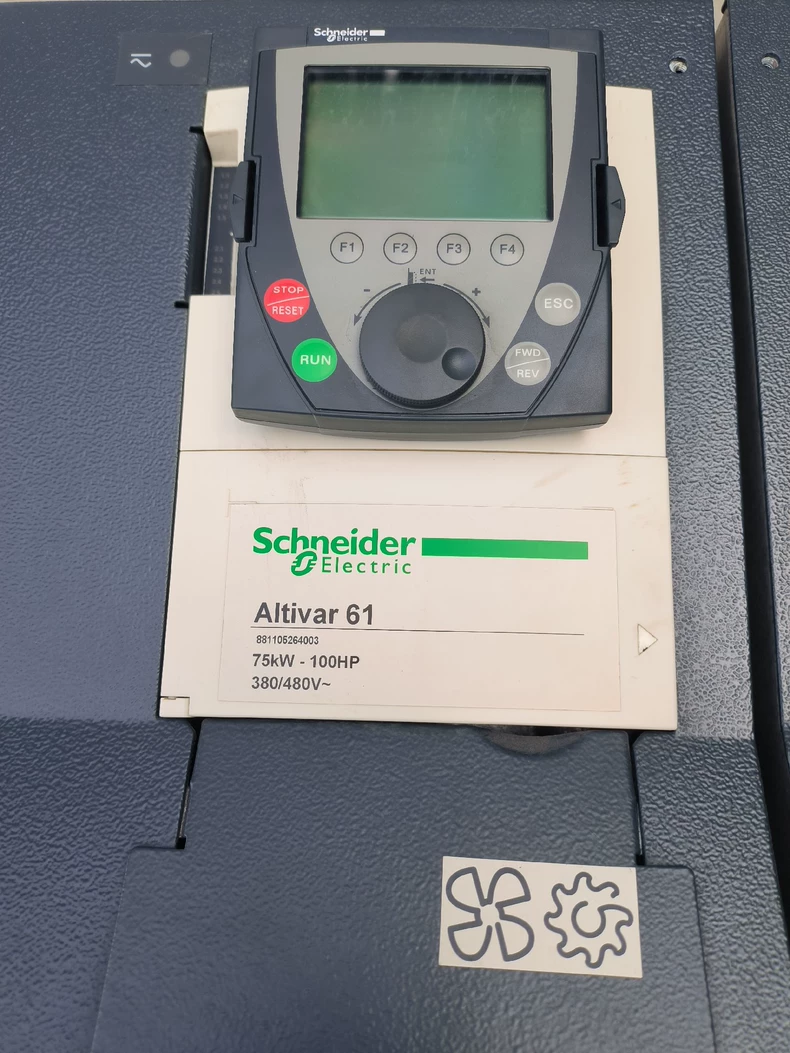

Schneider ATV61HD75N4Z 75kW | 380-480V 3~ EMC design | OH protection No choke

549
