ABB

Technical Specifications: Output Current: 45A Voltage Range: 380-480V AC (±10%), 3-phase Power Range: 22-30kW (depending on voltage) Control Technology: Direct Torque Control (DTC) Overload Capacity: 150% for 60 seconds Efficiency: >98% typical Cooling Method: Air cooling (standard) Protection Class: IP00 (cabinet installation required) Key Features: ✔ Advanced Control Performance: ±0.1% speed accuracy (with encoder) Full torque at zero speed Built-in PID controller ✔ Smart Connectivity: Multiple fieldbus options (Profibus, Modbus, Ethernet/IP) Integrated safety functions (STO, SS1) Condition monitoring capabilities ✔ Robust Design: -40°C to +55°C operating range (with derating) Low harmonic distortion Compact footprint Certifications & Compliance: CE, UL, cULus IEC 61800-5-1 compliant EMC Directive 2014/30/EU

899

ABB

Technical Specifications: Output Current: 62A Voltage Range: 380-480V AC (±10%), 3-phase Power Rating: 30kW (at 400V) Control Method: Flux-optimized DTC control Overload Capacity: 110% continuous, 150% for 60 seconds Efficiency: >97% (typical) Key Features: ✔ User-Friendly Operation: Built-in multilingual control panel Assisted start-up wizard Copy function for parameter settings ✔ Connectivity Options: Standard Modbus RTU Optional fieldbus adapters (Profibus, Ethernet/IP) 2 analog & 3 digital inputs, 2 relay outputs ✔ Protection Functions: Motor thermal protection Overcurrent/overvoltage protection Earth fault detection Short circuit protection Physical Specifications: Enclosure Rating: IP21 (NEMA 1) Cooling Method: Fan cooled Operating Temperature: 0°C to +40°C (full output) Up to +50°C with derating Dimensions: 245 x 405 x 220mm (WxHxD) Certifications & Compliance: CE, UL, cUL RoHS compliant Meets IEC 61800-5-1 safety standards

440

ABB

Technical Specifications: Output Current: 414A Voltage Range: 380-500V AC, 3-phase (±10%) Power Range: 250-315kW (voltage dependent) Control Technology: Advanced Direct Torque Control (DTC) Overload Capacity: 150% for 60 seconds Efficiency: >98% (typical full-load) Cooling Method: Liquid or forced air cooling (configurable) Protection Class: IP00 (requires cabinet installation) Key Features: ✔ Superior Control Performance: ±0.1% speed accuracy (with encoder) Full torque production at zero speed Built-in adaptive PID controller ✔ Advanced Connectivity: Multiple fieldbus options (Profibus, Ethernet/IP, Modbus) Integrated safety functions (STO, SS1, SLS) Condition monitoring capabilities ✔ Robust Construction: Designed for 24/7 operation -40°C to +55°C operating range (with derating) Low harmonic distortion design Certifications & Compliance: CE, UL, cULus listed IEC 61800-5-1 compliant Meets EMC Directive 2014/30/EU

880

ABB

Key Specifications Output Current: 246A Voltage Range: 380–480V AC (±10%), 3-phase Power Range: 132–160kW (depending on voltage) Control Method: Direct Torque Control (DTC) Overload Capacity: 150% for 60 seconds Efficiency: >98% (typical) Cooling Options: Air or liquid cooling (configurable) Protection Class: IP00 (cabinet installation required) Advanced Features ✔ Precision Control: ±0.1% speed accuracy (with encoder feedback) Full torque at zero speed Built-in PID controller for process automation ✔ Smart Connectivity & Safety: Multiple fieldbus options (Profibus DP, Modbus RTU, Ethernet/IP) Integrated Safe Torque Off (STO) for functional safety Predictive maintenance via condition monitoring ✔ Robust & Reliable: Wide operating temperature range (-40°C to +55°C with derating) Heavy-duty design for 24/7 industrial use Low harmonic distortion with optional filters Certifications & Compliance CE, UL, cULus IEC 61800-5-1 (safety standards) EMC compliant (2014/30/EU)

329

ABB

Key Specifications: Rated Output: Current: 88A Voltage: 380-480V AC, 3-phase Power: 45kW (at 400V) Control Characteristics: Flux-optimized DTC control Speed range: 1:100 (without encoder) Torque boost capability Standard Features: ✔ User Interface: Integrated control panel with LCD display Multilingual menu navigation ✔ Connectivity: Built-in Modbus RTU Optional fieldbus adapters (Profibus, Ethernet/IP) 2 analog & 3 digital inputs, 2 relay outputs ✔ Protection Functions: Motor thermal protection Overcurrent/overvoltage protection Earth fault detection Physical Specifications: Enclosure: IP21 (NEMA 1) Cooling: Fan cooled Ambient Temperature: 0°C to +40°C (full output) Up to +50°C with derating Dimensions: 278 x 460 x 235mm (WxHxD) Certifications & Compliance: CE, UL, cUL RoHS compliant Meets IEC 61800-5-1

914

ABB

Key Specifications: Drive Module: ACS880-01-363A-3 Output current: 363A Voltage range: 380-480V AC (±10%) Power range: 200-250kW (depending on voltage) Enclosure: D150 Protection class: IP21 (standard) Cooling method: Forced air cooling Built-in disconnect switch Technical Features: ✔ Advanced Control: DTC (Direct Torque Control) technology 0.1 Hz speed control without encoder ±0.3% speed accuracy ✔ System Integration: Multiple fieldbus options (Profibus, Modbus, Ethernet/IP) Built-in EMC filter Integrated brake chopper (optional) ✔ Protection & Safety: STO (Safe Torque Off) safety function Overload capacity: 150% for 60 seconds Short circuit protection Environmental Specifications: Operating temperature: 0°C to +40°C Storage temperature: -40°C to +70°C Relative humidity: <95% (non-condensing) Altitude: Up to 1000m without derating Certifications: CE, UL, cUL, EAC Complies with IEC 61800-5-1

903

ABB

Key Specifications: Power Rating: 246A output current Voltage Class: 380-480V AC, 3-phase Power Range: 132-160kW (depends on voltage) Control Technology: DTC (Direct Torque Control) Enclosure Type: IP00 (cabinet installation) Communication Protocols: • Standard: Modbus RTU • Optional: Profibus DP, Ethernet/IP, DeviceNet Protection Features: • Overcurrent/overvoltage protection • Motor thermal protection • Short circuit protection Cooling Method: Liquid or air cooling (configurable) Ambient Temperature: 0°C to +40°C (up to +50°C with derating) Certifications: CE, UL, cUL Features: • True industrial-grade reliability for 24/7 operation • Integrated safety functions (STO, SS1) • Advanced heat management system • Modular design for easy maintenance • Compatible with ABB drive system accessories

303

ABB

Key Features & Specifications 1. Power & Performance Output Current: 363 A Rated Power: ~250–315 kW (depends on motor voltage, e.g., 315 kW at 400V, 250 kW at 500V) Input Voltage: 380–500V AC (±10%), 3-phase, 50/60 Hz Output Frequency: 0–500 Hz (adjustable) 2. Motor Control Technology ABB Direct Torque Control (DTC) – Provides high torque accuracy (±0.1%) without needing an encoder (sensorless operation). Supports induction (IM) & permanent magnet (PM) motors. Dynamic braking (with optional brake resistor for deceleration control). 3. Compact & Robust Design Wall-mounted (IP21 enclosure) – Saves panel space while protecting against dust and dripping water. Forced air cooling (built-in fan) for stable operation under heavy loads. Modular design – Easy maintenance with plug-in I/O and optional expansion modules. 4. Smart Connectivity & Integration Built-in Ethernet & fieldbus support (PROFIBUS, Modbus, CANopen via optional adapters). ABB Ability™ compatible – Enables remote monitoring, predictive maintenance, and data analytics. Drive Composer PC tool – Simplifies parameter tuning, diagnostics, and firmware updates. 5. Safety & Protection Safe torque-off (STO) – SIL3-certified safety function to prevent unintended starts. Overload, short-circuit, and overheating protection – Ensures long-term reliability. CE, UL, cUL, and IEC 61800-5-1 compliance – Meets global industry standards.

267

ABB

Key Features & Specifications: Power & Performance Rated Power: 450 kW (603 HP) Output Current: Depends on voltage (e.g., ~780A at 400V, ~390A at 690V) Input Voltage: 380–690V AC, 3-phase, 50/60Hz Output Frequency: 0–300 Hz (configurable) Advanced Motor Control Direct Torque Control (DTC): Ensures fast torque response (±0.1% speed accuracy) without needing an encoder (sensorless control). Supports induction motors (IM) and synchronous motors (SM). Energy Efficiency & Savings Regenerative braking capability (with optional brake chopper/unit). Optimized for IE3/IE4 high-efficiency motors, reducing energy consumption. Robust Design & Cooling Air-cooled (IC 411) or liquid-cooled (LC) options available. Enclosure: IP21 (standard) or IP54 (optional) for dust/moisture protection. Smart Connectivity & Control Fieldbus Protocols: PROFIBUS, Modbus, CANopen, Ethernet/IP (via optional adapters). ABB Drive Composer: PC tool for parameterization, monitoring, and diagnostics. PLC Embedded Control (optional, reducing external hardware needs). Protection & Safety Built-in safeguards: Overcurrent, overvoltage, motor overload, short-circuit, and ground fault protection. Complies with CE, UL, cUL, and IEC standards.

256

ABB

Key Features: Functionality Acts as a gate driver board, I/O module, or power supply unit (exact role depends on the drive configuration). Facilitates communication between the drive’s control system and power stages. Compatibility Designed for seamless integration with ABB’s modular drive platforms (e.g., ACS880 multi-drive systems). May interface with liquid-cooled (LC) or air-cooled units. Robust Design Engineered for industrial environments with resistance to electrical noise, vibration, and temperature fluctuations. Typically rated for 24V DC control voltage (verify specifics in datasheet). Safety & Compliance Meets ABB’s stringent quality standards and relevant industry certifications (e.g., CE, UL).

156

ABB

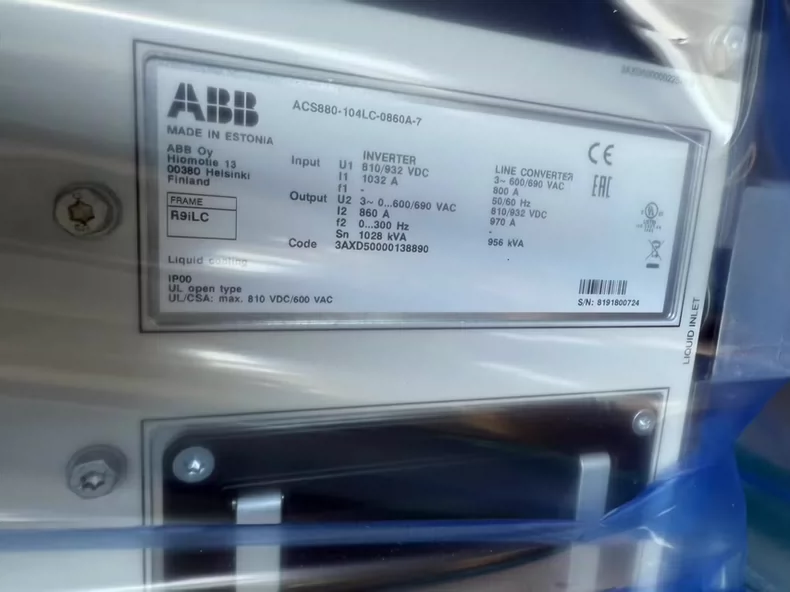

Key Features: Liquid Cooling Technology Utilizes advanced liquid cooling to reduce heat dissipation, enabling higher power density and compact installation compared to air-cooled alternatives. Ideal for environments with limited ventilation or high ambient temperatures. Power Range & Performance Output current: 860 A Voltage range: 380–500 V (3-phase) Designed for dynamic torque control and precise speed regulation, supporting complex industrial processes. Modular & Scalable Design Part of the ACS880-104LC system, allowing parallel integration of multiple drive units for synchronized operation. Supports common DC bus configurations to optimize energy sharing and regeneration. Robust Protection & Safety Built-in safeguards against overloads, short circuits, and overheating (IP00 enclosure, with optional protective kits). Complies with international standards (e.g., IEC, UL, CE). Smart Control & Connectivity Features ABB’s Direct Torque Control (DTC) for superior motor performance. Compatible with ABB Ability™ for remote monitoring, predictive maintenance, and integration into Industry 4.0 systems.

211

ABB

ACS-CP-U (ABB Control Panel Unit) Type: Universal control panel Compatibility: ACS800, ACS880, and other ABB drives Display: LCD with multi-language support Keypad: Membrane or tactile (model-dependent) Protection Class: IP54 (standard) Mounting: Cabinet door or drive-integrated Functions: Parameter programming Real-time monitoring Fault diagnostics Local/remote control Typical Use: Industrial motor control systems.

49
