Schenider

MT20H1 Category: Molded Case Circuit Breaker (MCCB) Manufacturer: Schneider Electric (Masterpact MT Series) : Rated Current: 20A Breaking Capacity: High (e.g., 50kA at 480V AC) Tripping Unit: MicroLogic™ H1 (Advanced Protection) Voltage Rating: Up to 690V AC Communication: Optional Modbus, Ethernet (if equipped) Applications: Critical power distribution Data centers Industrial plant protection Standards: IEC 60947-2, UL 1066

129

Schenider

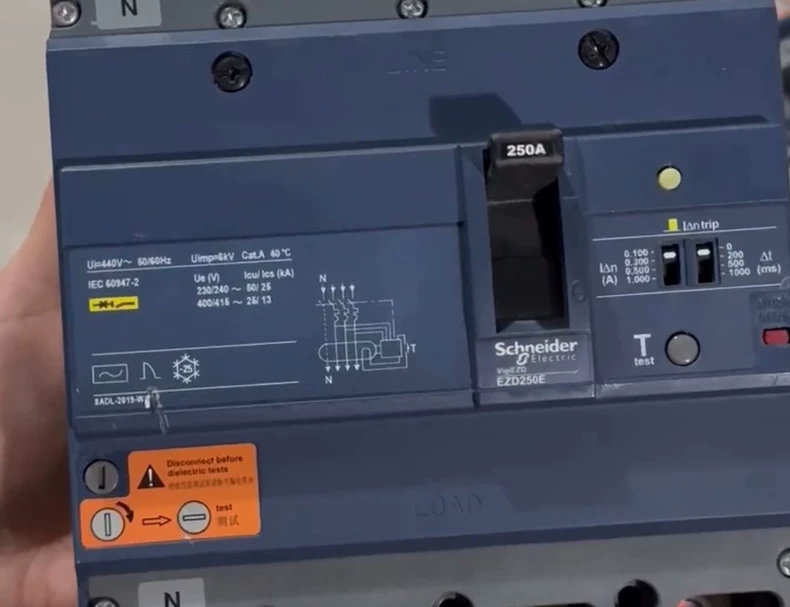

EZD250A Category: Molded Case Circuit Breaker (MCCB) Manufacturer: Schneider Electric (EasyPact EZD Series) : Rated Current: 250A Breaking Capacity: 25kA at 415V AC (standard) Poles: 3P (3-phase) / 4P (optional) Tripping Unit: Fixed thermal-magnetic protection Compact Design: Space-saving for panel integration Applications: Industrial power distribution Motor feeder protection Commercial electrical panels Standards: IEC 60947-2, UL 489

136

Schenider

A9F18232 Category: Miniature Circuit Breaker (MCB) Manufacturer: Schneider Electric (Acti9 Series) : Rated Current: 32A Tripping Curve: C Curve (for medium inrush loads) Breaking Capacity: 6kA at 230/400V AC Poles: 1P+N (Single Pole + Neutral) Compact Size: Modular DIN-rail mounting Applications: Residential/Commercial circuits Lighting & socket protection HVAC & appliance control Standards: IEC 60898-1

79

Schenider

A9N22402 Category: Residual Current Circuit Breaker (RCCB) Manufacturer: Schneider Electric (Acti9 Series) : Rated Current: 40A Sensitivity: 30mA (Type AC or A, verify exact model) Poles: 2P (2-Pole) Voltage Rating: 230V AC Breaking Capacity: 6kA (standard) Applications: Leakage protection for residential circuits Enhanced electrical safety for wet areas Compliance with modern protection standards

487

Schenider

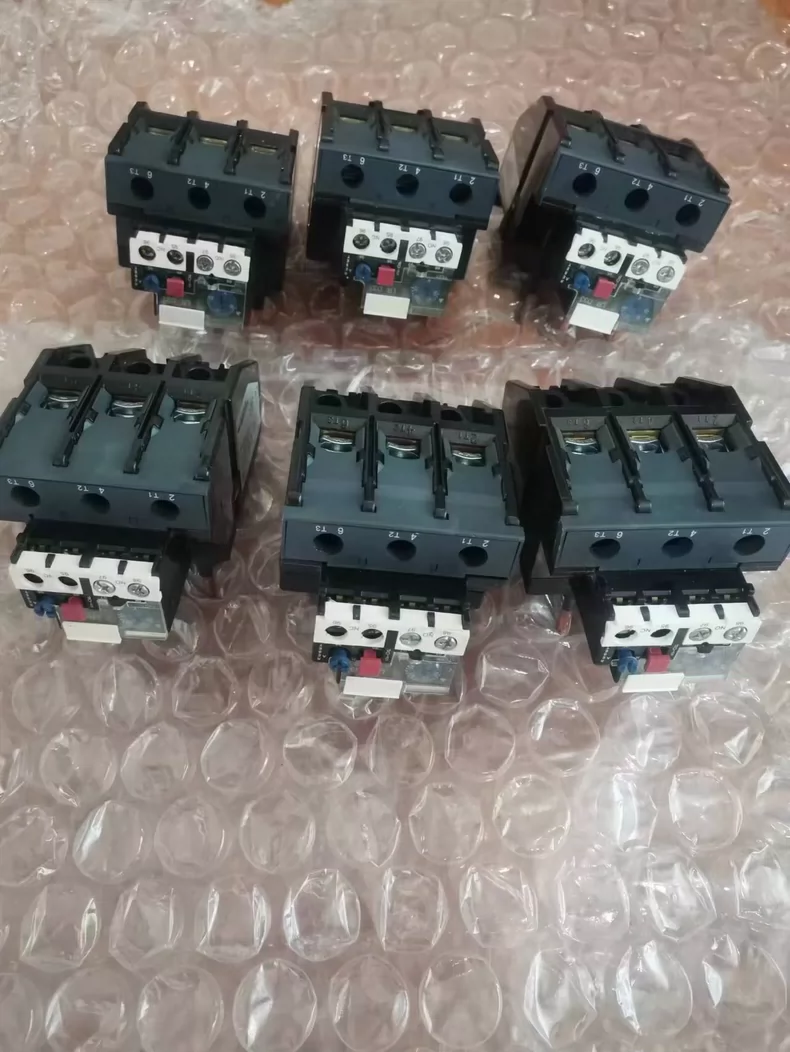

LRD3357 Category: Thermal Overload Relay Manufacturer: Schneider Electric (TeSys LRD Series) : • Current Range: 5.5-8A (adjustable) • Poles: 3P (3-phase protection) • Mounting: Compatible with LC1D contactors • Trip Class: Class 10A (standard motor protection) • Manual/Auto Reset: Selectable Applications: • Motor overload protection • Pumps, fans, and compressors • Industrial control panels Standards: IEC 60947-4-1

811

Schenider

MT16N1 Category: Molded Case Circuit Breaker (MCCB) Manufacturer: Schneider Electric (Masterpact MT Series) : Rated Current: 16A Breaking Capacity: 50kA (at 415V AC) Tripping Unit: Micrologic 1.0 (Basic protection) Poles: 3P (3-phase) Voltage Rating: Up to 690V AC Applications: Industrial power distribution Motor protection circuits Critical infrastructure protection Standards: IEC 60947-2, UL 1066

33

Schenider

MT10N1 Category: Molded Case Circuit Breaker (MCCB) Manufacturer: Schneider Electric (Masterpact MT Series) : Rated Current: 10A Breaking Capacity: 50kA (at 415V AC) Tripping Unit: Micrologic 1.0 (Basic Protection) Poles: 3P (3-phase) Voltage Rating: Up to 690V AC Applications: Industrial power distribution Motor protection circuits Critical infrastructure Standards: IEC 60947-2, UL 1066

753

Schenider

MT08N1 Category: Molded Case Circuit Breaker (MCCB) Series: Masterpact™ MT (Schneider Electric) Key Specs: • Rating: 8A • Breaking Capacity: 50kA @415V AC • Trip Unit: Micrologic™ 1.0 (basic protection) • Poles: 3P • Voltage: ≤690V AC Features: • Fixed thermal-magnetic protection • Finger-safe design • DIN rail compatible Applications: • Motor control centers • Panelboard protection • Light industrial distribution Standards: IEC 60947-2, UL 489

713

Schenider

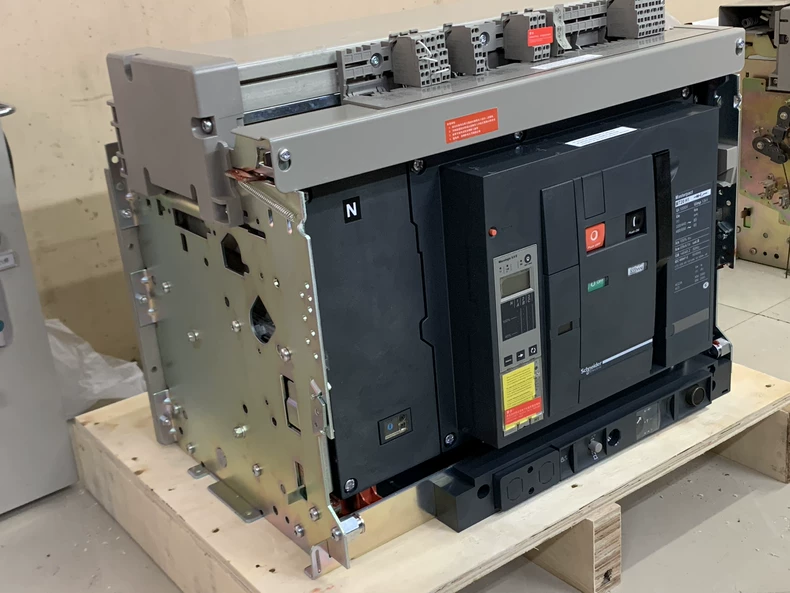

Schneider MT06N1 is an intelligent frame circuit breaker suitable for high-voltage distribution networks, characterized by strong breaking capacity and intelligent protection. The specific information is as follows: Basic Parameters 7 Rated Current: 630A-6300A (selectable for different models) 3 Rated Voltage: 400V-690V (applicable to industrial and civilian scenarios) 5 Number of Poles: 3P (three phases) Core Functions 7 Breaking Capacity: The N1 model has a breaking capacity of 50kA, while the H1b model can reach up to 150kA, suitable for high short-circuit current scenarios 7 Intelligent Protection: Built-in MIC2.0/5.0 control unit, supports energy management, fault monitoring, and remote monitoring

831

Schenider

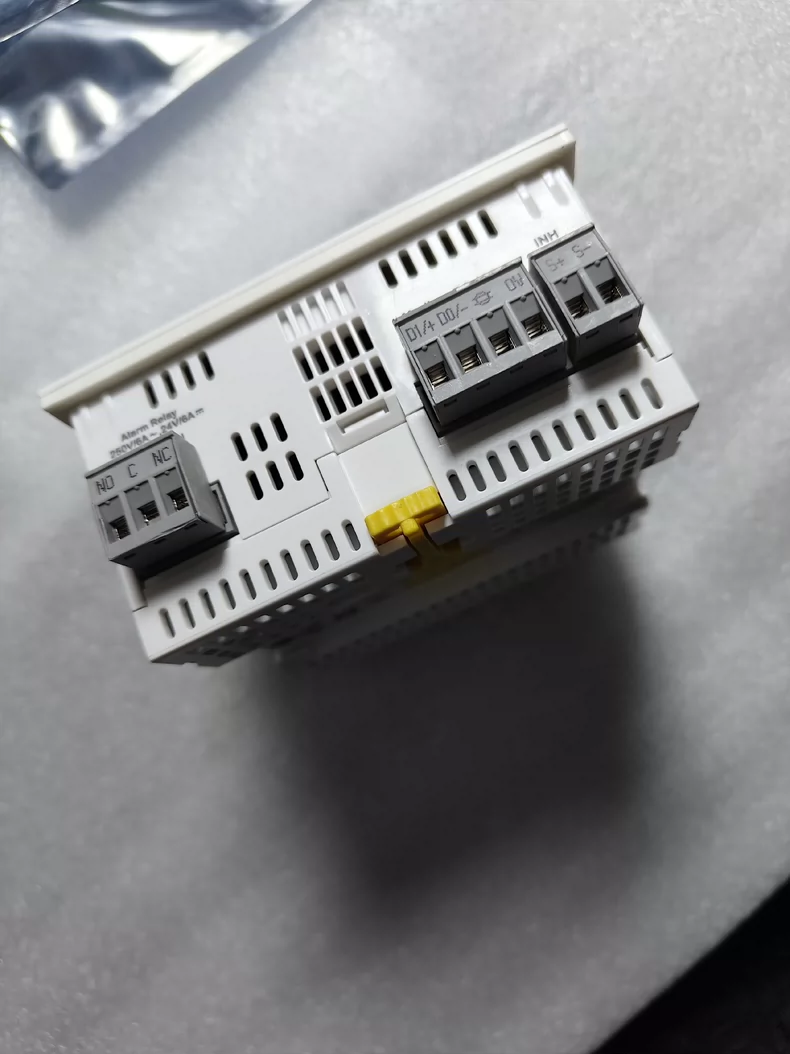

IMD-IM20 Category: Insulation Monitoring Device (IMD) : • Monitoring Range: 0-20MΩ (typical for IM20 series) • Voltage Rating: Up to 690V AC/DC • Response Time: <1s (fault detection) • Output: Relay/Alarm contacts (NO/NC) • Mounting: DIN rail (35mm) Applications: • IT power systems (ungrounded) • Medical facilities • Solar PV installations Standards: IEC 61557-8

297

Schenider

Schneider EZD160/250 Molded Case Circuit Breaker is an electrical protection device suitable for 160-250V AC circuits. Its core functions and accessory configurations are as follows: Basic Parameters 2 Rated Voltage: AC380-415V (applicable to products with a thickness of 68mm) 1 Rated Current: 10A (standard model) 3 Tripping Methods: Supports undervoltage trip (UVR) and shunt trip coil (SHT) control methods

24

Schenider

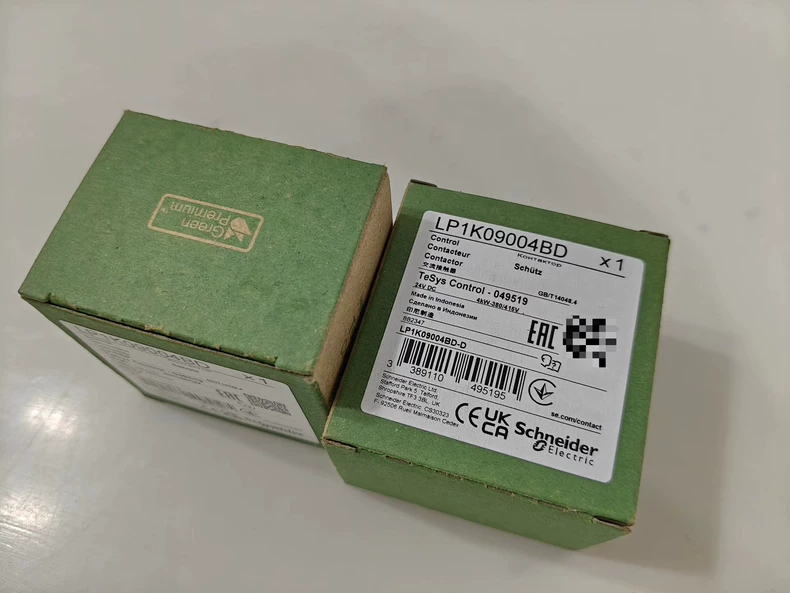

The Schneider LP1K09004BD contactor is a universal type suitable for both DC and AC loads, featuring the following core characteristics: Basic Parameters Coil Voltage: Supports various voltage types such as 24V DC, 220V/48V/110V/125V DC. Contact Specifications: 4P (4 poles), with the number of normally open contacts varying according to the specific model (e.g., 4 normally open, 2 normally open, etc.). Rated Current: 20A, suitable for medium load requirements.

586
