ABB

Key Specifications Basic Parameters: Power: 250kW (335HP) Current: 505A Voltage: 525-690V AC (±10%), 3-phase Frequency: 50/60Hz Control: DTC (Direct Torque Control) Efficiency: >98.5% Performance: Overload: 150% for 2 sec Speed accuracy: ±0.08% (encoderless) Protection: IP21 (IP55 optional) Cooling: Forced air with intelligent fan control Physical: Dimensions: 750×1500×600mm (W×H×D) Weight: 160kg Mounting: Floor-standing Key Features: ✓ Built-in Class C3 EMC filter ✓ Dual isolated RS485 + fieldbus options (PROFINET, EtherCAT) ✓ Advanced energy optimization (up to 45% savings) ✓ Integrated braking unit (400% braking torque) ✓ Predictive thermal management system Certifications: CE/UL/cUL IEC 61800-5-1 EN 61000-3-12 RoHS 3 compliant

674

ABB

Key Specifications Basic Parameters: Power: 250kW (335HP) Current: 430A Voltage: 380-480V AC (±10%), 3-phase Frequency: 50/60Hz Control: DTC (Direct Torque Control) Efficiency: >98.5% Performance: Overload: 150% for 2 sec Speed accuracy: ±0.08% (encoderless) Protection: IP21 (IP55 optional) Cooling: Forced air with smart fan control Physical: Dimensions: 700×1400×550mm (W×H×D) Weight: 145kg Mounting: Floor-standing Key Features: ✓ Built-in Class C3 EMC filter ✓ Dual isolated RS485 + fieldbus options (PROFINET, EtherCAT) ✓ Advanced energy optimization (up to 40% savings) ✓ Integrated braking unit (400% braking torque) ✓ Predictive thermal management Certifications: CE/UL/cUL IEC 61800-5-1 EN 61000-3-12 RoHS 3

507

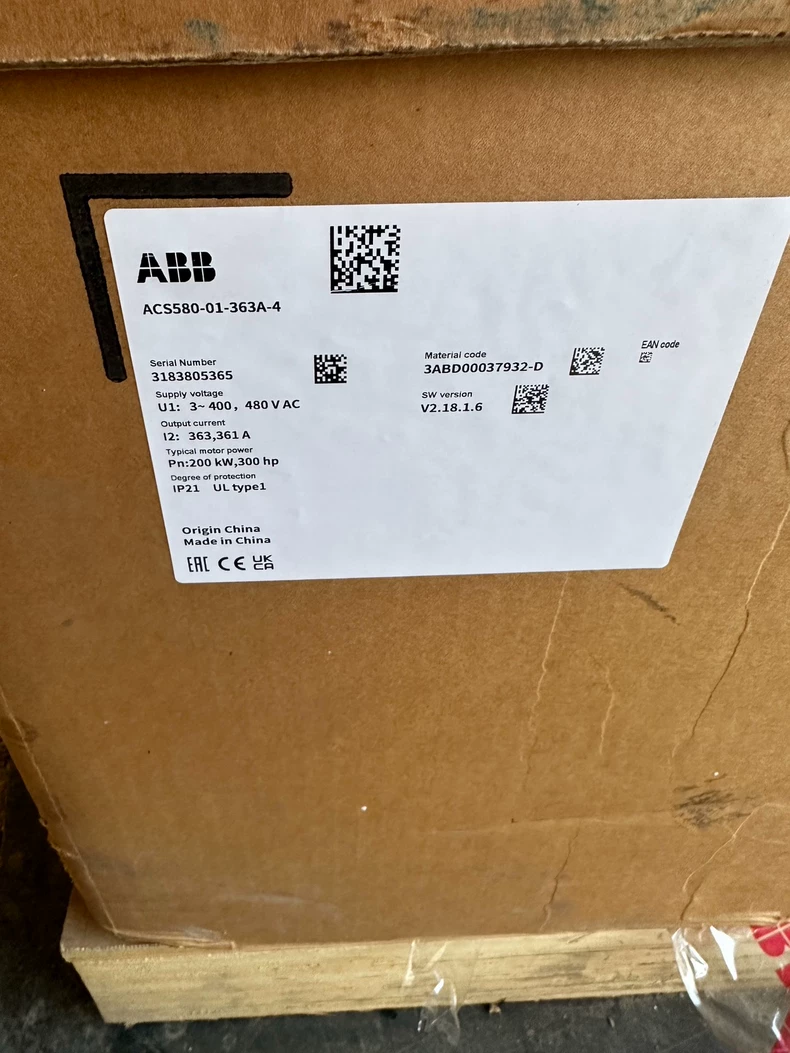

ABB

Technical Specifications: ▪ Power Rating: 200kW (270HP) continuous duty ▪ Output Current: 363A (150% overload for 2 sec) ▪ Input Voltage: 380-480V AC (±10%), 3-phase, 50/60Hz ▪ Control Method: Direct Torque Control (DTC) ▪ Efficiency: >98% (typical full load) Key Features: ✓ Advanced Motor Control: ±0.1% speed accuracy (encoderless) Automatic Motor Adaptation (AMA) Torque boost function ✓ Energy Optimization: Active Energy Saving mode Built-in harmonic mitigation (THD<5%) Adaptive DC link control ✓ Connectivity: Dual-channel RS485 (Modbus RTU) Optional fieldbus modules Integrated PID controller Physical Parameters: ▫ Dimensions: 600×1200×500mm (W×H×D) ▫ Weight: 110kg ▫ Cooling: Forced air with thermal monitoring Certifications: • CE, UL, cUL • IEC 61800 compliant • RoHS Applications: Heavy industrial machinery Large pumps & fans Extrusion systems Material handling

727

ABB

Key Specifications Basic Parameters: Power: 160kW (215HP) Current: 293A Voltage: 380-480V AC (±10%), 3-phase Frequency: 50/60Hz Control: DTC (Direct Torque Control) Efficiency: >98% Performance: Overload: 150% for 2 sec Speed accuracy: ±0.1% (encoderless) Protection: IP21 (IP55 optional) Cooling: Forced air Physical: Dimensions: 500×1000×450mm (W×H×D) Weight: 85kg Key Features: ✓ Built-in EMC filter (Class C3) ✓ Dual RS485 + fieldbus options (PROFIBUS, Ethernet) ✓ Advanced energy optimization ✓ Integrated brake chopper ✓ Smart cooling system Certifications: CE/UL/cUL IEC 61800 compliant RoHS EN 61000-3-12 harmonics

26

ABB

Key Specifications Basic Parameters: Power: 132kW (177HP) Current: 246A Voltage: 380-480V AC (±10%), 3-phase Frequency: 50/60Hz Control: DTC (Direct Torque Control) Efficiency: >98% Performance: Overload: 160% for 2 sec Speed accuracy: ±0.1% (encoderless) Protection: IP21 (IP55 optional) Cooling: Forced air Physical: Dimensions: 450×900×400mm (W×H×D) Weight: 65kg Key Features: ✓ Built-in EMC filter ✓ Dual RS485 + fieldbus options ✓ Energy-saving mode ✓ Integrated brake unit Certifications: CE/UL/cUL IEC 61800 compliant RoHS

307

ABB

Key Parameters: Basic Specs: Power: 110kW (150HP) Current: 206A Voltage: 380-480V AC (±10%), 3-phase Frequency: 50/60Hz Control: DTC technology Efficiency: >98% Performance: Overload: 160% for 2s Speed accuracy: ±0.1% Protection: IP21 (IP55 optional) Cooling: Forced air Dimensions: 400×800×360mm (W×H×D) Weight: 52kg Features: Built-in EMC filter Dual RS485 + fieldbus options Energy optimization Advanced braking Certifications: CE/UL/cUL IEC 61800 RoHS

255

ABB

Key Parameters: Basic Specs: Power: 90kW (125HP) Current: 169A Voltage: 380-480V AC (±10%), 3-phase Frequency: 50/60Hz Control: DTC technology Efficiency: >98% Performance: Overload: 160% for 2s Speed accuracy: ±0.1% (sensorless) Protection: IP21 (IP55 optional) Cooling: Forced air Dimensions: 400×800×360mm (W×H×D) Weight: 45kg Features: Built-in EMC filter Dual RS485 + fieldbus options Energy optimization mode Advanced braking control Certifications: CE/UL/cUL IEC 61800 compliant RoHS

921

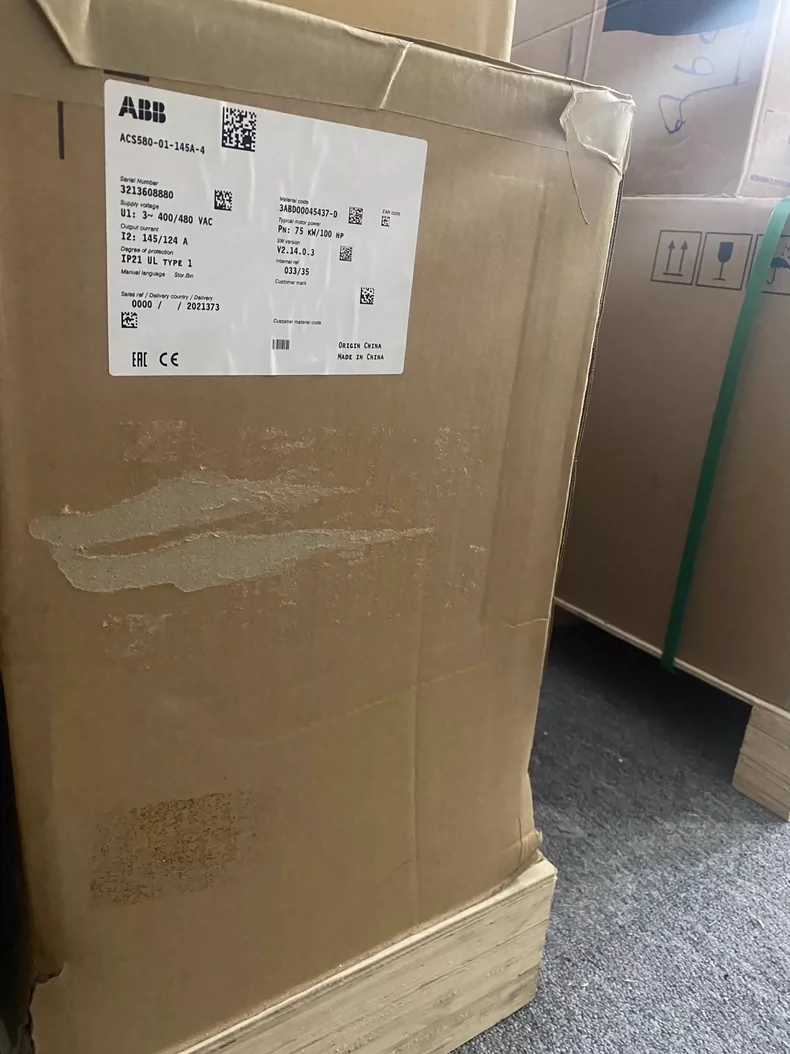

ABB

Technical Specifications: Power Output: 75kW (100HP) continuous duty Rated Current: 145A (150% overload for 3 seconds) Input Voltage: 380-480V AC (±10%), 3-phase, 47-63Hz Control Technology: Advanced Direct Torque Control (DTC) Speed Accuracy: ±0.1% of set speed (encoderless) Efficiency: 98.5% typical at full load Protection Rating: IP21 standard (IP55 optional) Cooling System: Smart forced-air with thermal management Advanced Features: Precision Control System: ABB's fourth-generation DTC algorithm Automatic motor tuning (AMA) 6 programmable torque curves Dynamic braking capability Energy Management: Smart Energy Optimization (SEO) function Active harmonic filtering (THD<3%) Regenerative energy handling Industrial Connectivity: Dual isolated RS485 (Modbus RTU) Optional fieldbus modules (PROFINET, EtherCAT, DeviceNet) Embedded web server for remote monitoring 24 digital/analog I/O points Protection Mechanisms: Triple-redundant IGBT protection Real-time motor thermal modeling Advanced earth fault detection Input phase monitoring Physical Characteristics: Enclosure Dimensions: 355×720×340mm (W×H×D) Shipping Weight: 42kg (including packaging) Operating Conditions: Temperature: -15°C to +50°C (60°C with derating) Humidity: 5-95% non-condensing Altitude: 1000m (3000m with derating) Industry Certifications: Global Safety: CE, UL, cUL, EAC Marine: DNV-GL, ABS Industrial: IEC 61800-5-1, EN 61000-6-4 Energy: IE2 efficiency compliant

136

ABB

Key Specifications: Power Rating: 55kW (75HP) Output Current: 106A Input Voltage: 380-480V AC (±10%), 3-phase, 50/60Hz Control Technology: Direct Torque Control (DTC) Overload Capacity: 150% for 3 seconds Efficiency: >98% Protection Class: IP21 (IP55 optional) Cooling Method: Forced air cooling Core Features: ✓ ABB's advanced DTC motor control ✓ Built-in EMC filter (C3 class) ✓ Dual RS485 ports (Modbus RTU) ✓ Optional fieldbus communications ✓ Integrated brake chopper ✓ Smart energy saving function Physical Parameters: Dimensions: 310×615×300mm (W×H×D) Weight: 24kg Ambient Temp: -15°C to +50°C Certifications: • CE, UL, cUL certified • IEC 61800 compliant • RoHS compliant

571

ABB

Key Parameters: Basic Specs: Power: 45kW (60HP) Current: 88A Voltage: 380-480V AC (±10%), 3-phase Frequency: 50/60Hz Control: DTC technology Efficiency: >98% Performance: Overload: 150% for 3s Speed accuracy: ±0.2% (sensorless) Protection: IP21 (IP55 optional) Cooling: Forced air Dimensions: 255×515×270mm (W×H×D) Weight: 18.5kg Features: Built-in EMC filter RS485 + fieldbus options Energy saving mode PID controller Certifications: CE/UL/cUL RoHS compliant

295

ABB

Key Specifications: Power Rating: 37kW (50HP) continuous duty Output Current: 73A (150% overload for 3 seconds) Input Voltage: 380-480V AC (±10%), 3-phase, 50/60Hz Control Technology: ABB Direct Torque Control (DTC) Efficiency: >97.5% (typical at full load) Protection Class: IP21 standard (IP55 optional) Cooling Method: Intelligent forced-air cooling Advanced Features: Precision Motor Control: ±0.5% speed control accuracy without encoder Automatic motor adaptation (AMA) Torque boost function for heavy starts Energy Optimization: Smart Energy Saving mode (up to 30% energy reduction) Adaptive DC link control Built-in harmonic mitigation (THD<5%) Enhanced Connectivity: Dual-channel RS485 (Modbus RTU) Optional fieldbus modules (PROFINET, EtherNet/IP) Integrated PID controller with 4 preset speeds Robust Protection: Multi-level IGBT protection Motor thermal overload protection Phase loss and short circuit detection

182

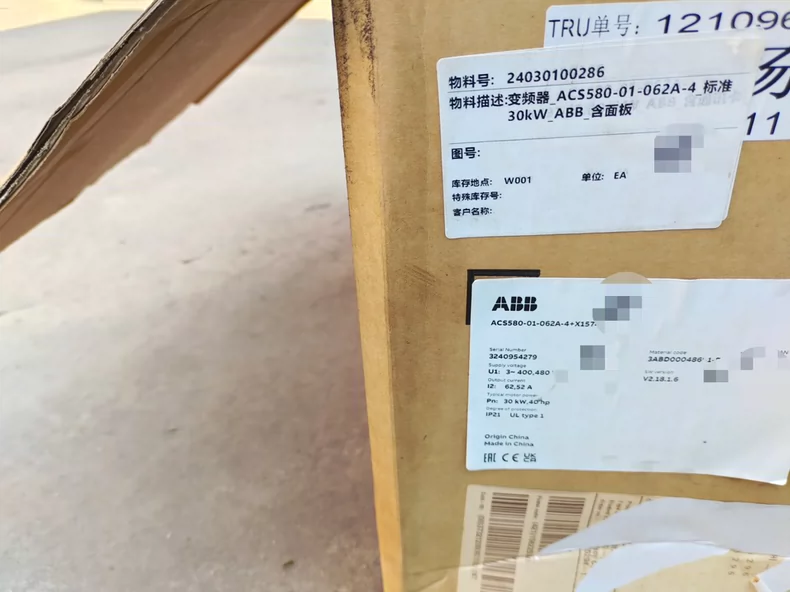

ABB

Key Parameters: Basic Specs: Power: 30kW (40HP) Output: 62A Input: 380-480V AC (±10%), 3-phase, 50/60Hz Control: DTC technology Efficiency: >98% Features: Overload: 150% for 3s Protection: IP21 (IP55 optional) Cooling: Forced air Comm: RS485 + fieldbus options Dimensions: 220×450×245mm (W×H×D) Weight: 14.2kg Certifications: CE/UL/cUL IEC 61800 compliant

567
