ABB

Technical Specifications Electrical Characteristics: Input Voltage: 24V DC ±10% Power Consumption: 15W typical Processor: Dual-core 32-bit RISC controller Memory: 2MB Flash, 512KB RAM Signal Isolation: 2500V RMS optical isolation Functional Features: Real-time drive control algorithms Dual-channel encoder interface (TTL/HTL) 16-bit analog I/O resolution On-board temperature monitoring Vibration-resistant component mounting Communication Interfaces: 2x RS485 (Modbus RTU) 1x CANopen 2.0B Ethernet port (10/100Mbps) Fiber-optic interface (optional) Environmental Specifications Operating Temperature: -25°C to +70°C Relative Humidity: 5-95% non-condensing Protection Class: IP20 (board), IP54 (with enclosure) EMC Immunity: EN 61000-6-2 Class A Certifications & Compliance Safety: EN 61800-5-1 EMC: EN 61800-3 Category C3 Marine: DNV GL type approved RoHS & REACH compliant

33

ABB

Key Specifications Electrical Parameters: Input Voltage: 110-240V AC (50/60Hz) ±15% Output: 24V DC ±1% regulated Power Rating: 120W continuous Efficiency: >92% (typical load) Inrush Current: <25A (at 230V AC) Protection Features: Short-circuit protection (auto-recovery) Overvoltage clamp (30V max) Overtemperature shutdown Redundant diode protection Mechanical Design Compact dimensions: 150 x 75 x 120mm (WxHxD) Conformal coated PCB for moisture resistance DIN-rail mounting (TS35/7.5/15) Natural convection cooling (no fan) Vibration resistant: 5g (10-150Hz) Certifications & Compliance Safety: UL 508/EN 61800-5-1 EMC: EN 61000-6-2/6-4 Marine: DNV-GL certified (optional) Operating Altitude: 2000m max

72

ABB

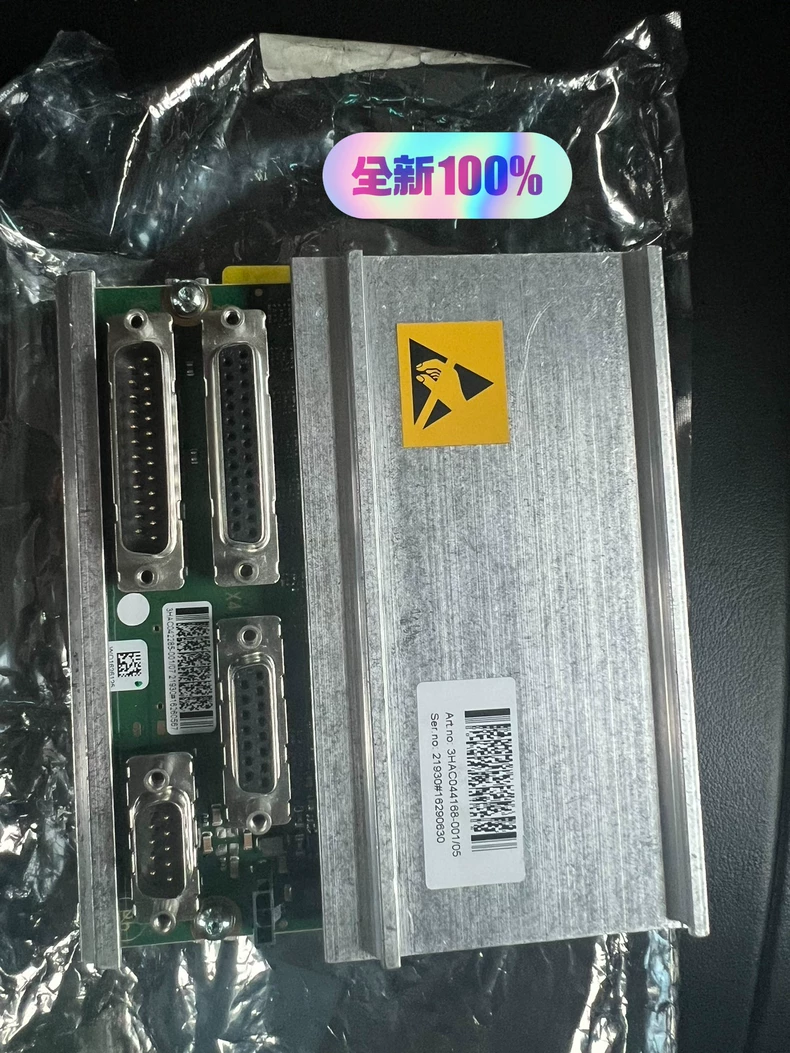

Key Features & Specifications 1. Brake Control Performance Voltage Rating: 24V DC ±10% Max Current Output: 2.5A (per channel) Brake Release Delay: <10ms Brake Engagement Time: Configurable 5-100ms Dual-channel Safety Circuit (EN ISO 13849-1 PLd) 2. System Integration Direct compatibility with ABB IRC5 robot controllers Plug-and-play installation for ABB servo motors Status feedback via DeviceNet/EtherCAT LED indicators for power, fault, and brake status 3. Robust Design Operating Temperature: -10°C to +50°C Protection Class: IP20 (IP65 with optional housing) Vibration Resistance: 5g (10-500Hz) MTBF: >100,000 hours 4. Safety & Diagnostics Safe Torque Off (STO) compliant Short-circuit/overload protection Real-time brake wear monitoring Predictive maintenance alerts Certifications & Compliance CE, UL, cUL ISO 13849-1 PLd (Safety) EN 61800-5-2 (Functional Safety) RoHS & REACH Ordering Information Part Number: 3HAC044168-001/05 Compatible Motors: ABB IRB 6700/2600 series robots ES/ER servo motor series

284

ABB

Key Features I/O Configuration 16 digital inputs (24V DC, sink/source configurable) 16 digital outputs (transistor, 0.5A per point) Group isolation (4 channels per isolation group) LED status indication for all channels Communication & Integration Built-in PROFIBUS DP interface (up to 12Mbps) Direct backplane connection for AC500 PLC systems Plug-and-play with ACS880 drive cabinets Configuration via Automation Builder software Technical Specifications Supply voltage: 24V DC (18-30V range) Power consumption: 5W typical Operating temperature: -25°C to +60°C Protection class: IP20 (panel-mounted) Shock resistance: 15g (11ms duration) Vibration resistance: 2g (10-150Hz) Advanced Functions Input filtering (software configurable) Output pulse stretching Diagnostic data reporting Hot-swappable design Certifications & Compliance CE Marked UL Listed RoHS & REACH compliant Marine certification (optional) Complies with: EN 61131-2 (Programmable controllers) EN 61800-5-1 (Safety requirements) Ordering Information ABB Part Number: GJR2390200R1310 Model Designation: 83SR04E-E Package Includes: I/O module Terminal blocks Mounting accessories Quick start guide

538

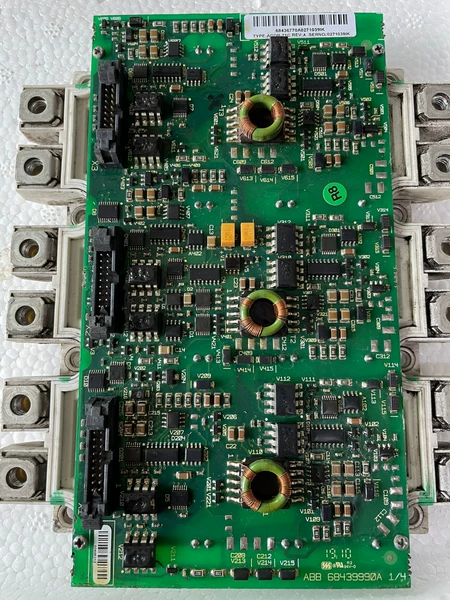

ABB

Key Components FS225R12KE3 IGBT Module Voltage rating: 1200V Current rating: 225A (continuous) Low V_CE(sat) for high efficiency Press-pack design for optimal thermal performance AGDR-71C Gate Driver Unit Isolated DC/DC converter (15V output) Advanced short-circuit protection Active clamping function Fiber-optic interface for control signals Technical Specifications Power Module Characteristics Parameter Specification Collector-Emitter Voltage 1200V Collector Current (25°C) 225A Collector Current (80°C) 175A Switching Frequency Up to 5kHz Thermal Resistance 0.12 K/W Weight 420g Driver Unit Features Isolation Voltage: 4000V RMS Propagation Delay: <500ns Supply Voltage: 24V DC ±10% Operating Temperature: -40°C to +85°C Protection Functions: DESAT detection Soft shutdown Under-voltage lockout (UVLO) System Integration Direct replacement for legacy power stacks in ACS800 drives Plug-and-play installation with pre-configured cabling Compatible with: ABB ACS880-07 cabinets ACS800-07/17 series Custom power converter designs

357

ABB

Key Features & Technical Specifications 1. Communication Capabilities Dual-channel interface for robust system connectivity Supports PROFIBUS DP-V1 (standard) Optional protocols: PROFINET, Modbus TCP, EtherNet/IP (via configuration) Baud rate: Up to 12 Mbps (auto-negotiation supported) 2. System Integration Plug-and-play installation with ACS880 multidrive cabinets Direct connection via internal drive bus (no external wiring required) Compatible with ABB Drive composer and Automation Builder for easy configuration 3. Technical Specifications Power supply: 24V DC (sourced from drive unit) Operating temperature: -25°C to +55°C (-13°F to +131°F) Protection class: IP20 (standard), IP65 with optional enclosure EMC immunity: Complies with EN 61800-3 4. Diagnostic & Maintenance Features Multi-color LED indicators for real-time status monitoring Detailed fault logging with timestamp recording Hot-swappable design (minimizes system downtime) 5. Safety & Reliability Built-in galvanic isolation for noise immunity Redundant communication paths for critical applications SIL2 compliant (when used in appropriate safety configurations)

575

ABB

Key Features & Specifications 1. I/O Configuration & Flexibility 16 Digital Inputs (24V DC, galvanically isolated) 8 Digital Outputs (Relay/Transistor configurable) 4 Analog Inputs (±10V, 0-20mA, jumper-selectable) 2 Analog Outputs (0-10V, 4-20mA) 2. Communication & Integration PROFIBUS DP (standard, up to 12 Mbps) Optional PROFINET, Modbus RTU/TCP (via add-on modules) Plug-and-play with ABB ACS880 drives Compatible with AC500 PLC systems 3. Robust Design & Reliability Operating Voltage: 24V DC (±10%) Temperature Range: -25°C to +70°C (-13°F to +158°F) Protection Class: IP20 (IP65 with optional enclosure) EMC Compliance: EN 61000-6-2 (Industrial immunity) 4. Diagnostics & Maintenance LED status indicators per channel Hot-swappable for reduced downtime Fault logging via ABB Automation Builder software

219

ABB

Key Features Expanded I/O Capacity 16 digital inputs (24V DC) 8 digital outputs (relay or transistor options) 4 analog inputs (±10V/0-20mA) 2 analog outputs (0-10V/4-20mA) Advanced Connectivity PROFIBUS DP interface (standard) Optional PROFINET/DeviceNet protocols Backplane connection for modular expansion Technical Specifications Power supply: 24V DC ±10% Operating temperature: -25°C to +70°C Protection class: IP20 (higher available with optional housing) EMC immunity: EN 61000-6-2 System Integration Plug-and-play with ABB ACS880 drives Compatible with AC500 PLC systems Configurable via ABB Automation Builder Diagnostic Features Per-channel status indication LEDs Comprehensive fault reporting Hot-swappable design (reduces downtime

186

ABB

Key Features & Functions Advanced Communication Interface Supports multiple industrial protocols (varies by configuration) Enables real-time data exchange between drives and control systems System Integration Plug-and-play compatibility with ACS880 multidrive cabinets Simple configuration via drive control panel or software tools Technical Specifications Operating voltage: 24 V DC (typically supplied from drive) Communication speed: Up to 12 Mbps (protocol dependent) Operating temperature: 0°C to +55°C (32°F to 131°F) Protection class: IP20 Diagnostic Capabilities Comprehensive status LEDs for quick troubleshooting Detailed fault logging and reporting Safety & Reliability Designed for industrial environments Robust EMC performance

455

ABB

Key Features: Multi-Protocol Support: Supports PROFIBUS DP-V1 fieldbus communication Optional compatibility with other industrial protocols (model-dependent) System Integration: Plug-and-play installation with ACS880 multidrive systems Direct connection to drive control units via internal bus Performance Characteristics: High-speed data transmission (up to 12 Mbps for PROFIBUS) Automatic baud rate detection Comprehensive diagnostic capabilities Technical Specifications: Operating voltage: 24 V DC (supplied via drive interface) Protection class: IP20 Ambient temperature range: 0°C to +55°C (32°F to 131°F) Configuration & Control: Parameter setting via drive control panel LED indicators for status monitoring Supports cyclic and acyclic communication

270

ABB

Key Features & Functions Seamless Drive Integration Plug-and-play compatibility with ABB drives (e.g., ACS880-01 chassis). Facilitates parameter configuration and real-time monitoring. Advanced Communication Supports industry-standard fieldbus protocols: PROFIBUS DP Modbus RTU/TCP CANopen (optional) Enables connectivity with PLCs, HMIs, and SCADA systems. Flexible I/O Capabilities Digital and analog input/output channels for sensor/actuator interfacing. Configurable logic for custom control sequences. Safety & Diagnostics Integrated Safe Torque Off (STO) functionality (SIL3/PLe compliant). Real-time fault logging and alarm notifications. Compact & Robust Design DIN-rail mountable for space-efficient cabinet installation. Industrial-grade protection (IP20), resistant to electrical noise.

115

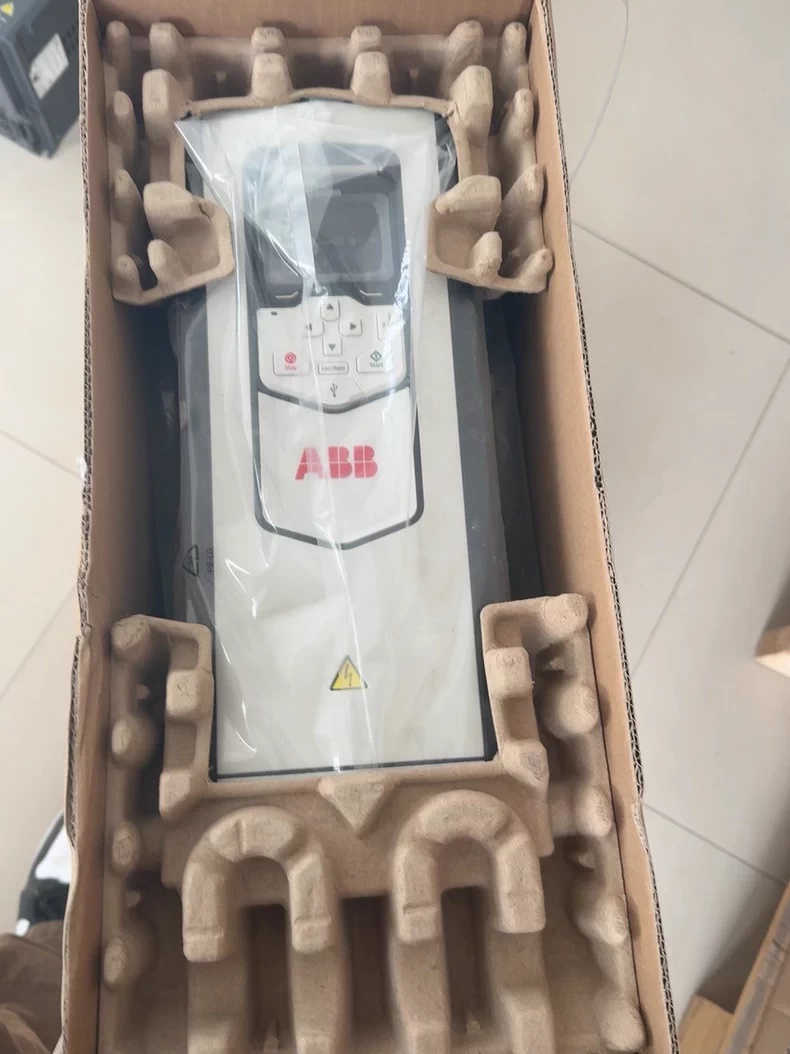

ABB

Key Features High Performance Advanced Direct Torque Control (DTC) technology for accurate speed/torque regulation. Wide speed range (1:100 without encoder, 1:1000 with encoder). Modular Design Compatible with ACS880 system components (e.g., control panels, I/O modules). Supports plug-and-play option modules for customization. Robust Protection Integrated safety functions (STO, SS1, SLS per SIL3/PLe). Protections against overload, short circuit, and overheating. Energy Efficiency Regenerative braking capability (with optional hardware). Complies with IE4 motor efficiency standards. User-Friendly Intuitive Assist Programming Tool for quick setup. Supports fieldbus protocols (Profibus, Modbus, Ethernet/IP).

869
