ABB

Core Specifications 1. Drive Unit (ACS800-04-0400-3) Power Rating: 400kW (536HP) Output Current: 578A Input Voltage: 380-480V AC (±10%), 3-phase Control Technology: Direct Torque Control (DTC) Efficiency: >97.5% Enclosure: IP00 (requires P901 cabinet) 2. P901 Cabinet Kit Material: Powder-coated steel Mounting: Floor-standing or wall-mounted Cooling: Forced ventilation (fans included) Protection Class: IP21 with cabinet Cable Entry: Bottom/top (configurable) Key Features ✔ Plug-and-Play Installation - Pre-configured mounting solution ✔ Optimized Airflow - Intelligent thermal management ✔ Service-Friendly - Front-access design ✔ Vibration-Resistant - Industrial-grade construction Certifications CE, UL, cUL EN 61800-3 (EMC) RoHS compliant

222

ABB

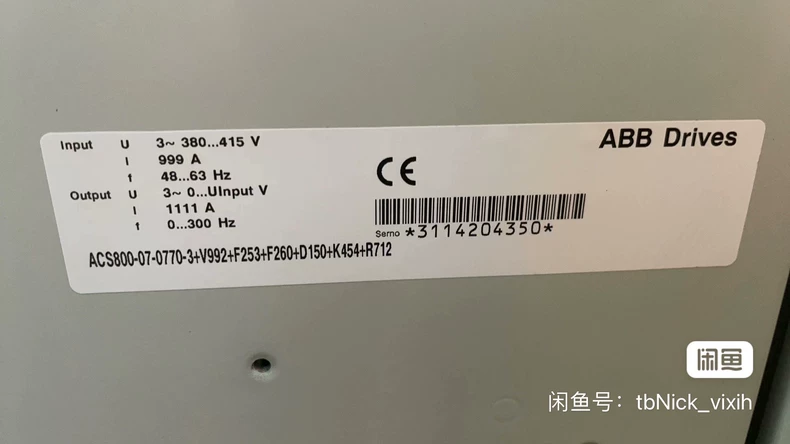

Technical Specifications 1. Drive Unit (ACS800-07-0770-3) Rated Power: 630kW (845HP) Output Current: 850A continuous Input Voltage: 380-480V AC, 3-phase (±10%) Control Method: Direct Torque Control (DTC) Efficiency: >98% (typical) Enclosure: IP21 (NEMA 1) Cooling: Forced air 2. Brake Chopper (D150) Braking Capacity: 150kW Peak Current: 300A (for 5 seconds) DC Link Voltage: 725V nominal Duty Cycle: 10% ED standard Key Features Seamless integration between drive and brake unit Automatic braking torque adjustment Regenerative energy dissipation during deceleration Built-in thermal protection LED status indicators for quick diagnostics Certifications & Compliance CE Marked UL Listed cUL Certified EN 61800-3 (EMC) RoHS Compliant

428

ABB

Key Specifications Electrical Parameters: Power Rating: 130kW (175HP) Current Output: 250A Input Voltage: 380-480V AC (±10%) Frequency: 50/60Hz Control Features: Direct Torque Control (DTC) Built-in PID controller 0.1% speed regulation accuracy Physical Specifications: Dimensions: 400 × 300 × 200mm (W×H×D) Weight: 25kg Cooling: Forced air Protection Class: IP20 Certifications CE, UL, cUL EN 61800-3 (EMC) RoHS compliant

857

ABB

ABB ACS800-104-0460-5+E205+Q950+V991 Drive System Basic Parameters Drive Unit: ACS800-104-0460-5 Power: 460kW (616HP) Current: 510A Voltage: 525-690V AC Cooling: Liquid Options E205 Capacitor Bank 120,000μF, 900V DC Q950 Cooler 12kW cooling capacity V991 Protection 825V DC cutoff Features ✔ DTC control technology ✔ SIL3 safety compliance ✔ Liquid-cooled design

477

ABB

ABB ACS800-104-0610-5+E205+V991 Drive System Base Unit (ACS800-104-0610-5) Power: 610kW (818HP) Current: 590A Voltage: 525-690V AC Topology: IGBT PWM Cooling: Liquid (standard) Options E205 Capacitor Bank Capacity: 150,000μF Voltage: 900V DC V991 Protection Module OVP: 825V DC cutoff Response: <1ms Certifications CE, UL, cUL EN 61800-3 (EMC) SIL3 compliant

121

ABB

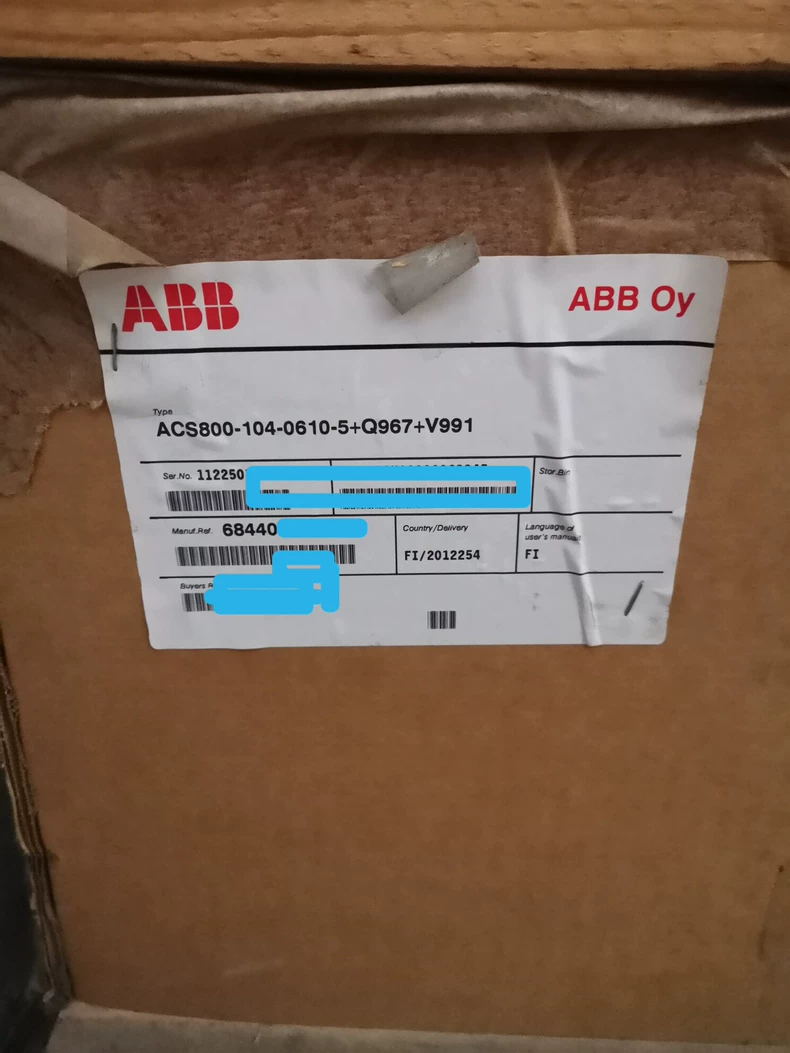

ABB ACS800-104-0610-5+Q967+V991 Industrial Drive Package Core Specifications Drive Model: ACS800-104-0610-5 Power: 610kW (818HP) Current: 590A Voltage: 525-690V AC (±10%) Topology: IGBT PWM Enclosure: IP00 (Open Type) Key Options Q967 Liquid Cooling Unit Cooling Capacity: 18kW Flow Rate: 15L/min Pressure: 2.5bar max V991 Overvoltage Protection Threshold: 825V DC Response Time: <1ms Certifications CE, cULus EN 61800-3 (EMC) SIL3 (Safety Integrity Level)

113

ABB

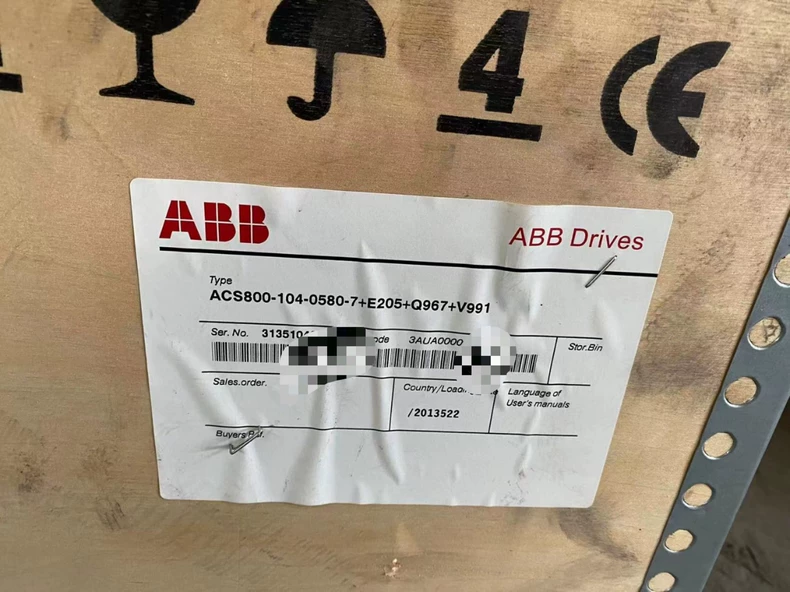

Key Parameters Base Drive Unit (ACS800-104-0580-7) Power: 580kW (777HP) Current: 835A Voltage: 525-690V AC (±10%) Enclosure: IP00 (Open chassis) Cooling: Liquid cooling Included Options E205 Electrolytic Capacitor Bank Capacitance: 120,000μF Voltage: 900V DC Q967 Liquid Cooling Unit Cooling Capacity: 15kW Flow Rate: 12L/min Pressure Drop: 1.5bar V991 Voltage Protection Module OVP Threshold: 825V DC Response Time: <1ms Certifications CE, UL, cUL EN 61800-3 (EMC) SIL 3 (Safety)

899

ABB

Core Specifications Drive Model: ACS800-04-0400-3 Power: 400kW (536HP) Current: 578A Voltage: 380-480V AC (±10%) Enclosure: IP21 (NEMA 1) Options Included D150 Brake Chopper Unit Braking Power: 150kW Voltage: 725V DC Peak Current: 300A (5s) P901 Cabinet Mounting Kit Material: Powder-coated steel Cooling: Forced ventilation Compatibility: ACS800-04 series Certifications CE, UL, cUL EN 61800-3 (EMC) RoHS compliant

98

ABB

Key Specifications Electrical Parameters: Voltage Rating: 230V AC (50/60Hz) Max Continuous Voltage (Uc): 275V AC Nominal Discharge Current (In): 10kA (8/20μs) Impulse Current (Iimp): 25kA (10/350μs) Voltage Protection Level (Up): ≤1.5kV Protection Features: Combined Protection: Meets Type 1+2 requirements (IEC 61643-11) Thermal Disconnector: Automatic fail-safe mechanism Visual Status Indicator: Green/Red window Remote Signaling: Optional contact available Mechanical Specifications: Mounting: DIN rail (35mm) Connection: 10mm² max wire size Housing Material: Flame-retardant thermoplastic (UL94 V-0) Dimensions: 90 x 70 x 65mm (WxHxD) Weight: 0.35kg Certifications & Standards IEC 61643-11 (Type 1+2) EN 61643-11 compliant CE Marked UL 1449 4th Edition Listed RoHS & REACH compliant

856

ABB

Key Specifications Electrical Parameters: Power Rating: 37kW (50HP) Output Current: 72A Input Voltage: 380-480V AC (±10%), 3-phase Frequency Range: 0-500Hz Efficiency: >97.5% Control Features: Control Methods: Scalar control (V/f) Sensorless vector control Built-in PID Controller Automatic Energy Optimization Protection Functions: Motor thermal protection Short circuit/ground fault protection Overvoltage/undervoltage control AIB (Advanced Inverter Braking) Physical Specifications: Enclosure: IP21 (NEMA 1) Cooling: Fan-cooled Dimensions: 278 x 483 x 245mm (WxHxD) Weight: 15kg Communication & I/O Standard Interfaces: 2x Analog Inputs (0-10V/4-20mA) 1x Analog Output (0/4-20mA) 3x Digital Inputs 2x Relay Outputs Optional Fieldbus: PROFIBUS DP Modbus RTU BACnet MS/TP Key Benefits ✔ Pump & Fan Optimization - Reduces energy consumption by up to 50% ✔ Easy Setup - Assisted start-up wizard ✔ Compact Design - Saves panel space ✔ Low Acoustic Noise - <70dB operation

474

ABB

Key Specifications Power Characteristics: Power Rating: 630kW (845HP) Output Current: 850A (continuous) Voltage Range: 380-480V AC (±10%) Frequency: 50/60Hz (±5%) Efficiency: >98% (typical) Control Features: Control Method: Direct Torque Control (DTC) Speed Range: 0-100% (without encoder) Speed Accuracy: ±0.1% of nominal speed Response Time: <5ms Protection Systems: Short circuit protection (I²t) Ground fault detection Motor thermal overload Input phase loss protection Overvoltage/undervoltage control Physical Specifications Enclosure: IP21 (standard), IP54 (optional) Cooling Method: Forced air (integrated fans) Dimensions: 1800 × 800 × 400mm (W×H×D) Weight: Approx. 450kg Mounting: Floor-standing Communication & Integration Standard Interfaces: PROFIBUS DP Modbus RTU Analog I/O (4xAI, 2xAO, 6xDI, 3xDO) Optional Cards: Ethernet/IP DeviceNet PROFINET Environmental Ratings Operating Temperature: 0°C to +40°C Storage Temperature: -40°C to +70°C Relative Humidity: <95% non-condensing Altitude: <1000m without derating Certifications & Compliance Safety: UL, CE, cUL EMC: EN 61800-3 Marine: DNV/GL, ABS RoHS Compliant

959

ABB

Technical Specifications Electrical Characteristics: Input Voltage: 85-264V AC (47-63Hz) or 120-370V DC Output: 24V DC ±1% regulated Current Rating: 36A (continuous) Power Rating: 864W Efficiency: 94% (typical at full load) Inrush Current: <40A (at 230V AC) Protection Features: Overvoltage protection (auto-reset) Short-circuit protection (hiccup mode) Overload derating curve Thermal shutdown with auto-recovery Physical Specifications: Dimensions: 215 × 125 × 60mm (W×H×D) Weight: 1.8kg Cooling: Forced air (integrated variable-speed fan) Mounting: DIN rail (EN 60715) or panel mount Environmental Ratings: Operating Temperature: -25°C to +70°C (with derating above +60°C) Relative Humidity: 5-95% non-condensing Altitude: 5000m (with derating above 2000m) Vibration Resistance: 3g (10-150Hz) Key Features Advanced Power Management Active PFC (PF>0.98) Parallel operation capability (up to 3 units) Remote sense compensation Monitoring & Control LED status indicators (power, fault, load share) Signal contact for power good/failure Remote on/off control Industrial Durability Conformal coated PCB Corrosion-resistant terminals Reinforced housing (IK08 impact resistance) Certifications & Compliance Safety: UL 60950-1, EN 62368-1 EMC: EN 61000-6-2, EN 61000-6-4 Marine: DNV-GL, ABS Railway: EN 50155 (optional) RoHS & REACH Compliant
