Technical Specifications: Parameter Category Specification Detail Model Designation ACS310-03E-13A8-4 Product Series ABB ACS310 General Purpose Drive Rated Power 5.5 kW (7.5 HP) Output Current 13.8 A (at 400V, continuous duty) Supply Voltage 3-phase, 380 - 480 V AC (±10%), 50/60 Hz Output Voltage 0 - Supply Voltage (Uin) Output Frequency Range 0.1 - 500 Hz Control Method Scalar Control (V/Hz) with four selectable curves (linear, quadratic, free programmable, multi-point) Enclosure Rating IP20 / UL Type 1 (Open Chassis) - Requires protective enclosure Physical Frame Size R3 Key Features - Plug-and-Play Setup: Pre-programmed macro configurations - Flying Start: Can connect to rotating motor - Motor Thermal Protection: I²t with separate motor models - Automatic Energy Optimization: Reduces motor losses at partial loads - Constant Speed Mode: Operates at preset speeds - Process PID Controller: Built-in for pressure/flow/temperature control - Automatic Restart: After mains or fault condition Input/Output Configuration Digital Inputs: 3 programmable (24V DC) Analog Inputs: 1 (0/4-20mA or 0-10V selectable) Analog Output: 1 (0/4-20mA or 0-10V configurable) Relay Outputs: 1 (changeover contact, 30V DC/250V AC, 2A) Optional I/O: Can be expanded with optional modules Communication Interfaces Built-in: - Modbus RTU (RS-485) standard Optional Fieldbus: - Profibus DP - DeviceNet - CANopen (via optional plug-in adapters) Protection Features Motor Protection: - Motor thermal overload (I²t) - Stall prevention (overload/speed loss) - Underload protection - Phase imbalance monitoring Drive Protection: - Short circuit (IGBT monitoring) - Ground fault detection - Overcurrent (200% for 60s, 250% for 2s) - Overvoltage/Undervoltage - Heatsink overtemperature - Motor cable supervision Control Performance - Speed Control Range: 1:40 - Speed Control Accuracy: ±0.5% of maximum speed - Starting Torque: 160% at 0.5 Hz - Torque Boost: Manual or automatic Energy Saving Features - Automatic Energy Optimizer - ECO mode for partial load optimization - Standby function with timer - Mains monitoring for power quality Cooling System Forced air cooling with integrated fan Environmental Specifications Operating Temperature: -15°C to +50°C (5°F to 122°F) without derating Storage Temperature: -40°C to +70°C (-40°F to 158°F) Relative Humidity: 5% to 95% non-condensing Altitude: Up to 1000m (3280 ft) without derating Vibration: 0.7G (5-200 Hz) Installation: Up to 1000m above sea level Electrical Standards & Approvals Compliance: - CE marked - UL listed (UL508C) - cUL listed - RoHS compliant - Complies with EN/IEC 61800-3 - EMC Directive 2014/30/EU - Low Voltage Directive 2014/35/EU Physical Dimensions Height: 243 mm (9.57 in) Width: 165 mm (6.50 in) Depth: 178 mm (7.01 in) Weight: Approximately 3.5 kg (7.7 lb)

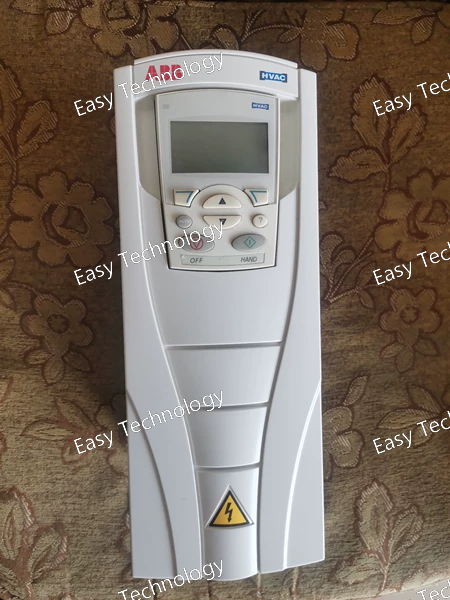

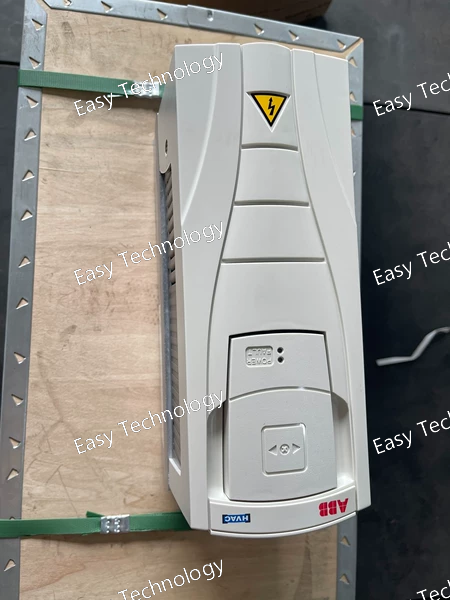

Technical Specifications: Parameter Category Specification Detail Model Designation ACH550-01-012A-4 Product Series ABB ACH550 HVAC Drive Rated Power 5.5 kW (7.5 HP) Output Current 12.0 A (at 400V, continuous duty) Supply Voltage 3-phase, 380 - 480 V AC (±10%), 50/60 Hz Output Voltage 0 - Supply Voltage (Uin) Output Frequency Range 0.1 - 500 Hz (Standard HVAC application range: 0.1 - 120 Hz) Control Methodology Sensorless Flux Vector Control (FVC) with automatic energy optimization Control Characteristics - Speed control accuracy: ±0.1% of nominal speed (with auto-tuning) - Torque control response time: 5-10 ms - Speed control range: 1:100 (open loop) Enclosure Rating IP20 / UL Type 1 (Open Chassis) - Requires installation in appropriate control panel Physical Frame Size R2 Key Application Features - Adaptive Programming (AP) with plain-language setup wizard - Energy Optimizer with real-time efficiency monitoring - HVAC-specific Application Macros: Pump, Fan, Constant Pressure, Constant Flow - Dual Independent PID Controllers with cascade control capability - PID Sleep/Wake Function with configurable hysteresis - Automatic Pump Alternation (with optional I/O expansion) - Flying Start and Catch a Spinning Motor function - Motor preheating function for humid environments Input/Output Configuration Digital Inputs: 4 programmable (24V DC, PNP/NPN selectable) Analog Inputs: 2 (AI1: 0-10V/0-20mA, AI2: 0-10V/0-20mA/PT1000) Analog Output: 1 (0/4-20mA or 0-10V configurable) Relay Outputs: 2 programmable (RA01: 30V DC/250V AC, 2A; RA02: 30V DC/250V AC, 2A) Additional: PTC thermistor input for direct motor temperature monitoring Communication Interfaces Built-in: - BACnet MS/TP (Standard protocol for building automation) - Modbus RTU (RS-485) Optional Fieldbus: - Profibus DP - LonWorks - Ethernet/IP - Modbus TCP/IP (via optional adapters) Protection Features Motor Protection: - I²t thermal overload protection - Motor stall prevention - Phase imbalance protection - Earth fault detection Drive Protection:<br- DC bus overvoltage/undervoltage - Output short circuit - Overcurrent (200% for 60s, 300% for 2s) - Heatsink overtemperature - Control board temperature monitoring - Input phase loss detection Energy Saving Features - Automatic Energy Optimizer reduces magnetizing current - Power factor correction (>0.98) - Adaptive current limit - Standby mode with automatic wake-up - Energy consumption monitoring (kWh counter) Cooling System Forced air cooling with temperature-controlled fan Environmental Specifications Operating Temperature: -15°C to +50°C (5°F to 122°F) without derating Storage Temperature: -40°C to +70°C (-40°F to 158°F) Relative Humidity: 5% to 95% non-condensing Altitude: Up to 1000m without derating (1% derating per 100m above 1000m) Vibration: 1.0G maximum (5-200 Hz) Pollution Degree: 2 according to IEC 60664 Electrical Standards & Approvals Compliance: - CE marked - cULus Listed (UL508C) - RoHS compliant - Complies with EN/IEC 61800-3 (EMC) - Meets EN 55011 Class A (Emissions) - IEC 61800-5-1 (Safety) Physical Dimensions Height: 247 mm (9.72 in) Width: 140 mm (5.51 in) Depth: 177 mm (6.97 in) Weight: Approximately 3.2 kg (7.05 lb)

Key Technical Specifications: Parameter Description / Value Product Code ACH550-01-06A9-4 Product Type HVAC Variable Frequency Drive (VFD) / AC Drive Rated Power 3.0 kW (4 HP) Output Current 6.9 A (at 400V, continuous duty) Supply Voltage 3-phase, 380 - 480 V AC (±10%), 50/60 Hz Output Voltage 0 - Supply Voltage (Uin) Output Frequency 0.1 - 500 Hz (typical HVAC range: 0.1 - 120 Hz) Control Method Sensorless Flux Vector Control (FVC): Delivers precise speed and torque control for superior performance in variable torque (fan/pump) applications. Enclosure IP20 / UL Type 1 (Open Chassis). Must be installed in a proper control cabinet to provide protection against dust, moisture, and physical contact. Frame Size R1 Key HVAC Features - Adaptive Programming (AP): Intuitive setup via plain-language questions, simplifying commissioning. - Energy Optimizer: Automatically minimizes motor and drive losses for maximum energy efficiency. - Dedicated Application Macros: Pre-programmed for common HVAC functions (Pump, Fan, HVAC). - Dual PID Controllers: With cascade control, sleep/wake functions, and PID autotune for precise pressure, flow, or temperature regulation. - Flying Start: Enables smooth connection to a spinning motor. - Flexible I/O: 4 Digital Inputs, 2 Analog Inputs (configurable as 0-10V or 0/4-20mA), 1 Analog Output, 2 Relay Outputs. - Motor Thermal Protection: Includes I²t model and direct PTC thermistor input. Built-in Communication - BACnet MS/TP: Native integration with Building Automation and Control Networks (BACnet). - Modbus RTU (RS-485): Standard for industrial and building management systems. - Status LED: Flashing LED for visual indication of drive status and fault codes. Motor & Drive Protection Comprehensive protection including: overcurrent, overvoltage, undervoltage, ground fault, short circuit, input/output phase loss, motor overload (I²t), and stall prevention. Cooling Method Convection cooling (fanless) for Frame Size R1, ensuring silent operation ideal for mechanical rooms. Ambient Conditions Operating Temperature: -10°C to +50°C (14°F to 122°F) without derating. Full rated current up to +40°C. Storage: -40°C to +70°C. Max humidity: 95% non-condensing. Standards & Approvals CE, cULus Listed, RoHS compliant. Meets key global standards for HVAC equipment.

Key Technical Specifications: Parameter Description / Value Product Code ACH550-01-05A6-4 Product Type HVAC Variable Frequency Drive (VFD) / AC Drive Rated Power 2.2 kW (3 HP) Output Current 5.6 A (at 400V, continuous duty) Supply Voltage 3-phase, 380 - 480 V AC (±10%), 50/60 Hz Output Voltage 0 - Supply Voltage (Uin) Output Frequency 0.1 - 500 Hz (standard HVAC motor: 0.1 - 120 Hz) Control Method Sensorless Flux Vector Control (FVC): Provides excellent speed and torque control across the entire speed range, crucial for pump and fan applications. Enclosure IP20 / UL Type 1 (Open Chassis). Must be installed inside a suitable control panel or enclosure for protection against dust and moisture. Frame Size R1 Key HVAC Features - Adaptive Programming (AP): User-friendly setup with plain-language questions. - Energy Optimizer: Automatically minimizes motor losses to achieve maximum energy savings. - Pump & Fan Control Macros: Pre-configured for quick setup of constant pressure, constant flow, or temperature control. - PID Controllers: Dual PID controllers with cascade control and PID sleep/wake-up functions. - Flying Start: Can smoothly connect to a rotating motor. - Multiple I/O: 4 Digital Inputs, 2 Analog Inputs (voltage/current), 1 Analog Output, 2 Relay Outputs. - Advanced Motor Thermal Protection: Includes both I²t and PTC thermistor inputs. Built-in Communication - BACnet MS/TP: Native BACnet Building Automation Controller interface. - Modbus RTU (RS-485): Standard industrial protocol. - Flashing LED: Indicates drive status and fault codes. Motor & Drive Protection Motor thermal (I²t), overcurrent, overvoltage, undervoltage, ground fault, short circuit, phase loss, and motor stall protection. Cooling Method Convection cooling (fanless) for Frame Size R1, ensuring silent operation. Ambient Conditions Operating Temperature: -10°C to +50°C (14°F to 122°F) without derating. Up to +40°C with full rated current. Storage: -40°C to +70°C. Max humidity: 95% (non-condensing). Standards & Approvals CE, cULus Listed, RoHS compliant. Designed to meet global HVAC standards.

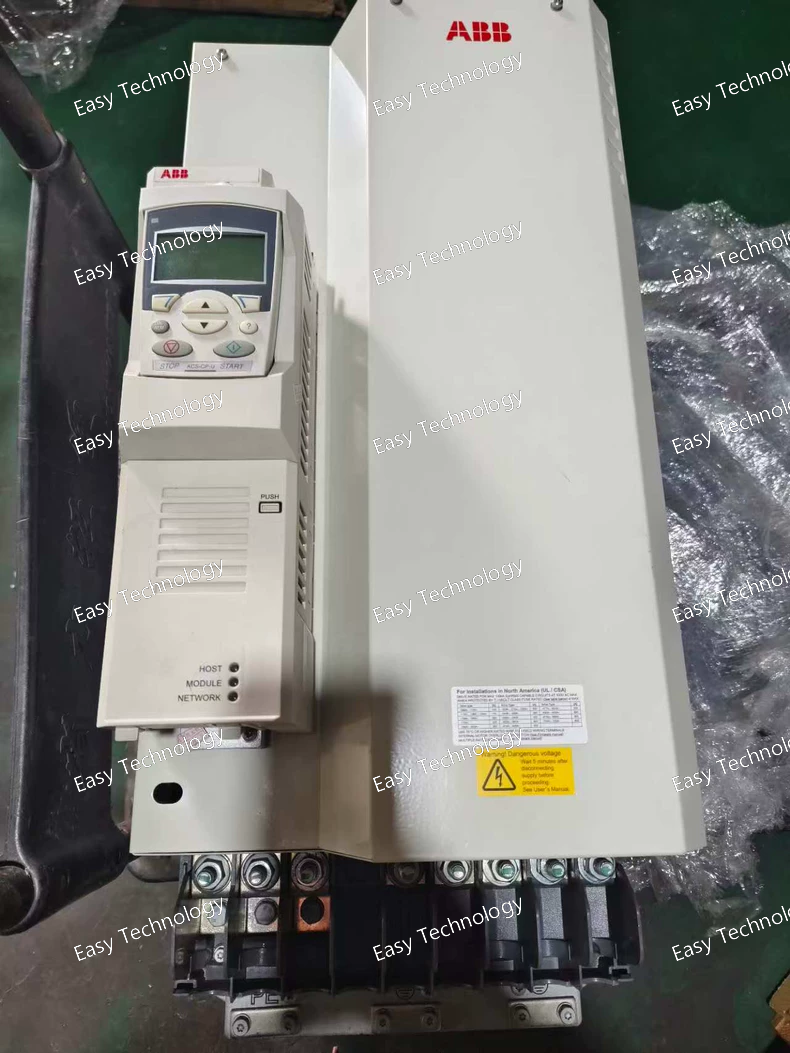

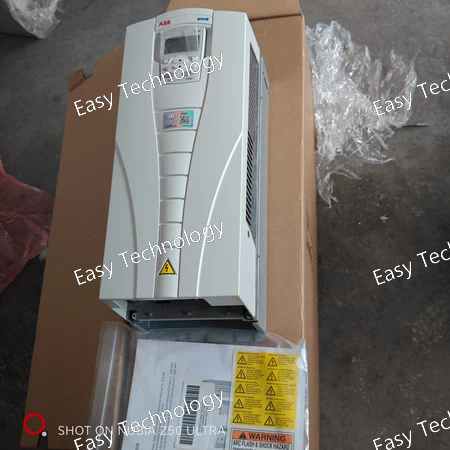

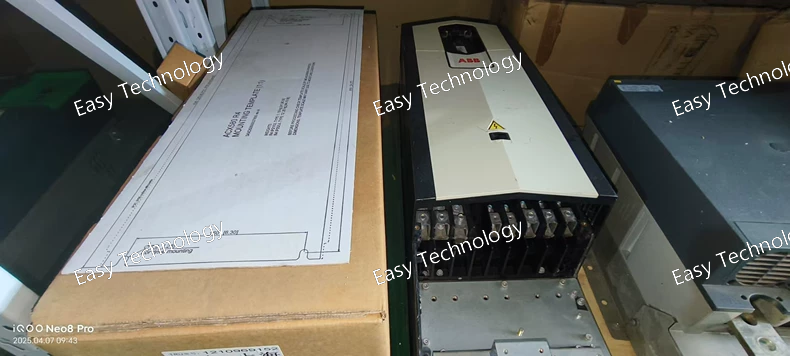

Key Technical Specifications: Parameter Description / Value Product Code ACS550-U1-045A-4 Product Type Variable Frequency Drive (VFD), AC Drive, Inverter Rating 22 kW (30 HP) Output Current 45 A (at 400V, continuous duty) Supply Voltage 3-phase, 380 - 480 V AC (±10%), 50/60 Hz Output Voltage 0 - Supply Voltage (Uin) Output Frequency 0 - 500 Hz (standard motor: 0 - 250 Hz) Control Methods Scalar Control (Volts/Hertz - V/Hz): Pre-programmed curves. Flux Vector Control (FVC): Sensorless vector control for improved low-speed torque and speed accuracy. Enclosure IP20 / UL Type 1 (Open Chassis). Requires installation in a suitable control cabinet for protection. Frame Size R4 Key Features - Flying Start: Can catch a rotating motor. - Built-in PID Controller: For process control (e.g., pressure, flow). - Multiple I/O: Digital & Analog Inputs/Outputs, Relay outputs. - ABB Drive Panel Compatibility (Optional): For control and monitoring. - Standard Modbus RTU (RS-485): For fieldbus communication. - Advanced Application Macros: Pre-set parameter groups for quick setup (e.g., Pump/Fan, 3-Wire Control). - DC Bus Connection: Allows common DC bus for multi-drive systems. Motor Control & Protection Motor thermal protection, overcurrent, overvoltage, undervoltage, ground fault, short circuit, and motor stall protection. Cooling Method Forced air cooling (internal fan). Ambient Conditions Operating Temperature: -15°C to +50°C (59°F to 122°F) without derating. Max humidity: 95% (non-condensing). Standards & Approvals CE, UL, cUL

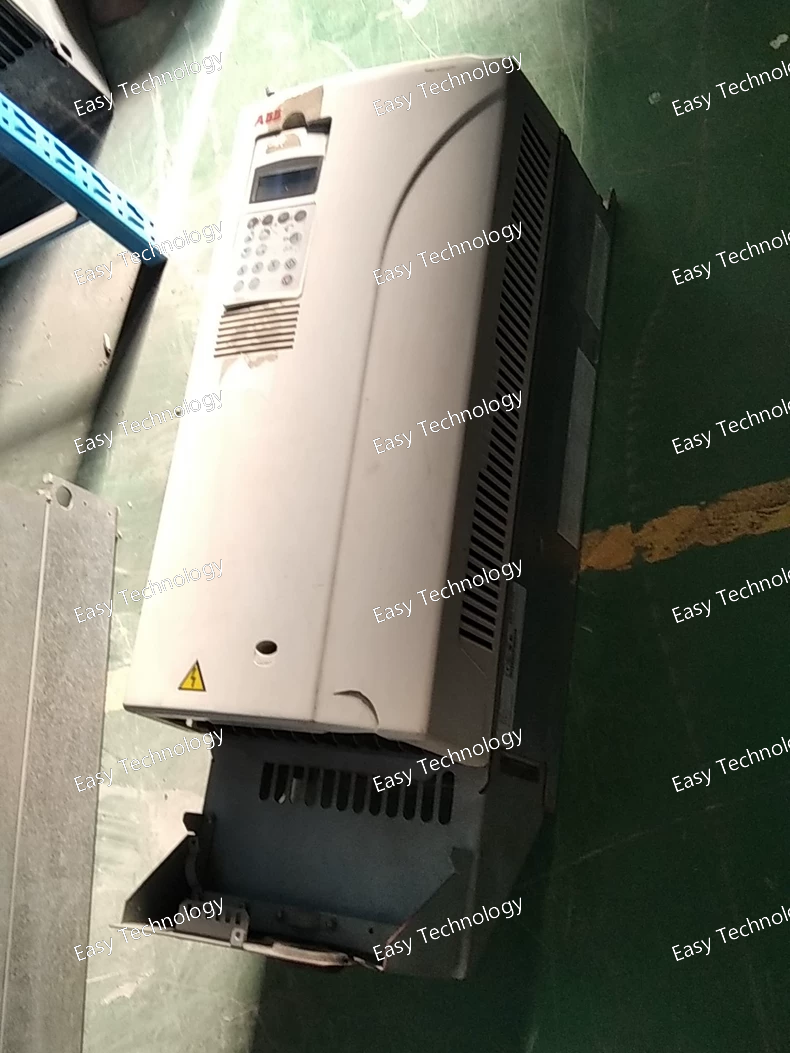

Specifications Electrical Ratings Input Voltage: 380-480V AC (±10%), 3-phase, 50/60 Hz Output Power: 22 kW (30 HP) at 480V Output Current: 45.0 A continuous (40°C ambient) Overload Capacity: 110% for 1 minute every 10 minutes Output Frequency: 0-500 Hz Control Methods: V/Hz, Sensorless Vector, Flux Optimization Physical Characteristics Enclosure: IP21 (indoor, finger-safe) Dimensions: ~450 × 220 × 240 mm Weight: Approximately 16 kg Cooling: Forced-air with temperature-controlled fan Ambient Temperature: 0°C to +40°C (full rating), up to +50°C with derating Altitude: ≤1000 m without derating Control & I/O Configuration Standard I/O Digital Inputs: 5 programmable (24V DC) Digital Outputs: 3 (2 relay, 1 transistor) Analog Inputs: 2 (0-10V/0-20mA) Analog Outputs: 2 (0-20mA) PTC Input: Motor temperature monitoring

Specifications Electrical Ratings Input Voltage: 380-480V AC (±10%), 3-phase, 50/60 Hz Output Power: 22 kW (30 HP) at 480V Output Current: 45.0 A continuous (40°C ambient) Overload Capacity: 110% for 1 minute every 10 minutes Output Frequency Range: 0-500 Hz Control Methods: V/Hz, Open/Closed Loop Vector, Direct Torque Control (DTC) Physical Characteristics Enclosure: IP21 (indoor industrial) Dimensions: ~450 × 220 × 240 mm (H×W×D) Weight: Approx. 16 kg Cooling: Intelligent forced-air with temperature monitoring Ambient Temperature: -15°C to +50°C (derating above +40°C) Relative Humidity: 5-95% non-condensing Altitude: Up to 1000 m without derating Compressor Management: Screw/scroll compressor protection Oil management timers Anti-recycle and minimum off timers Load/unload sequencing Energy Management Energy Optimizer: Reduces motor losses by up to 40% Adaptive Control: Self-tuning PID for varying system conditions Power Factor: >0.98 displacement factor Harmonic Mitigation: Built-in DC choke (optional) Peak Demand Management: Power limiting function Control & Connectivity I/O Configuration Digital Inputs: 6 programmable (24V DC, optical isolation) Digital Outputs: 4 (2 relay, 2 transistor) Analog Inputs: 3 (0-10V/0-20mA/PT1000, 14-bit resolution) Analog Outputs: 2 (0-20mA/4-20mA) Thermistor Inputs: 2 (PTC/KTY)

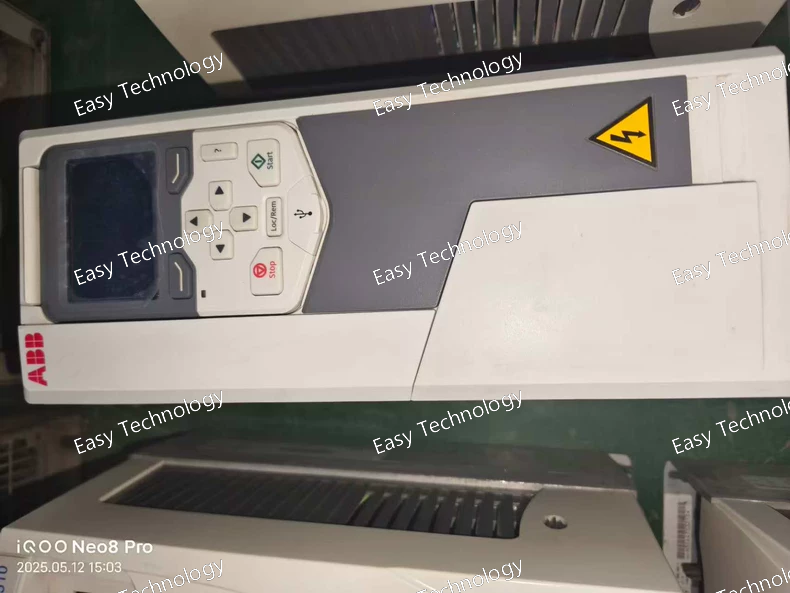

Specifications Electrical Ratings Input Voltage: 200-240V AC (±10%), 3-phase, 50/60 Hz Output Power: 18.5 kW (25 HP) at 240V Output Current: 45.0 A continuous (40°C ambient) Overload Capacity: 110% for 1 minute every 10 minutes Output Frequency: 0-250 Hz (standard), 0-500 Hz (optional) Physical Characteristics Enclosure: IP21 (indoor use, protected against dripping water) Dimensions: ~450 × 220 × 240 mm (H×W×D) Weight: Approx. 15 kg Cooling: Forced air with temperature-controlled fan Ambient Temperature: 0°C to +40°C (full rating), up to +50°C with deratin Control & I/O Configuration Standard I/O Digital Inputs: 5 programmable (24V DC) Digital Outputs: 3 programmable (2 relay, 1 transistor) Analog Inputs: 2 (0-10V/0-20mA, 12-bit resolution) Analog Outputs: 2 (0-20mA) PTC Input: For motor temperature monitoring

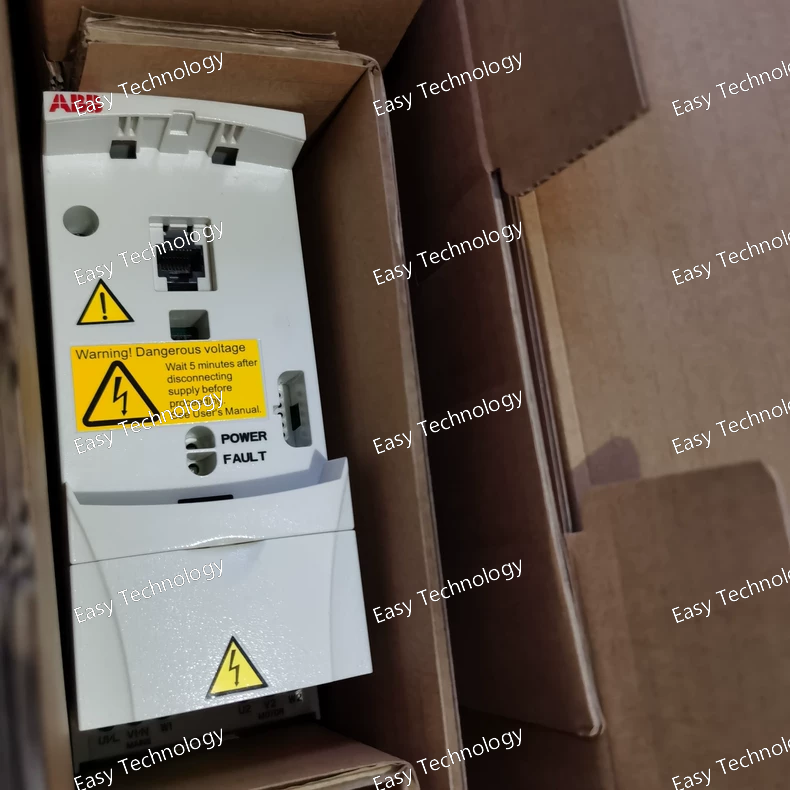

Specifications Parameter Specification Series ACS310 (Material Handling & General Purpose) Typical Power 4.0 kW (5 HP) Common Voltage 400-480V AC, 3-phase (also available in 200-240V versions) Current Rating ~9.8 A (at 400V) Enclosure Options IP21 / IP55 (depends on model suffix) Control Method Direct Torque Control (DTC) or V/Hz Core Features Application-Optimized Material Handling Macros: Pre-programmed for conveyors, cranes, hoists High Starting Torque: Up to 180% for demanding starts S-curve Acceleration: Smooth ramp-up/down for material transport Torque Proving: Ensures adequate torque before load release Technical Capabilities Built-in Modbus RTU (RS-485 standard) Enhanced I/O Configuration: 3 digital inputs (24V DC) 2 analog inputs (0-10V/0-20mA) 2 relay outputs 1 analog output (0-20mA) Integrated Brake Chopper for dynamic braking Flying Start: Can start into rotating motors PID Controller: Built-in for process control Protection & Safety Motor Protection: Thermal (I²t), phase loss, ground fault, stall prevention Drive Protection: Overcurrent, overvoltage, short circuit, overtemperature Safe Torque Off (STO): Optional safety function EMC Compliance: Built-in RFI filter (Category C3 standard) Typical Applications Conveyor Systems: Belt conveyors, roller conveyors, assembly lines Material Handling: Cranes, hoists, elevators, lifting equipment Packaging Machinery: Wrappers, fillers, labelers Machine Tools: Lathes, mills, drills Industrial Automation: Production lines, positioning systems

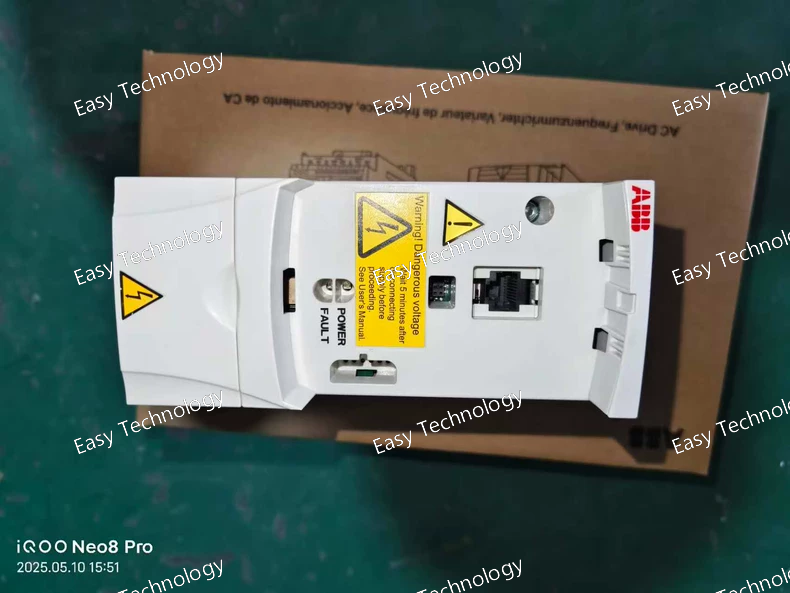

Specifications Input Power: 200-240V AC (±10%), 1-phase, 50/60 Hz Output Power: 2.2 kW (3 HP) at 240V Output Current: 9.0 A continuous Overload Capacity: 150% for 60 seconds Enclosure: IP21 (indoor industrial use) Dimensions: 210 × 90 × 165 mm (H×W×D) Weight: ~2.3 kg Cooling: Forced air (integrated fan) Key Features High Starting Torque: Up to 180% for demanding starts Material Handling Macros: Pre-programmed for conveyors, cranes, hoists Built-in Modbus RTU: RS-485 communication standard Enhanced I/O: 3 digital inputs 2 analog inputs (0-10V/0-20mA) 2 relay outputs 1 analog output (0-20mA) Brake Chopper: Integrated for dynamic braking Flying Start: Can start into rotating motor Application Focus Primary Applications: Conveyor belts and transport systems Material handling equipment Hoists and lifting devices Packaging machinery Machine tools and positioning systems

Specifications Input: 200–240V AC, 1-phase, 50/60 Hz Output: 0.55 kW (0.75 hp) at 240V, 2.8 A Enclosure: IP21 (finger-safe, drip protection) Dimensions: 152 × 70 × 142 mm (H×W×D) Weight: ~1.5 kg Cooling: Natural convection (fanless) 4. Core Features Built-in Modbus RTU (RS-485 interface) Basic I/O Configuration: 2 digital inputs (24V DC) 1 analog input (0-10V/0-20mA selectable) 1 relay output (250V AC, 2A) 1 analog output (0-20mA) Integrated Control Panel: Includes speed potentiometer Pre-programmed Application Macros: Pump, Fan, Conveyor Basic PID Controller for simple closed-loop control 5. Motor & Protection Features Motor Protection: Thermal overload, short circuit, phase loss Drive Protection: Over/under voltage, overcurrent, overtemperature Safe Stop Capability: Compatible with external safety circuits 6. Typical Applications Small ventilation fans Low-power circulating pumps Light-duty conveyors Packaging equipment Laboratory devices OEM machinery

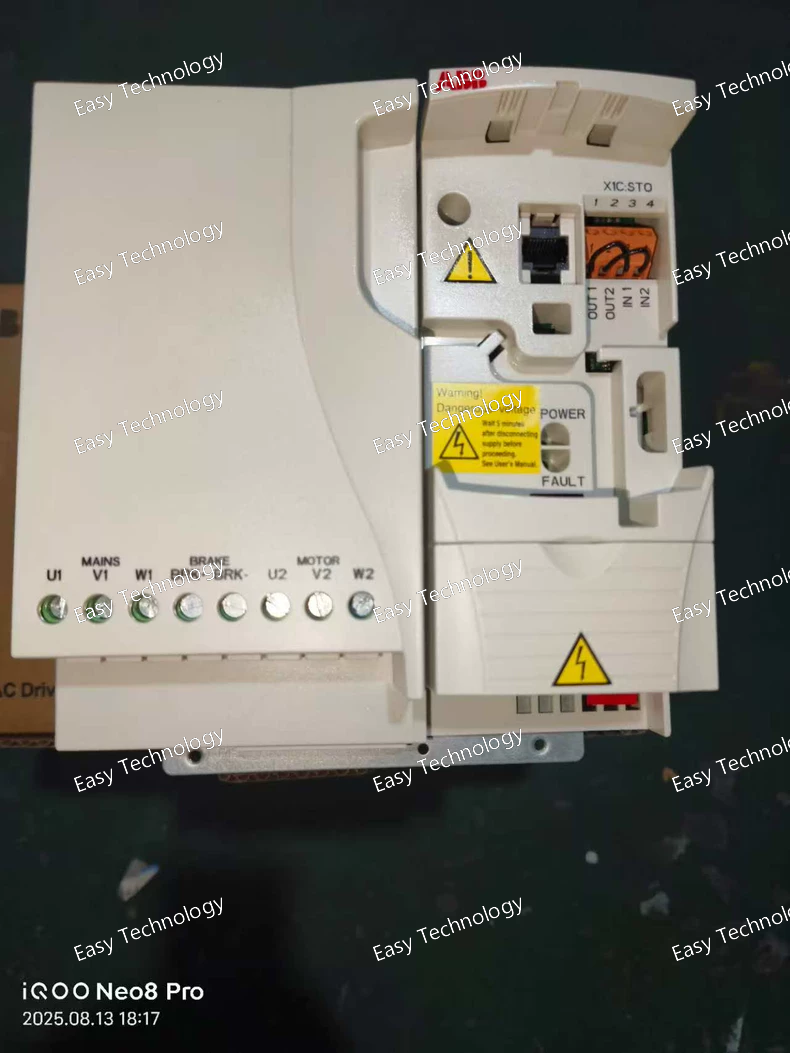

Specifications Input Supply: 200–240 V AC (±10%), 1-phase, 50/60 Hz Output Power: 1.5 kW (2 hp) at 240 V Output Current: 7.0 A continuous Overload Capacity: 110% for 60 s every 300 s Output Frequency Range: 0–500 Hz Switching Frequency: 2–16 kHz (adjustable) 4. Physical & Environmental Data Enclosure Rating: IP21 (indoor use, protected against dripping water) Dimensions: 184 × 70 × 155 mm (H × W × D) Weight: ≈ 1.8 kg Cooling: Natural convection (fanless) Ambient Temperature: –10 °C to +50 °C (derating above +40 °C) Relative Humidity: < 95% non-condensing Mounting: Wall or DIN-rail (optional kit) 5. Control & I/O Features Built-in Communication: Modbus RTU via RS‑485 Digital Inputs: 2 (24 V DC, sink/source selectable) Analog Input: 1 (0–10 V / 0–20 mA configurable) Relay Output: 1 (250 V AC, 2 A) Analog Output: 1 (0–20 mA) Integrated Operator Panel: Potentiometer + Start/Stop/Reset buttons Pre-set Macros: Pump, Fan, Conveyor, Hoist, etc. PID Controller: Built-in for simple closed-loop control 6. Motor & Drive Protection Motor Protection: Overload (I²t), stall, phase loss, earth fault Drive Protection: Overvoltage/undervoltage, short circuit, overtemperature Safe Stop: Safe torque off (STO) option via external safety relay 7. Typical Applications Commercial ventilation fans Small water pumps and circulators Conveyors and light material handling Packaging machinery Compressors and mixers (light-duty)
