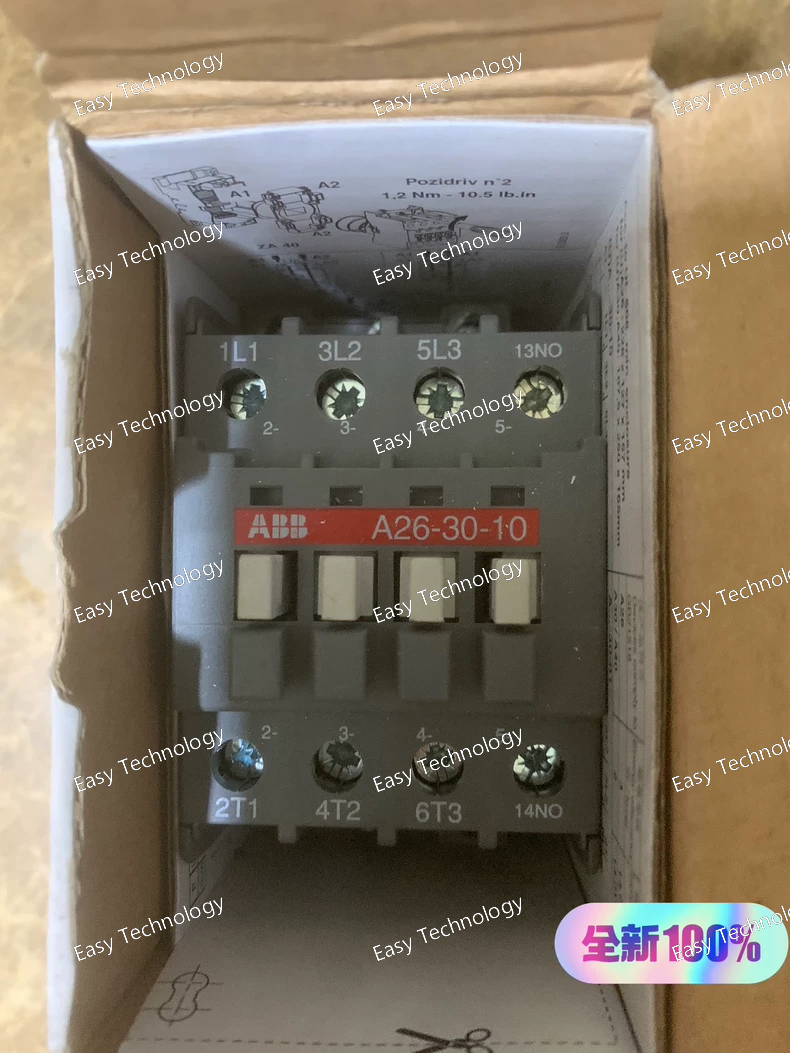

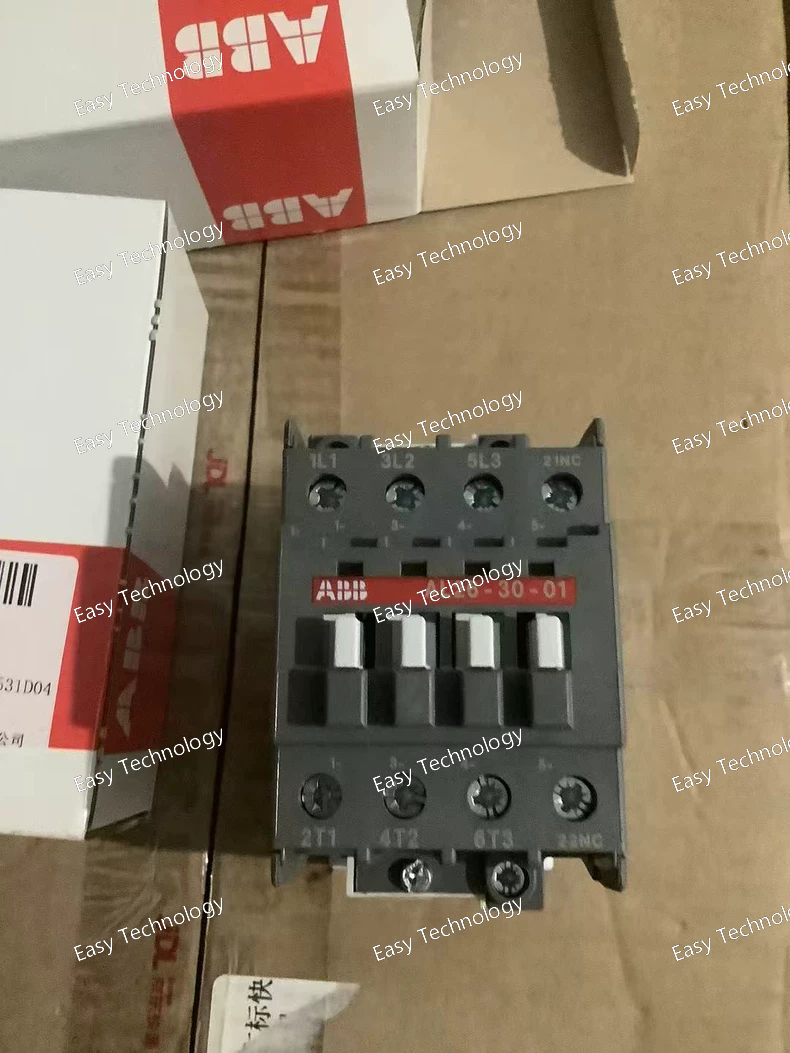

Specifications General Product Type: 3-Pole AC Contactor Series: A26 (ABB A-Series) Model: A26-30-10 Main Contact Configuration: 3 normally open (3NO) poles Auxiliary Contacts: Typically 1 NO auxiliary contact (add-on if required) Design: Block type, non-reversing contactor Mounting: Panel or DIN rail compatible Enclosure Protection: IP20 Electrical Ratings Rated Operational Voltage (Main Circuit): Up to 690 V AC Rated Current: AC-1: ~45 A AC-3: ~40 A at 400 V (motor control) Rated Control Voltage (Coil): Depends on variant (24 V, 110–120 V, 220–240 V, 380–400 V AC) Rated Insulation Voltage (Ui): 1000 V AC Rated Impulse Withstand Voltage (Uimp): 8 kV Frequency: 50/60 Hz Performance Rated Making / Breaking Capacity (AC-3): Suitable for motor loads up to ~11 kW at 400 V Mechanical Endurance: High operating cycle design Coil & Control Coil Type: AC coil versions (various voltages) Coil Consumption: Typical ~12 VA holding power (model dependent) Coil Operating Limits: Approx. 0.85–1.1 × rated control voltage Mechanical Number of Poles: 3 main poles Contact Material: Silver alloy for conductivity and durability Termination: Screw terminals Dimensions (approx): Width 54 mm, Depth 93.6 mm, Height 90 mm Weight: ~0.60 kg Environmental Operating Temperature Range: –40 °C to +70 °C Altitude Capability: Up to 3000 m Standards & Compliance Designed according to IEC 60947-4-1 standards UL/CSA approvals available on certain variants Typical Applications Motor control and switching Industrial automation systems Power distribution and control panels HVAC and compressor systems Integration with overload relays and PLC control

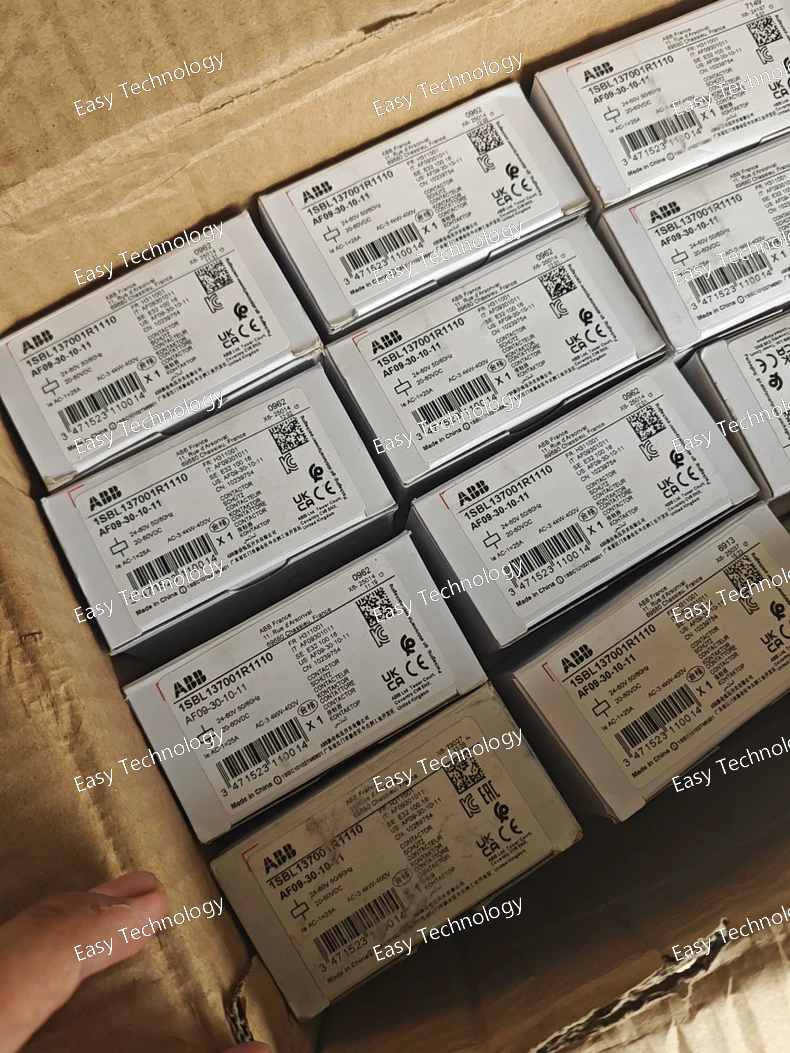

Specifications General Product Name: 3‑Pole AC Contactor Model / Catalog No.: 1SBL137001R1110 (AF09‑30‑10‑11) Series: AF09 Series Contactors Number of Poles: 3 main poles Auxiliary Contacts: 1 built‑in normally open (NO) auxiliary contact Connection Type: Screw terminals Design: Compact, block‑type contactor for panel and DIN rail mounting Protection Class: IP20 enclosure protection Electrical Ratings – Main Circuit Rated Operational Voltage: Up to 690 V AC (IEC) / 600 V AC (UL) Rated Operational Current (AC‑1): 25 A Rated Operational Current (AC‑3): 9 A Motor Control Power (AC‑3): • Up to ~4 kW at 400 V AC • Up to ~5.5 kW at 500–690 V AC Horsepower Ratings (UL/CSA): • ~5 HP @ 440–480 V AC (three‑phase) • ~7.5 HP @ 550–600 V AC (three‑phase) Control (Coil) Characteristics Control Voltage Range: • 24–60 V AC, 50/60 Hz • 20–60 V DC Coil accepts broad AC/DC voltage range for flexible control integration Built‑in surge protection on coil for reliable switching Performance & Durability Rated Short‑Time Withstand Current (Icw): Up to ~300 A (varies by duration) Electrical Durability: High cycle life under rated load conditions Mechanical Durability: Designed for frequent switching duty Rated Operational Voltage – Auxiliary Circuits: Up to 690 V AC Maximum Operating Altitude: Designed for use up to ~3000 m above sea level Mechanical Dimensions (approx): • Height: ~86 mm • Width: ~45 mm • Depth: ~77 mm Weight: ~0.27 kg Installation: Panel or DIN‑rail mount with standard screw hardware Complies With: IEC 60947‑1 / IEC 60947‑4‑1; UL 508; CSA C22.2 No.14 Environmental Ambient Operating Temperature: –40 °C to +70 °C (contactor alone) Storage Temperature: –60 °C to +80 °C Shock / Vibration: Designed for typical industrial environmental conditions Typical Applications Three‑phase motor control (starters and automation systems) HVAC equipment and pump control Industrial machinery control panels General AC power switching and load control Integration with PLCs, control relays, and safety systems

Specifications General Product Name: Industrial AC Contactor Series: A Series Model: A50-40-00 Main Contacts: 4 N.O. (Normally Open) Contactor Type: Non-reversing IEC contactor Design: Block type with easy maintenance and coil inspection features Mounting: Panel or DIN-rail compatible Standards: IEC 60947-4-1 compliance Electrical Main Circuit Voltage: Up to 690 V AC Control Coil Voltage: Varies by version (e.g., 24 V AC, 110–120 V AC, 220–240 V AC, etc.) Frequency: 50/60 Hz Rated Insulation Voltage (Ui): 1000 V AC Rated Impulse Withstand Voltage: 8 kV Coil Type: Electromagnetic AC coil Current & Load Ratings Rated Operational Current (AC-1): ~80 A Rated Operational Current (AC-3): ~54 A Rated Motor Power: Single-phase motors up to ~20 HP @ 230/240 V Three-phase motors up to ~40 HP @ 460/480 V Three-phase motors up to ~50 HP @ 575/600 V Mechanical Number of Poles: 4 Termination: Screw terminals Auxiliary Contacts: Optional add-on blocks Operating Cycles: High cycle life for frequent operation Protection Class: IP20 Weight: ~1.4 kg Environmental Ambient Operating Temperature: –40 °C to +55 °C Storage Temperature: –60 °C to +80 °C Designed for: Industrial environments with standard humidity and vibration tolerances Applications Control of three-phase motors and power circuits Industrial automation and machine control Heating and lighting load switching Power distribution control panels HVAC and pump control systems

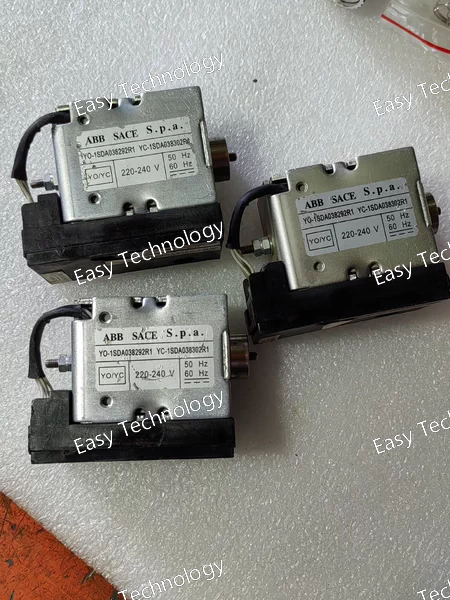

Specifications General Product Name: Shunt Closing Release Coil Part Number: YC-1SDA038302R1 Accessory Type: Remote Closing Coil for Circuit Breakers Function: Provides remote electrical closing of the circuit breaker contact mechanism Electrical Characteristics Rated Control Voltage: 220–240 V AC/DC Frequency: 50/60 Hz Control Type: AC/DC operated shunt closing coil Used to command the breaker to close when energized Compatibility Applicable Breakers: ABB Emax low-voltage air circuit breakers Suitable Frame Sizes: E1, E2, E3, E4, E6, T8 Works in conjunction with other control accessories such as shunt trip units, undervoltage releases, and auxiliary contacts Mechanical & Installation Compact module designed for panel or breaker accessory slot installation Easy electrical connection to control circuitry for remote actuation Operational Features Enables remote or automated closing action from a control source (PLC, pushbutton, control relay, etc.) Designed for reliable actuation in industrial environments Dual-rated AC/DC coil simplifies system integration Environmental & Compliance Designed per relevant IEC accessory standards Suitable for control voltages in standard industrial applications Conforms to applicable electrical safety and environmental guidelines Typical Applications Automated electrical distribution systems Switchgear control panels Motor control centers (MCCs) Remote breaker control from PLCs or DCS Safety interlock and process automation systems

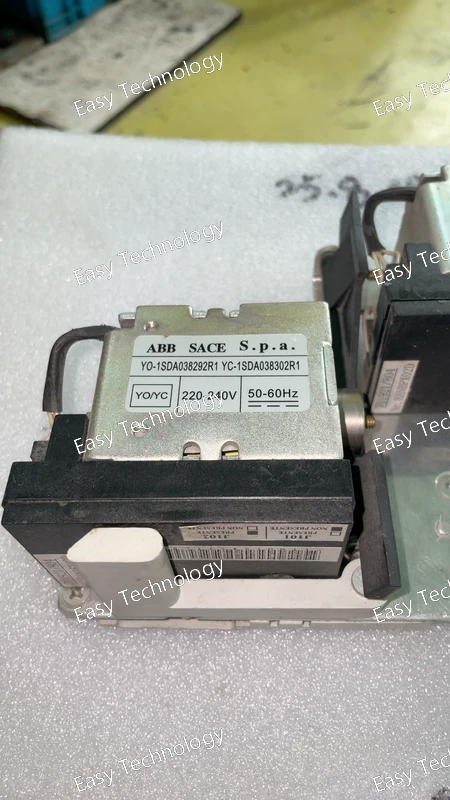

Specifications General Product Name: Shunt Closing & Opening Release Coil Part Number: YO-1SDA038292R1 Manufacturer: ABB SACE (Low-Voltage Power Accessories) Accessory Type: Shunt release coil for circuit breaker control Function Enables remote opening (trip) and remote closing of the circuit breaker via external electrical signal Used in motor control, safety interlock systems, automation sequences, and remote operation panels Electrical Characteristics Rated Control Voltage: 220–240 V AC/DC Frequency: 50/60 Hz Operates on standard industrial control voltages Dual-function coil designed for both opening and closing actuation Compatibility Applicable Circuit Breakers: ABB Emax series low-voltage breakers Frame Sizes: Typically suitable for E1 to E6 / T8 frame breakers Physical / Mechanical Compact accessory designed to mount in breaker accessory slot or panel mount Standard industrial grade construction for reliable operation in control cabinets Operational Features Supports remote breaker control via electrical logic signals Enhances system safety by integrating breaker control with automation and safety systems Can be interfaced with PLCs, building management systems, and alarm interlocks Applications Industrial switchboards and distribution panels Motor control centers (MCCs) Automated electrical control systems Emergency stop / safety interlock circuits Remote breaker actuation in process automation Standards & Compliance Designed according to IEC low-voltage accessory norms Robust design suitable for industrial environments

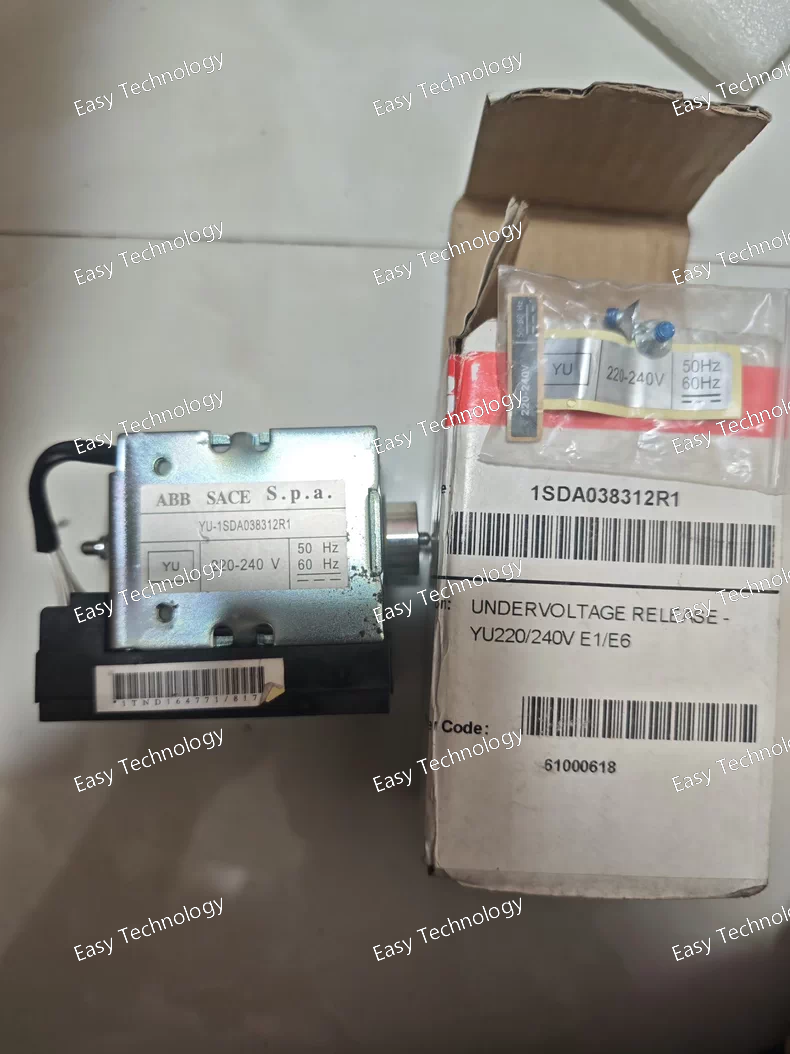

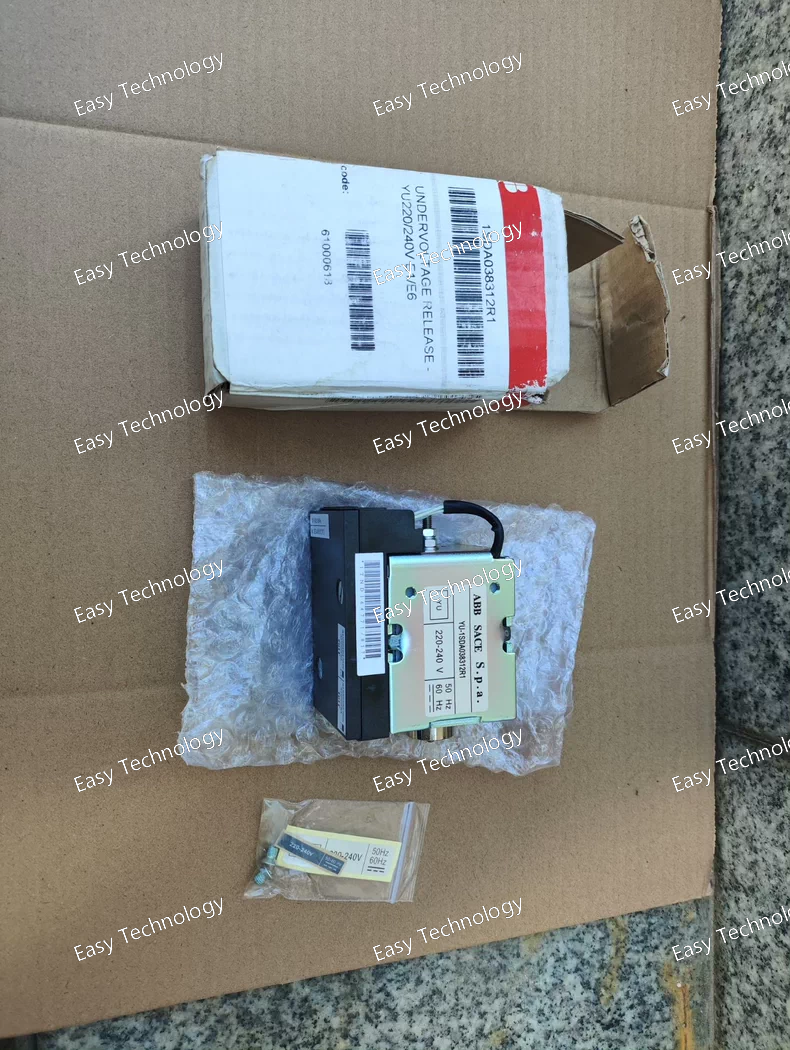

Specifications General Product Type: Undervoltage Release (UVR) Part Number: 1SDA038312R1 Function: Automatically trips the breaker during undervoltage conditions Installation: Mounts as an accessory inside ABB Emax circuit breakers Electrical Characteristics Rated Operating Voltage: 220–240 V AC, 50/60 Hz Operation: When supply voltage falls below the trip threshold, the device instantly activates the breaker opening mechanism Coil Type: AC-operated undervoltage trip coil Compatibility Applicable Breakers: ABB Emax / SACE Emax series Typical Frame Sizes: E1, E2, E3, E4, E6, T8 Works with other control accessories such as shunt trip units and auxiliary contacts Functional Features Prevents closing of the breaker if voltage is not within the safe operating range Provides automatic protection during brownouts or voltage dips Suitable for integration with industrial control and safety systems Mechanical & Environmental Protection Class: Typically IP20 Operating Temperature Range: Approx. –20 °C to +55 °C Compact module designed for easy installation inside the breaker accessory compartment Compliance Designed according to IEC standards for circuit breaker accessories CE compliant RoHS compliant Typical Applications Industrial distribution panels Motor control centers Automation systems Emergency and safety shutdown circuits Any installation requiring automatic breaker tripping during undervoltage conditions

Specifications General Product Type: Shunt Opening Release / Shunt Trip Part Number: 1SDA038286R1 Manufacturer: ABB Applicable Breakers: ABB Emax (E1, E2, E3, E4, E6, T8) Function Provides remote electrical tripping of the circuit breaker Activated by supplying control voltage to the release coil Suitable for automated control and protection systems Electrical Characteristics Rated Control Voltage: 24 V DC Control Type: Direct-current shunt trip coil Operation: Opens breaker immediately upon energizing Mechanical / Compatibility Designed to mount inside designated accessory slot on ABB Emax breakers Compatible with multiple frame sizes (E1–E6 and T8) Suitable for both new installations and retrofit upgrades Compliance Designed per IEC standards for breaker accessories CE compliant RoHS compliant Typical Applications Remote trip from PLC or DCS Fire alarm system shutdown Emergency stop circuits Electrical interlocking Energy management systems requiring remote breaker control

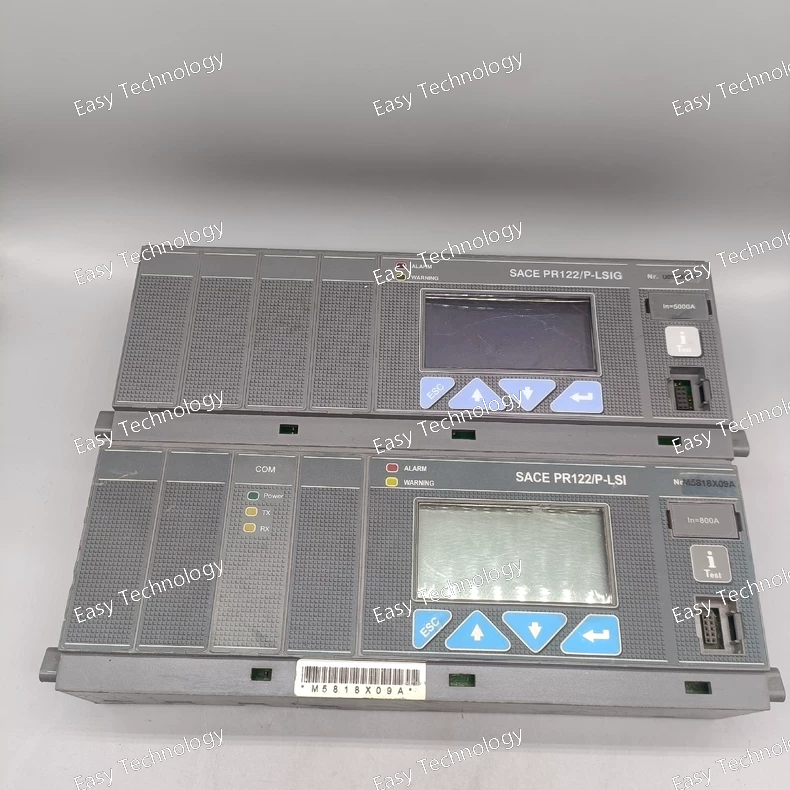

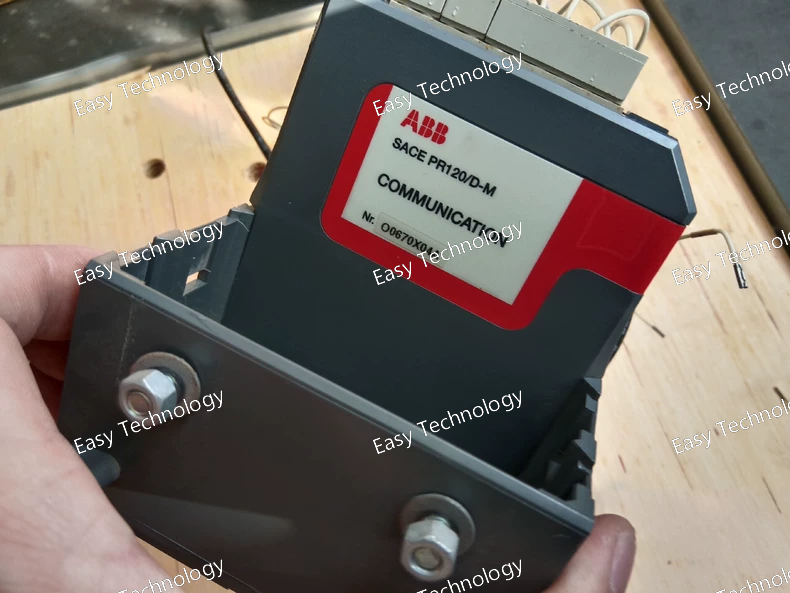

Specifications Protection Functions (Protection levels depend on breaker configuration) Long-time protection (L) Adjustable overload protection with programmable pickup and delay. Short-time protection (S) Adjustable pickup and delay with I²t ON/OFF. Instantaneous protection (I) Adjustable magnetic trip for short-circuit protection. Neutral protection (N) (when neutral CT or module is installed) Note: PR122/D-M supports standard protection suite of PR122/D series; ground-fault “G” protection requires the respective version (not included in D-M). Metering & Measurement (M – Metering Function) Phase currents Neutral current (with module) Ground current indication Voltage values (with voltage module) Power & energy (kW, kWh, kVA, kVAR) Frequency Power factor Thermal capacity Trip history & events Display & Operation Large multifunction LCD display Local pushbuttons for settings and navigation LED indicators for status and alarms Adjustable Settings L – Long-time pickup & delay S – Short-time pickup & delay, I²t enabled/disabled I – Instantaneous pickup setting N – Neutral protection (optional) Supported Current Ratings Compatible with Emax/Emax2 breakers rated: 160 A – 6300 A, depending on frame size and CT rating. Accuracy Current measurement: typically ±1% Voltage & power measurement (with module): high accuracy per IEC standards Tripping characteristics compliant with IEC 60947-2 Communication (Optional) Supports ABB communication modules such as: Modbus Profibus DeviceNet Ethernet gateways (via expansion) Enables remote settings, monitoring, and event logs. Power Supply Self-powered via CTs Optional auxiliary power depending on configuration Compliance IEC 60947-1 IEC 60947-2 CE and international approvals (breaker-dependent)

Specifications Protection Functions L – Long-time protection Adjustable pickup (typically 0.4–1 × In) and time delay for overload protection. S – Short-time protection Adjustable pickup and time delay with I²t or fixed delay selection. I – Instantaneous protection Adjustable magnetic trip for short-circuit fault clearing. G – Ground-fault protection Adjustable pickup and delay to protect against ground-fault currents. Measurement & Monitoring Measures: Phase currents Neutral current (with module) Ground-fault current Thermal capacity Trip history & alarms Digital LCD display for settings and real-time data. Adjustable Settings L (Long-time): Pickup & delay adjustable S (Short-time): Pickup & delay adjustable; I²t ON/OFF I (Instantaneous): Adjustable trip threshold G (Ground-fault): Pickup & delay adjustable Supported Rated Currents Works with Emax/Emax2 breakers from In 160A – 6300A (depends on breaker frame) Accuracy Current measurement accuracy: typically ±1% Protection tripping accuracy per IEC standards Display & Interface Multifunction LCD display LED status indicators Front pushbuttons for settings navigation Communication (optional) Compatible with ABB communication modules (Modbus, Profibus, DeviceNet, etc.) Event logging and remote supervision when communication enabled Power Supply Self-powered from current sensors (CT-fed), auxiliary power optional depending on configuration. Standards Compliance IEC 60947-1 IEC 60947-2 CE and international certifications (breaker dependent) Installation Plug-in module for ABB Emax/Emax2 air circuit breakers Field-replaceable trip unit

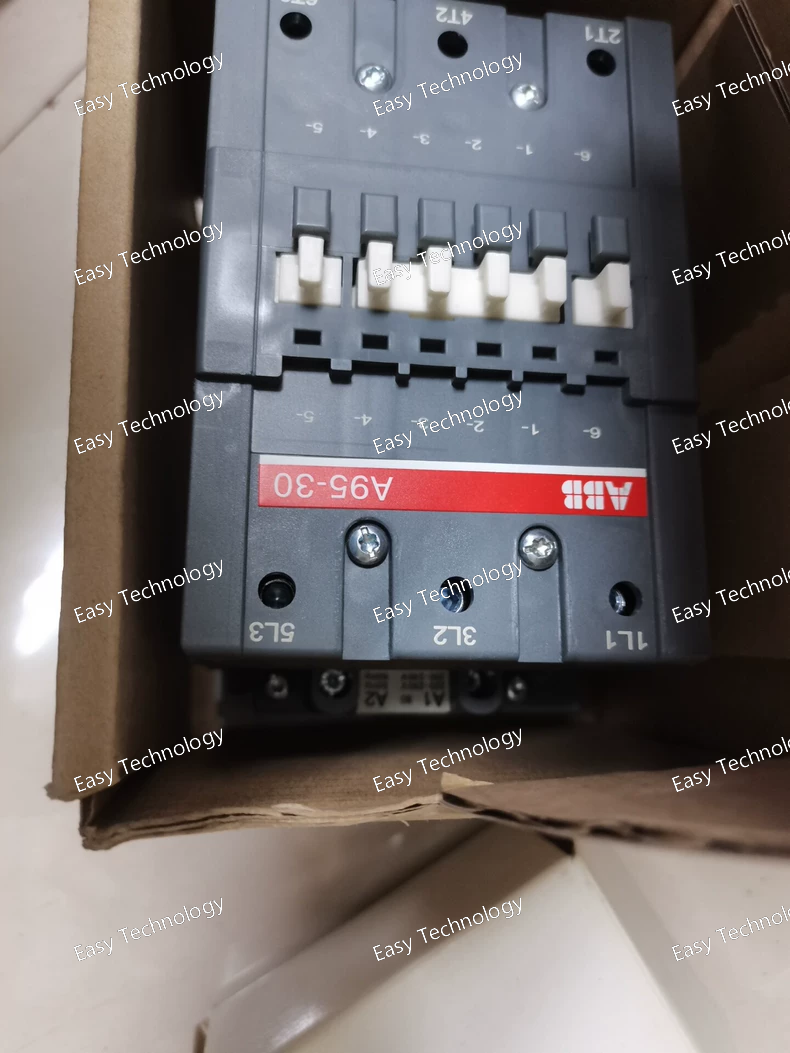

Key Parameters Parameter Specification Product Type 3-Pole AC Magnetic Contactor Series / Family A-Line (A95) Frame Size/Type Code A95-30-11 Rated Operational Current 95 A (main contacts) Poles 3 Phase 3-phase Control / Coil Voltage 110–120 VAC (50/60 Hz, typical) – variations available Rated Operational Voltage (Main Circuit) Up to ~600 V AC (depending on variant / configuration) Control Frequency 50/60 Hz Auxiliary Contacts 1 NO + 1 NC (typical for “-30-11” configuration) Mounting Type Panel or DIN-rail (depending on accessory/variant) Application Motor control, switching loads, isolation Standards Compliance IEC/EN contactor standards (e.g., IEC 60947-4-1) Typical Utilization Motor starters, control circuits, industrial distribution Construction AC magnetic contactor with replaceable auxiliary contacts

Key Parameters Parameter Specification Product Type 3-Pole AC Magnetic Contactor Series / Family A-Line (A95) Frame Size/Type Code A95-30-11 Rated Operational Current 95 A (main contacts) Poles 3 Phase 3-phase Control / Coil Voltage 110–120 VAC (50/60 Hz, typical) – variations available Rated Operational Voltage (Main Circuit) Up to ~600 V AC (depending on variant / configuration) Control Frequency 50/60 Hz Auxiliary Contacts 1 NO + 1 NC (typical for “-30-11” configuration) Mounting Type Panel or DIN-rail (depending on accessory/variant) Application Motor control, switching loads, isolation Standards Compliance IEC/EN contactor standards (e.g., IEC 60947-4-1) Typical Utilization Motor starters, control circuits, industrial distribution Construction AC magnetic contactor with replaceable auxiliary contacts

Technical Specifications Parameter Value / Description Model / Part Number AF460‑30‑11 (1SFL597001R7011) Poles (Main Contacts) 3 poles, 3 NO (normally open) Auxiliary Contacts 1 NO + 1 NC Coil (Control) Voltage (Uc) 100–250 V AC 50/60 Hz or 100–250 V DC (depending coil version) Rated Insulation / Maximum Rated Voltage Up to 1000 V IEC (600 V UL) Conventional Free‑air Thermal Current (Ith) 700 A (open contactor, ambient 40 °C) Rated Operational Current AC‑1 (Ie) 700 A @ 1000 V, 40 °C 600 A @ 1000 V / 55 °C 600 A @ 1000 V / 60 °C 480 A @ 1000 V / 70 °C (equivalently at 690 V: 700 A → 600 A → 480 A depending on temperature) Rated Operational Current AC‑3 (Ie) 460 A @ 415–500 V (55 °C) 400 A @ 690 V (55 °C) 200 A @ 1000 V (55 °C) 460 A @ 380/400 V or 220–240 V (55 °C) Rated Operational Power (AC‑3, Pe) 250 kW @ 415–440 V 315 kW @ 500 V 355 kW @ 690 V 280 kW @ 1000 V 250 kW @ 380/400 V 132 kW @ 220–240 V Making / Breaking Capacity (AC‑3) Making: 10 × Ie Breaking: 8 × Ie Short‑time Withstand Current (Icw) (cold start, free air, 40 °C) 1 s → 4600 A 10 s → 4400 A 30 s → 3100 A 1 min → 2500 A Connection Type (Main Circuit) Bar-type main contacts (supports rigid copper or aluminium cables/bars) Auxiliary & Coil Terminal Wiring Capacity Aux circuit: flexible cables with ferrules 2×0.75–2.5 mm², or solid/stranded 1–4 mm² Main circuit: rigid Cu 240 mm² or Al 2×240 mm² bar Ambient Operating Temperature With thermal overload relay: –25 °C … +50 °C Without overload relay: –40 °C … +70 °C Storage: –40 °C … +70 °C Maximum Operating Altitude Up to 3000 m Certifications / Use Cases UL/CSA general‑use rating: 650 A @ 600 V AC; suitable for motor starters, power switching, bypass/distribution, heavy‑duty switching
