ABB

Key Parameters Drive Unit Power: 30kW (40HP) Input: 3-phase 380-500V AC (±10%) Output: 60A Control: DTC (Direct Torque Control) Overload: 150% for 60s P901 Brake Chopper Braking Power: 30kW continuous Peak Capacity: 45kW (60s) Requires external resistor Performance Speed accuracy: ±0.1% Torque accuracy: ±1% Switching freq.: 1-12kHz Physical Dimensions: 482×245×227mm (H×W×D) Weight: 15kg Cooling: Forced air IP Rating: IP21 Certifications CE, UL, cUL SIL3/PL e compliant

197

ABB

Key Specifications Parameter Value Power Rating 18.5 kW (25 HP) Input Voltage 3-phase 380-500V AC (±10%) Output Current 38 A Overload Capacity 150% for 60s Control Method DTC (Direct Torque Control) Efficiency >98% Switching Frequency 1-12 kHz (adjustable) Main Features ✔ Advanced Motor Control Speed accuracy: ±0.1% (sensorless) Torque accuracy: ±2% of rated Flying start function ✔ Compact Design Space-saving IP21 enclosure Forced air cooling Wall-mount installation ✔ Application Flexibility 10 pre-programmed macros Built-in PID controller Customizable logic ✔ Protection Motor thermal protection Short-circuit protection Ground fault detection ✔ Connectivity RS485 (Modbus RTU) standard Optional fieldbus adapters Physical Specs Dimensions: 350 × 482 × 227 mm Weight: 18 kg Ambient Temp: 0-40°C Certifications CE UL cULus IEC 61800-3

727

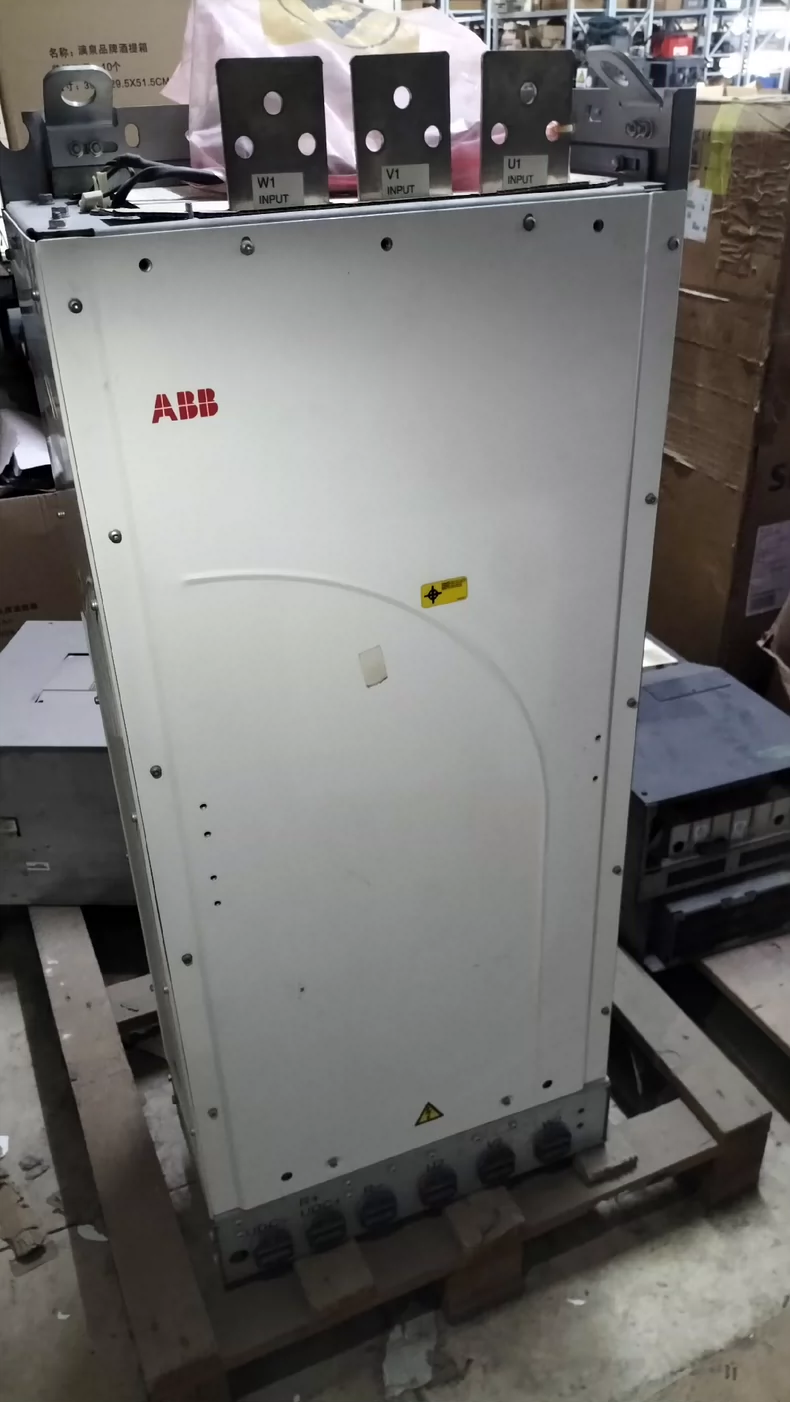

ABB

Key Specifications Parameter Value Power Rating 250 kW (335 HP) Input Voltage 3-phase 380-500V AC (±10%) Output Current 450 A Overload Capacity 150% for 60s Control Method DTC (Direct Torque Control) Efficiency >98.5% Switching Frequency 1-4 kHz (adjustable) Main Features ✔ Precision Control Speed accuracy: ±0.01% (with encoder) Torque accuracy: ±1% of rated Adaptive motor tuning ✔ Robust Construction Heavy-duty IGCT power stage IP21 enclosure (IP54 kit available) 50°C ambient operation ✔ Connectivity Standard: Ethernet (TCP/IP) Modbus TCP Optional: PROFIBUS DP-V1 PROFINET IRT ✔ Safety Safe Torque Off (STO) Safe Stop 1 (SS1) SIL3/PL e certified Physical Specs Dimensions: 900×2200×600 mm Weight: 320 kg Cooling: Liquid cooling system Certifications CE UL 61800-5-1 cULus DNV GL

575

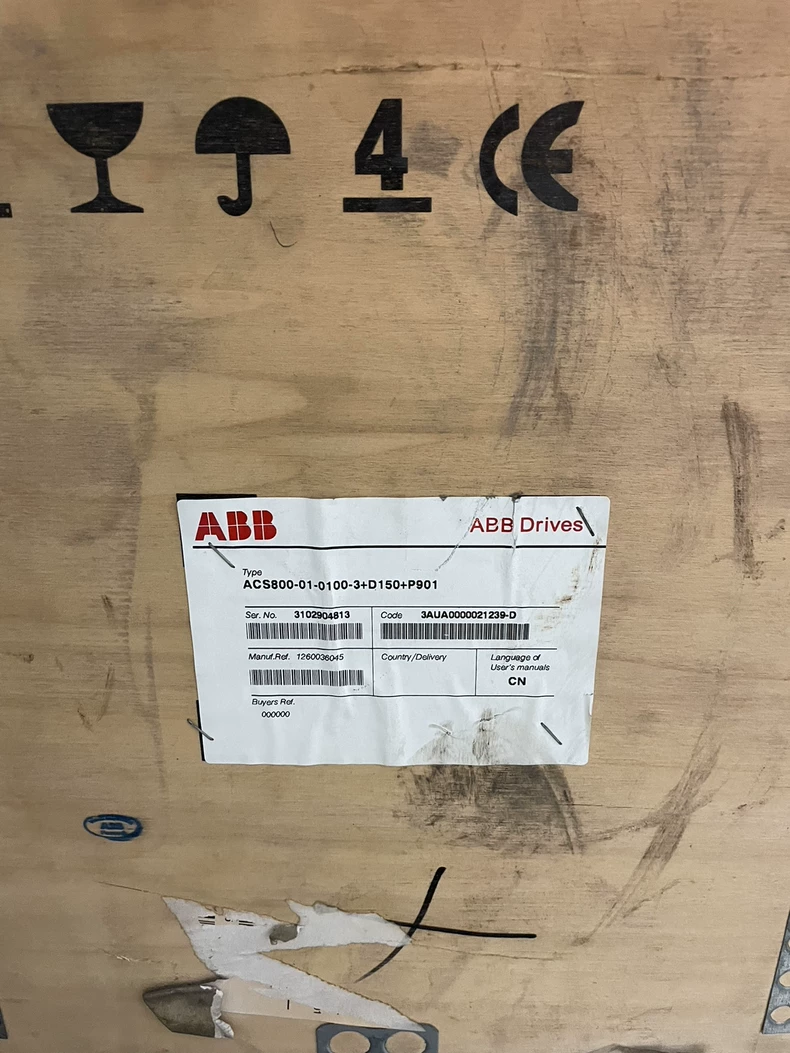

ABB

Key Parameters Core Drive Power: 110kW (150HP) Input: 3-phase 380-500V AC (±10%) Output Current: 210A Control: DTC (Direct Torque Control) Overload: 150% for 60s Modules D150 Control Panel 7" color touchscreen USB parameter backup Real-time trending P901 Brake Chopper Braking power: 110kW cont. Peak: 165kW (60s) Requires external resistor Performance Speed accuracy: ±0.1% Torque accuracy: ±1% Switching freq.: 1-4kHz Physical Dimensions: 800×2200×450mm (W×H×D) Weight: 220kg Cooling: Liquid cooling (standard) IP Rating: IP21 Certifications CE, UL, cUL SIL3/PL e

161

ABB

Key Specifications Power Rating: 11 kW (15 HP) Input Voltage: 3-phase 380-480V AC (±10%), 50/60Hz Output Current: 25 A Overload Capacity: 150% for 60 seconds Control Technology: DTC (Direct Torque Control) Brake Chopper: Integrated (P901 module) Switching Frequency: 1-12 kHz (adjustable) Efficiency: >98% Main Features ✔ Advanced Motor Control Sensorless speed control (±0.1% accuracy) Automatic motor adaptation Torque control mode (±2% accuracy) Flying start function ✔ Braking System (P901) Handles regenerative energy Requires external brake resistor LED status indicator 150% braking torque capacity ✔ Application Flexibility Multiple application macros Built-in PID controller Pump and fan control curves Customizable application programming ✔ Protection Features Motor thermal protection Short circuit protection Ground fault detection DC bus overvoltage protection Physical Characteristics Dimensions: 245 × 482 × 227 mm (W×H×D) Weight: 12 kg Enclosure Rating: IP21 Cooling Method: Forced air Ambient Temperature: 0-40°C (32-104°F)

330

ABB

Key Specifications Power & Performance Rated Power: 4 kW (5 HP) Input Voltage: 3-phase 380-480V AC (±10%), 50/60 Hz Output Current: 9.5 A Overload Capacity: 110% continuous 150% for 60 seconds Control Method: Direct Torque Control (DTC) Braking Capacity (P901): Continuous: 4 kW Peak (60s): 6 kW Switching Frequency: 1-12 kHz (adjustable) Efficiency: >98% Main Features ✔ Advanced Motor Control DTC technology (±0.1% speed accuracy) Automatic motor adaptation Flying start capability ✔ Brake Chopper (P901) Handles regenerative energy Requires external brake resistor LED status indicator ✔ Compact Design Space-saving IP21 enclosure Convection cooling (fanless) Easy wall-mount installation

508

ABB

Key Parameters Drive Unit Power: 90kW (125HP) Input: 3-phase 380-480V AC (±10%) Output: 180A Control: DTC (Direct Torque Control) Overload: 150% for 60s Modules D150 Control Panel 7" color touchscreen USB parameter backup Real-time trending P901 Brake Chopper Braking power: 90kW cont. Peak: 135kW (60s) Requires external resistor Performance Speed accuracy: ±0.1% Torque accuracy: ±1% Switching freq.: 1-12kHz Physical Dimensions: 800×2200×450mm Weight: 185kg Cooling: Forced air IP Rating: IP21 Certifications CE, UL, cUL SIL3/PL e

431

ABB

Key Specifications Power & Performance Rated Power: 18.5 kW (25 HP) Input Voltage: 3-phase 380-480V AC (±10%), 50/60 Hz Output Current: 38 A Overload Capacity: 110% continuous Control Method: Direct Torque Control (DTC) Efficiency: >98% (IE4 equivalent) Water Industry Features ✔ Pump-Specific Intelligence Multi-pump controller (up to 4 pumps) Dry-run protection with automatic restart Anti-clogging cycle for wastewater Leak detection algorithm ✔ Advanced Connectivity Built-in Modbus RTU & PROFIBUS IoT-ready with optional cellular module SCADA integration templates ✔ Robust Protection Corrosion-resistant (IP66/NEMA 4X) Enhanced EMC filtering 50°C ambient operation capability Physical Specifications Dimensions: 350 × 482 × 227 mm (H×W×D) Weight: 18 kg Cooling: Convection (fanless) Material: Stainless steel screws & coated PCB Certifications UL 61800-5-1 CE cULus IEC 61800-3 Cat C3 NEMA 4X/12 (optional)

907

ABB

Key Specifications Parameter Value Power Rating 15 kW (20 HP) Input Voltage 3-phase 200-240V AC (±10%) Output Current 45 A Overload 110% continuous Control Method Sensorless Vector Control THDi <5% (with built-in filter) HVAC-Specific Features ✔ Smart Control Automatic energy optimization (saves up to 30%) Adaptive PID for pressure/flow control Pump cleaning cycle program ✔ Connectivity Built-in BACnet MS/TP & Modbus RTU Cloud monitoring via ABB Ability™ Optional wireless module ✔ Protection Motor thermal protection (PTC/Pt100) Surge protection (6kV/3kA) Condensation prevention Physical Specs Dimensions: 245×482×227mm Weight: 12 kg Enclosure: IP21 (IP55 kit available) Ambient Temp: -15°C to +50°C Certifications UL 61800-5-1 CE cULus EN 61800-3 Cat C2

93

ABB

Key Specifications Parameter Value Power Rating 0.75 kW (1 HP) Input Voltage 3-phase 380-480V AC (±10%) Output Current 2.4 A Overload 110% continuous, 150% for 3s Control Method Scalar (V/f) Switching Freq. 1-16 kHz (adjustable) Efficiency >96% Main Features ✔ HVAC-Optimized Control Automatic Energy Optimizer PID controller with sleep/wake Pump/fan preset curves ✔ Basic Connectivity RS485 (Modbus RTU) 2 analog inputs (0-10V/4-20mA) 3 digital inputs ✔ Protection Motor thermal protection Short-circuit protection Ground fault detection Physical Specs Dimensions: 150×200×165mm Weight: 1.8 kg Cooling: Natural convection IP Rating: IP20

926

ABB

Key Parameters Core Drive Power: 7.5kW (10HP) Input: 3-phase 380-480V AC (±10%) Output: 18A Control: DTC (Direct Torque Control) Overload: 150% for 60s Modules B056 - Basic Control Panel LCD display Keypad navigation E202 - I/O Extension +2AI (0-10V/4-20mA) +2DI +1RO P901 - Brake Chopper Braking power: 7.5kW cont. Requires external resistor Performance Speed accuracy: ±0.1% Switching freq.: 1-12kHz Physical Dimensions: 245×482×227mm (W×H×D) Weight: 12kg Cooling: Forced air IP Rating: IP21 Certifications CE, UL, cUL

213

ABB

Key Specifications Power & Performance Rated Power: 11 kW (15 HP) Input Voltage: 3-phase 380-480V AC (±10%), 50/60 Hz Output Current: 25 A Overload Capacity: 110% continuous 150% for 3 seconds Control Method: Scalar (V/f) & Sensorless Vector Control Efficiency: >97% Switching Frequency: 2-16 kHz (adjustable) Main Features 1. Motor Control V/f control with torque boost Automatic Energy Optimizer DC braking capability 2. Application Features 3 preset speed settings Basic PID controller Customizable acceleration/deceleration 3. Protection & Safety Motor thermal protection Short-circuit protection Ground fault detection 4. Connectivity Standard: RS485 (Modbus RTU) 2 analog inputs (0-10V/4-20mA) 3 digital inputs 1 relay output 5. Compact Design Space-saving IP20 enclosure Lightweight (7.5 kg) Fanless cooling Physical Specifications Dimensions: 150 × 245 × 195 mm (W×H×D) Weight: 7.5 kg Cooling: Convection Ambient Temperature: 0-40°C (32-104°F)

102
