BENTLY 3500/15 106M1079-01 Product Description
Product Overview

BENTLY 3500/15 106M1079-01 is a universal AC power module suitable for Bently Nevada 3500/15 systems. It is a half height module that must be installed in a specific slot on the left side of the rack. The rack can accommodate one or two power supplies, which can be any combination of AC or DC. A complete rack can be powered by any power source. If two power supplies are installed, the power supply located in the lower slot will serve as the main power supply, and the power supply located in the upper slot will serve as the backup power supply. If an auxiliary power supply is installed, it will serve as a backup for the main power supply.

Product parameters

Input voltage: 90-265 VAC, 47-63 Hz
Output voltage: 24 VDC, 5 A
Power: 120 W
Ripple and noise:<20 mVpp
Efficiency:>85%
Working temperature: 0 to 50 ° C
Storage temperature: -40 to 85 ° C
Humidity: 0 to 95% non condensing
Size: 216 mm x 102 mm x 44 mm (8.50 inches x 4.02 inches x 1.73 inches)
Weight: 2.3 kg (5.1 lbs)

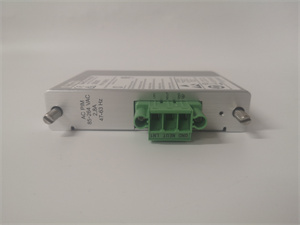

BENTLY 3500/15 106M1079-01

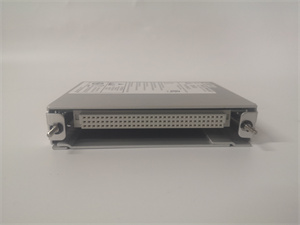

BENTLY 3500/15 106M1079-01
