ABB SM811K01

ABB SM811K01 Safety CPU Module
Product Overview

ABB SM811K01 is a high-performance secure CPU module designed specifically for secure applications in industrial automation systems. It can achieve high reliability safety functions, ensuring the safety of personnel and equipment.

main features

High safety level: Meets SIL 3 safety level requirements and can meet demanding safety application requirements.

Multifunctionality: Supports multiple security functions, such as secure input/output, secure interlock, secure control, etc.

Flexible configuration: It can be flexibly configured according to different application requirements.

Easy to integrate: It can be easily integrated into ABB's automation systems.

High reliability: Adopting redundant design and self diagnostic function to ensure the reliable operation of the system.

Product parameters

Parameter Item Parameter Value Unit

Safety level SIL 3-

The number of input/output points varies depending on the model

Communication interfaces such as EtherCAT and PROFIBUS-

Working temperature -20 ℃~+55 ℃

Installation method: DIN rail-

Note: The above parameters are only typical values. Please refer to the product data manual for specific parameters. The parameters of different models of SM811K01 modules may vary.

Product specifications

Standards: IEC 61508, IEC 62061

Certification: T Ü V S Ü D, CSA

Environment: Working temperature: -20 ℃~+55 ℃

Size: Depending on the specific model

Series and Features

SM811K01 belongs to ABB's safety system series and is an important member of this series. Its main features include:

High performance: Provides fast response and high reliability security features.

Modular design: facilitates system expansion and maintenance.

Reliability: Adopting redundant design and self diagnostic function to ensure the reliable operation of the system.

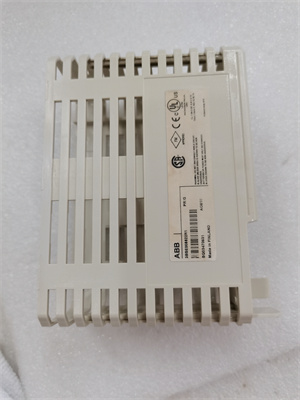

ABB SM811K01
Function and Application

The main function of the SM811K01 secure CPU module is to implement security control functions and ensure the safety of personnel and equipment. Its main uses include:

Safety interlock: Implement safety interlock functions for safety doors, safety fences, etc.

Emergency stop: Implement emergency stop function to quickly stop the equipment in case of danger.

Speed monitoring: Implement speed monitoring function to prevent equipment from running too fast.

Security control: Implement other security control functions, such as safe start, safe stop, etc.

application area

The SM811K01 secure CPU module is widely used in many industries, including:

Automotive manufacturing: robot safety, press safety, etc.

Packaging industry: packaging machinery safety, logistics system safety, etc.

Chemical industry: process control safety, equipment protection, etc.

Machine tool industry: machine tool safety, personnel protection, etc.
